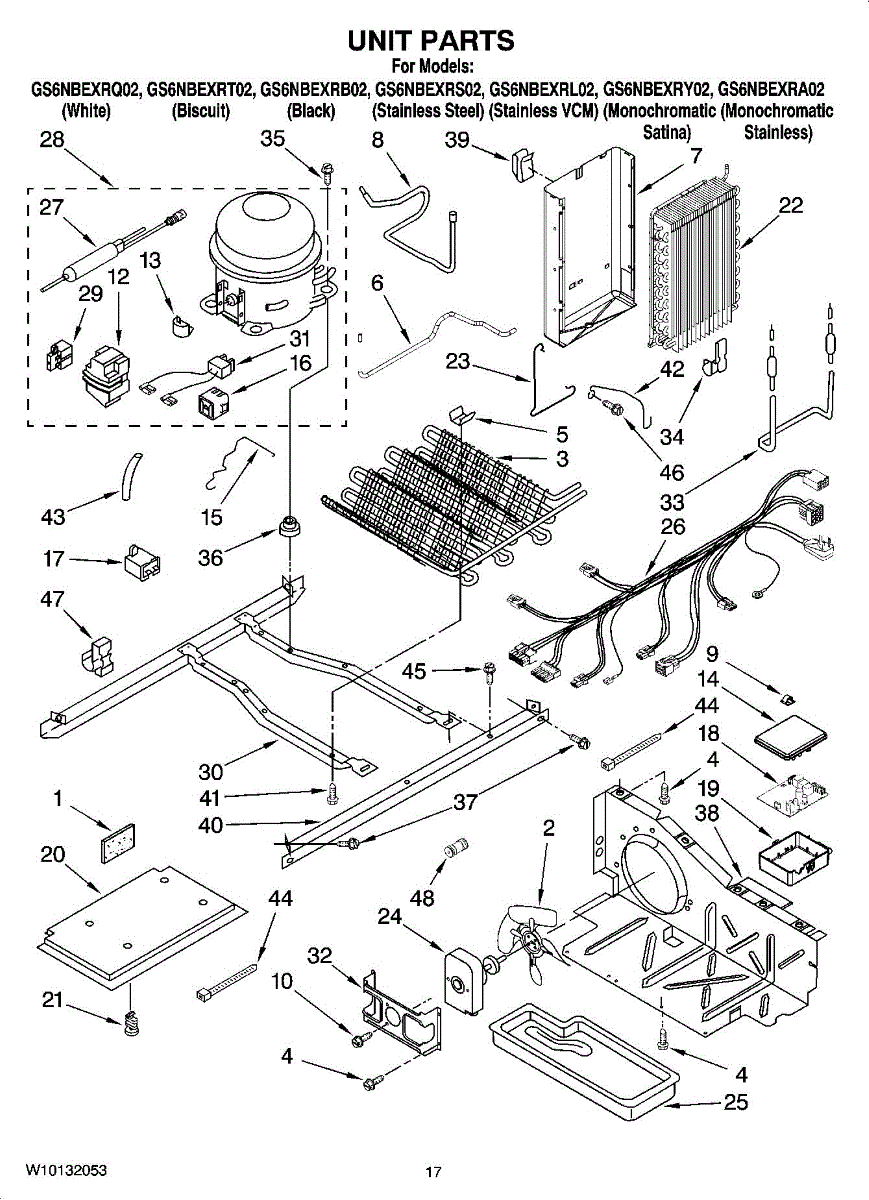

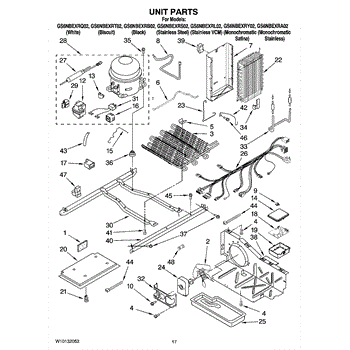

Parts for Whirlpool GS6NBEXRS02: 11 - Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Refrigerator not cooling or freezer too warm? A faulty condenser may be the cause. This part helps dissipate heat for proper cooling performance.

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order a new clip if yours is broken, cracked, or missing.

Replace your refrigerator's suction tube if cracked, kinked, or leaking. This tube connects internal components in the cooling system. Exact fit part.

Replacement clip for refrigerators and freezers. Secures shelves, bins, or internal components. Order when original clip is broken, cracked, or missing.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This terminal block cover protects the appliance's electrical connection area from accidental contact and debris, helping reduce the risk of shorts and corrosion while keeping wiring secure and contained. What it does:

• Covers and shields the power terminal/block where the power cord connects
• Helps prevent accidental contact with live terminals and reduces short risk
• Keeps out dust, lint and debris that can cause corrosion or arcing
• Useful when the original cover is cracked, missing or showing burn marks

• Always disconnect power (unplug or switch off breaker) before servicing electrical components
• Typically installs over the terminal block and secures with the existing fastener(s); inspect mounting hardware for wear
• Replace if cracked, melted or if terminals are exposed; ensure cover seats fully before restoring power

Refrigerator not cooling or stops running after a few days? This compressor overload protector prevents motor damage from overheating. Easy 15-minute fix.

Refrigerator retaining clip secures components in place. Replace if broken, cracked, or loose to prevent rattling or parts shifting. Verify fit with your model.

Fix a refrigerator that won't cool or clicks repeatedly. This compressor start device restores cooling function. Easy DIY repair in under an hour.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Freezer not cooling or excessive frost buildup? The evaporator assembly circulates refrigerant to remove heat. Moderately difficult repair for DIYers.

Fix frost buildup in your refrigerator with this defrost heater mounting clip. Secures heater to evaporator for consistent defrosting performance.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Water leaking from bottom of fridge? Cracked evaporator drip tray lets defrost water escape. Moderate DIY repair, about 45-60 minutes with our guide.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix a refrigerator that won't cool or runs constantly with this compressor. Essential sealed system component for restoring proper cooling performance.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Support frame for refrigerators. Mounts internally to provide structural support. Replace if cracked, broken, or damaged to restore proper alignment.

This wire assembly connects the capacitor to the appliance's motor or control, restoring a secure electrical path for reliable start/run operation. Replaces a damaged or worn harness to help resolve starting and intermittent power issues. What it does:

• Provides insulated wiring and terminals to link the capacitor to the motor or control
• Ensures a secure electrical connection for proper start/run signaling
• Can resolve symptoms such as failure to start, humming or intermittent motor starting
• Prevents shorts or arcing from frayed or damaged wiring when functioning correctly

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a dangerous charge — have the capacitor safely discharged before disconnecting wires
• Match connectors and routing to the original harness; secure wires away from moving parts and heat sources

Refrigerator not cooling properly? A damaged condenser fan motor bracket causes fan wobble and poor airflow. This mounting bracket restores stability.

Ice buildup in freezer or warm fridge? This defrost heater melts frost from evaporator coils during the defrost cycle. Moderate DIY repair with video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

8 x 1/12

Fix uneven cooling and warm spots in your refrigerator with this air baffle. Directs cold air properly throughout compartments. Simple DIY fix.

Door shelf support rail for side-by-side refrigerators. Mounts inside the door to hold shelves and bins. Replace if cracked, broken, or missing.

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

Replacement fastener screw for appliances. Secures panels, trim, clips, and components. Needed when original screws are stripped, missing, or damaged.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
