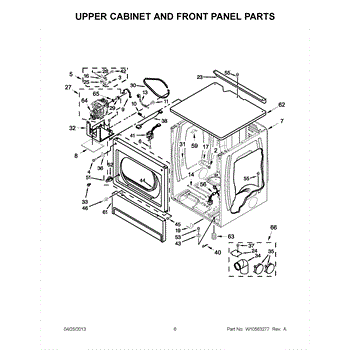

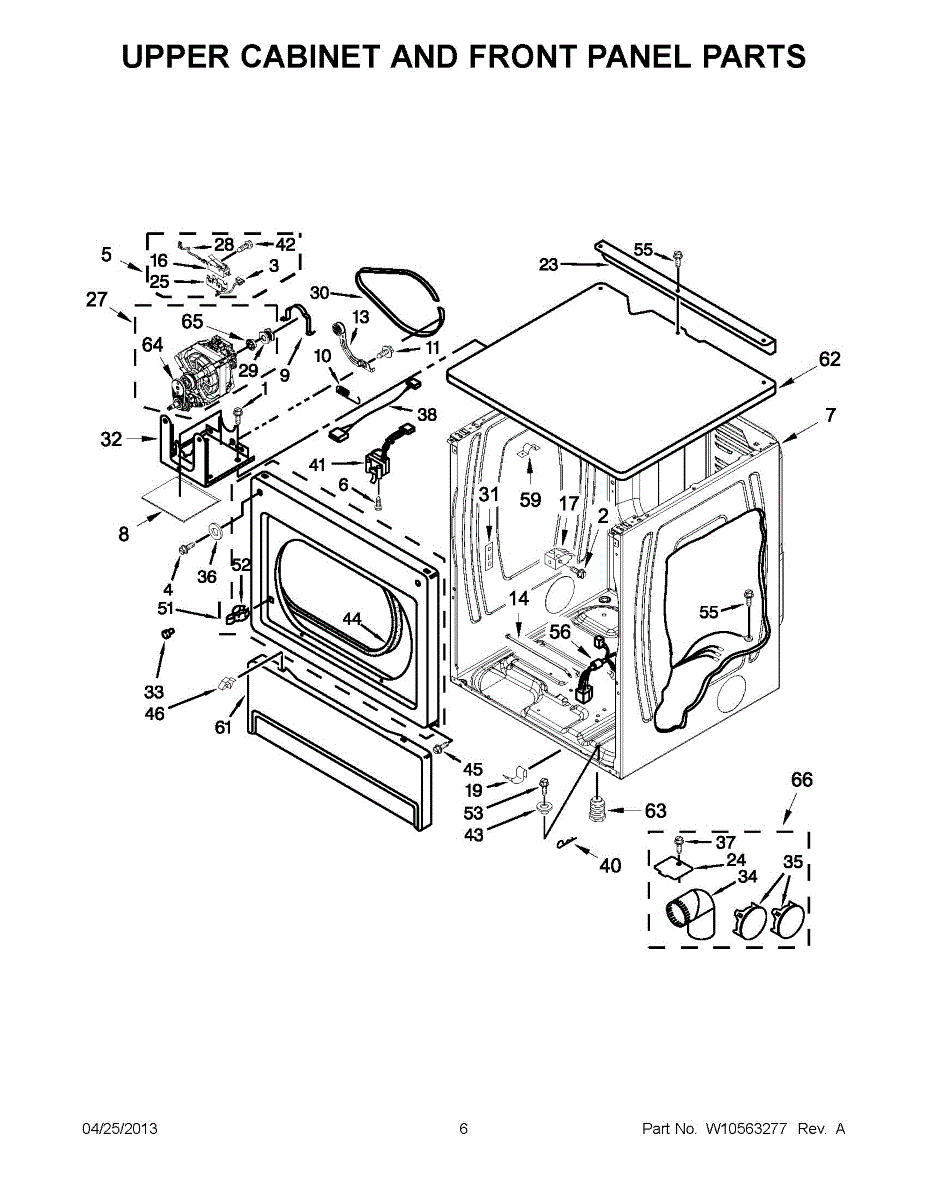

Parts for Maytag MLE24PRAYW2: 03 - Upper Cabinet And Front Panel Parts

Specs: 10-16 x 1/2 inch.

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Keep the drive system running smoothly. This idler pulley maintains proper belt tension and tracking so the drum/tub or drive system turns quietly and reliably, helping prevent squeal, slip, and premature belt wear. What it does

• Maintains constant tension on the drive belt to prevent slipping
• Guides the belt for smooth, consistent rotation of the drum/tub or drive system
• Helps reduce belt noise and premature belt wear
• Common symptoms of a worn pulley include squealing/scraping noises, burning rubber smell, the belt coming off or fraying, or no tumble/agitate/spin

• 1 idler pulley

• Disconnect power; turn off gas supply before servicing
• Access the belt path and note routing before removal
• Relieve belt tension, remove the old pulley, and install the new pulley in the same position; ensure the belt is seated on all pulleys
• Manually rotate the system to verify smooth operation before reassembly and testing

This condenser tie is a small plastic wire tie used to secure the condenser assembly or related wiring and tubing in place. It helps prevent rubbing, vibration noise, and loose routing that can cause wear or interference. What it does:

• Secures condenser coils, wiring harnesses, or drain/tubing to the appliance frame
• Prevents rubbing and vibration that can cause noise or premature wear
• Keeps wiring and tubing routed away from moving parts and hot surfaces
• Helps maintain tidy component placement for reliable operation

• Disconnect power to the appliance before servicing.
• Use pliers or a tie tool to snug the tie; trim excess tail flush to avoid sharp edges.
• Single-use plastic ties may need replacement if cut for removal.
• Route tied components clear of fans, sharp edges, and heating elements.

This switch actuator assembly transfers motion to a microswitch so the appliance can sense a required condition and operate safely. If the actuator wears or breaks, the switch may not engage, causing no-start or intermittent operation. What it does:

• Presses the corresponding microswitch at the correct point in the mechanism's travel
• Signals the control that a required condition is met
• Helps prevent operation when the mechanism isn't in the correct position
• Common symptoms of a failed actuator: won't start, starts and stops intermittently, or requires pressure on a handle/lever to run

• 1 switch actuator assembly

• Disconnect power to the appliance; if applicable, shut off gas
• Access the switch area; note the actuator's orientation before removal
• Transfer any screws/clips from the old part as needed; avoid bending the lever or over-tightening hardware
• After reassembly, test operation before fully closing panels

This toe kick retainer clip secures the dishwasher's lower access panel to the base for a clean, rattle-free fit. Replace worn or missing clips to keep the front panel properly aligned after service or cleaning. What it does:

• Attaches the toe panel/kickplate to the dishwasher base or frame
• Helps prevent panel vibration, gaps, and rattling at the bottom front
• Restores a snug fit when the original retainer is broken, bent, or missing
• Common symptoms include a loose, drooping, or noisy kickplate

• 1 retainer clip

• Disconnect power at the breaker before servicing; wear cut-resistant gloves
• Remove the screws securing the toe panel and pull the panel away carefully
• Install the new retainer in the designated slot/tab and ensure it snaps fully into place
• Reinstall the toe panel and fasteners; confirm the panel seats flush and secure

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

This drive motor powers the appliance's main drive system, converting electrical energy into steady rotation under load. Replacing a weak, noisy, or seized motor restores proper movement and dependable operation. What it does

• Provides the mechanical torque that turns the appliance's drive system
• Resolves symptoms like no movement, humming/buzzing without turning, or stalling under load
• Helps eliminate intermittent starting and overheating shutdowns
• Reduces grinding/squealing motor noises caused by worn bearings or a failing armature

• One drive motor assembly

• Disconnect power before servicing; also shut off gas supply
• Take photos/label wires, then transfer connectors and any mounting parts from the old motor
• Ensure the motor spins freely and the belt/pulley alignment is correct before reassembly
• After installation, perform a brief test run while observing for smooth, quiet operation

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Belt is an OEM replacement part for Whirlpool clothes dryers. This belt transfers power from the motor to the drum, causing it to spin and gently tumble dry clothes.

Causes of belt failure typically relate to normal wear and tear over thousands of dryer cycles. As belts constantly rotate under tension, cracks and looseness can develop which affects their ability to grip smoothly. Physical damage from improper installation is another potential cause.

Symptoms of a worn or broken belt include:

• An unbalanced or off-center drum that wobbles during operation
• Loud squealing, screeching or grinding noises
• The motor runs but the drum does not spin
• Damp or partially dried clothes after a full cycle

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This door hinge clip secures the hinge assembly to the appliance door so the door stays aligned and opens and closes properly. A small, direct-fit replacement used when the original clip is cracked, broken, or missing. What it does

• Holds the door hinge in position to keep the door aligned and stable
• Prevents the hinge pin or bracket from shifting or coming loose
• Commonly replaced when the clip is cracked, worn, or fails to retain the hinge
• Helps restore normal door movement and reduce sagging or misalignment

• High-level DIY: remove the door/hinge per your model's service instructions before replacing the clip
• Use caution handling the door to avoid injury or damage; support the door while the hinge is disconnected
• Replace only with the exact part number to ensure proper fit and function

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

Side and bottom exhaust kit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Dryer Door Switch is an OEM replacement part for Whirlpool dryers. It is a crucial safety component that monitors the opening and closing of the dryer door, preventing the dryer from operating when the door is open.

Symptoms of a faulty Dryer Door Switch include:

• The dryer failing to start or operate with the door closed
• The dryer continuing to run or heat even when the door is open
• Error codes or warning lights related to the door switch sensor

Causes of a bad door switch can include normal wear and tear over time, physical damage from mishandling or impact, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

A front toe panel assembly that restores the lower front trim and airflow opening on compatible laundry appliances. Replaces a damaged or missing lower access panel to keep the cabinet sealed and looking finished. What it does:

• Covers the lower front of the appliance cabinet, protecting internal components from debris.
• Restores the lower air or vent opening and directs airflow as intended.
• Prevents items from falling under the appliance and reduces drafts at the base.
• Helps maintain proper appearance and fit of the appliance front.

• Disconnect power (and gas if applicable) before starting any work.
• Install requires removing the appliance kick strip or lower access fasteners; retain hardware as needed.
• Align panel tabs/clips with cabinet slots and secure with the original screws or clips.
• Replace any damaged clips or mounting hardware to ensure a secure fit.

This poly-V blower belt links the motor to the blower wheel to move air through the appliance. Replacing a worn or broken belt restores proper airflow and helps maintain reliable drying/venting performance. What it does:

• Transfers motor rotation to the blower/impeller to circulate air
• Helps maintain proper airflow through the cabinet and exhaust
• Common failure signs include weak or no airflow at the vent, longer run times, or safety shutdown from poor airflow
• Physical clues: belt broken, frayed, glazed, stretched, or squealing from the blower area

• 1 poly-V blower belt

• Disconnect power and, if applicable, shut off gas supply before servicing
• Access varies by model; remove panels or blower cover to reach the belt
• Note routing; seat belt ribs in pulley grooves and ensure correct tracking
• Rotate the blower by hand to confirm alignment before reassembly and test run

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

Side and bottom exhaust kit.
