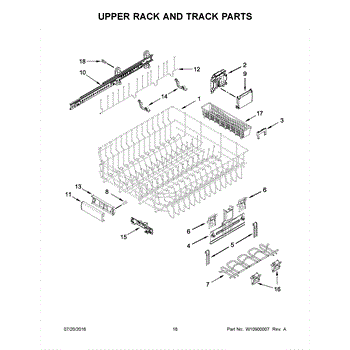

Parts for Kitchenaid KDTM704EBS1: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Right Adjuster Housing is an OEM part for Whirlpool dishwashers. It is responsible for holding and supporting the right side of the upper dishwasher rack, allowing for height adjustments to accommodate various dish sizes.

Over time, the right adjuster housing can become worn or damaged due to regular use, heavy loads, or accidental mishandling. When the adjuster housing fails, it can affect the stability and functionality of the upper rack.

Symptoms of a bad Right Adjuster Housing include:

• Difficulty adjusting the height of the upper rack
• The upper rack not staying in place or appearing unbalanced
• Unusual noises or resistance when moving the rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Left Adjuster Housing is an OEM replacement part for Whirlpool dishwashers. It is a component that helps to ensure proper alignment and stability of the dishwasher tub or rack system during operation.

Symptoms of a need to replace the left adjuster housing include:

• Difficulty sliding the dishwasher racks in and out smoothly
• Excessive noise or rattling sounds during wash cycles
• Visual signs of misalignment or tilting of the dishwasher tub or racks

Causes of a faulty left adjuster housing can include general wear and tear, physical impact or mishandling, corrosion or damage from moisture exposure, or manufacturing defects in the component itself.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Adjuster Clip is an OEM part for Whirlpool dishwashers. It is used to secure and adjust the height of the dishwasher rack, allowing for better accommodation of various dish sizes and ensuring proper cleaning. This clip ensures that the rack remains stable and properly aligned during the wash cycle.

Causes of a bad adjuster clip can include wear and tear from regular use, accidental breakage, or damage from overloading the dishwasher rack. These factors can lead to the clip losing its grip or breaking entirely, affecting the rack's stability.

Symptoms of a bad adjuster clip include:

• The dishwasher rack not staying in place
• Difficulty in adjusting the rack height
• The rack wobbling or becoming unstable during cycles
• Uneven cleaning results due to misaligned rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Upper Rack Adjuster is an OEM part for Whirlpool dishwashers. This part adjusts the height of the dishwasher's upper rack, allowing for flexible loading options and accommodating larger items such as pots, pans, and tall glasses.

Over time, the upper rack adjuster can become worn or damaged due to regular use, leading to difficulties in adjusting the rack height or securing the rack in a desired position.

Symptoms of a bad Upper Rack Adjuster include:

• The upper rack is difficult to adjust or won't stay in place
• Broken or worn parts on the adjuster mechanism
• The rack falls down or cannot be lifted to its higher position
• Visible signs of wear or damage to the adjuster components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Rear Adjuster Guide is an OEM part for Whirlpool dishwashers, designed to ensure the smooth operation of the adjustable upper rack. This component plays a pivotal role in allowing the rack to move up and down effortlessly, accommodating various sizes of dishes and cookware.

Causes for replacement may include wear and tear from regular use, accidental damage, or the natural degradation of materials over time. A malfunctioning adjuster guide can hinder the dishwasher's efficiency and capacity, making it challenging to fit larger items or optimize space for effective cleaning.

Symptoms of a bad Rear Adjuster Guide include:

• Difficulty adjusting the height of the upper rack
• The rack becoming stuck or misaligned
• Unusual noises when moving the rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Adjuster Positioner is an OEM part for Whirlpool dishwashers. It plays a vital role in adjusting the height of the upper rack, allowing for flexible loading options and accommodating larger items when necessary.

Causes of a bad Dishwasher Adjuster Positioner can include mechanical wear and tear from regular use, stress fractures from bearing excessive weight, or damage during rack adjustment.

Symptoms of a bad Adjuster Positioner include:

• Difficulty in adjusting the height of the dishwasher rack,
• The rack becoming loose or failing to stay in the set position,
• Unusual sounds or resistance when moving the rack up or down.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Due to manufacturer changes only one side of cup shelf has a cap.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Adjuster Cover is an OEM part for Whirlpool dishwashers. This part allows for the vertical adjustment of the dishwasher's upper rack to accommodate larger items in either the upper or lower rack. The adjuster cover protects the internal components of the adjuster mechanism from water, detergent, and debris, ensuring smooth operation and extending the life of the adjuster mechanism.

Over time, the adjuster cover can become worn or damaged due to exposure to harsh dishwasher detergents, high water temperatures, and general wear and tear.

Symptoms of a bad Adjuster Cover include:

• The upper rack becomes difficult to adjust or won't stay in the desired position.
• Visible cracks, warping, or breakage of the cover.
• The adjuster mechanism gets easily clogged with debris or corroded by detergent.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Replacement tine row that restores upright support to a dishwasher rack so dishes stay separated and wash more effectively. Use when bent, broken, or missing tines cause dishes to tip or block spray. What it does:

• Replaces a damaged rack tine section to keep plates, bowls, and glasses upright during a wash cycle.
• Helps prevent dishes from tipping, nesting, or scratching each other.
• Restores proper spacing so water and detergent reach all surfaces.
• Reduces rattling and movement of items on the rack.

• Remove the rack from the dishwasher and replace the damaged tine row following the rack diagram; part typically snaps or clips into place.
• Disconnect power to the dishwasher or ensure cycles are complete before working on the rack.
• Inspect adjacent tines and rack components for damage when installing.

This replacement tine row snaps into the dishwasher rack to hold plates, lids, and other items upright. It restores stable loading and spacing when the original row is broken, bent, or missing, helping dishes stay secure through the wash.

• Holds dishes upright and separated for proper cleaning
• Replaces a broken, warped, or missing rack tine row
• Helps prevent items from tipping during wash cycles
• Common fix when tines won't stand or lock as intended
• Restores correct spacing for cleaning and drying performance

• Turn the dishwasher off and allow the interior to cool before working.
• Pull the rack out; release locking tabs or clips and remove the old row.
• Align the new row with the same mounting points and snap into place; reuse existing clips if your model uses them.
• Confirm the row is secure and the rack moves freely before running a cycle.

This replacement door handle restores a secure grip and smooth opening for compatible Whirlpool appliances. It replaces worn, cracked or broken handles to improve usability and appearance without replacing the whole door. What it does

• Provides a sturdy handhold to open and close the appliance door
• Replaces cracked, loose or cosmetically damaged handles
• Helps prevent accidental drops or slippage when opening the door
• Matches the original mounting points for a direct-fit replacement

• Remove power and empty the door area before starting any repairs
• Use common hand tools; hold parts steady to avoid scratching finishes
• Follow OEM instructions for fastener torque and alignment

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Tine Row Holder is an OEM part for Whirlpool dishwashers. It is responsible for securing the tines in the dishwasher's rack, keeping them in place to hold dishes, glasses, and utensils securely during the wash cycle.

Over time, the tine row holder can become damaged due to normal wear and tear, repeated loading and unloading of dishes, or accidental mishandling.

Symptoms of a bad tine row holder include:

• Tines that are loose or fall out of place
• Difficulty in loading dishes securely
• Uneven or inadequate cleaning due to improperly spaced items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small retaining clip secures trim, panels, or components in place to prevent rattling or detachment during normal operation. It's a simple, low-profile fastener that restores fit and function where the original clip has broken or gone missing. What it does:

• Holds panels, bezels, or wiring harnesses in position to stop vibration and movement
• Replaces worn, broken or missing clips that cause loose trim or gaps
• Helps maintain proper alignment of adjacent parts for reliable operation
• Works as a direct-fit fastening solution where the original clip is used

• One retaining clip

• Disconnect power to the appliance before attempting any repair
• Access may require removing panels or trim; use appropriate screwdrivers or trim tools
• Install by aligning the clip with the mating slot or hole and pressing firmly until it snaps into place

The Silverware Basket is an OEM component specifically designed for Whirlpool built-in dishwasher models. Located in the lower rack, the silverware basket neatly organizes and separates cutlery during the wash cycle.

Causes of a bad silverware basket include material degradation from prolonged chemical and heat exposure and loosening its construction. Warping from years of rack movement is also possible.

Symptoms of a bad silverware basket include:

• Ungrouped or tangled silverware after cleaning
• Broken or missing tines from the collecting rack
• Leaks around seals from structural defects

Replace with this authentic OEM Whirlpool basket to maintain organized cutlery separation and wash effectiveness. Rely on its construction to protect edgeware while delivering maximum sanitization performance. Compatible with additional brands including KitchenAid and some stainless Kenmore models.

This factory screw secures panels, brackets, or components within your appliance. Using the correct OEM fastener helps ensure a snug fit and prevents loosening, rattling, or misalignment over time.

• Fastens metal or plastic components to maintain proper alignment
• Helps prevent vibration, noise, and loosened parts
• Common wear item that can strip, rust, or go missing
• Replaces damaged or missing hardware to restore secure mounting

• Disconnect power and shut off water or gas before service
• Note original screw location and orientation for proper reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• If threads are damaged, inspect the mating hole or clip before reuse
