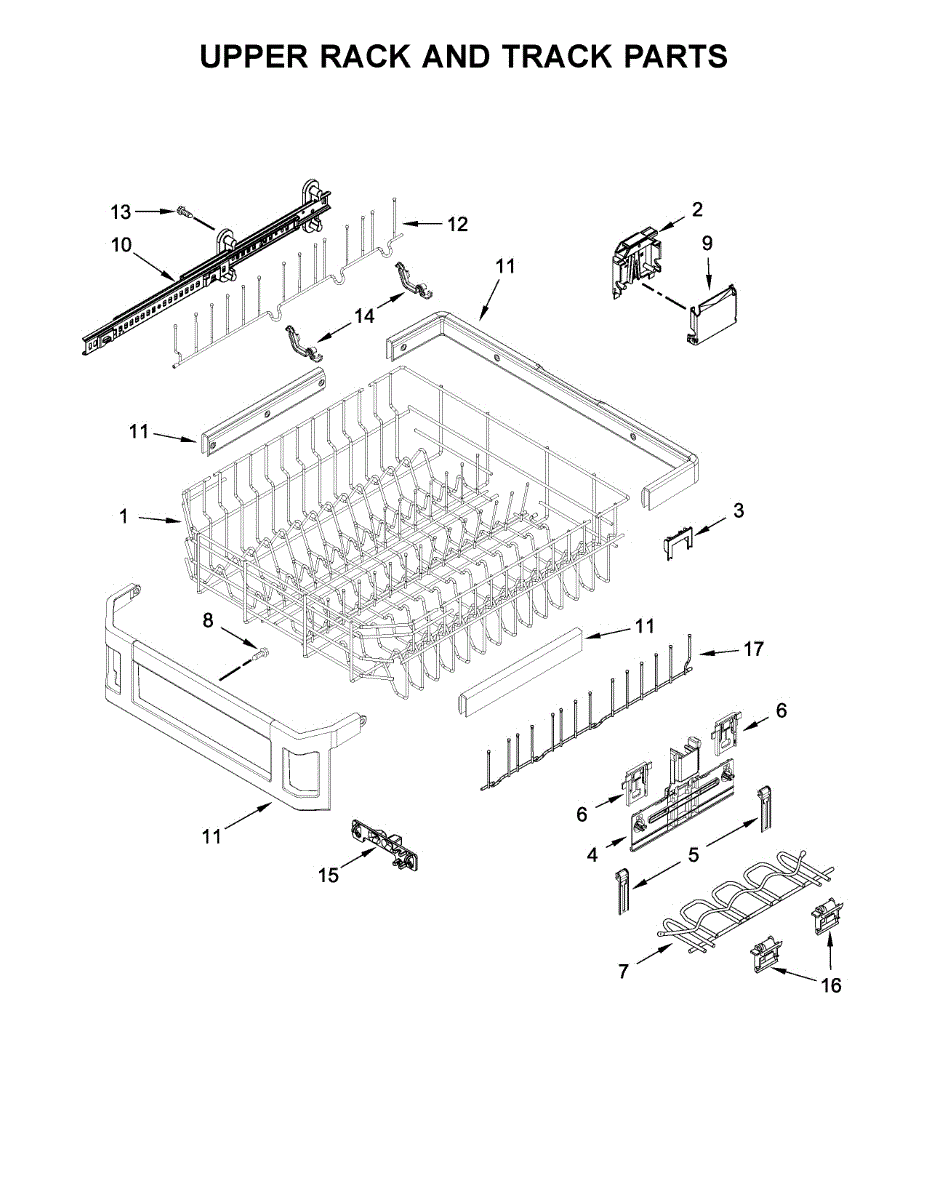

Parts for Kitchenaid KDTM804EBS2: Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Replace a worn or damaged lower dishrack to restore secure dish placement and smooth loading. This direct-fit dishrack provides the rack frame and tines needed to hold plates, bowls and cookware during normal dishwasher cycles. What it does

• Replaces a cracked, bent or broken lower rack that no longer supports dishes securely
• Restores proper dish spacing so water and detergent reach items for effective cleaning
• Replaces missing or damaged tines and rack sections that allow dishes to shift or fall
• Improves rack roll and alignment when used with existing rollers and track hardware

• Disconnect power to the dishwasher before service and follow all safety precautions
• Remove the old rack by sliding out the tub rails; lift and angle as needed to clear the cavity
• This part installs into the existing lower rack supports; retain and reuse any rollers, clips or fasteners unless they are damaged
• If rollers, clips or other hardware are worn, inspect and replace those components separately

The Right Adjuster Housing is an OEM part for Whirlpool dishwashers. It is responsible for holding and supporting the right side of the upper dishwasher rack, allowing for height adjustments to accommodate various dish sizes.

Over time, the right adjuster housing can become worn or damaged due to regular use, heavy loads, or accidental mishandling. When the adjuster housing fails, it can affect the stability and functionality of the upper rack.

Symptoms of a bad Right Adjuster Housing include:

• Difficulty adjusting the height of the upper rack
• The upper rack not staying in place or appearing unbalanced
• Unusual noises or resistance when moving the rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Left Adjuster Housing is an OEM replacement part for Whirlpool dishwashers. It is a component that helps to ensure proper alignment and stability of the dishwasher tub or rack system during operation.

Symptoms of a need to replace the left adjuster housing include:

• Difficulty sliding the dishwasher racks in and out smoothly
• Excessive noise or rattling sounds during wash cycles
• Visual signs of misalignment or tilting of the dishwasher tub or racks

Causes of a faulty left adjuster housing can include general wear and tear, physical impact or mishandling, corrosion or damage from moisture exposure, or manufacturing defects in the component itself.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Adjuster Clip is an OEM part for Whirlpool dishwashers. It is used to secure and adjust the height of the dishwasher rack, allowing for better accommodation of various dish sizes and ensuring proper cleaning. This clip ensures that the rack remains stable and properly aligned during the wash cycle.

Causes of a bad adjuster clip can include wear and tear from regular use, accidental breakage, or damage from overloading the dishwasher rack. These factors can lead to the clip losing its grip or breaking entirely, affecting the rack's stability.

Symptoms of a bad adjuster clip include:

• The dishwasher rack not staying in place
• Difficulty in adjusting the rack height
• The rack wobbling or becoming unstable during cycles
• Uneven cleaning results due to misaligned rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Upper Rack Adjuster is an OEM part for Whirlpool dishwashers. This part adjusts the height of the dishwasher's upper rack, allowing for flexible loading options and accommodating larger items such as pots, pans, and tall glasses.

Over time, the upper rack adjuster can become worn or damaged due to regular use, leading to difficulties in adjusting the rack height or securing the rack in a desired position.

Symptoms of a bad Upper Rack Adjuster include:

• The upper rack is difficult to adjust or won't stay in place
• Broken or worn parts on the adjuster mechanism
• The rack falls down or cannot be lifted to its higher position
• Visible signs of wear or damage to the adjuster components

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Rear Adjuster Guide is an OEM part for Whirlpool dishwashers, designed to ensure the smooth operation of the adjustable upper rack. This component plays a pivotal role in allowing the rack to move up and down effortlessly, accommodating various sizes of dishes and cookware.

Causes for replacement may include wear and tear from regular use, accidental damage, or the natural degradation of materials over time. A malfunctioning adjuster guide can hinder the dishwasher's efficiency and capacity, making it challenging to fit larger items or optimize space for effective cleaning.

Symptoms of a bad Rear Adjuster Guide include:

• Difficulty adjusting the height of the upper rack
• The rack becoming stuck or misaligned
• Unusual noises when moving the rack

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Adjuster Positioner is an OEM part for Whirlpool dishwashers. It plays a vital role in adjusting the height of the upper rack, allowing for flexible loading options and accommodating larger items when necessary.

Causes of a bad Dishwasher Adjuster Positioner can include mechanical wear and tear from regular use, stress fractures from bearing excessive weight, or damage during rack adjustment.

Symptoms of a bad Adjuster Positioner include:

• Difficulty in adjusting the height of the dishwasher rack,
• The rack becoming loose or failing to stay in the set position,
• Unusual sounds or resistance when moving the rack up or down.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Due to manufacturer changes only one side of cup shelf has a cap.

The Adjuster Cover is an OEM part for Whirlpool dishwashers. This part allows for the vertical adjustment of the dishwasher's upper rack to accommodate larger items in either the upper or lower rack. The adjuster cover protects the internal components of the adjuster mechanism from water, detergent, and debris, ensuring smooth operation and extending the life of the adjuster mechanism.

Over time, the adjuster cover can become worn or damaged due to exposure to harsh dishwasher detergents, high water temperatures, and general wear and tear.

Symptoms of a bad Adjuster Cover include:

• The upper rack becomes difficult to adjust or won't stay in the desired position.
• Visible cracks, warping, or breakage of the cover.
• The adjuster mechanism gets easily clogged with debris or corroded by detergent.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Note: Right Hand side

The Track, Asm (RH) is an OEM part for Whirlpool dishwashers. It is the right-hand side track assembly that supports and guides the dishwasher's upper rack as it slides in and out. This part ensures that the rack moves smoothly and securely, allowing for easy loading and unloading of dishes while preventing disruptions during the wash cycle.

Causes of a bad Track, Asm (RH) can include wear from regular use, accumulation of debris that impairs movement, or damage from improper loading of the dishwasher rack.

Symptoms of a bad Track, Asm (RH) include:

• Difficulty in sliding the upper rack in and out
• The rack becoming stuck or detaching from the track
• Noises such as grinding or clicking when the rack moves

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Note: Left Hand side

The Track, Asm (LH) is an OEM part for Whirlpool dishwashers. It is a left-hand side track assembly that supports and guides the dishwasher's upper rack as it slides in and out. This component is crucial for the smooth operation of the rack system, ensuring that dishes can be easily and securely positioned within the dishwasher. The track measures approximately 13.25 inches in length and 3.25 inches in width.

Causes of a bad Track, Asm (LH) can include physical damage from mishandling, accumulated debris obstructing the track's pathway, or wear from frequent use which may lead to malfunction or stiffness in the rack's movement.

Symptoms of a bad Track, Asm (LH) include:

• Difficulty pulling the upper rack in and out
• The rack getting stuck or derailing
• Unusual noises when the rack is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This factory screw secures panels, brackets, or components within your appliance. Using the correct OEM fastener helps ensure a snug fit and prevents loosening, rattling, or misalignment over time.

• Fastens metal or plastic components to maintain proper alignment
• Helps prevent vibration, noise, and loosened parts
• Common wear item that can strip, rust, or go missing
• Replaces damaged or missing hardware to restore secure mounting

• Disconnect power and shut off water or gas before service
• Note original screw location and orientation for proper reassembly
• Start threads by hand to avoid cross-threading; do not overtighten
• If threads are damaged, inspect the mating hole or clip before reuse

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Tine Row Holder is an OEM part for Whirlpool dishwashers. It is responsible for securing the tines in the dishwasher's rack, keeping them in place to hold dishes, glasses, and utensils securely during the wash cycle.

Over time, the tine row holder can become damaged due to normal wear and tear, repeated loading and unloading of dishes, or accidental mishandling.

Symptoms of a bad tine row holder include:

• Tines that are loose or fall out of place
• Difficulty in loading dishes securely
• Uneven or inadequate cleaning due to improperly spaced items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small retaining clip secures trim, panels, or components in place to prevent rattling or detachment during normal operation. It's a simple, low-profile fastener that restores fit and function where the original clip has broken or gone missing. What it does:

• Holds panels, bezels, or wiring harnesses in position to stop vibration and movement
• Replaces worn, broken or missing clips that cause loose trim or gaps
• Helps maintain proper alignment of adjacent parts for reliable operation
• Works as a direct-fit fastening solution where the original clip is used

• One retaining clip

• Disconnect power to the appliance before attempting any repair
• Access may require removing panels or trim; use appropriate screwdrivers or trim tools
• Install by aligning the clip with the mating slot or hole and pressing firmly until it snaps into place

Replacement tine row for dishwasher racks that restores proper support and spacing for plates, bowls and glassware. Replacing a damaged or missing tine row helps keep items upright, reducing tipping, chipping and poor wash coverage. What it does:

• Replaces a damaged row of tines on a dishwasher rack to restore proper dish support and spacing.
• Prevents dishes and glassware from tipping, sliding or contacting other items during a cycle.
• Helps maintain wash coverage and reduces the chance of breakage or chipping from shifting loads.
• Use when tines are broken, missing, cracked or bent so the rack can hold items securely.

• High-level replacement: remove the rack to access the mounting area, then attach the replacement tine row following the rack's clip/slot design.
• No special tools typically required; wear gloves to avoid sharp edges and protect hands.
• Do not run the dishwasher with loose or unsecured parts; inspect and replace those items before use to ensure secure installation.
