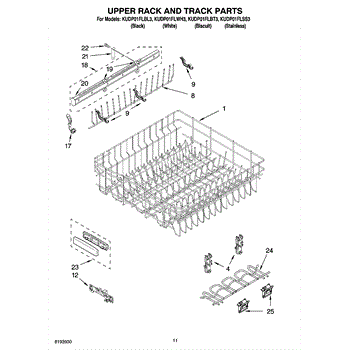

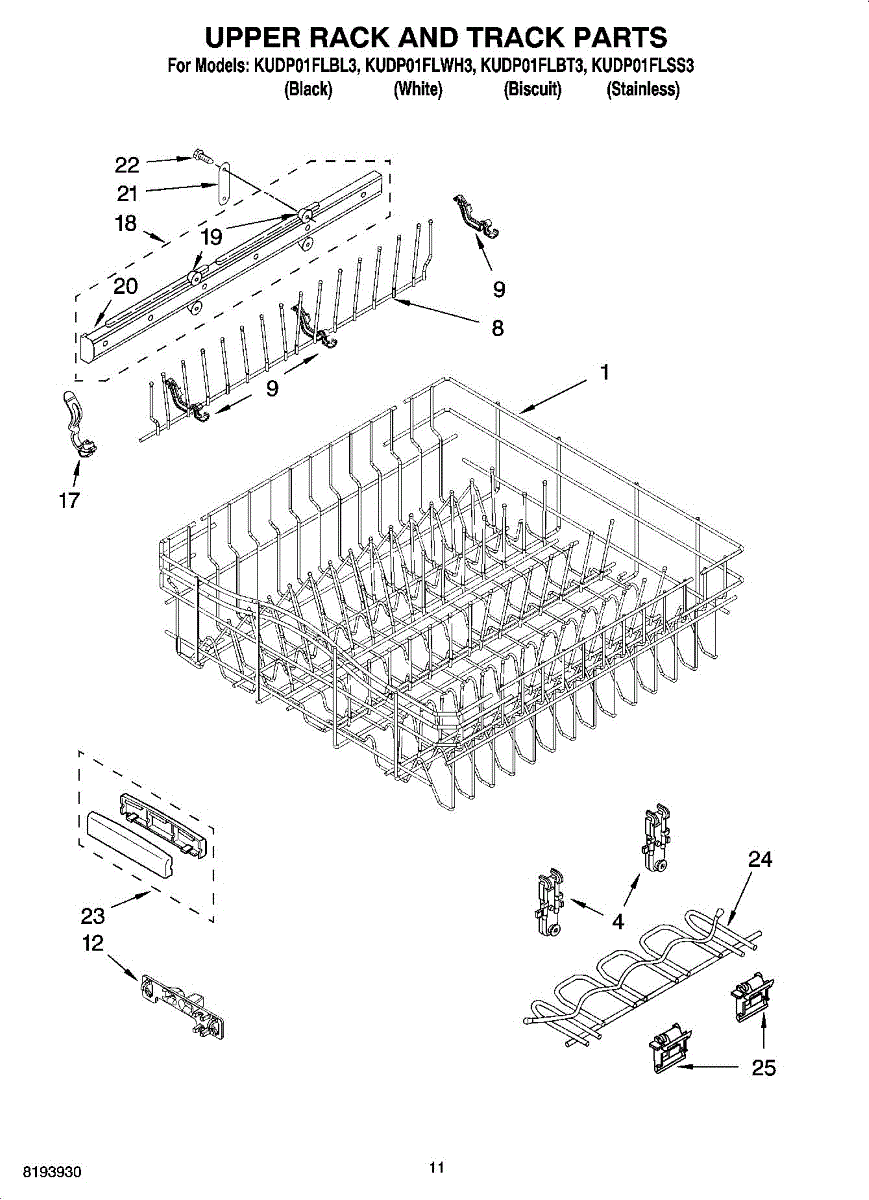

Parts for Kitchenaid KUDP01FLBT3: 09 - Upper Rack And Track Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Upper dish rack assembly for dishwashers. Holds glasses, cups, and small items on the top level. Replace if cracked, warped, rusted, or deteriorating.

Replacement wheel for dishwasher upper rack. Snaps onto rack tines to allow smooth gliding in and out. Replace when cracked, broken, or worn out.

Replace your cracked, rusted, or broken dishwasher tine row. This adjustable row installs in the upper or lower rack for flexible dish loading.

Gray plastic pivot clip for dishwasher upper rack tine rows. Replaces broken, cracked, or missing pivots that prevent tines from adjusting properly.

Secures tines in your dishwasher rack to hold dishes and utensils in place. Replace if cracked, broken, or missing to restore proper rack function.

This light clip secures the interior lamp assembly in place so the refrigerator light stays positioned and protected. It's a small plastic retainer designed to hold the lamp or lens securely behind the housing. What it does:

• Holds the interior lamp or lens assembly in position to prevent movement or rattling
• Keeps the lamp properly aligned so the light bulb and cover stay seated
• Helps prevent contact between the bulb and other components that could cause noise or damage
• Commonly replaced when the lamp cover is loose, rattles, or won't stay clipped in place

• One light clip

• Disconnect power to the appliance before beginning any work
• Access the lamp area by removing the lamp cover or housing per your model's instructions
• The clip typically snaps into place; no special tools are usually required
• Test lamp fit and switch operation before restoring normal use

Replacement track assembly for dishwasher upper rack. Mounts to dishwasher tub side wall. Includes left and right tracks with bearings and stops.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Stops the dishwasher rack from pulling out too far on ball-bearing rails. Replace if worn or missing to restore smooth gliding and secure dish loading.

Gasket for upper wheel.

Factory #10-16 screw secures dishwasher panels, brackets, and covers. Replace worn, stripped, or missing screws to restore tight assembly.

Replacement dishwasher cupshelf clip secures the cup shelf to the upper rack. Order a new clip if yours is cracked, broken, or missing from the rack assembly.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
