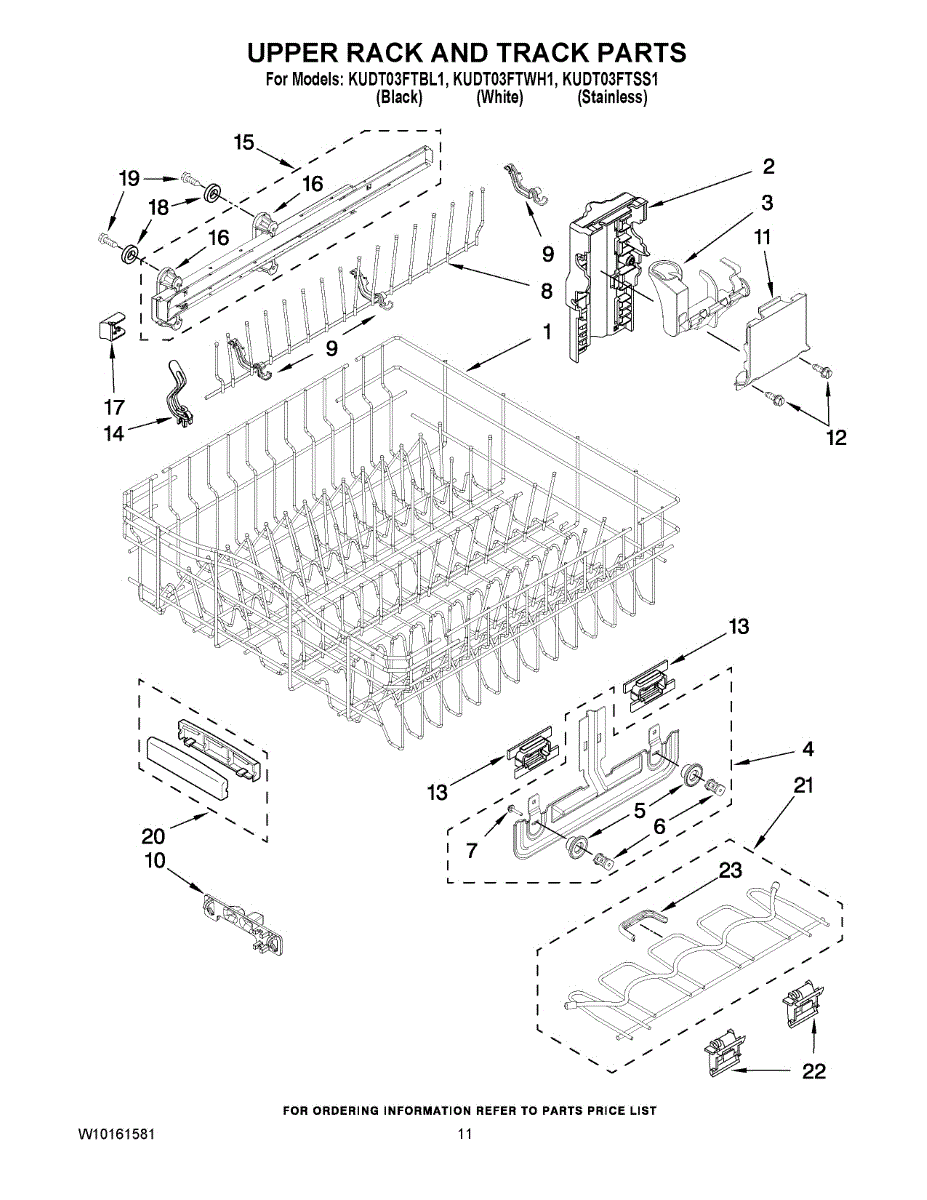

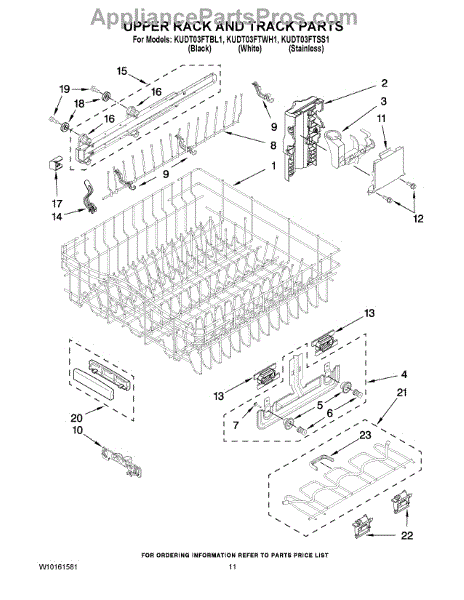

Parts for Kitchenaid KUDT03FTWH1: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Dishrack is an OEM part for Whirlpool dishwashers. This dishrack is designed to hold dishes, glasses, and other items securely in the upper part of the dishwasher during the wash cycle, allowing for effective cleaning and efficient use of space.

Causes of a bad upper dishrack can include regular wear and tear, damage from heavy or improperly loaded items, and rust or corrosion from prolonged exposure to water and detergents.

Symptoms of a bad upper dishrack include:

• Broken or missing tines that prevent items from being held securely
• Rust or corrosion on the dishrack
• Difficulty sliding the dishrack in and out of the dishwasher
• The dishrack not fitting correctly or falling off its tracks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement housing restores the appliance's structural enclosure, protecting internal components and helping panels and controls align properly. Use it to replace cracked, warped or damaged housings so the unit fits and functions as intended. What it does:

• Provides the main structural enclosure and mounting surface for internal components and exterior panels
• Replaces cracked, dented or broken housings that can allow misalignment or rubbing of parts
• Helps reduce vibration and movement by restoring proper fit between panels and internal assemblies
• Keeps internal components shielded from debris and wear that can lead to downstream issues

• Disconnect power (and water, if applicable) before starting any repair
• Handle edges carefully; housing edges and sheet metal can be sharp
• Basic hand tools are typically required; follow the appliance service manual for disassembly/reassembly steps

For left hand use W10077839

For right hand use W10077838

This genuine OEM adjuster helps set and fine-tune an appliance's alignment so doors close correctly and the cabinet sits level. It restores stable operation and reduces rocking or vibration caused by an uneven appliance surface. What it does:

• Provides a threaded adjustment point to raise, lower, or support an appliance corner or panel
• Helps correct uneven cabinets, tilted doors, or appliances that rock or vibrate during use
• Restores proper door alignment and sealing when misalignment is caused by height/level issues
• Works as the appliance's mechanical support where an adjustable foot or bracket is used

• Always disconnect power (and water, if applicable) before servicing the appliance
• Support the appliance securely before making height adjustments or removing/installing the adjuster
• Use appropriate hand tools; avoid excessive force that could damage threads or mounting points

The Upper Dishrack Wheel is an OEM part for Whirlpool dishwashers. It is designed to allow the upper dishrack to slide in and out smoothly during loading and unloading. This wheel attaches to the dishrack and runs along the tracks inside the dishwasher, ensuring stable and easy movement.

You should replace the upper dishrack wheel if it becomes worn out or damaged. Causes of a bad dishrack wheel can include regular wear and tear from frequent use, damage from overloading the rack, or breaking due to impacts. These issues can hinder the dishrack’s movement, making it difficult to access the upper rack.

Symptoms of a bad upper dishrack wheel include:

• The upper dishrack not sliding smoothly or becoming stuck
• Uneven or lopsided dishrack positioning
• Noise or grinding sounds when moving the dishrack
• The wheel appearing cracked, broken, or missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Adjuster Axle is an OEM part for Whirlpool dishwashers. It plays a crucial role in the height adjustment mechanism of the upper rack, allowing users to customize the rack's position to accommodate different dish sizes. This axle ensures that the adjustment is smooth and stable, providing flexibility in the dishwasher's loading capacity.

You should replace the adjuster axle if it becomes worn out or damaged. Causes of a bad adjuster axle can include wear from frequent adjustments, breakage from overloading the rack, or damage from mishandling.

Symptoms of a bad adjuster axle include:

• Difficulty in adjusting the height of the upper rack
• The rack not staying in the desired position
• Unusual movement or instability of the rack
• The adjuster mechanism not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

The Adjustable Tine Row is an OEM part for Whirlpool dishwashers. It is designed to provide flexible loading options by allowing users to adjust the position of the tines in the dishwasher rack. This feature accommodates various dish sizes and shapes, enhancing the dishwasher's capacity and versatility.

Over time, the adjustable tine row can wear out or become damaged due to frequent adjustments or the weight of heavy dishes. Causes of a bad adjustable tine row include broken or bent tines, wear from regular use, or damage from overloading the dishwasher rack.

Symptoms of a bad adjustable tine row include:

• Tines not staying in the desired position
• Difficulty adjusting the tines
• Broken or missing tines
• Reduced ability to securely hold dishes in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Tine Row Pivot is an OEM replacement part for Whirlpool dishwashers. This component is an integral part of the upper rack assembly, allowing the tine rows to fold down or pivot inward to accommodate taller items or create additional space within the rack.

Symptoms of a faulty tine row pivot may include:

• Tine rows not folding or pivoting smoothly
• Difficulty adjusting the tine rows to the desired position
• Tine rows becoming stuck or jammed in an open or closed position

Causes of needing to replace the tine row pivot can include normal wear and tear over time, physical damage from mishandling or impact, or issues with the pivot mechanism becoming corroded or obstructed.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Tine Row Holder is an OEM part for Whirlpool dishwashers. It is responsible for securing the tines in the dishwasher's rack, keeping them in place to hold dishes, glasses, and utensils securely during the wash cycle.

Over time, the tine row holder can become damaged due to normal wear and tear, repeated loading and unloading of dishes, or accidental mishandling.

Symptoms of a bad tine row holder include:

• Tines that are loose or fall out of place
• Difficulty in loading dishes securely
• Uneven or inadequate cleaning due to improperly spaced items

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This cover is a factory replacement access panel that protects internal components and restores the appliance's finished appearance. It keeps wiring and controls shielded from dust and accidental contact for safer, longer-lasting operation. What it does:

• Shields internal wiring, controls, and components from dust, debris and accidental contact
• Keeps small parts and fasteners secured inside the appliance cabinet
• Restores the appliance's finished exterior where the original cover was damaged or missing
• Helps maintain proper airflow routing and component spacing when installed correctly

• Disconnect power to the appliance before beginning any service to avoid shock or injury.
• Verify the cover orientation and fastener locations before securing; use OEM screws where specified.
• Handle with care to avoid scratching or bending the cover; ensure tabs snap fully into place.
• Inspect for damage and secure any loose parts before installing the cover.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This positioner aligns and secures its mating component in the correct location inside your appliance. Replacing a cracked, worn, or missing positioner restores proper fit so the assembly stays put and operates as designed.

• Holds the related part in the proper position and orientation
• Prevents shifting, sagging, or rattling during use
• Supports smooth adjustment or movement where applicable
• Common symptoms: loose or misaligned component, difficulty adjusting or seating the piece, visible cracks, or a missing clip

• Disconnect power; also shut off gas or water if your appliance uses these utilities
• Note the original orientation and take photos before removal
• Transfer any reused hardware and fully seat tabs/slots to avoid damage
• Wear cut-resistant gloves and check alignment after reassembly

The Tine Clip is an OEM replacement part for Whirlpool dishwashers. This clip is designed to secure the tines in the dishwasher rack, keeping them properly aligned to hold dishes and utensils in place during the wash cycle. It ensures stability and maximizes the rack's capacity and efficiency.

Symptoms of a bad Tine Clip include:

• Tines becoming loose or collapsing during the wash cycle
• Difficulty in organizing dishes due to unstable tines
• The clip appearing cracked, broken, or missing

Causes of a failing Tine Clip can include regular wear from repeated use, stress from heavy loads, or accidental damage during loading and unloading. A damaged clip may lead to inefficient cleaning and reduced rack usability.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rack track assembly guides the dishrack as it slides in and out, keeping it aligned and stable. Replacing a worn or broken track restores smooth rack movement and helps prevent derailing and uneven loading.

• Supports and guides the rack for smooth sliding action
• Maintains rack alignment to prevent wobbling or tipping
• Replaces cracked, warped, or broken rack tracks
• Common symptoms: rack binds, won't extend fully, falls off/derails, or sits unevenly

• Disconnect power to the appliance before servicing
• Pull the rack forward and release any rack end stops per your model
• Remove the old track, position the new track, and fully engage mounting tabs/clips
• Reinstall stops and verify the rack slides smoothly

This upper dishrack track mounts to the dishwasher tub wall and provides a smooth glide path for the rack rollers. Replacing a damaged track restores easy in-and-out movement and helps keep the upper rack aligned and secure.

• Guides and supports the upper dishrack as it slides in and out
• Maintains rack alignment to prevent binding or derailing
• Typical failure signs: rack jams or falls off, rough/squeaky travel, visible cracks or breaks in the track
• Can keep the rack from fully sliding in, making the door harder to close

• Disconnect power and turn off the water supply before servicing
• Remove the upper rack by releasing the end caps/stops
• Unfasten the old track from the tub (screws/clips), then position and secure the new track
• Reinstall the rack and end caps; verify smooth rack travel before restoring power and water

This mount is a support bracket designed to secure internal components and reduce movement for a stable, quiet operation. It replaces worn or broken mounts to restore proper alignment and prevent rattling. What it does

• Supports and stabilizes internal parts to reduce vibration and noise
• Keeps components aligned to prevent uneven wear
• Helps stop rattling or clunking caused by a loose or damaged mount
• Used when a visible break, crack, or missing mounting point is present

• One mount/support bracket

• Disconnect power to the appliance before starting any repair
• Inspect surrounding parts and mounting hardware; replace damaged fasteners as needed
• Use proper tools and avoid over-tightening fasteners to prevent cracking the mount

The Track Stop is an OEM part for Whirlpool dishwashers. It is a component located on the tracks inside the dishwasher that holds and guides rack movement during operation.

Symptoms of a bad track stop include:

• Racks or dishes sliding uncontrollably during the cycle
• Difficulty fully extending or retracting racks
• Noise or grinding sounds noticed from rack movement
• Damage or wear visible on the rack tracks

Causes of a bad track stop can be a failure due to normal wear and tear over repeated use. Opening and closing the dishwasher door thousands of times can degrade track stops.

This OEM Whirlpool replacement track stop ensures proper rack guiding, securing its position to deliver dependable performance cycle after cycle. This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Gasket for upper wheel.

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

Due to manufacturer changes only one side of cup shelf has a cap.

This small retaining clip secures trim, panels, or components in place to prevent rattling or detachment during normal operation. It's a simple, low-profile fastener that restores fit and function where the original clip has broken or gone missing. What it does:

• Holds panels, bezels, or wiring harnesses in position to stop vibration and movement
• Replaces worn, broken or missing clips that cause loose trim or gaps
• Helps maintain proper alignment of adjacent parts for reliable operation
• Works as a direct-fit fastening solution where the original clip is used

• One retaining clip

• Disconnect power to the appliance before attempting any repair
• Access may require removing panels or trim; use appropriate screwdrivers or trim tools
• Install by aligning the clip with the mating slot or hole and pressing firmly until it snaps into place

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
