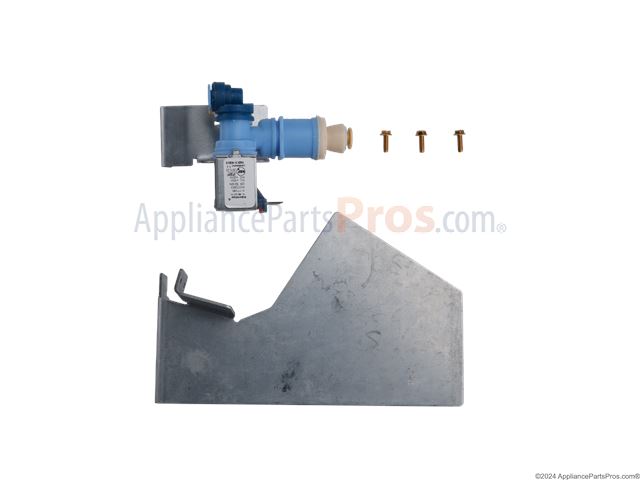

Whirlpool Refrigerator Valve

• Not dispensing water

Our Kenmore (Whirlpool) refrigerator's ice maker had stopped making ice. I searched YouTube and found a repair videos for this exact problem, finding one with a similar refrigerator and the identical ice maker. I learned that the Water Inlet Valve had likely gone bad and would need to be replaced. In the video the tech pointed out the small rubber tube inside the freezer that comes down from the ceiling of the refrigerator into the ice maker. This tube feeds it the water to make ice with and... Read more

Living in Texas it is hot all the time, even in fall, so our family loves our cold filtered water and ice. We woke up one morning with water all over the floor in the kitchen. It looked like it was coming from our freezer through the ice dispenser. We turned off the water shut off valve and removed what was now a giant block of ice instead of an ice dispenser from our freezer to melt in the sink. Since we have used AppliancePartsPros.com before, I knew exactly what I needed to do to see if we... Read more

• Leaking

Replaced both inlet valves, no joy. Upon further inspection, found ice maker harness extremely tight at lower freezer door hinge, clamped in place right at a pivot point. Essentially the harness is held in place and rotates with the door. 6 wires broken inside. Splice repair and ice maker now works. Most likely will have to replace harness eventually. Unless there is more slack inside the freezer door this will probably happen again. Very poor design. Read more

• Not dispensing water

Replaced the water inlet valve on the back of the refrigerator. Read more

Replaced the water line and water supply solenoid valve (slight weeping at valve body also). This is a 3 year old whirlpool refrigerator, model WRX988SIBM00. A crack in the water line after only 3 years is a poor design. My intent was to replace the entire water line from the valve to the filter. But I could not remove the interior top trim piece to access the filter connection. I did not want to force the trim piece to hard and break it. So what I did was install a new water line at the... Read more

Replaced both inlet valves, no joy. Upon further inspection, found ice maker harness extremely tight at lower freezer door hinge, clamped in place right at a pivot point. Essentially the harness is held in place and rotates with the door. 6 wires broken inside. Splice repair and ice maker now works. Most likely will have to replace harness eventually. Unless there is more slack inside the freezer door this will probably happen again. Very poor design. Read more

Replaced water valve in about 10 minutes, 5 of which were pulling the frige out and gathering the tools. Now I have ice. Read more

Replaced water valve and ice maker Read more

A bit of online research and some component testing narrowed my issue down to either a faulty ice maker or a bad supply valve. Appliance Parts Pros had both of these, at reasonable prices, so I purchased and replaced both items. I recommend watching online videos to get a sense of what to do, and how to go about doing it. The repairs were relatively easy, other than this being a bottom freezer model hence the ice maker was difficult to access: I removed the freezer door (four screws) to get... Read more

I ordered a new solenoid valve set and watched the online video of the replacement process. So after emptying my freezer and fridge, removing the doors and freezer drawer, so I could mover the fridge out of its cove, I discovered after taking the panels off the rear, that my fridge is different than that shown in the video. I went back online and discovered in one of the exploded views of the cabinet there is a panel inside the refrigerator which can be removed after taking the shelves out of... Read more

The tech sheet test 56 said the motor wouldn't return to zero. I ordered the "Ice Maker Assy-Lp, and the Valve Assy-Water Dual". On my particular model the ice maker is in the ceiling of the refrigerator box. After removing the water filter and two screws around the drop down water filter door, the right side panel drops down by pulling it apart from 3 plastic pop-ins. Two of them broke when the repair guy man handled it. Pulling easy and supporting the inside pieces is key. Then I unplugged... Read more

• Not dispensing water
• Leaking

Being an ex maintainence. person, I went down and turned off the water supply. Then I started to try to find the leak by removing the rear covers for the compressor and valves. Once removing a couple of covers where the dual valve was, I spotted where the water was coming from.I then pulled the electrical plug from the wall. Between the solenoid and valve. I removed the screws that held the valve in place. Then disconnected the three hoses going into valve and removed the two electrical... Read more

The dual inlet valve was the problem. The hardest part of the repair was moving the refrigerator so we could unplug it. The whole job took about 25 minutes and that includes the time we spent emptying and reorganizing the shelves. I love AppliancePartsPros.com. We have used this website to fix our oven, washer, dryer and now the ice maker. Thank you AppliancePartsPros! We only used one screwdriver and that was only used to open the back panel of the refrigerator. Read more

I WENT ONLINE AND TRIED TO DIAGNOSE THE PROBLEM AND ORDERED A DEFROST THERMOMETER, BEFORE IT ARRIVED I CALLED THE SERVICE/ADVICE NUMBER. SHOULD HAVE DONE THIS FIRST, SPOKE WITH BRITTANY AND KEITH ON SEPARATE OCCASIONS, THEY THOUGHT IT WAS A WATER INLET VALVE, I ORDERED ONE, AND WITH KEITHS HELP I INSTALLED IT WITH HIM ON THE PHONE. DURING THE CALL I TEXTED HIM PHOTOS OF THE ISSUE AND HE WALKED ME THROUGH THE REPAIR. THE REFRIGERATOR IS WORKING PERFECTLY AND IT HAS BEEN THREE WEEKS. THEIR... Read more

• Not dispensing water

Hello, After watching your repair videos and reading the other comments regarding the ice maker I decided it needed to be replaced due to the old age (12 years) and mysterious flakes in the ice cubes and the solenoid valves were recommended to fix the hollow ice cube problem. After watching the repair videos on the ice maker and solenoid valves I decided I could do the replacement myself. Not needing a service technician to be called out. Also while waiting for the parts to arrive, I noticed... Read more

Purchased Appliance Parts Pros replacement ice maker, removed the defective unit, matched the proper wiring harness using the wiring color codes at the P and J side connectors. Approximately 1 hour following the installation, I delightfully heard the first set of cubes ! Read more
