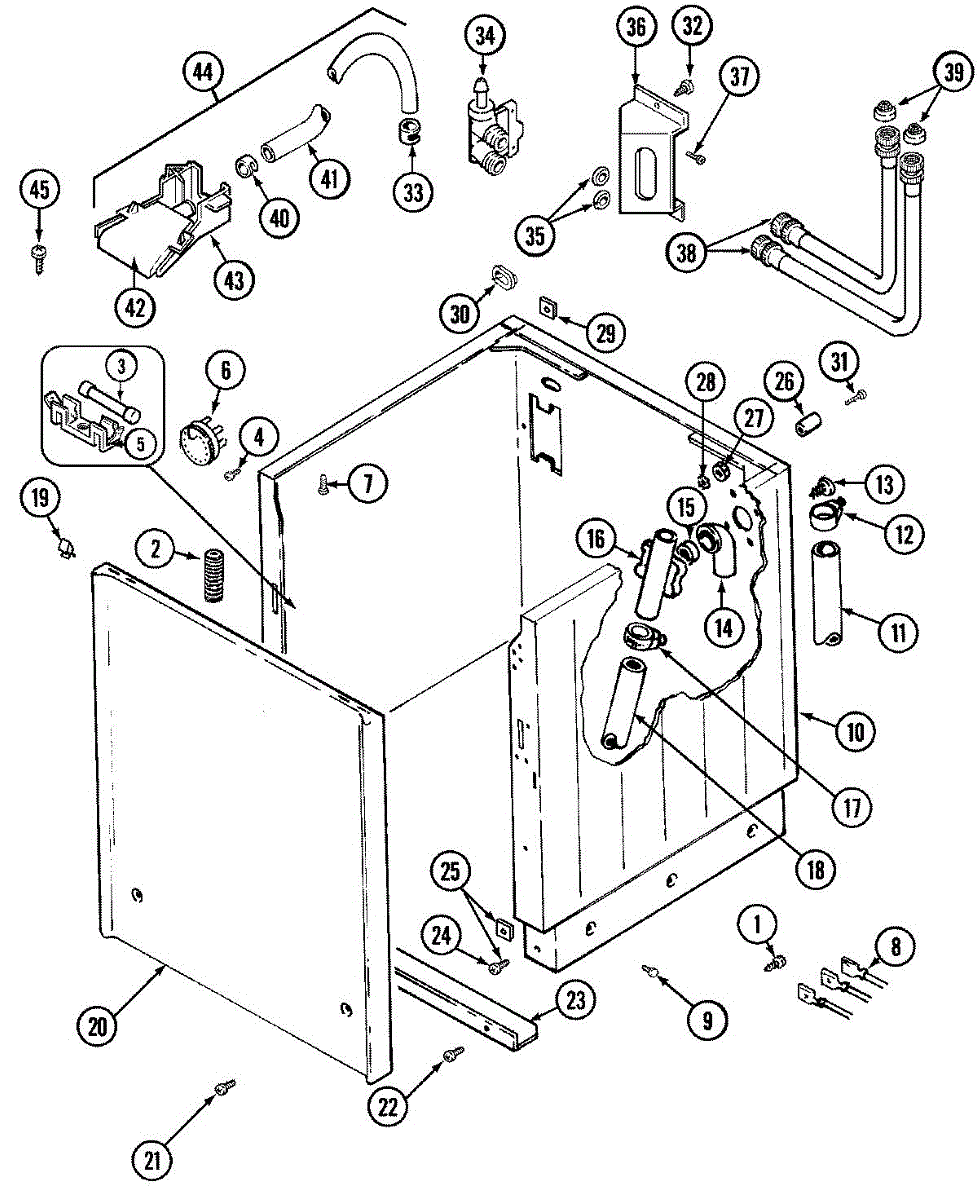

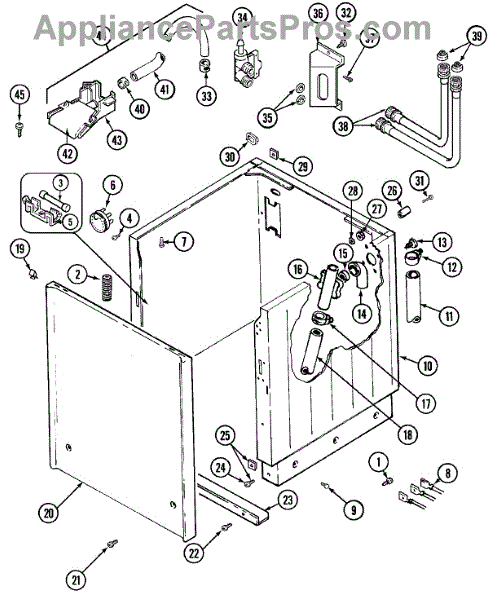

Parts for Maytag LSE7804ADL: 02 - Cabinet Parts

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This 250V, 1A fuse protects your washer's control circuit from overcurrent. Replacing it can restore control power once the root cause is corrected.

• Opens to protect electronics when current exceeds its 1A rating
• Check this part if the washer has no power, the control panel is dead, or it won't start
• A blown fuse will test open for continuity
• Repeated failure points to an underlying short or component fault that must be fixed

• Disconnect power before servicing
• Access the fuse at the control board or fuse holder
• Replace only with the same rating: 1A, 250V
• Inspect wiring/components and correct any short before restoring power

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

Spesc: #12 pozi - drive

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This factory fastener secures appliance components such as panels, brackets, and trim. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and helps keep assemblies aligned for reliable performance.

• Fastens appliance parts to maintain structural integrity and alignment
• Helps address symptoms like loose or vibrating panels, gaps, or hardware that won't stay tight
• Replaces lost, damaged, or corroded fasteners during repairs or reassembly
• OEM-matched thread and fit for the specified location

• Disconnect power; shut off gas or water supplies before servicing
• Replace one screw at a time to preserve alignment of parts
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver size/type specified for your model

This siphon break elbow is a 90-degree connector used in the drain path to create an air break that helps prevent back-siphoning. Replacing a cracked or obstructed elbow can stop leaks and restore proper draining performance.

• Provides a 90-degree connection between the drain hose and the siphon break/air-gap fitting
• Maintains the atmospheric break that prevents wastewater from siphoning back into the appliance
• Helps route drain flow without kinking or stressing the hose
• Common symptoms: leaking at the elbow area, water backing up through the drain line, slow or incomplete draining, visible cracks or damage

• Disconnect power; turn off water supply if applicable
• Expect residual water—protect the area with towels or a pan
• Release hose clamps, note orientation, fully seat hoses on the new elbow, and secure clamps
• Run a test and check for leaks

This gasket creates a reliable seal between two appliance components. Replacing a worn or damaged gasket helps stop leaks and drafts at the joint, restoring proper performance and preventing moisture, frost, or debris from entering where parts meet.

• Forms a tight seal between mating surfaces to help prevent water or air leaks
• Helps maintain proper temperatures and operation by keeping unwanted air or moisture out
• Reduces vibration at the joint that can cause noise or loosening over time
• Typical failure signs: visible cracks or flattening, seepage or drips at the joint, moisture or frost forming nearby

• Disconnect power and shut off water supply before service
• Photograph the original setup to aid reassembly
• Remove the old gasket and thoroughly clean/dry both mating surfaces; remove any residue
• Seat the new gasket evenly without stretching; tighten fasteners evenly and check for leaks or air gaps after reassembly

The Siphon Break is an OEM part for Whirlpool washing machines. It is a critical safety component that prevents the backflow of contaminated water from the washer into the fresh water supply line. For the gasket use part number [AP6005834], For the siphon elbow use part number [AP4024083]

Causes of a faulty siphon break include physical damage, clogging due to mineral buildup or debris, or general wear and tear over time.

Symptoms of a bad siphon break:

• Water leaks or puddles around the washing machine
• The washer not filling with water properly
• Potential for contaminated water to enter the fresh water supply

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

The Drain Hose is an OEM part for Whirlpool washing machines. It is responsible for carrying wastewater from the washing machine to the household drain system, ensuring proper removal of water during and after the wash cycle.

Common causes of a bad drain hose include wear and tear over time, blockages from debris or lint, and damage from sharp objects or improper installation.

Symptoms of a bad Drain Hose include:

• Water leaks from the hose
• Slow or incomplete drainage
• Visible cracks, splits, or punctures
• Unpleasant odors from trapped debris

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

Screw kit for front panel.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool appliances. It controls the flow of water into the washing machine.

Causes of a faulty water valve can include wear and tear over time, sediment or mineral buildup, electrical component failure, or physical damage. These factors can result in issues such as inadequate water flow, water leakage, or the appliance not filling with water.

Symptoms of a bad water valve may include:

• Insufficient water filling in the appliance
• Slow or no water flow
• Water leakage from the valve area

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small retaining clip secures components in place inside the appliance, helping prevent movement, vibration, and premature wear. Replace a bent, fatigued, or missing clip to restore a solid, factory-tight hold.

• Holds panels, brackets, or tubing securely in their mounts
• Helps maintain alignment to reduce rattles, rubbing, or intermittent issues
• Common signs of failure: missing clip, loose fit, buzzing/vibration, parts that won't stay seated
• Restores proper retention after service, transport, or vibration-related fatigue

• Disconnect power and shut off gas/water before servicing
• Note the original clip's orientation; remove with needle-nose pliers
• Seat the new clip fully—do not over-bend; spring tension provides the hold
• Test operation before reassembly

A single mounting screw designed to secure panels, brackets, or components on your appliance for reliable fit and reduced vibration. Use this genuine replacement when a fastener is missing, stripped, or rusted. What it does:

• Fastens panels, trim, or mounting brackets to restore proper alignment
• Helps eliminate rattling or vibration caused by loose or missing screws
• Replaces corroded or damaged hardware to maintain safe operation
• Restores secure attachment for parts that no longer hold in place

• Disconnect power to the appliance before starting any repair
• Use the correct driver bit to avoid stripping the screw head
• Tighten until snug; avoid overtightening which can strip threads or damage parts

Size: 6 foot long. Washers not included. This is one hose, for a set with washers order 285363. For inlet hose screen use 285452A and for inlet hose washers use 285448A

Hose washer and plastic insert for inlet hose. To order separately: for washer use WPY013783, for strainer use WP22002960.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This upper injector directs incoming water cleanly into the washer tub during fill and rinse. Replacing a cracked or clogged injector restores proper water delivery, helps prevent splash-back, and supports consistent wash performance.

• Channels inlet water into the tub from the upper injection point
• Helps prevent splash-back and backflow at the tub ring area
• Promotes even water spray for detergent/softener flushing as designed
• Common failure symptoms: water dripping or spraying from the fill area, leaks down the cabinet, slow/erratic fill, or visible cracking/mineral buildup on the injector

• Disconnect power and turn off both hot and cold water supplies before servicing
• Access the injector at the top/tub ring area; remove top or cabinet panels as required per model
• Transfer and secure the fill hose and clamps; ensure a fully seated connection
• Restore water and power, run a fill test, and check all connections for leaks

This washer injector (lower) forms the bottom half of the fill injector assembly, channeling incoming water cleanly into the tub. A damaged injector can cause leaks or spray at the tub ring during fill. What it does:

• Directs fill water into the tub through the injector assembly
• Seals with the upper injector to prevent splashback
• Common symptoms: leaking or spraying during fill, water on floor near the top/front during fill, visible cracks/warping on the injector
• Restores a clear, sealed water path for proper filling

• One lower injector

• Disconnect power and shut off water supply before servicing
• Access may require lifting the top or removing the cabinet to reach the injector at the tub ring
• Transfer any reusable clamps/retainers; align with the upper injector for a proper seal
• Run a short fill and inspect for leaks after installation
