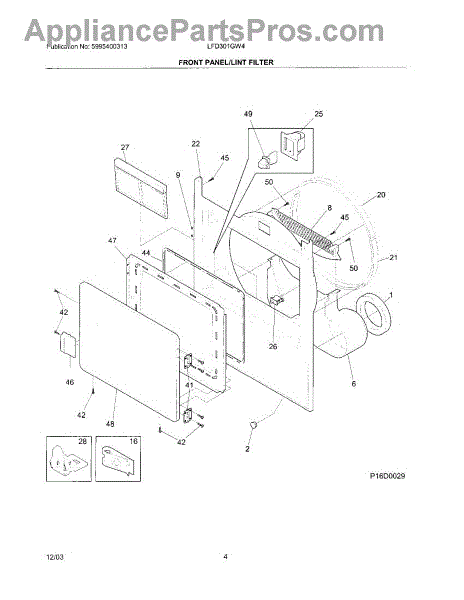

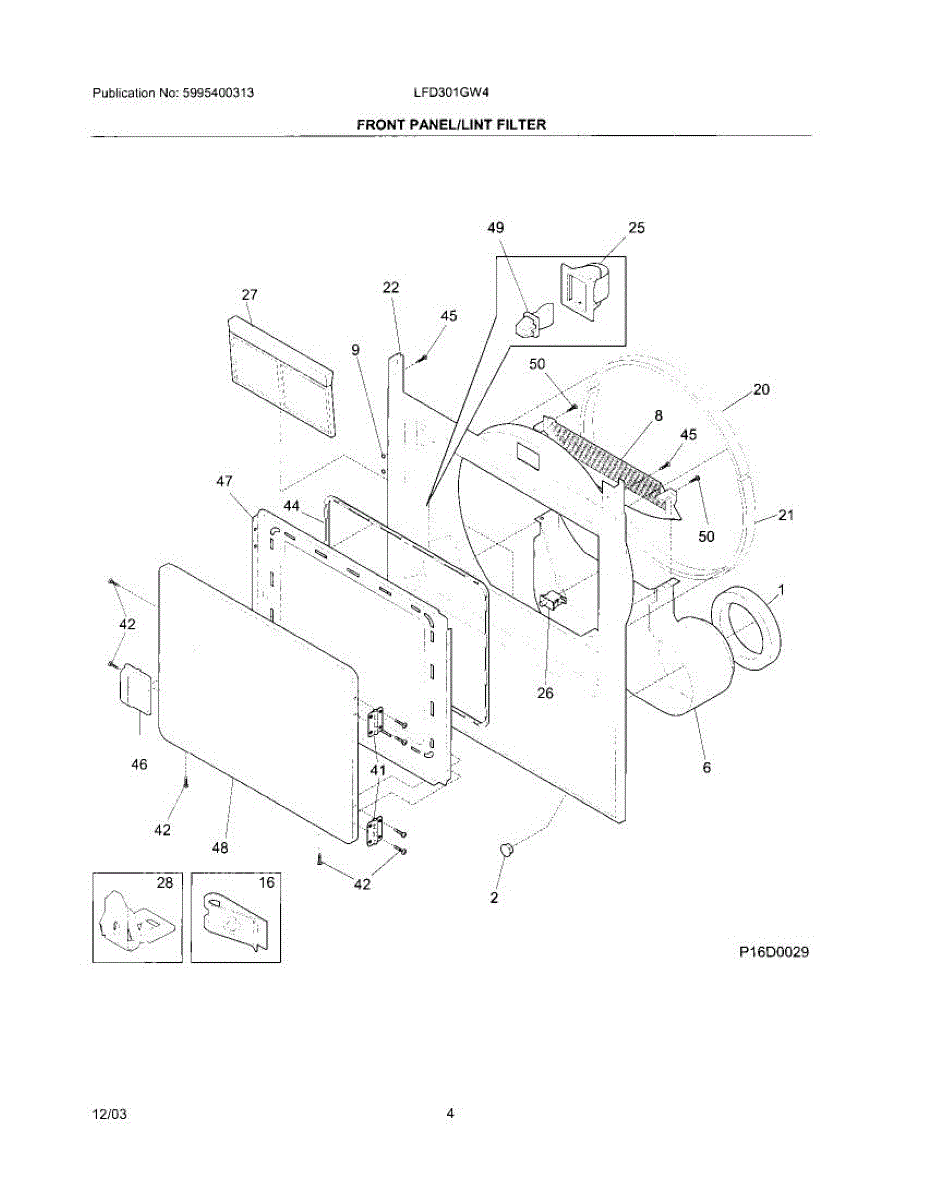

Parts for Frigidaire LFD301GW4: 05 - Front Panel / Lint Filter Parts

The Dryer Seal is an OEM replacment part for Frigidaire dryers. It is located at the doorway opening where the drum rotates and helps prevent lint, moisture, and heat from escaping. The seal is a crucial component that ensures efficient drying and heat retention within the dryer drum.

Causes of a bad seal can include wear and tear over time from continuous use or damage due to mishandling. The nylon seal experiences a lot of friction and heat stress with each drying cycle.

Symptoms of a bad seal include:

• Increased drying time as heat escapes
• Excess lint and moisture accumulation inside dryer components
• Visibly worn or cracked seal edges
• Cool air leakage noticed around the door when the dryer is running

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This white replacement plug fills and finishes an unused opening on the appliance, helping keep out dust and debris while restoring a clean, factory appearance. Use it where a small trim or access hole needs a discreet cover. What it does:

• Covers unused holes or access slots to protect internal components from dust and moisture
• Restores a finished, factory look to trim panels or consoles
• Helps prevent small items from falling into openings
• Simple, low-profile piece that stays recessed and unobtrusive

• No power required; work with the appliance unplugged or power turned off as a safety precaution when accessing trim
• Push the plug into the opening until it seats flush; a gentle push with a finger or soft tool is usually sufficient
• If removal is needed later, gently pry with a flat, non-marring tool to avoid scratching surrounding surfaces

This wiring clip secures a refrigerator's wire harness to the cabinet or components to prevent chafing and keep wires organized. It helps maintain safe routing and reduces strain on electrical connections. What it does

• Holds wiring harness in place to prevent rubbing against sharp edges or moving parts
• Keeps wires organized to reduce the risk of pinching or accidental disconnection
• Helps prevent intermittent electrical faults caused by loose or strained wiring
• Commonly used near compressor, fan, control box, or rear cabinet areas

• Install by snapping the clip onto the cabinet flange or component and routing the harness through the retainer
• Disconnect power before accessing electrical components or wiring
• Inspect surrounding wiring and insulation; replace any damaged wire or harness tape before reinstalling the clip

The Upper Felt Seal is an OEM part for Frigidaire dryers. It provides a seal between the dryer drum and the front panel, helping to retain heat and ensure efficient drying performance. This felt seal also minimizes friction between the drum and the front panel, reducing wear on the drum and the appliance itself. The seal measures approximately 16.5" long x 1" wide. The adhesive is included as well.

Causes of a bad upper felt seal can include wear and tear over time, exposure to high heat, or damage from foreign objects caught in the drum. A compromised felt seal can lead to inefficient drying and increased energy consumption.

Symptoms of a bad upper felt seal include:

• Clothes taking longer to dry
• Excessive lint accumulation inside the dryer
• Unusual noises during the drying cycle
• Visible damage or gaps in the felt seal

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Also available in maintenance kit: Part Number 5304457724.

The Lower Felt Seal is an OEM part for Frigidaire dryers. This part creates a tight seal between the drum and the front panel, preventing air leakage and reducing energy consumption.

Symptoms of a failing Lower Felt Seal include:

• Clothes getting snagged or caught during the drying cycle
• Increased drying times due to heat escaping from the drum
• Excessive noise or squeaking as the drum rotates
• Visible wear, tears, or gaps in the felt seal

Causes of a bad lower felt seal can include regular wear and tear from the constant rotation of the drum, physical damage from overloading the dryer, or deterioration due to exposure to heat and humidity over time.

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This plug covers an unused opening on the appliance cabinet or panel to restore a clean, finished look. Replacing a missing or damaged plug helps keep dust and lint out of the cabinet and can reduce vibration-related rattles. What it does:

• Covers an open hole on the cabinet or panel after service or manufacturing access
• Helps block dust and lint from entering the cabinet
• Restores appearance and can eliminate small buzzes/rattles from open gaps
• Replaces a lost, cracked, or loose plug

• One plug

• Disconnect power to the appliance; for washers, also turn off the water supply
• Align the plug with the opening and press or snap it in until fully seated and flush
• Before restoring power and use, ensure the plug is secure

The Door Catch is an OEM part for Frigidaire dryers. It secures the door closed during cycles. This allows the machine to safely run without the risk of the door opening, which could pause the drying process or pose a safety hazard. Constructed from durable materials, this door catch is designed to endure the frequent opening and closing of the dryer door, offering reliability and longevity.

Causes of a bad door catch include mechanical wear from regular use, accidental damage, or misalignment of the door.

Symptoms of a bad Door Catch include:

• The dryer door won't stay shut during cycles
• Difficulty closing the dryer door securely
• The need to apply extra force to close the door
• The dryer stops running due to the door opening mid-cycle

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This door switch senses whether the appliance door is closed and signals the controls to run only when it's safe. Replacing a worn or intermittent switch restores dependable starts and proper shutoff when the door opens. What it does:

• Detects door position and allows operation only when the door is fully closed
• Interrupts operation when the door opens for safety
• Common symptoms include: won't start, stops when the door is moved, or "door open" message/error
• Intermittent starts due to worn actuator or internal switch contacts

• 1 door switch

• Disconnect power before servicing
• Access the switch from the front or top panel; release mounting screws or tabs
• Move wires to the new switch one at a time to maintain correct positions, then secure the switch
• Test operation before reassembly

The Lint Trap is an OEM part for Frigidaire dryers. It helps in capturing lint and debris generated during the drying process, preventing them from clogging the dryer vent and exhaust system.

Causes of a clogged or faulty lint trap can include excessive lint accumulation, damage to the trap screen, or improper installation.

Symptoms of a bad lint trap may include:

• Longer drying times
• Reduced drying efficiency
• Visible lint accumulation in the dryer drum or on clothes
• Excessive heat inside the dryer

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This hinge secures the door to the cabinet and provides a smooth pivot. Replacing a bent or worn hinge restores proper alignment and reliable latching so the door opens easily and closes securely.

• Provides the pivot point for the door to open and close
• Supports door weight and keeps it aligned with the latch/strike
• Wear or damage can cause sagging, rubbing, or squeaking
• A misaligned door may not engage the door switch, preventing the cycle from starting

• Disconnect power before servicing; shut off gas supply
• Support the door before removing mounting screws to avoid strain or damage
• Note hinge orientation; transfer any spacers/shims and reuse existing hardware
• Align the hinge, snug screws, then tighten fully and test door operation

Replacement mounting screw that secures appliance panels, trim or brackets to restore proper fit and reduce rattles. A simple fastener that helps keep components stable for safe, quiet operation. What it does:

• Secures panels, trim pieces or internal brackets in place
• Replaces lost, stripped or damaged screws that cause loose parts
• Helps stop rattling, vibration or misaligned panels
• Restores proper alignment so doors and covers sit flush

• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten — snug until secure to prevent damage
• Disconnect power before working near electrical components
• Keep small parts away from children and pets

This gasket is a sealing component used in select appliances. It fits between two mating parts to keep water or air where it belongs, helping prevent leaks and ensuring proper performance. What it does:

• Forms a tight seal between components or housings
• Helps prevent water drips, seepage, or air leaks at the joint
• Maintains correct appliance performance by keeping moisture/airflow contained
• Replace if the gasket is cracked, torn, flattened, or misshapen
• Common signs include residue, moisture, or visible gaps around the seal

• 1 gasket

• Disconnect power; turn off the water supply before servicing
• Note the orientation of the old gasket prior to removal
• Clean and dry the mating surfaces; remove any old gasket residue
• Seat the new gasket evenly without stretching; reassemble and check for leaks or proper seal

This replacement screw fastens panels, brackets, and internal components so assemblies stay aligned and tight during operation. With an 8-18 thread and 0.711-inch length, it matches the original hardware for a precise, reliable hold.

• Secures panels, brackets, and internal components to the cabinet/frame
• Replaces missing, stripped, or corroded screws
• Helps reduce vibration, rattling, and gaps from loose hardware
• Restores proper alignment after service or transport

• Disconnect power and shut off water/gas before servicing.
• Support panels/components while removing and installing the screw.
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten.

This door handle provides the grip to open and close the appliance door. Replace a cracked, loose, or missing handle to restore easy access and a clean, finished look.

• Provides the user handhold to operate the door
• Mounts to the door panel and transfers pull force to the latch mechanism
• Common symptoms: handle cracked/broken, loose or falling off, difficulty opening the door
• Helps address cosmetic damage or sharp edges from a broken handle

• Disconnect power to the appliance before servicing
• Open the door and support the outer panel or glass, if applicable
• Transfer and reuse original fasteners; align the new handle and tighten evenly—do not overtighten
• Verify smooth door operation before returning to service

The Door Strike is an OEM part for Frigidaire dryers. It is a small, essential component that ensures the dryer door remains securely closed during operation. The door strike engages with the door catch to keep the door latched, allowing the dryer to operate efficiently and safely. Without a functioning door strike, the dryer may not start, or it could stop mid-cycle.

You should replace this door strike if it becomes damaged or worn out. Over time, the door strike can suffer from wear due to regular use, misalignment, or accidental impact, leading to issues with the dryer door latching properly.

Symptoms of a bad door strike include:

• The dryer door not staying closed
• The dryer not starting or stopping unexpectedly
• Difficulty in latching the dryer door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

The High Temperature Adhesive is an OEM part for Frigidaire appliances. This adhesive is specifically formulated to withstand high temperatures and is used in various repair applications within appliances such as ovens, ranges, and dryers.The 1-ounce tube contains adhesive formulated to withstand the extreme heat inside dryer drums and cabinets

Causes of a bad adhesive can include exposure to extremely high temperatures over extended periods, contamination by dirt or grease, or the natural aging and drying out of the adhesive.

Symptoms of a bad high temperature adhesive include:

• Components or parts becoming loose or detached
• The adhesive becoming brittle or cracked
• Inability to properly bond surfaces exposed to high heat
• Visible deterioration or peeling of the adhesive

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
