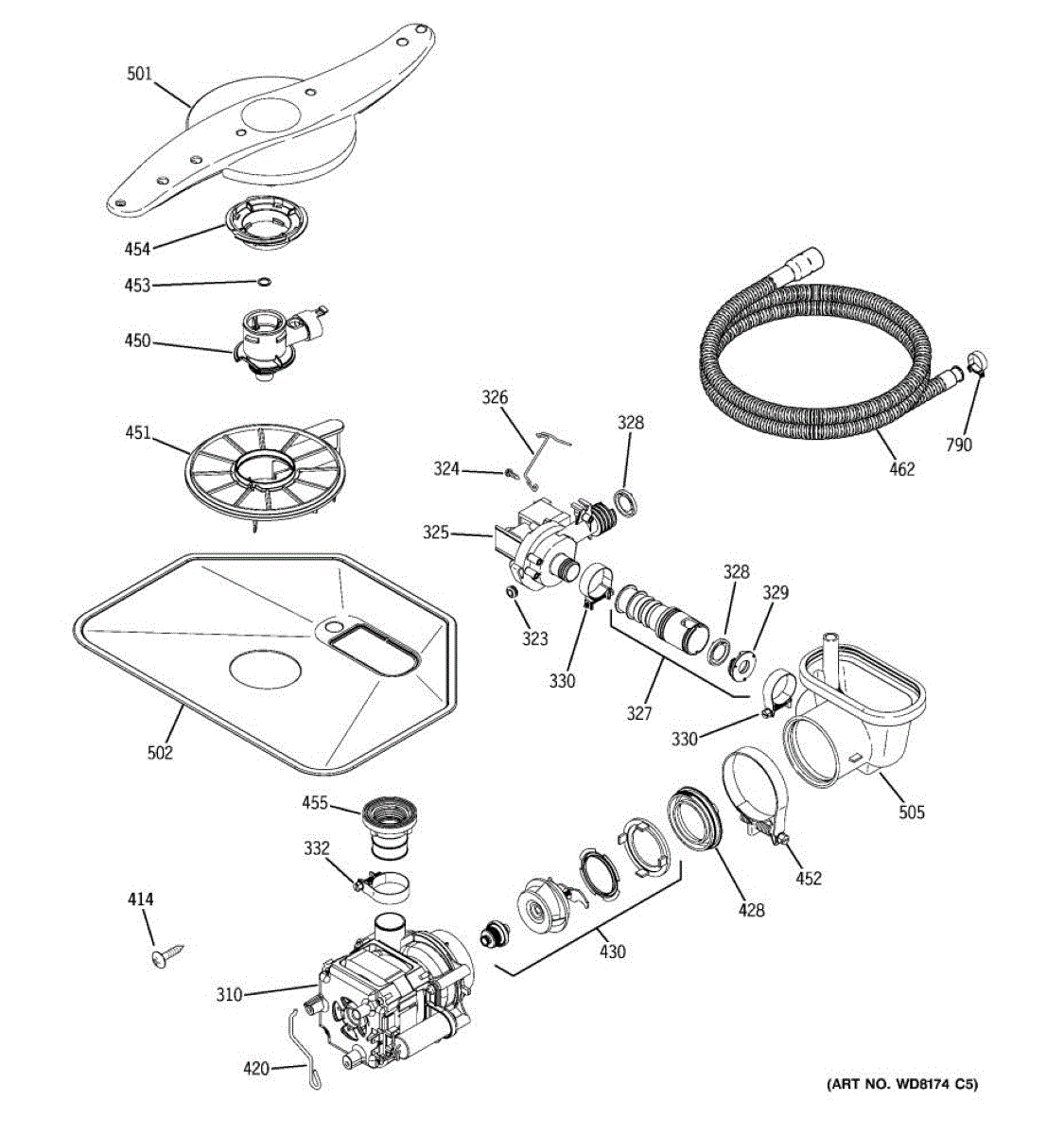

Parts for Ge HLD4040M00SA: 05 - Motor-Pump Mechanism Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Pump and Motor Assembly is an OEM replacement part for GE dishwashers. It works to circulate water throughout wash and rinse cycles. The motor spins the integrated pump impeller to draw fresh water into the dishwasher and drain used water.

Causes of a bad pump and motor assembly can include mineral buildup on pump parts inhibiting water flow, worn motor windings reducing efficiency, or damage from freezing temperatures.

Symptoms of a bad pump and motor assembly include:

• Inability to fill or drain water from the dishwasher
• Abnormal noises coming from the motor area
• Leaks or water not circulating properly

This OEM part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rubber grommet cushions and seals appliance components to reduce vibration and prevent wear. It replaces a worn or torn grommet to restore proper fit and quiet operation. What it does:

• Cushions metal-to-metal contact to reduce noise and vibration.
• Helps secure hoses, wiring, or panels where mounted through a hole.
• Prevents chafing and protects components from abrasion.
• Common symptom: rattling, rubbing sounds, or visible rubber deterioration.

• Turn off power to the appliance before starting any repair.
• Remove necessary panels or components to access the damaged grommet; note fastener locations for reassembly.
• Press or push the grommet into the mounting hole until fully seated; some installations may require a flat tool to ease placement.
• If grommet secures wiring or hoses, verify routing and clearance before restoring power.

Specs: 8-18 AB IHW 5/8 S

The Drain Pump Kit is an OEM part for GE dishwashers. Containing both the drain pump and float switch, it works together to remove water from the tub at the end of each cycle.

Symptoms of a bad Drain Pump Kit include:

• Water remaining in the bottom of the tub after cycles complete
• The dishwasher failed to drain properly
• Strange noises or vibrations coming from the drain pump area
• Float switch malfunction causing issues with cycle progression

Causes can include a worn-out or failing pump motor, clogged or obstructed pump impellers, or issues with the float switch mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Check Valve and Hose Assembly is an OEM part for GE dishwashers. This part prevents the backflow of water into the dishwasher, ensuring proper drainage and protecting the appliance from potential water damage.

Causes of a bad check valve and hose assembly can include blockages from debris, wear and tear over time, or damage from improper installation.

Symptoms of a bad check valve and hose assembly include:

• Water not draining properly from the dishwasher
• Standing water in the bottom of the dishwasher
• Water leaking from the dishwasher
• Unusual noises during the drain cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Check Valve Flapper is an OEM replacement part for GE dishwashers. It is a small but crucial component located within the water inlet valve assembly. The check valve flapper regulates water flow into the dishwasher, allowing water to enter during the fill cycles but preventing backflow when the water is drained.

Causes of a bad check valve flapper can include wear and tear over time, mineral buildup that causes sticking, or damage to the flapper itself. This prevents the flapper from opening and closing as intended.

Symptoms of a bad check valve flapper include:

• Slow or incomplete filling of water
• Dripping or leaking water from the inlet area
• Error codes related to water issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dishwasher models.

A small replacement clamp used to secure hoses and small assemblies to prevent leaks or disconnection. Fits the original mounting point and restores a tight seal where the worn clamp no longer holds reliably. What it does:

• Secures a hose or tubing connection to keep water or air from leaking
• Restores proper tension where the original clamp has loosened or corroded
• Helps stop intermittent leaks and prevents hoses from slipping off fittings
• Works in confined appliance areas where a compact clamp is required

• Turn off power and water to the appliance before starting any repair
• Use appropriate hand tools; avoid over-tightening to prevent hose damage
• Dispose of the old clamp and any corroded hardware; inspect surrounding fittings for wear

This dishwasher hose clamp secures a hose to its fitting to help prevent leaks. Replace a corroded or loose clamp to restore a tight, reliable seal at a hose connection point. What it does:

• Tightens around a dishwasher hose and fitting to maintain a watertight seal
• Helps resolve leaks at hose joints or beneath the unit
• Replaces clamps that are corroded, bent, stripped, or won't hold tension
• Symptoms include moisture at the connection, hose slipping off, or recurring leaks

• Includes 1 hose clamp

• Disconnect power at the breaker and shut off the water supply before servicing
• Access the affected hose connection and place a towel or pan to catch residual water
• Release and remove the old clamp; fully seat the hose, position the new clamp just behind the fitting's barb, and tighten/secure
• Run a short cycle and check for leaks at the connection

This clamp secures a hose or small tubing connection on compatible GE laundry appliances to help prevent leaks and keep the connection stable during operation. Durable metal construction resists vibration and wear. What it does:

• Holds a hose or tube firmly to a fitting to reduce leaks and loss of water or airflow
• Stops hose slippage caused by vibration or pressure changes
• Helps restore a tight connection after hose replacement or service
• Simple, low-profile design for use in confined appliance spaces

• Disconnect power and shut off water supply before servicing
• Drain hoses and remove remaining water to avoid spills
• Use the proper screwdriver or nut driver to tighten; do not over-tighten
• Inspect the hose and fitting for wear and replace if damaged before reinstalling the clamp

This is a genuine replacement screw used to secure components and panels on compatible GE appliances. It restores proper fit and prevents rattling or loose parts for safe, reliable operation. What it does:

• Secures panels, brackets, or internal components to maintain proper alignment
• Stops rattling or vibration caused by loose fasteners
• Replaces missing, stripped, or damaged screws to restore safe operation
• Helps maintain seals and clearances by holding parts firmly in place

• Screw

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Do not overtighten; snug until secure to prevent damage to components
• Keep removed fasteners organized to ensure correct reassembly

This suction ring sits in the dishwasher's sump/filter area and helps channel wash water into the circulation system. Replacing a worn ring can help restore proper water pickup and spray pressure for reliable cleaning performance.

• Helps maintain suction at the pump inlet for steady water flow to the wash system
• Supports proper spray arm rotation and wash coverage
• Common symptoms of failure: poor cleaning, weak spray, spray arms not turning consistently, or unusual noise from the sump area
• Wear or damage can disrupt circulation

• Disconnect power and water supply before servicing
• Remove the lower rack, then the lower spray arm and filter/sump cover to access the ring
• Note the ring's orientation; press the new ring fully into place before reassembly
• Run a short test cycle to ensure proper circulation

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Circulation Pump Impeller Kit is an OEM replacement part for GE dishwashers. This kit includes the necessary impeller components responsible for circulating water throughout dishwashing cycles.

Causes of a bad circulation pump assembly include normal wear from continuous pump operation, along with mineral or debris buildup that can affect water flow.

Symptoms include:

• Inadequate or lack of water circulation within cycles
• Dirty dishes even after full cycles due to insufficient cleaning

This OEM GE part is compatible with some Hotpoint, RCA, and select Kenmore models.

The Fine Filter is an OEM part for GE dishwashers. It is designed to trap food particles and debris during the wash cycle, preventing them from recirculating onto the dishes and ensuring clean, spotless results.

Causes of a bad fine filter can include clogs from food particles, damage from sharp objects, or wear and tear over time. A compromised filter can lead to poor cleaning performance and potentially damage other components by allowing debris to circulate.

Symptoms of a bad Fine Filter include:

• Poor cleaning results with food particles left on dishes
• Increased noise during operation
• Water drainage issues
• Visible damage or clogging in the filter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This sump clamp secures the dishwasher sump to the tub assembly, keeping the gasket compressed for a watertight seal. Replacing a weakened or corroded clamp helps stop leaks from the base and restores proper wash system sealing.

• Holds the sump firmly to maintain seal compression
• Helps prevent water leaking from the bottom of the dishwasher during operation
• Replace when the existing clamp is rusted, broken, stripped, or won't tighten

• Disconnect power at the breaker and shut off the water supply
• Remove the toe kick and, if needed, pull the dishwasher forward for access
• Position the clamp over the sump-to-tub joint and tighten evenly; do not overtighten
• Reseat the sump gasket and run a leak test after reassembly

This is a genuine OEM replacement lower spray arm bearing sourced directly from the manufacturer for use in dishwashers. The lower spray arm spins to distribute water to the dishes during the wash cycle. Thus spray arm bearing supports the spray arm and lessens the friction, which allows it to spin more easily. If the dishes are not clean after the wash and rinse cycle, or the arm is making loud noises, the spin arm bearing may need to be replaced. This bearing is a small metal part that may wear over time. If the bearing is distorted or damaged, the arm will not sit level, and spinning may be very loud, or it may not spin. The spray arm bearing should be replaced. Turn off the breaker or disconnect the power to the dishwasher. Open the dishwasher and pull the bottom rack out. Turn the lower spray arm counterclockwise to remove it. Use a telescoping magnet to pull the bearing up from the hole in the middle. Install the new bearing and reinstall the spray arm. Put the dishrack back inside and reconnect the power.This lower spray arm bearing is a gray metal part that is sold individually. It is designed for use in dishwashers designed by General Electric and Hotpoint.

The Fine Filter Hub Nut is an OEM part for GE dishwashers. It secures the fine filter in place, ensuring that debris and food particles are effectively filtered out during the wash cycle, preventing them from re-entering the dishwasher tub.

Causes of a bad fine filter hub nut can include wear and tear from regular use, damage from over-tightening, or cracking due to impact. A faulty hub nut can lead to improper filtration, causing debris to circulate and potentially clog the dishwasher.

Symptoms of a bad Fine Filter Hub Nut include:

• Poor cleaning results with food particles left on dishes
• Unusual noises during the wash cycle
• The filter becoming loose or not staying in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pump Connector is an OEM part for GE dishwashers. This connector joins the dishwasher’s pump to the drain hose, facilitating the proper expulsion of water during the draining cycle. It ensures a secure and leak-free connection, essential for the efficient operation of the dishwasher.

Over time, the pump connector can become compromised due to wear and tear, exposure to detergents and hot water, or damage from debris. If the connector fails, it can lead to leaks and drainage issues, impacting the dishwasher's performance.

Symptoms of a bad pump connector include:

• Water leaking from the bottom of the dishwasher
• Slow or incomplete drainage
• Puddles of water around the dishwasher
• Error codes related to drainage problems

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Drain Hose Kit is an OEM replacement part for GE built-in dishwasher models. It includes flexible tubing and attachments responsible for draining used water from the wash chamber via the internal pump outlet.

Symptoms of a bad drain hose include:

• Puddles or standing water left inside after cycles complete
• Slower overall wash and dry times from impaired drainage
• Nosier pump operation potentially from hose blockages

Causes of failure can stem from cracking over extended usage years, or mineral buildup restricting flow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore refrigerators.

The Lower Spray Arm is an OEM part for GE dishwashers. It is located at the bottom of the dishwasher. The spray arm uses a series of small nozzles and openings to produce targeted sprays that assist in loosening and washing away food debris.

Causes of a bad lower spray arm include clogs or mineral buildup inside the spray nozzles over time, or damage such as bending of the arm that affects water pressure and spray patterns.

Symptoms of a bad Lower Spray Arm include:

• Ineffective cleaning and rinsing at the bottom rack of dishes
• Standing water or poor drainage from the dishwasher tub
• Visible defects like cracks or gaps in the spray arm material

This genuine GE replacement part is also compatible with Hotpoint, RCA, and select Kenmore models.

This inlet sump is the lower-tub water intake for the circulation system. It channels wash water to the pump and seals the connection, helping prevent leaks and restoring proper wash performance when the original is cracked, warped, or clogged.

• Directs wash water from the tub into the circulation pump
• Maintains a watertight seal at the pump/sump opening
• Common failure symptoms: water leaking from beneath the unit, poor cleaning results, unusual noise from the pump area
• Visual clues: cracks, deformation, or mineral buildup on the sump inlet

• Disconnect power and shut off the water supply before servicing
• Access is typically from inside the tub and/or the bottom; remove lower rack, spray arm, and sump cover as needed
• Transfer existing clamps/seals and inspect gaskets; replace any worn seals for a proper fit
• Seat the sump fully, secure connections, then run a short cycle to check for leaks

This hose clamp kit secures the washer's hoses at the pump, tub, or valve connections, helping stop leaks and hose blow-offs. Replace worn or missing clamps to restore a tight, reliable seal during fill, wash, and drain.

• Secures drain, pump, and fill hoses to fittings to maintain a watertight seal
• Helps prevent drips, leaks, and hoses slipping off during vibration
• Replaces clamps that are rusted, stripped, deformed, or missing
• Common symptoms: water leaking at hose joints, loose hose connections, clamp won't tighten
• Useful when installing a new hose, pump, or valve

• Unplug the washer and turn off water supplies; have towels or a pan ready for residual water
• Release and remove old clamps; seat the hose fully over the fitting before installing new clamps
• Tighten evenly and do not overtighten to avoid hose or fitting damage
• Restore power and water, then run a short cycle to check for leaks at each connection
