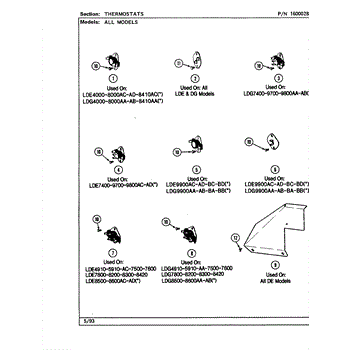

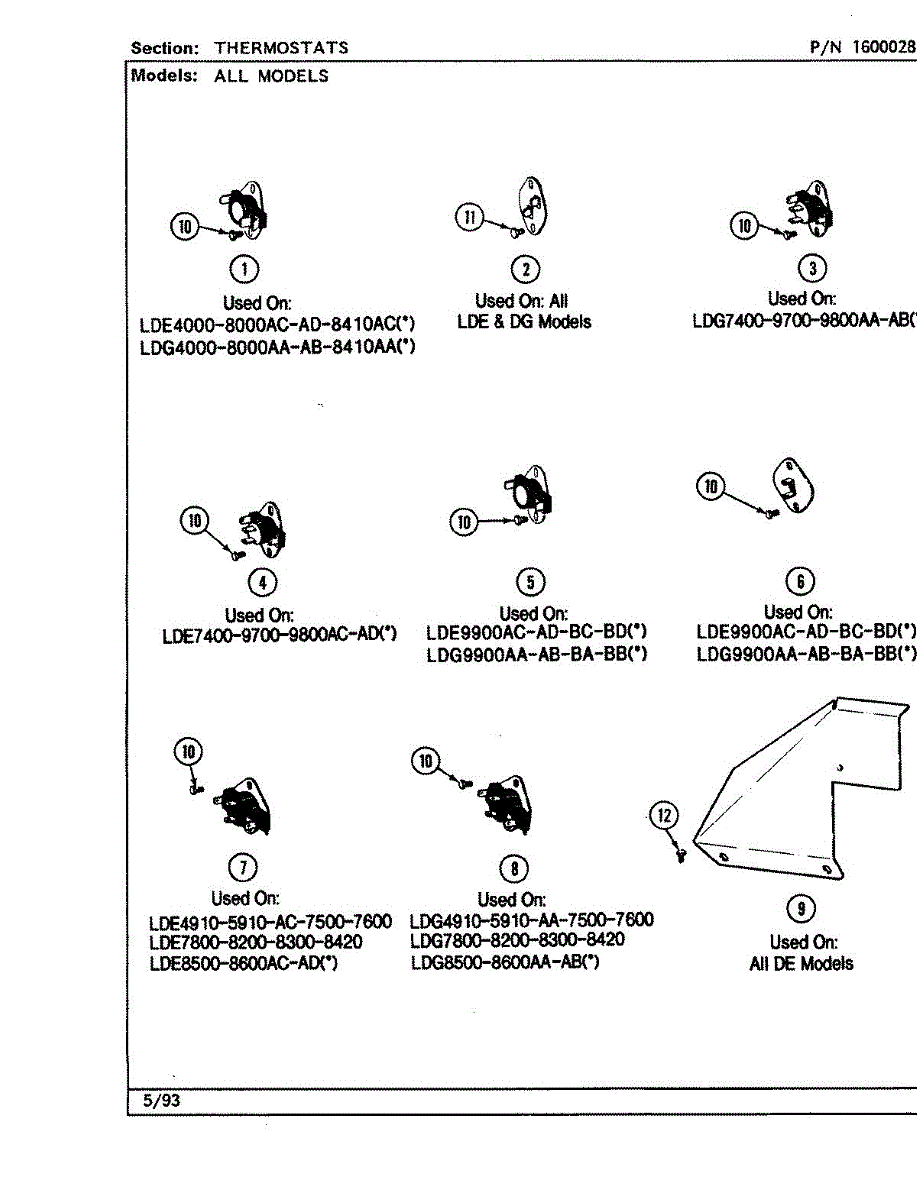

Parts for Maytag LDG8600AAW: 07 - Thermostats Parts

The Cycling Thermostat is an OEM part for Whirlpool dryers. This thermostat regulates the temperature inside the dryer by cycling the heating element on and off to maintain a consistent temperature.  .

Causes of a bad cycling thermostat can include wear and tear over time, electrical faults, or damage due to overheating.

Symptoms of a bad Cycling Thermostat include:

• Clothes taking too long to dry
• The dryer not heating at all
• The dryer overheating
• Erratic or inconsistent drying temperatures

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse is an OEM replacement part for Whirlpool dryers. This safety device monitors and protects heating elements inside the dryer. If temperatures rise too high due to a blockage or other issue, the fuse automatically opens the electrical circuit to cease further heating.

Symptoms of a bad thermal fuse include:

• Dryer failing to heat or stay warm during cycles
• Fluctuating or inconsistent heat levels
• Tripped circuit breakers after drying

Causes of failure involve wear or damage from years of high heat exposure. Over time, components become brittle and less responsive.

This OEM Whirlpool replacement is also compatible with some Kenmore, Admiral, Roper, and Estate dryer models.

This Dryer Cycling Thermostat is an OEM replacement part for Whirlpool dryers. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results.

Symptoms of a bad cycling thermostat include:

• The dryer not heating or heating inconsistently
• Frequent trips of the circuit breaker
• Slower than normal drying times
• Burned clothes due to overheating

Causes of failure may be related to normal wear over time, dust buildup affecting sensor readings, or incorrect thermostat calibration.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This internal-bias thermostat regulates dryer drum temperature by cycling the heat on and off, helping maintain consistent drying performance and protect against overheating.

• Controls the cycling temperature of the heating circuit to prevent underheating or overheating
• Helps resolve symptoms like no heat, not enough heat, long dry times, or temperature swings
• A faulty thermostat may cause overheating that can trip the thermal fuse
• Located on the blower housing on many models

• Disconnect power and shut off gas (for gas dryers) before servicing
• Access the blower housing; note wire positions and transfer one at a time
• Mount the thermostat flush to the housing for proper sensing
• After installation, run a test cycle to verify proper heating

This multi-temperature cycling thermostat regulates the dryer's drum heat, switching the heater on and off to match the temperature setting you choose. It can help restore consistent drying if temperatures are erratic, loads run too hot, or cycles take too long.

• Maintains target temperature by opening and closing the heater circuit across multiple heat settings
• Provides calibrated temperature control for safe, efficient drying
• Failure may present as no heat or low heat, overheating, very long dry times, or inconsistent temperatures
• Intended for models with multiple temperature selections

• Unplug the dryer; shut off gas supply if applicable. Allow the appliance to cool before servicing.
• Take a photo of wire positions; move wires to the new thermostat one at a time to matching terminals and ensure snug connections.
• Remove/install mounting screws and seat the thermostat flat against the mating surface for proper sensing.
• After reassembly, clear lint passages and verify proper vent airflow.

• If there's no heat at all, also check the thermal fuse, high-limit thermostat, heating element (electric), or igniter/burner components (gas).
• Restricted venting can mimic thermostat issues and cause overheating or long dry times.

This thermostat is a temperature-sensitive switch used in the appliance's heating circuit. It opens and closes at a specific temperature to regulate or limit heat, helping maintain correct operation and protect components from damage due to overheating.

• Monitors temperature and switches the heating circuit on/off at its preset trip point
• Helps prevent overheating and heat-related component damage
• Failure symptoms can include no heat or underheating, overheating or burnt odors, or heat that won't shut off
• May cause intermittent heating or frequent cycling as the unit warms and cools

• Disconnect power and allow the appliance to cool completely; shut off gas supply if applicable
• Access the thermostat, note/photograph wire positions, and transfer wires one at a time to the new part
• Mount securely against the proper surface/bracket so the sensor has good contact
• Restore power and test operation; if issues persist, diagnose related heating components per the service manual

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Specs: 10 - 16 x .375
