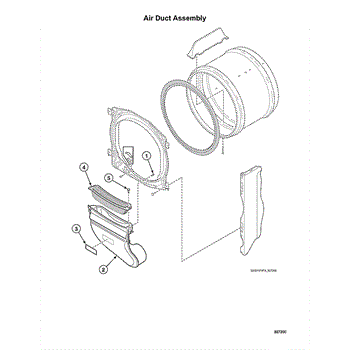

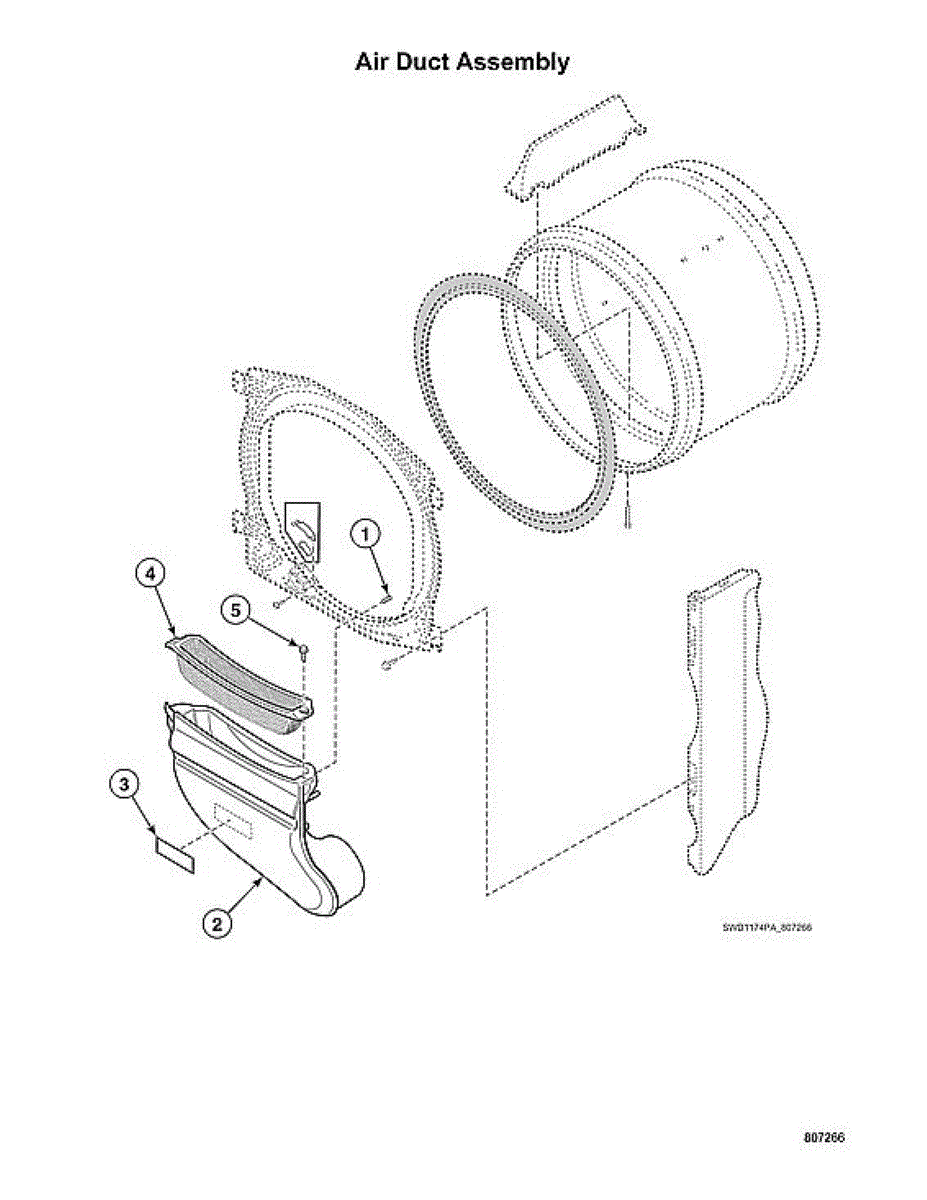

Parts for Speed Queen STGNCASP115TW01: Air Duct Assy Parts

This air duct assembly routes airflow inside the washer cabinet to support proper ventilation and cooling of internal components. It replaces damaged or cracked ducts to restore directed airflow and reduce overheating risk. What it does:

• Channels air from the blower/fan to internal areas to help dissipate heat and control moisture.
• Prevents airflow leaks that can cause poor ventilation, unusual heat buildup, or increased drying times.
• Restores proper airflow paths that may stop intermittent fan noise caused by loose or broken ducting.
• Keeps dust and lint contained within the duct path to reduce buildup on sensitive components.

• One light-gray air duct assembly

• Disconnect power to the appliance before attempting any service.
• Remove access panels as needed to reach the duct; handle plastic parts gently to avoid cracking.
• Verify alignment and secure all fasteners; ensure ducts seat properly over blower or vent connections.
• Inspect and replace as needed for best results.

This lint filter traps lint and fibers as air moves through the dryer, helping maintain proper airflow and drying performance. Replace a damaged or missing screen to reduce lint buildup inside the machine and along the vent.

• Captures lint and debris during the drying cycle to protect the blower and venting
• Helps maintain airflow for consistent drying results and temperature control
• Reduces lint redepositing on clothes and around the door opening
• Replace if the mesh is torn, the frame is warped/cracked, or if you notice longer dry times or excess lint inside the drum

• Disconnect power before servicing
• Remove the old screen and vacuum out the lint chute/housing; inspect and clean the exhaust vent as needed
• Insert the new filter and ensure it seats fully and flush—do not operate the dryer without the filter in place
• Run a short test cycle to confirm proper airflow at the exhaust

A replacement self-tapping screw used to secure plastic trim and sheet-metal panels on laundry equipment. Durable washer-head design helps distribute load and resist pull-through in plastic mounting points. What it does

• Fastens panels, trim pieces, and components where a short sheet-metal screw is required
• Self-tapping tip forms threads in plastic or thin metal for a secure hold
• Washer-style head spreads clamping force to reduce damage to plastic parts
• Common repair for missing, stripped, or broken mounting screws that cause loose panels or rattling

• One self-tapping screw (12-16 x 0.562 in) with hex washer head

• Use the correct screwdriver or low-torque driver to avoid over-tightening into plastic
• Start by hand-threading, then finish with short, controlled driver pulls
• Disconnect power and follow all safety guidance for the appliance before servicing
• Replace any damaged mating threads or inserts to ensure a secure repair
