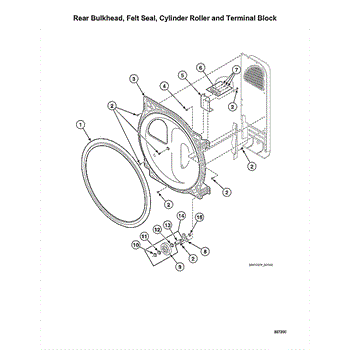

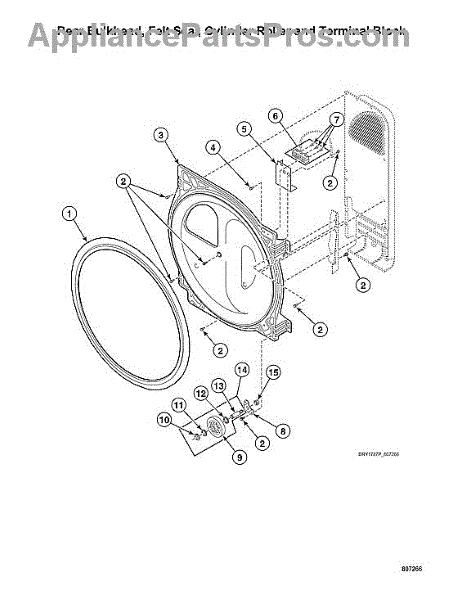

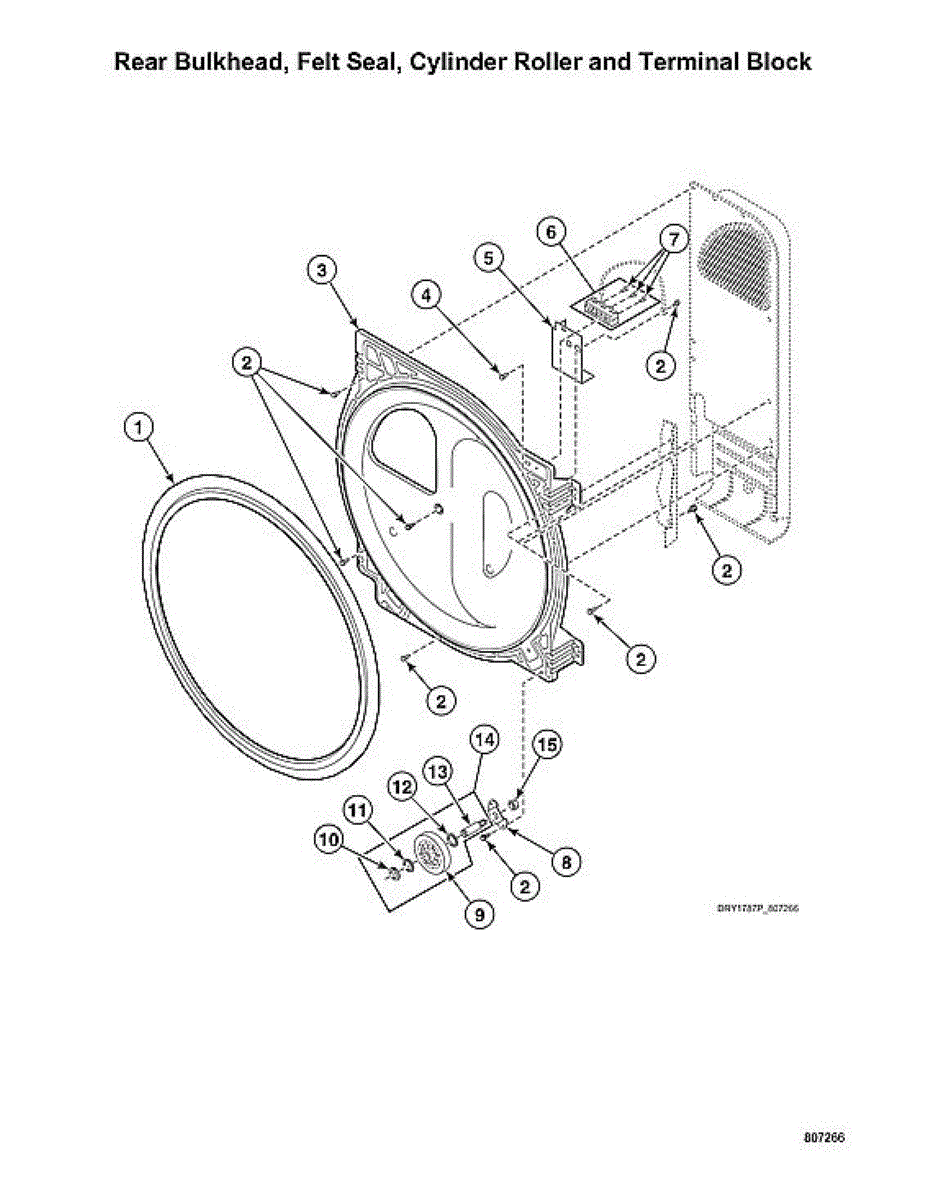

Parts for Speed Queen STGNCASP115TW01: Rear Bulkhead / Felt Seal / Cylinder Roller / Terminal Block Parts

A clear silicone adhesive/sealant used to bond and seal appliance trim and components, helping restore watertight and stable assemblies. Supplies a durable, flexible hold for small repairs where factory adhesive is specified. What it does:

• Bonds trim, panels, and small plastic or metal parts to prevent movement and leaks
• Seals gaps to reduce water intrusion around housings and door areas
• Provides a flexible, durable hold that resists vibration and temperature changes
• Useful for reattaching trim, tabs, and molded parts when original adhesive has failed

• One (1) clear 3 oz tube of DOW 737 adhesive

• Use in a well-ventilated area; wear gloves and eye protection to avoid skin/eye contact
• Surface must be clean, dry, and free of oils or old adhesive for best adhesion
• Apply as a thin, even bead; allow recommended cure time before reassembling or using appliance
• Follow any OEM repair instructions and local disposal guidance for adhesive containers

This rubber rear drum seal fits the dryer drum opening and helps keep the drum centered while reducing air leaks and preventing lint and fabric from getting between the drum and bulkhead for quieter, more efficient drying. What it does:

• Seals the gap between the dryer drum and bulkhead to maintain proper airflow.
• Cushions the drum edge to prevent metal-on-metal contact and reduce noise.
• Worn or torn seals can cause rubbing, squeaking, banging, excess vibration, or longer dry times.
• Visible gaps, shredded rubber, or lint buildup at the drum edge are common signs the seal needs replacement.

• Disconnect electrical power (and shut off gas supply for gas dryers) before starting any repair.
• Replacement commonly requires partial or full drum removal; inspect the drum and bulkhead for additional wear while accessible.
• Wear gloves and eye protection; watch for sharp edges and pinch points during reassembly.

This seal kit restores a proper water-tight barrier in the washer's drive area to prevent leaks and protect bearings and motor components on 1992-and-newer units.

• Seals the drive shaft/tub interface to stop water migration
• Helps prevent bearing and motor damage from moisture
• Common leak symptoms: water under the washer, rust streaks at center post, noisy spin from moisture intrusion
• May also address oil/water contamination around the transmission area

• Disconnect power and water; move the washer to a stable, level work area
• Removal of agitator, inner tub, and drive components is typically required
• Inspect shaft and mating surfaces; clean and lightly lubricate as specified by service literature
• Use proper drivers/press tools; do not hammer seals into place

This appliance screw replaces a missing or damaged fastener to secure panels and brackets. With a 10B-16 thread and 0.34-inch length, it restores a tight fit to help reduce vibration, rattles, and loosening.

• Fastens sheet-metal parts, brackets, and covers in the appliance cabinet
• Helps maintain alignment and support of components subject to vibration
• Direct replacement for stripped, rusted, or missing hardware
• Can help resolve symptoms like loose panels, rattling noises, or gaps

• Disconnect power; shut off gas/water as applicable before servicing
• Start threads by hand in the original hole or clip to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping
• If the receiving clip/nut is damaged, repair or replace it for a secure hold

This rear bulkhead assembly provides the rear tub support and a watertight seal to keep washer water contained and flowing correctly. It replaces a damaged or leaking rear housing to stop rear leaks and restore proper tub alignment. What it does:

• Seals the rear of the inner tub to prevent water from leaking at the back of the washer
• Supports and aligns the tub to help maintain smooth spinning and prevent rubbing
• Directs drain and rinse water flow toward the pump and drain path
• Helps reduce water dripping onto the cabinet floor or rear-facing components

• Disconnect power and turn off water supply before beginning any repairs.
• Typical access requires removing the washer top or rear panel; follow the OEM service manual for your model.
• Inspect surrounding gaskets, hoses, and fasteners for wear and replace if needed.
• Ensure the sealing surface and lip are clean and fully engaged during reassembly to prevent leaks.

This rear bulkhead assembly with seal replaces the washer's rear tub enclosure to restore a watertight connection and support the drum. It prevents leaks and helps maintain proper tub alignment for reliable operation. What it does:

• Seals the back of the washer tub to stop water from leaking at the rear
• Provides the mounting surface and alignment for the tub and rear components
• Helps prevent moisture damage to internal components and wiring
• Common symptom: water pooling or dripping from the rear of the machine

• One rear bulkhead assembly with seal

• Disconnect power and shut off water before beginning any repair
• Handle the seal carefully to avoid nicks; damaged seals can leak
• Basic hand tools required; verify fastener locations and torque per OEM guidance

A replacement self-tapping screw used to secure plastic trim and sheet-metal panels on laundry equipment. Durable washer-head design helps distribute load and resist pull-through in plastic mounting points. What it does

• Fastens panels, trim pieces, and components where a short sheet-metal screw is required
• Self-tapping tip forms threads in plastic or thin metal for a secure hold
• Washer-style head spreads clamping force to reduce damage to plastic parts
• Common repair for missing, stripped, or broken mounting screws that cause loose panels or rattling

• One self-tapping screw (12-16 x 0.562 in) with hex washer head

• Use the correct screwdriver or low-torque driver to avoid over-tightening into plastic
• Start by hand-threading, then finish with short, controlled driver pulls
• Disconnect power and follow all safety guidance for the appliance before servicing
• Replace any damaged mating threads or inserts to ensure a secure repair

This terminal block assembly connects your dryer's power cord to the internal wiring, providing a secure, heat-resistant junction. Replacing a damaged block restores a reliable electrical connection and helps prevent intermittent power, overheating, or burnt terminals.

• Provides an insulated junction point between incoming power and the appliance's internal wiring
• Secures cord conductors with screw terminals to maintain a tight, low-resistance connection
• Helps resolve issues like the dryer not powering on, intermittent shutdowns, or a burning smell near the cord cover
• Replaces cracked, melted, or stripped terminals to restore a safe power path

• Disconnect power at the breaker before servicing
• Photograph/label wire positions and move one wire at a time to the new block
• Tighten terminal screws firmly; recheck connections after initial operation
• Inspect/replace any heat-damaged cord lugs, wiring, or strain relief before reassembly

This bracket is the mounting base for the dryer's cylinder support roller. Replacing a bent or worn bracket restores proper roller alignment so the drum turns smoothly, reducing vibration and noise and preventing premature wear.

• Provides the fixed mount for the cylinder support roller
• Maintains drum alignment for smooth, even rotation
• Replace if the bracket is bent, cracked, or mounting holes are elongated
• Common symptoms of a failing bracket: loud rumbling/thumping, scraping, excessive vibration, or visible roller misalignment

• Disconnect power; for gas models, also shut off gas supply
• Access the roller area per your model's service information and support the drum
• Transfer the roller/axle and spacers from the old bracket; install the new bracket in the same orientation
• Verify the roller spins freely and hand-rotate the drum to check for binding before test run

The Roller Cylinder is an OEM replacement part for Speed Queen dryers. This component supports the dryer drum and enables smooth rotation during operation, reducing friction and ensuring consistent performance. Proper functioning of the roller cylinder is essential for maintaining the balance and efficiency of the dryer drum.

Causes of a bad Roller Cylinder can include natural wear over time, exposure to heavy loads that strain the rollers, or debris accumulation that affects smooth movement. Misalignment of the drum or poor maintenance practices can also contribute to roller failure.

Symptoms of a bad Roller Cylinder include:

• A thumping or rumbling noise during operation
• The drum wobbling or not spinning smoothly
• Visible wear or damage to the roller upon inspection

This OEM Speed Queen part is also compatible with Alliance laundry equipment.

This wave washer is a spring-style spacer used in washer assemblies to apply tension and maintain proper spacing. It controls endplay so parts fit securely and the machine runs smoothly with reduced vibration and noise during wash and spin cycles.

• Provides spring preload to maintain correct spacing in rotating assemblies
• Helps limit endplay that can cause rattling, chatter, or intermittent engagement
• Can help address symptoms like metallic noises, excessive play/wobble, or rough operation during agitation or spin
• Replace if the original washer is flattened, cracked, or missing

• Disconnect power and turn off water before servicing
• Note the exact stack order and orientation of spacers/shims during disassembly
• Install the new wave washer in the same orientation; do not bend or deform it
• Reassemble and hand-rotate components to check for smooth operation before test-running

Dryers, washers, and washer dryer combos are made with an idler pulley shaft. It works in combination with the rest of the equipment in multiple ways. It switches the direction in which the output shaft is rotating. The idler pulley shaft also works to change gears and maintain the space between shafts. With time, because of excessive force, or as a result of misuse, the idler pulley shaft can wear out, break, or get damaged otherwise. When the part isn't working correctly, it has to be replaced to continue using the machine.The primary indication that there is something wrong with the idler pulley shaft is a machine that's producing excessive noises. Replacement of the idler pulley shaft is a straightforward process. It can be done in a few minutes with a nut driver and screwdrivers. Unplug the appliance before starting the disassembly.This idler pulley shaft is a genuine OEM replacement part. It is sold as an individual unit. It is made of durable metal materials. The idler pulley shaft is sourced from the manufacturer. It can be installed in various machines made by Speed Queen, Amana, and Magic Chef.

The Roller Kit is an OEM part for Speed Queen dryers manufactured from 1992 and newer. This kit includes the rollers and necessary components that support the dryer drum, ensuring smooth and stable rotation during operation. The rollers help reduce friction and wear on the drum, contributing to the overall efficiency and longevity of the dryer.

Causes of a bad roller kit can include wear and tear from regular use, accumulation of lint and debris, and mechanical damage from overloading the dryer.

Symptoms of a bad roller kit include:

• Unusual noises such as squeaking or thumping during dryer operation
• The dryer drum not turning smoothly or becoming stuck
• Excessive vibration or shaking of the dryer
• Visible wear, cracks, or damage to the rollers

This OEM part is designed specifically for Speed Queen dryers from 1992 and newer, ensuring reliable performance and a perfect fit.
