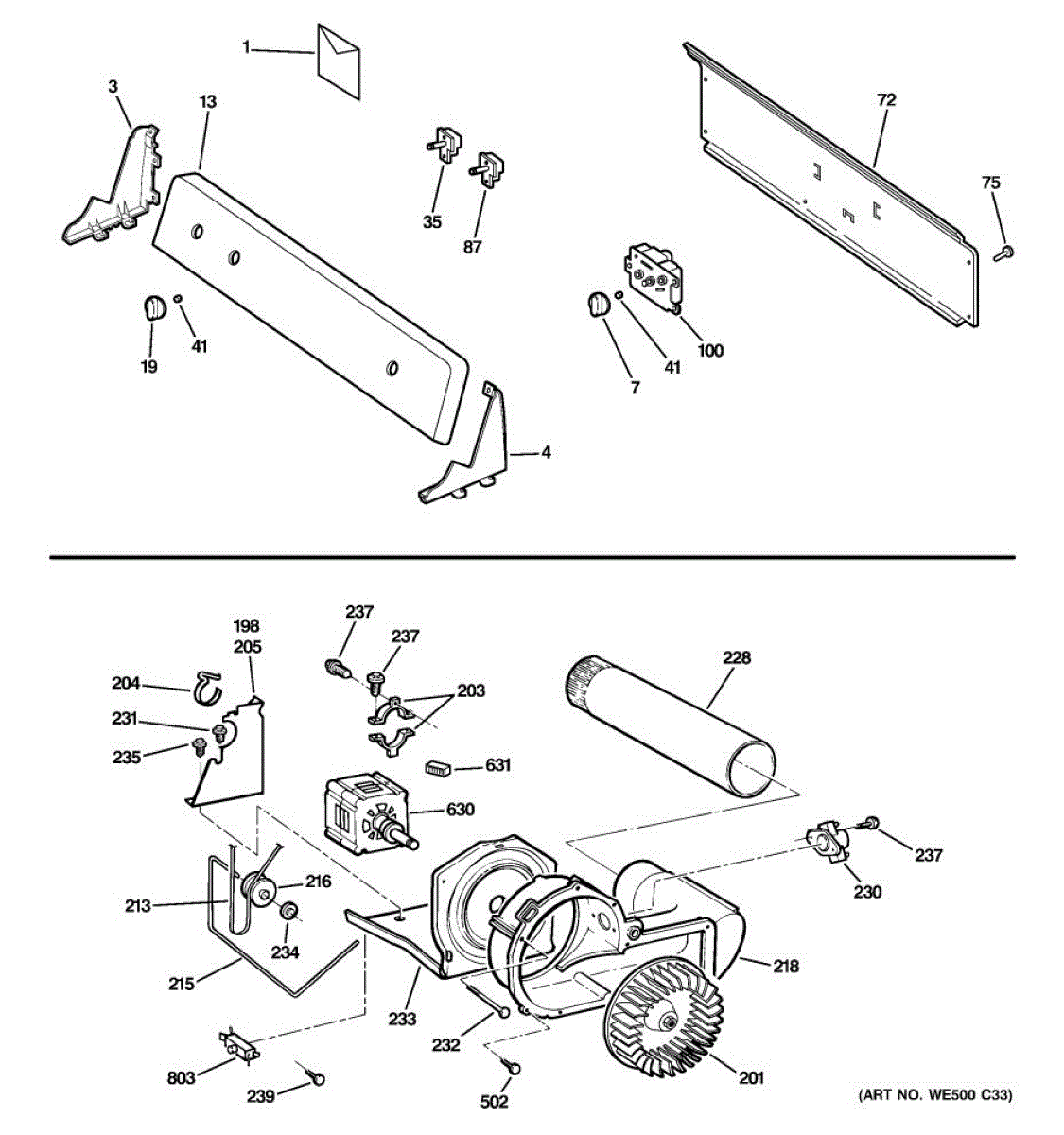

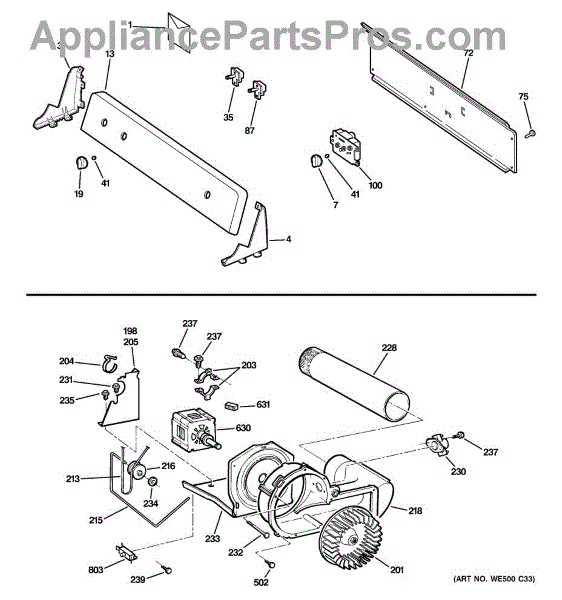

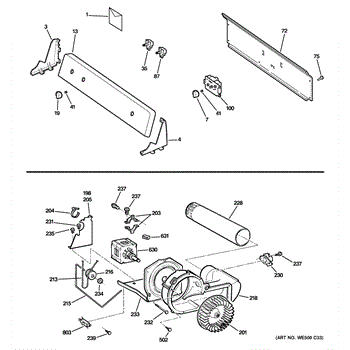

Parts for Ge DBXR463PG3CC: 01 - Backsplash, Blower & Motor Parts

Left-hand endcap for dryer drum assembly. Secures and supports the drum end. Replace if cracked, broken, or missing to restore proper drum support.

Plastic end cap for dryer drum or control panel. Replaces cracked, broken, or missing caps. Covers exposed edges for a finished appearance.

Timer knob assembly for dryers. Mounts on the control panel timer stem. Replace if knob is cracked, broken, stripped inside, or missing for proper cycle control.

This back panel assembly replaces a damaged or missing rear cabinet panel to protect internal components and keep the unit's cabinet aligned and secure. Restores a clean fit and helps reduce rattles from a loose or bent back. What it does:

• Encloses and protects internal wiring and components at the rear of the unit
• Provides mounting points for rear hardware and brackets
• Helps maintain cabinet alignment and structural rigidity
• Can reduce noise from vibration when the rear panel is properly secured

• One back panel assembly

• Disconnect power before servicing; if applicable, shut off gas supply
• Pull the unit forward to access the rear; wear cut-resistant gloves—edges can be sharp
• Retain and transfer any clips, ground straps, or grommets from the old panel
• Route wires carefully and tighten fasteners evenly so the panel sits flush

This replacement control knob in bisque restores smooth, reliable control of your dryer's settings. It attaches to the control shaft so you can choose cycles and options when the original knob is cracked, stripped, or missing.

• Mounts to the D-shaped control/timer shaft to select dryer cycles and settings
• Replaces damaged or missing knob for proper engagement and feel
• Helps resolve knobs that spin freely, won't turn the shaft, feel loose, or fall off
• Refreshes the console with a matching bisque finish

• Disconnect power before servicing
• Pull the old knob straight off; remove any broken insert pieces from the shaft
• Align the flat side of the shaft with the knob insert and press on until fully seated
• Do not force; address that before installing the new knob

Replace a cracked, broken, or missing control knob on your washer or dryer. This plastic dial installs on the front control panel for cycle selection.

Dryer won't start or starts automatically? Failed rotary start switch is likely. DIY repair in 5-10 minutes with basic tools. Video guide included.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement rear panel for dryers. Restores the cabinet's back surface when the original is dented, rusted, cracked, or damaged. Secures and protects internal wiring and components.

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

4 temperature.

Fix a dryer that won't advance or runs continuously with a new timer. Controls cycle duration and sequencing. Most DIYers complete in 10-15 minutes.

Secures the ground wire to the dryer cabinet for safe electrical connection. Replace if missing, stripped, or corroded to restore proper grounding.

Dryer barely blowing air or taking forever to dry? A worn blower wheel fails to pull air through the drum. This wheel restores airflow for efficient drying.

Secures the drive motor to its mounting bracket. Replace if cracked, broken, or missing to keep the motor and blower aligned and stable during operation.

Secures your dryer motor to the cabinet to reduce vibration and noise. Replace if motor shifts or rattles during operation. Confirm fit with your model.

Metal bracket that secures the dryer motor and blower assembly in place. Replace if your mounting bracket is cracked, broken, or causing loose components.

Transfers power from motor to drum in your dryer. Replace if squeaking, not spinning, or visibly worn. Confirm fit with your model number before ordering.

Supports the idler pulley to maintain proper belt tension in your dryer. Replace if the arm is warped, cracked, or causing belt tracking issues.

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

• Squeaking or screeching noises during dryer operation, often a sign of bearing wear or failure.
• The dryer drum not turning smoothly, or at all, indicating that the belt may be slipping or has come off entirely due to a failed pulley.
• Excessive heat or a burning smell, which can occur if the pulley is seizing up and causing friction.
• Visible wear or damage to the pulley itself.

Causes of a bad idler pulley can include worn bearings, accumulation of lint and debris that impedes rotation, or material fatigue after prolonged use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Seals the blower-to-exhaust duct connection in your dryer. Replace if torn, brittle, or causing heat loss and longer dry times. Confirm fit by model.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Dryer won't heat, overheats, or shuts off mid-cycle? A faulty cycling thermostat often causes these issues. Easy DIY fix with our video guide.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Replacement mounting screw for dryer panels and components. Needed when original screws are stripped, missing, or damaged during repair or maintenance.

This motor plate is the stamped metal mounting plate that secures the motor assembly and keeps it aligned for smooth operation. It restores proper motor positioning and reduces vibration-caused noise or wear. What it does:

• Provides a stable mounting surface for the motor assembly
• Maintains motor alignment to ensure smooth shaft rotation
• Helps reduce excess vibration and noise from a loose or damaged motor support
• Supports related components so belts and pulleys track correctly

• Disconnect power before starting any repair to avoid shock or injury
• Installation requires basic hand tools and access to the motor compartment
• Verify motor and surrounding hardware are undamaged; replace any worn fasteners

Replacement mounting screw for dryer panels, brackets, and components. Needed when screws are missing, stripped, or damaged during repairs or disassembly.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

Dryer won't start, stops mid-cycle, or runs backward? The drive motor powers drum rotation. Moderate difficulty repair requires disassembly. Video guide.

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
