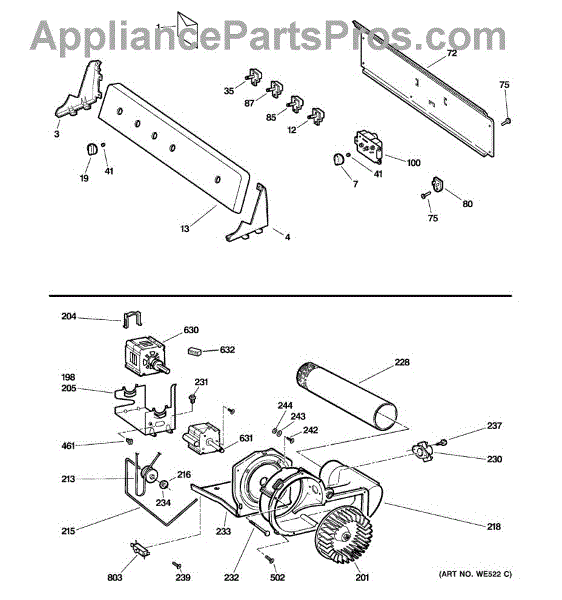

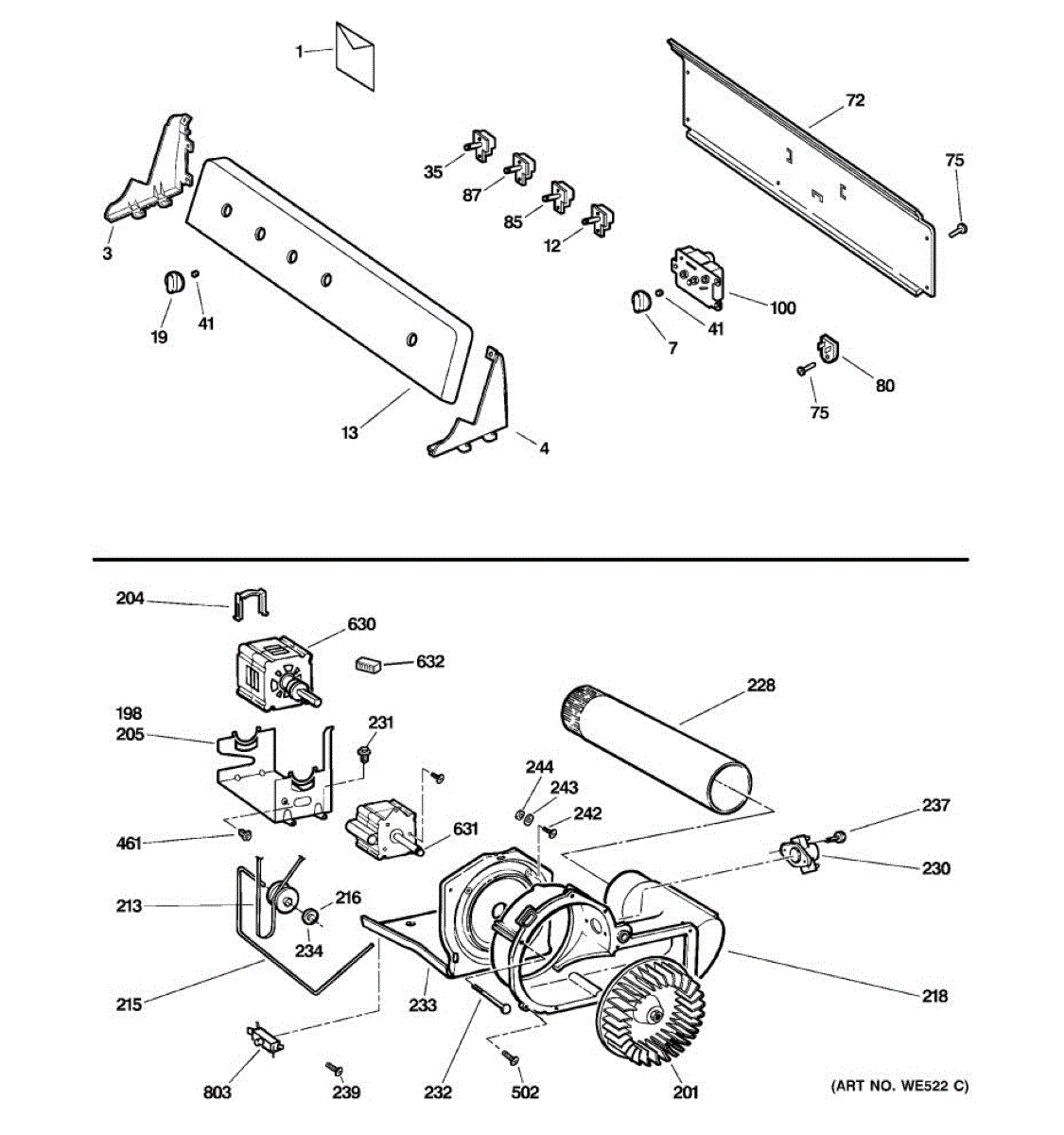

Parts for Ge DLSR483EG3WW: 01 - Backsplash, Blower & Motor Assembly Parts

Left-hand endcap for dryer drum assembly. Secures and supports the drum end. Replace if cracked, broken, or missing to restore proper drum support.

Timer knob assembly for dryers. Mounts on the control panel timer stem. Replace if knob is cracked, broken, stripped inside, or missing for proper cycle control.

This audio alert component signals the end of drying cycles and is located inside the dryer's control assembly. Replace it if the end-of-cycle signal doesn't sound, buzzes continuously, or produces weak or distorted tones.

This control panel assembly houses the electronic controls and display for your dryer. It allows you to select cycle settings, temperature, and time options for your loads. Replace this part if buttons don't respond, the display is blank or garbled, or cycle selections aren't working properly.

This is a white plastic control knob that attaches to the timer or cycle selector shaft on the dryer's control panel. It allows you to select the desired drying cycle or timer setting. Replace this knob if it is cracked, broken, or if the shaft connection has worn out so the knob spins without engaging the timer.

Fix a dryer that won't start or starts intermittently with this start switch replacement. Restores the start circuit for reliable operation. Easy DIY fix.

The Knob Clip is an OEM part for GE washing machines and dryers. This small but crucial component is designed to secure the control knob to the appliance's control panel.

Over time, knob clips can wear out or break due to frequent use or accidental damage. When this happens, the control knob may become loose, fall off easily, or fail to engage the control panel properly, making it difficult to set the appliance to the desired cycle or function.

Symptoms of a bad Knob Clip include:

• The control knob is loose or falls off the panel easily.
• Difficulty in adjusting settings due to a loose knob.
• The knob does not stay in place or slips when turned.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement rear panel for dryers. Restores the cabinet's back surface when the original is dented, rusted, cracked, or damaged. Secures and protects internal wiring and components.

Replacement screw for securing dryer components like drum supports, panels, and housings. Needed when screws are lost, stripped, or damaged during repair.

Fix a dryer timer that won't advance or automatic cycles that stopped working. This timer resistor regulates cycle duration. Easy 15-minute repair.

Fix a dryer that won't cycle wrinkle care properly with this wrinkle care on/off switch. Simple 5-minute installation for most DIYers. Restores function.

Dryer won't heat or overheating? The temperature switch controls heat settings. DIY-friendly repair—just swap wires and reassemble. Takes 20 minutes.

Dryer won't stop running or cycles won't advance? A faulty timer prevents proper cycle control. This timer restores reliable starts, stops, and timing.

Secures the ground wire to the dryer cabinet for safe electrical connection. Replace if missing, stripped, or corroded to restore proper grounding.

Dryer barely blowing air or taking forever to dry? A worn blower wheel fails to pull air through the drum. This wheel restores airflow for efficient drying.

Dryer motor clip secures the motor in place and prevents vibration. Replace if loose, broken, or causing rattling noises. Confirm fit with your model.

Transfers power from motor to drum in your dryer. Replace if squeaking, not spinning, or visibly worn. Confirm fit with your model number before ordering.

Replace a worn, broken, or damaged dryer idler arm. This structural part holds and tensions the belt around the motor pulley and drum in your dryer.

The Idler Pulley is an OEM part for GE dryers. This critical component helps to maintain the correct tension on the dryer's drive belt, ensuring smooth operation and preventing it from slipping.

Symptoms of a bad Idler Pulley include:

• Squeaking or screeching noises during dryer operation, often a sign of bearing wear or failure.
• The dryer drum not turning smoothly, or at all, indicating that the belt may be slipping or has come off entirely due to a failed pulley.
• Excessive heat or a burning smell, which can occur if the pulley is seizing up and causing friction.
• Visible wear or damage to the pulley itself.

Causes of a bad idler pulley can include worn bearings, accumulation of lint and debris that impedes rotation, or material fatigue after prolonged use.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Seals the blower-to-exhaust duct connection in your dryer. Replace if torn, brittle, or causing heat loss and longer dry times. Confirm fit by model.

Replaces a cracked, rusted, or disconnected exhaust duct that routes hot air from your dryer to the home vent. Restores proper airflow and venting.

Dryer won't heat, overheats, or shuts off mid-cycle? A faulty cycling thermostat often causes these issues. Easy DIY fix with our video guide.

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

Replacement mounting screw for dryer panels and components. Needed when original screws are stripped, missing, or damaged during repair or maintenance.

This motor plate is the stamped metal mounting plate that secures the motor assembly and keeps it aligned for smooth operation. It restores proper motor positioning and reduces vibration-caused noise or wear. What it does:

• Provides a stable mounting surface for the motor assembly
• Maintains motor alignment to ensure smooth shaft rotation
• Helps reduce excess vibration and noise from a loose or damaged motor support
• Supports related components so belts and pulleys track correctly

• Disconnect power before starting any repair to avoid shock or injury
• Installation requires basic hand tools and access to the motor compartment
• Verify motor and surrounding hardware are undamaged; replace any worn fasteners

This hex washer-head screw secures dishwasher components like brackets, shields, and panels. Replacing a stripped or missing screw restores a tight fit and helps prevent vibration, rattling, and loose parts during operation.

• Fastens parts where a #10-16 x 1/2-inch hex washer-head screw is specified
• Secures brackets, panels, and assemblies to the tub or frame
• Helps resolve symptoms like loose panels, vibration, or rattling noises
• Restores proper hold when the original screw is stripped, missing, or damaged

• Disconnect power and shut off water to the dishwasher before servicing
• Match length and thread to the original; replace screws one at a time to maintain alignment
• Start threading by hand to avoid cross-threading; tighten snugly—do not overtighten, especially into plastic
• Verify no wires or hoses are pinched before reassembly

• Size: #10-16 x 1/2 inch
• Head: hex washer-head
• Type: AB tapping screw

This screw is a factory replacement fastener used to secure appliance panels and components. It restores lost or loose hardware so parts sit correctly and operate without rattling or movement. What it does

• Secures panels, brackets, and small components to the appliance frame
• Restores proper alignment and helps eliminate rattling or vibration
• Replaces missing or stripped fasteners that prevent parts from staying fixed
• Matches OEM fit for reliable fastening where the original screw was used

• One replacement screw

• Use the correct-size screwdriver or driver bit to avoid stripping the head
• Power off and unplug the appliance before accessing internal components
• Tighten snugly but avoid overtightening to prevent thread damage
• Keep removed hardware organized so you can install replacements in the original locations

Size: 8-32 t. Includes 12 screws.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

This motor and blower assembly restores dryer tumble and air movement by replacing a worn motor and attached blower wheel. It helps re-establish proper exhaust airflow so clothes dry more evenly and cycles complete normally. What it does:

• Spins the blower wheel to move hot air through the drum and vent system
• Provides the drive for drum tumbling on belt-driven dryers that use a motor-driven blower
• Addresses weak or no airflow, long dry times, and unusual motor noise when the blower or motor fails
• Helps stop intermittent start/stop operation caused by a failing motor or seized blower wheel

• One motor and blower assembly as shown

• Disconnect power before attempting replacement to avoid shock or injury
• Basic mechanical skill and common hand tools required; follow OEM instructions for safe removal/installation
• Inspect the blower housing, venting, and motor mounts for damage or obstruction while replacing the part

The Interlock Switch is an OEM replacement part for GE electric and gas dryers. This safety component monitors the door closure, preventing operation if the door is not securely closed and latched. The switch measures 2 inches long and 1/2 inch wide.

Symptoms of a faulty interlock switch include:

• Dryer failing to start or running with the door open
• Timer display not illuminated when start button is pressed
• Inability to open the dryer door during operation
• Dryer suddenly stopping mid-cycle before fully drying clothes

Causes relate to the internal component contacting the door frame over 50,000 open/close cycles potentially exposing wiring to wear. Regular cleaning the external switch area prevents dust or lint buildup skewing performance.

This genuine GE switch is compatible with Hotpoint and RCA dryers as well.

Note: Can be used as a dishwasher door switch on specific models. Check your model number for the most accurate results.
