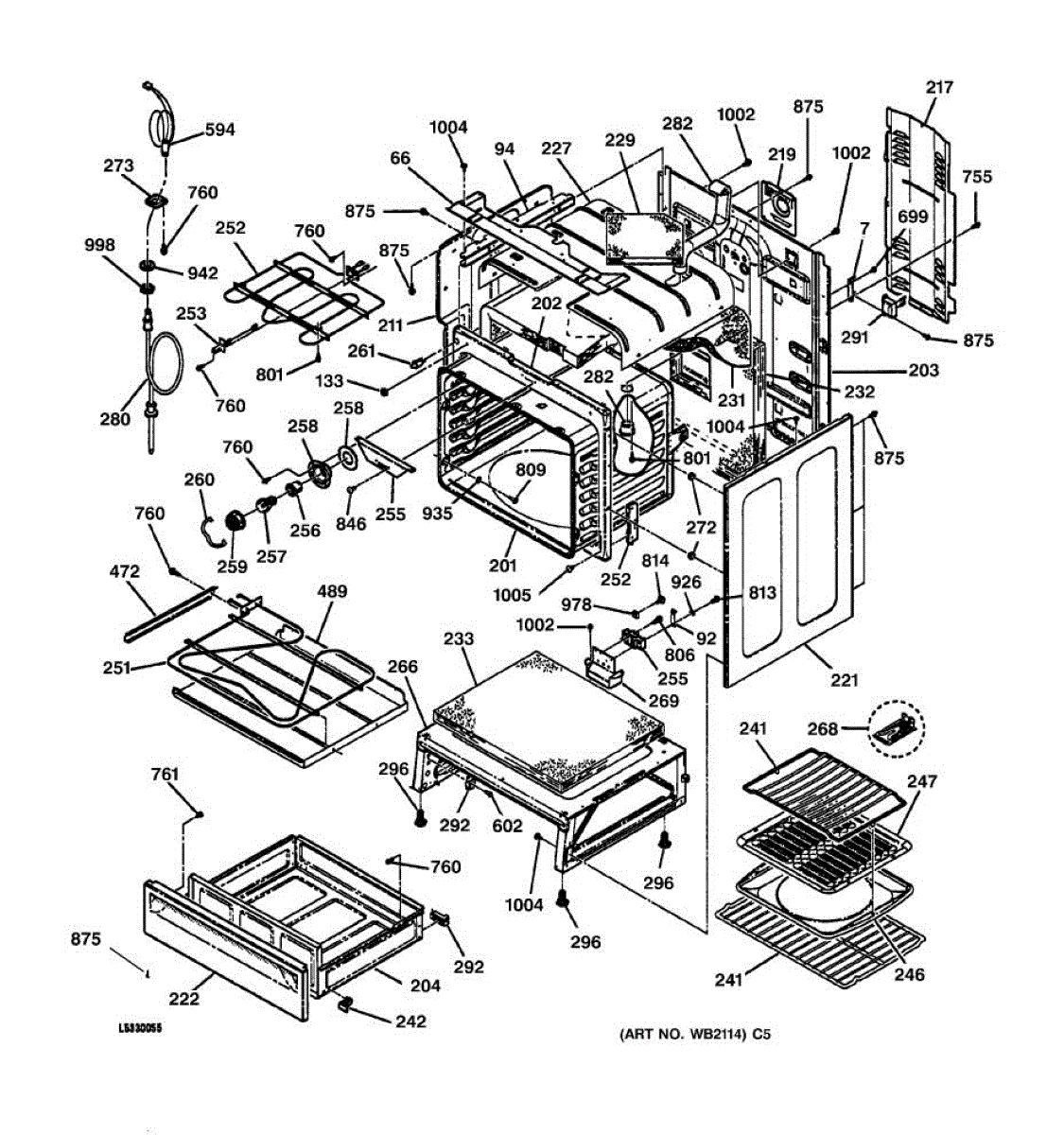

Parts for Ge JB960BB1BB: 03 - Body Parts

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is the door pad. Consider replacing both when replacing trim number WB07T10230

This replacement storage drawer lining protects the drawer floor and keeps stored items stable—helpful for worn, stained or missing liners. It restores a clean, non-abrasive surface so drawers look and function like new. What it does:

• Provides a protective surface that helps prevent scratches, stains and wear to the drawer floor
• Reduces item shifting and sliding inside the drawer
• Helps contain minor spills and makes cleanup easier
• Restores a finished appearance when the original liner is damaged or missing

• Remove drawer and thoroughly clean and dry the drawer floor before installing
• Align the liner with the drawer edges and press into place; trim only if explicitly required by model
• No special tools usually required; keep fingers clear of edges when fitting
• Dispose of the old liner according to local regulations

This replacement part is a vent tube insulation, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Vent tube insulation is an important part of many ovens or ranges. This insulation will prevent air loss during the use of the appliance. This means that while the oven is heating, the hot air will not escape and the home will stay cool. Insulation also helps prevent the buildup of condensation in situations where moisture is present.A new vent tube insulation might be needed if the current one is worn down or damaged in any way. It is possible that the insulation can become thin over time and might need to be replaced after years of use. Be sure the oven or range is completely powered down and cooled before attempted this repair. The user must have access to the back of the appliance, and standard household tools are needed. This part is a genuine OEM replacement and is sold individually. This vent tube insulation is sourced directly from the manufacturer.

Used on the top and side outer cavity

This drawer wedge aligns and stabilizes the lower drawer so it opens and closes smoothly and sits flush. Replacing a worn or missing wedge helps eliminate wobble, rubbing, and gaps for better everyday operation.

• Supports and centers the drawer for proper alignment on the slides
• Acts as a spacer/stop to reduce vibration and metal-to-metal contact
• Helps prevent binding and keeps the drawer from popping off the track
• Common symptoms: drawer crooked or sagging, won't close fully, rattles, or feels loose

• Disconnect power and allow the appliance to cool before servicing
• Pull the drawer out to the stops, release the side track tabs, and remove the drawer
• Note the original wedge's position; remove it and install the new wedge in the same orientation (reuse existing hardware if applicable)
• Reinstall the drawer on the rails and verify smooth operation and proper fit

This replacement part is a unit broil assembly, and it is intended for use in different types of ranges or ovens. This is a genuine replacement part made by General Electric. This unit broil assembly is typically found inside an oven or range and is part of the heating mechanisms that allow food to heat or cook. The broiler heats from the top of the appliance and helps with specific things like melting cheese.A new unit broil assembly might be needed if the user notices that the current one is not heating up properly. If the broil element is working the user should feel coming from the broiler area. It is also common to see the broil element turn bright red during use, indicating that there is heat coming off the element. If the element is completely attached but still unable to heat, it might be time to replace this part. Be sure that the appliance is powered off before replacing this part.This part is sourced directly from the manufacturer and is sold individually. This until broil assembly is an OEM replacement part.

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This oven light cup is the interior housing that supports and shields the oven lamp and lens. Replacing a damaged cup keeps the light assembly secure and properly aligned so you can clearly see inside the oven during cooking.

• Mounts inside the oven cavity to support the light assembly
• Shields the lamp area from heat and splatter
• Provides the proper seat/retention for the light lens/cover
• Common symptoms: light cover won't stay in place, light assembly feels loose, visible damage or missing cup

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access
• Remove the lens/cover and bulb to access the cup; transfer and reuse existing fasteners
• Ensure the cup is fully seated and oriented correctly before restoring power

This oven light gasket seals the light lens/cover to the oven cavity. Replacing a worn gasket restores a tight barrier that helps keep heat, steam, and splatter away from the light assembly and lets the lens seat securely.

• Creates a heat-resistant seal between the light lens/cover and oven liner
• Helps keep moisture, grease, and food vapor out of the light assembly
• Supports proper seating of the lens cover to prevent looseness or rattling
• Common signs: cracked/brittle or missing gasket, visible gaps around the lens, condensation or residue behind the lens, lens cover that won't stay tight

• Disconnect power at the breaker and allow the oven to cool completely before servicing
• Remove oven racks for access; open/remove the light lens cover as directed in the manual
• Carefully remove the old gasket and any residue; clean the sealing surface
• Fit the new gasket evenly around the lens/fixture and reinstall the lens cover; restore power and test

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Includes: Anti-tip bracket, screws and instruction sheet.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This vent tube directs heated air and moisture from the appliance to its exhaust path, maintaining proper airflow around internal components. Replace a cracked, warped, or missing tube to restore safe ventilation and help prevent heat and condensation buildup. What it does:

• Channels hot air and steam from the cavity to the outlet
• Helps prevent heat accumulation around controls and adjacent surfaces
• Reduces moisture/condensation at the vent outlet
• Common symptoms: excessive warmth near the console, persistent odors/steam, visible damage, or rattling from a loose/broken tube

• 1 vent tube

• Disconnect power; shut off gas. Allow the appliance to cool completely before servicing.
• Access and attachment points vary by model; refer to your service manual or diagram for location.
• Note the tube's orientation and routing; transfer any brackets or seals from the old part if present.
• Reuse existing screws/clamps and ensure the vent path is clear after installation.

Front

This leveling leg is an authentic OEM replacement part sourced directly from the manufacturer. Leveling legs are used on the bottom of stoves to correct imbalances on the cooking top caused by floors being unlevel. The leveling leg is threaded so that it can be adjusted up or down as needed. There are four holes for leveling legs on the stove's bottom. Each leg can be adjusted independently. If the legs are missing or lost, these replacements will help level the stove for more even cooking. When the stove is not level, the food inside pans will be unlevel and not cook evenly.Make sure the power is disconnected before installing the leveling leg. Tilt the stove back and place a chock underneath one side so that the leg can be screwed up or down as needed. Remove the chock and check for level. If the stove is still unlevel, repeat the procedure on the side that is not level. Continue to adjust until the stove is level. Restore the power to the stove.This leveling leg is a black part that is sold individually. It is designed for use on ranges manufactured by General Electric, Kenmore, and Hotpoint.

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

Package of 12

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

ST10-16 X 7/16"

8-18 AB IHW 5/8 S

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

10 - 32 Nickel plated

This replacement screw secures panels, brackets, and trim in your appliance. Using the correct #8-18 fastener helps restore a tight, rattle-free fit when replacing missing or damaged hardware. What it does:

• Fastens sheet-metal panels, brackets, and other components to the chassis
• Replaces missing, stripped, or damaged screws
• Helps eliminate vibration-induced rattles and looseness
• Maintains proper alignment of panels and assemblies

• 1 screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Align parts and start the screw by hand to avoid cross-threading
• Use an appropriate nut driver or screwdriver for the hex-washer head
• Tighten until snug; do not overtighten to prevent stripping

• Thread: #8-18 (type AB)
• Length: 3/8 in
• Head style: indented hex-washer

This is a replacement 8-18 x 7/16 screw designed to secure appliance panels and small components for reliable fit and stable reassembly. Use it when a missing or damaged screw prevents proper mounting or causes rattling. What it does:

• Secures trim, panels, brackets, or control components where an 8-18 x 7/16 fastener is required
• Restores proper alignment and reduces movement or vibration of mounted parts
• Replaces stripped, rusted, or lost screws to ensure safe operation
• Matches OEM thread and length for correct fit in specified mounting points

• Turn off and unplug the appliance before servicing to avoid electrical or mechanical hazards
• Use the correctly sized driver and match thread engagement; do not over-tighten to prevent stripping
• Compare old screw to new to ensure thread and length match

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
