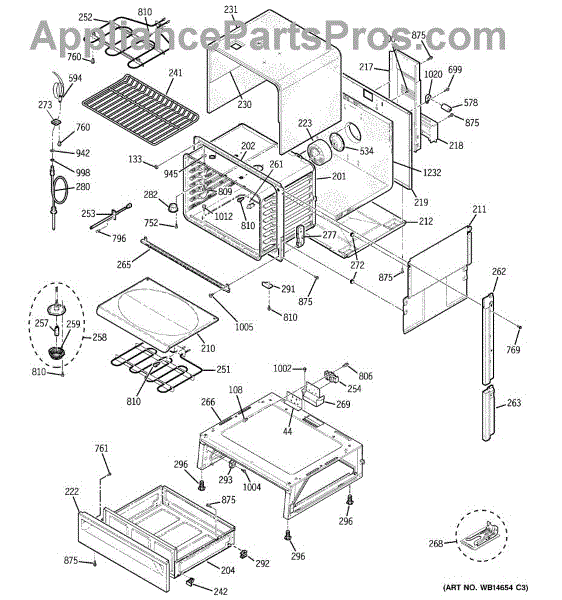

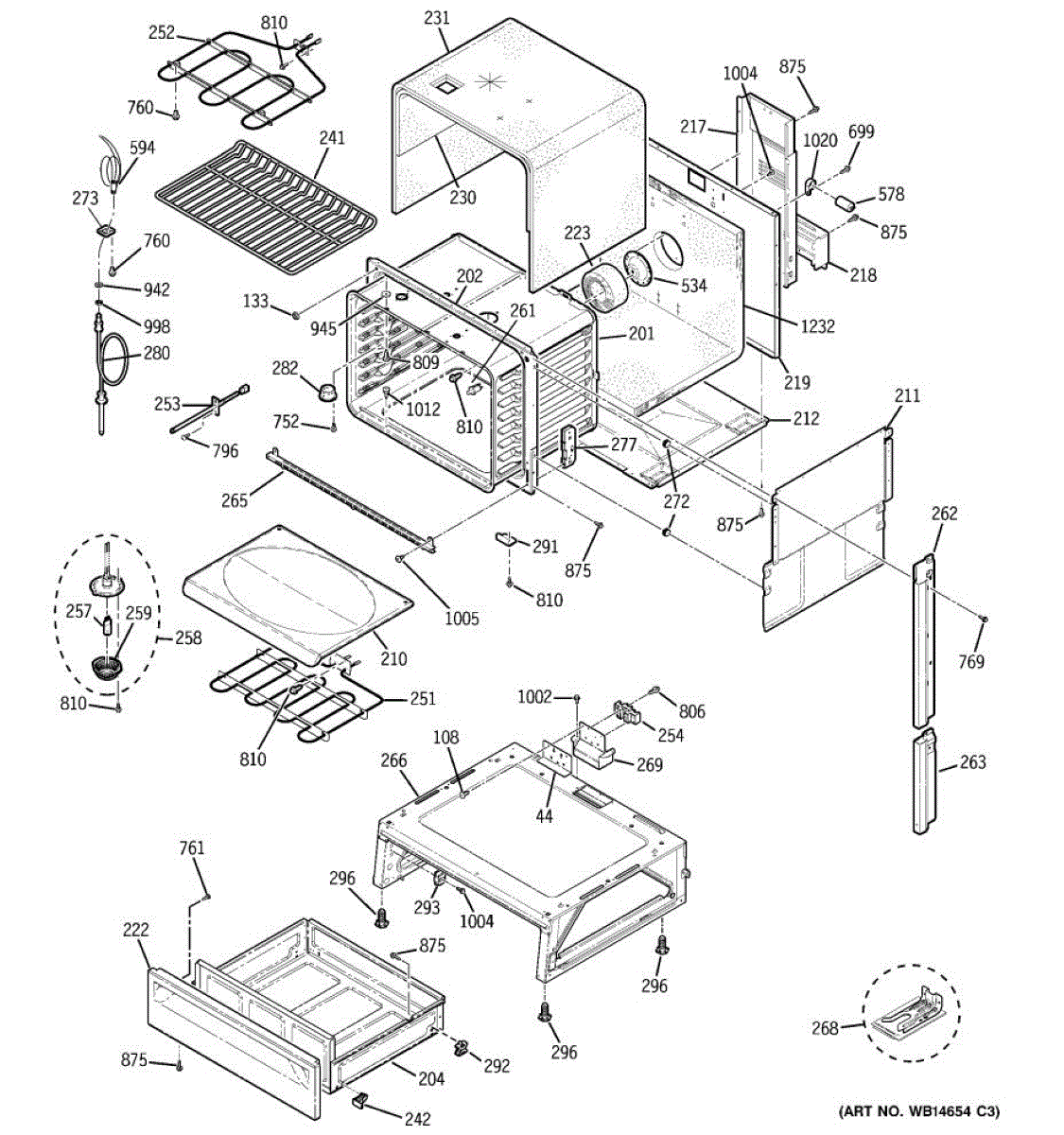

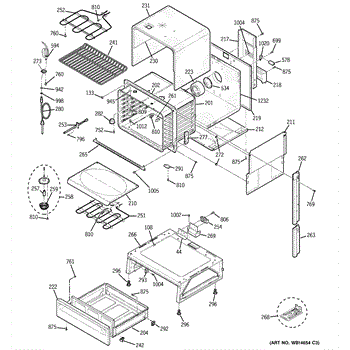

Parts for Ge JSP46DN1BB: 03 - Body Parts

Mounting bracket for your range. Secures components in place during operation. Replace if bracket is bent, cracked, or missing for proper installation.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

Seals and cushions your oven door to reduce vibration and rattling. Replace when worn to restore proper spacing and eliminate air leaks. Verify fit.

Small rubber bumper that cushions contact between oven door and cabinet. Replace if cracked, missing, or worn to reduce noise and protect finishes.

Door pad gasket creates a seal between your oven door and front panel. Replace if worn, cracked, or causing heat loss. Confirm fit with your model number.

Oven cavity wrapper assembly forms the outer shell around the cooking chamber. Replace if cracked, damaged, or rusted to restore structural integrity.

Front frame trim for ovens and ranges. Replaces cracked, broken, or damaged trim pieces around the oven door opening. Restores appearance and structure.

Replace your range's warming drawer body if the original is cracked, warped, or damaged. This structural component forms the main housing of the drawer.

Replaces the false bottom panel that covers the lower oven interior. Needed when the original is discolored, warped, burnt, or damaged beyond cleaning.

Insulation retainer clip secures insulation panels inside your oven cavity. Replace if clip is broken, cracked, or missing to keep insulation in place.

This rear wire cover protects and secures the appliance's wiring at the back, helping prevent abrasion and heat damage for safer operation. Designed to replace a cracked, missing, or damaged rear wire cover. What it does:

• Shields rear wiring from contact with sharp edges, moving parts, and heat sources
• Helps prevent insulation wear that can cause shorts or intermittent electrical issues
• Restores proper routing and support for the rear wiring harness
• Reduces risk of arcing, burning smells, or visible exposed wires

• One rear wire cover

• Disconnect power (unplug or shut off breaker) before servicing to avoid shock or injury
• You may need to remove the back panel or access cover screws to install; retain original fasteners where applicable
• Handle sharp sheet-metal edges carefully and wear gloves/eye protection
• After installation, restore power and inspect wiring for any remaining damage

White

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.

The Oven Rack is an OEM part for GE ovens. This sturdy metal rack provides a stable surface for cooking or baking, fitting inside the oven's interior to support cookware and bakeware. The rack measures 24 inches in width and 14 inches in depth,

Causes of a bad oven rack can include warping or bending from heavy loads, rust or corrosion from exposure to moisture, and general wear and tear from frequent use. Physical damage or accidental mishandling can also affect its condition.

Symptoms of a bad oven rack include:

• The rack not fitting properly or sliding in and out smoothly
• Warped or bent sections that prevent even cooking
• Rust or corrosion on the metal surface
• The rack feeling unstable or collapsing under weight

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Drawer wedge guide aligns and stabilizes your range's lower drawer for smooth operation. Replace if cracked, broken, worn, or missing to eliminate wobble.

Oven won't heat in bake mode or you heard a pop? This lower bake element restores reliable preheating and consistent temperatures. DIY-friendly repair.

Broiler not heating or won't turn on? This broil element assembly restores high-heat broiling. Most DIYers complete this repair in under 30 minutes.

Fix F2 or F3 error codes with a new oven temperature sensor. Restores accurate heating when your oven shuts off or won't maintain temperature. 10-15 min DIY.

Range won't heat or burners stopped working? A burnt or melted terminal block may be the cause. This wiring connection hub routes power to elements. DIY repair in 10-20 minutes.

Halogen light bulb illuminates your oven interior. Replace when burned out or if flickering. Push-in style bulb for easy installation. Confirm fit with your model.

Note: 130V / 50W

Clear glass lens that protects your oven light bulb from heat, grease, and debris. Replace when cracked, discolored, or missing to restore visibility.

This SPDT high-amp switch controls high-current circuits by switching one input between two outputs, restoring proper electrical control in affected appliance functions. Built for high-load switching where reliable on/off selection is required. What it d

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

This vertical door trim replaces the left-side decorative trim on compatible refrigerators to restore a finished appearance and help protect the door edge. It matches black exterior trim for a seamless look. What it does

• Covers and finishes the exposed edge of the refrigerator door for a clean appearance
• Helps protect the door edge from dings and wear
• Replaces cracked, chipped or faded trim that affects the appliance's look
• Snaps or screws into place to secure the door edge trim

• High-level install: remove door or access trim fasteners per your model's service manual, remove old trim, then align and secure the replacement trim
• Use appropriate screwdriver or trim tool to avoid scratching adjoining surfaces
• Disconnect power only if instructed by the appliance service manual for your repair procedure

White vertical side trim for ranges. Replaces cracked, chipped, or missing cosmetic trim pieces along the side edges of your range cooktop or control panel.

Black front trim frame for electric range. Covers gaps and restores finished edge around door or control panel. Replaces cracked, scratched, or missing trim.

Range base rivet assembly that secures internal components. Replace if rivets are broken, missing, or causing loose structural connections in your range.

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural sup

Lower housing cover for ovens and ranges. Replaces cracked, broken, or missing covers that expose internal components. Protects and encloses the lower section.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor

Vent tube for electric ranges and ovens. Connects oven cavity to exhaust system. Replace if cracked, broken, or missing to restore proper ventilation.

The Rear Door Support is an OEM replacement part for GE ranges. Located at the base of the range, this bracket provides weight-bearing support for the lower oven drawer. It facilitates smooth extension and retraction of the drawer.

Causes

Replaces a cracked or broken front drawer support on your range. This plastic guide installs on the front of the warming drawer to stabilize movement.

Adjustable leveling leg for electric ranges. Installs on the bottom corner of the unit. Replace if broken, cracked, or missing to level your range.

Oven cavity support plate mounts inside the oven chamber to provide structural support. Replace if plate is cracked, bent, warped, or missing.

ST10-16 X 7/16"

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance component

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it co

White screw secures panels and trim on ovens and ranges. Replace stripped, corroded, or missing fasteners to restore proper fit and stop rattles.

Replacement screw for securing oven components, panels, and brackets. Restores tight mounting when original screws are missing, stripped, or lost.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socke

8-18 AB IHW 5/8 S

Replacement screw for securing panels, brackets, and internal components in ranges, ovens, and cooktops. Replace missing, stripped, or damaged screws.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Black. 8-18 AB HXW 3/8

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement screw secures panels, brackets, and trim inside your oven or range. Restores tight fit when original hardware is missing, stripped, or damaged.

Package of 12

10-32 machine screw secures panels, brackets, door hinges, and handles in ovens and ranges. Replace missing, stripped, or broken screws for tight fit.

This is a 10-16 shoulder-type A screw used to fasten appliance panels and components, providing secure assembly and stable operation. It replaces worn or missing screws to stop rattling and restore proper fit. What it does:

• Secures control panels, trim pieces, and mounting brackets
• Helps prevent loose or vibrating panels and noisy operation
• Keeps electrical or mechanical assemblies held in correct position
• Restores proper alignment after disassembly or repair

• Disconnect power to the appliance before starting any repair
• Use the correct screwdriver or nut driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage parts
• Keep removed hardware organized for reassembly

Secures the capacitor inside your oven. Replace if the bracket is bent, broken, or missing to properly mount and protect the electrical capacitor component.

Insulation panel that installs on the back and bottom of your oven cavity. Replace if damaged, torn, compressed, or missing to maintain heat efficiency.
