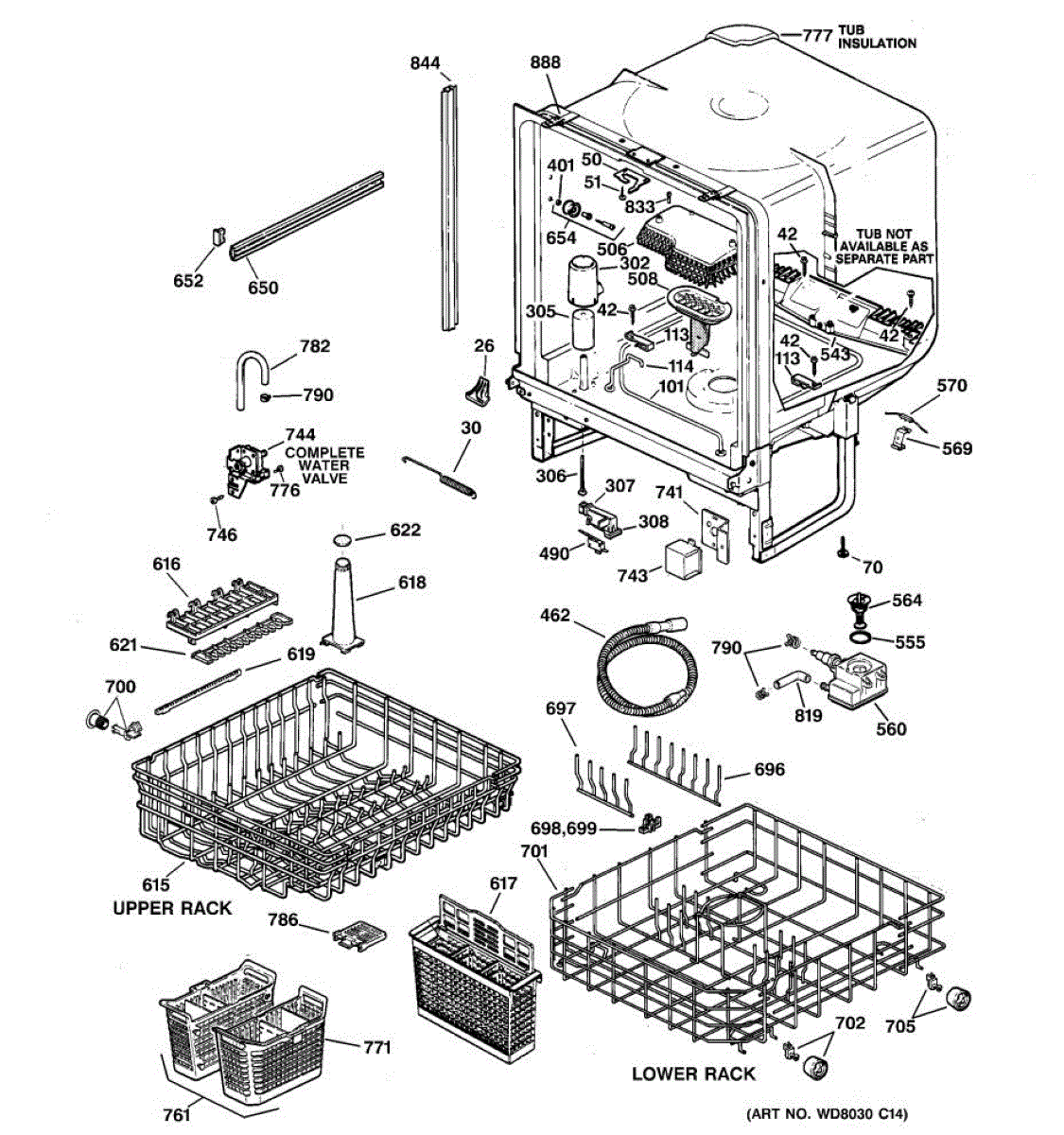

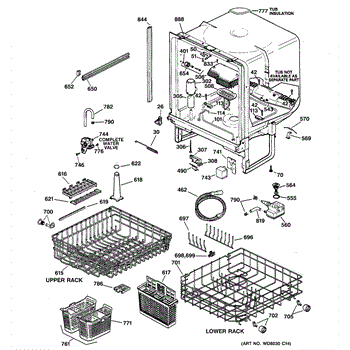

Parts for Ge ZBD3500ZZ2WW: 02 - Body Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Tub Corner Baffle is an OEM part for GE dishwashers. It is strategically placed at the corners of the dishwasher tub to prevent water from leaking out during operation.  For the left side use WD8X228. Color: Black.

Symptoms of a bad Tub Corner Baffle include:

• Water leaking from the corners of the dishwasher door.
• Pools of water forming near the dishwasher after operation.
• Decreased cleaning performance due to water escaping the wash cycle area.

Causes of a bad tub corner baffle can include wear and tear from regular use, improper installation leading to gaps or looseness, and degradation of the material over time due to exposure to detergents and high temperatures.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Tub Corner Baffle is an OEM part for GE dishwashers. This rubber component is placed in the corners of the dishwasher tub to prevent water from leaking out during the wash cycle. It acts as a barrier, directing water back into the tub and ensuring efficient operation. This is the left side. For the right side, use WD8X227.

Causes of a bad part can include prolonged exposure to detergents and hot water, leading to material breakdown, or physical damage from loading and unloading dishes.

Symptoms of a bad Tub Corner Baffle include:

• Visible signs of wear or damage
• Water leakage from the corners of the dishwasher door
• Unusual noises during operation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Color: Purple.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

Door won't close or latch properly? This latch keeper secures the door strike so your dishwasher stays closed during cycles. Quick DIY repair.

Size: 10-24 x 1/2 inch.

This adjustable leg allows you to level your dishwasher and adjust its height for proper installation under countertops. It supports the dishwasher's weight while providing stability during operation. Replace this part if your dishwasher rocks during cycles, isn't level, or if the existing leg is stripped or broken.

Support bracket that secures the heating element in place at the bottom of your dishwasher tub. Replace if cracked, broken, or no longer holding element.

Fix dishwasher overfilling or not filling properly with a new float dome. Protects the float sensor for accurate water level control. Easy 15-minute repair.

Fix dishwasher overflows or underfilling with a new water level float. This part regulates filling by rising with water to signal the switch.

This float stem is part of the dishwasher's water-level/overfill system. It guides the tub float and actuates the float switch so the unit fills correctly and shuts off on time. Replace a worn or broken stem to restore reliable fill protection.

• Connects the float to the switch mechanism beneath the tub
• Provides smooth vertical travel of the float through the opening
• Triggers the float switch to stop filling at the proper level
• Causes symptoms such as no fill, continuous filling/overfilling, a stuck or wobbly float, or intermittent fill issues

• Disconnect power at the breaker and shut off the water supply before servicing
• Remove the lower rack; lift off the float cap from inside the tub
• On some models, release the retainer/clip from beneath the tub; pull out the old stem
• Guide the new stem through the opening and ensure it engages the float switch lever; confirm the float moves freely and actuates the switch before restoring power

Replacement bracket that secures the flood switch in your dishwasher. Holds the leak detection switch in proper position. Needed when bracket is cracked or broken.

Replaces cracked, kinked, or chewed drain hose that carries wastewater from your dishwasher to household plumbing. Essential for proper drainage function.

This float switch detects rising water in the refrigerator drain pan or lower cabinet area and signals the appliance control to help prevent overflow and water damage. Use it to replace a failed or intermittent water-level sensor. What it does:

• Senses high water level in the drain pan or collection area and closes the circuit to alert the control.
• Helps identify causes of leaks and pooling under or behind the appliance.
• Commonly used when symptoms include water on the floor, drip pan overflow, or water-related error/alert conditions.
• Matches OEM function for refrigeration units that include a float-based water-detection circuit.

• Disconnect power to the appliance before starting any repairs; shut off the water supply if working near water lines.
• Access may require removing lower kick plate or back panel; handle plastic clips and fasteners carefully.
• Disconnect electrical connector gently and note orientation before installing the replacement; secure wiring and verify float moves freely.
• Restore power and run a short test cycle or simulate water level to ensure proper operation.

Protective cover that sits over your dishwasher's pump inlet to screen debris. Replace if cracked, broken, or missing to protect internal components.

Fix a dishwasher that won't drain completely with this piston and nut valve assembly. Simple DIY repair when water remains in tub after cycles.

Secures stemware in your dishwasher rack to prevent glasses from tipping or shifting. Replace this clip if worn, broken, or missing for safe washing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Replace your dishwasher's dispenser top tower cap when it's broken, cracked, or missing. This visible cover snaps onto the upper dispenser assembly.

Replacement slide rail for dishwasher upper rack. Installs on cabinet wall to guide rack in and out. Needed when original is bent, twisted, or broken.

Secures the end of the dishwasher rack slide rail. Replace if cracked, broken, or missing to prevent racks from sliding off track or misaligning.

Includes screws.

Flexible 8-tine comb insert for dishwasher racks. Snaps into the lower or upper rack to hold dishes securely. Replace if tines are broken or missing.

Left side. Color: white. It measures about 1 inch high by 1-1/2 inches deep.

This plastic comb-shaped retainer holds the right-hand row of dish-holding tines in place on your dishwasher rack. It keeps the tines properly aligned and prevents them from falling out during wash cycles. Replace this part if tines are loose, falling out, or if the comb is cracked or broken.

Replacement roller and stud assembly for dishwasher racks. Installs on upper or lower rack to restore smooth gliding. Needed when rollers crack or studs break.

Lower dishrack assembly comes with rollers

Replace broken or missing lower dishrack rollers and axles. Attaches to the bottom rack for smooth gliding when loading dishes. Sold as one roller kit.

Replacement roller and axle kit for dishwasher lower racks. Includes 8 wheels and 8 axles. Replace when rollers are broken, cracked, or missing.

Covers the electrical junction box where the power cord enters your dishwasher. Replace if cracked, broken, or missing to protect wiring connections.

Fits GE made dishwashers.

Replacement mounting screw for dishwashers and electric ranges. Secures panels, covers, and internal components. Order when original is missing or stripped.

Replacement silverware basket with handle for your dishwasher. Needed when original basket is cracked, broken, or has worn holes that let utensils fall through.

Replacement silverware basket with handle for your dishwasher. Needed when original basket is cracked, broken, or has worn holes that let utensils fall through.

Specs: 10 - 32 t hex 7/16 s

Routes water from inlet valve to tub. Replace if cracked, leaking at connections, or worn from age. Installs between valve and tub exterior connection point.

Secures washer hoses at pump, tub, and valve connections to prevent leaks and hose blow-offs. Replace worn or missing clamps for a tight seal. Confirm fit.

Size: 8-16 x 2 inch ss.

Color: Black.
