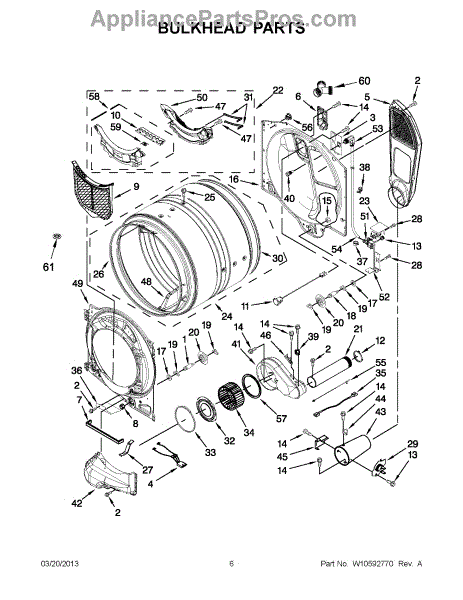

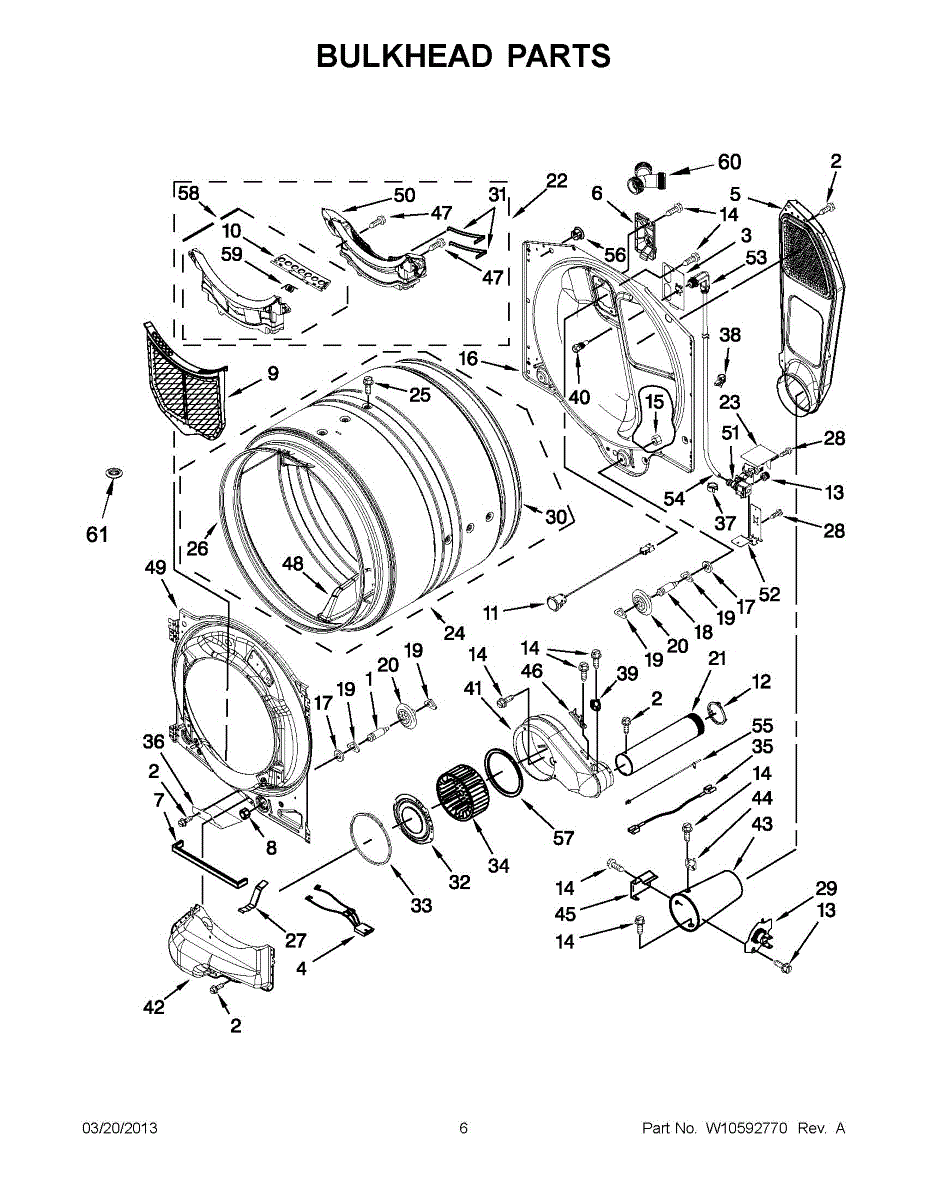

Parts for Maytag MGD4200BW0: 03 - Bulkhead Parts

The Front Drum Roller Shaft is an OEM part for Whirlpool dryers. This component provides support and stability to the drum while it rotates, ensuring smooth and quiet operation during the drying cycle. The roller shaft works in conjunction with the drum rollers to maintain proper alignment and reduce friction.

Over time, the front drum roller shaft can wear out or become damaged due to continuous use and the constant movement of the drum. Factors such as heavy loads, misalignment, and lack of lubrication can contribute to the deterioration of the shaft.

Symptoms of a bad front drum roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The drum not rotating smoothly
• Increased friction or resistance when turning the drum by hand
• Uneven or excessive wear on the drum rollers

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This sensor wire harness links a sensor (such as a thermistor) to the appliance's control system, ensuring accurate readings and dependable operation. Replacing a damaged or corroded harness restores proper communication and stable performance.

• Carries low-voltage sensor signals between the sensor and main control
• Enables the control to respond correctly to sensor feedback for normal operation
• Typical failure signs: erratic readings, intermittent operation, nuisance sensor/error codes, or visible wire/connector damage
• A damaged harness/connector may be the cause

• Disconnect power before servicing; turn off water supply if moving the appliance requires it
• Access the harness at the sensor/control ends per your model's service information
• Match keyed connectors and seat fully without forcing; do not pull on wires
• Route along the factory path and secure away from sharp, hot, or moving parts

This air duct assembly routes airflow inside the appliance to maintain consistent circulation and temperature control. Replacing a cracked, warped, or blocked duct restores the designed air path, improves performance, and reduces hot or cold spots.

• Directs and balances airflow through internal channels as designed
• Helps maintain stable temperatures and reduces moisture or frost around vents
• Preserves a sealed air path to minimize leaks, noise, and inefficiency
• Typical symptoms of a failed duct include uneven temperatures, weak airflow, frost/condensation near vents, or visible cracks/broken tabs

• Disconnect power before servicing; allow any ice buildup to thaw for easier removal
• Remove shelves/covers to access the duct; keep track of screws and clips
• Note orientation; transfer any reusable seals, gaskets, or sensors from the original assembly as needed
• Ensure vents are clear and seals are seated; restore power and allow up to 24 hours for temperatures to stabilize

This protective cover shields and guides the appliance's water line at the back, helping prevent kinks, abrasion, and vibration. Replacing a damaged or missing cover helps protect the tubing and supports consistent water flow. What it does:

• Protects and routes the water supply tubing to reduce rubbing and wear
• Helps prevent kinks or pinches that can restrict water flow
• Keeps the line secured to minimize vibration and rattling
• Common signs include a cracked/missing cover, exposed/kinked tubing, leaks, or reduced water flow

• 1 water hose cover

• Disconnect power and shut off the water supply before servicing
• Pull the appliance forward for access; remove any screws/clips securing the old cover
• Note the tube routing; install the new cover without pinching the line
• Restore water and power, then check for proper flow and any leaks

This genuine replacement seal restores a tight barrier between two mating surfaces in your appliance. Replacing a worn or damaged seal helps prevent leaks or air infiltration and supports proper, reliable performance. What it does

• Creates a compressible barrier to contain water or air at the joint between components
• Helps prevent drips, leaks, or unwanted moisture/condensation
• Replaces seals that are cracked, flattened, brittle, or misshapen
• Supports correct operation by maintaining proper pressure and temperature control at the seal point

• 1 seal

• Disconnect power; shut off water supply if applicable
• Note the seal's orientation before removal; match the profile to the new part
• Clean the groove and mating surfaces of residue and debris before seating the new seal
• Seat evenly without twisting or stretching; test for leaks/operation after reassembly

This replacement screen filters out debris before it reaches critical components, helping maintain proper flow and overall performance. Replacing a damaged or clogged screen protects the system from blockages that can lead to poor operation. What it does:

• Traps particles to prevent clogs in passages, pumps, or valves
• Helps maintain proper water or air flow through the system
• Protects internal components from damage caused by debris
• Common signs it may need replacement: visible tears or warping, heavy buildup, recurring clogs, restricted flow, or related error codes

• 1 screen

• Disconnect power; shut off the water supply. Wear gloves and eye protection.
• Access the screen. Note orientation before removal and clean the area of any debris.
• Seat the new screen fully and evenly; do not force or bend it.
• Reassemble, restore power/water, and run a brief test to confirm proper operation and flow.

The Lint Screen Door is an OEM replacement part for Whirlpool dryers. It is responsible for covering the lint screen area and protecting the inner components of the dryer drum. The lint screen door allows for easy access to clean out lint buildup after each load.

Over time, the door can suffer from wear and tear due to regular handling or accidental impacts. A faulty lint screen door can lead to improper lint trapping, which might cause airflow issues and potential fire hazards.

Symptoms of a bad lint screen door include:

• Difficulty opening or closing the door smoothly
• Gaps or openings that allow lint to bypass the screen
• Warping or misshapen door that no longer fits properly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

A duct collar that connects and secures the dryer's exhaust duct to the appliance, helping channel hot, moist air safely out of the dryer. Replaces a damaged or loose collar to restore a tight vent connection. What it does

• Provides a secure connection point between the dryer and the exhaust duct to help direct airflow out of the appliance.
• Helps reduce vent leaks that can cause poor drying performance or excess lint buildup in the cabinet/closet.
• Restores proper duct alignment to reduce rattling or vibration from a loose duct connection.
• Used when the existing collar is cracked, bent, corroded, or no longer holds the duct firmly.

• One duct collar.

• Always disconnect electrical power before servicing the dryer.
• Clean lint from the vent path before installing the new collar to ensure good airflow and reduce fire risk.
• Installation typically requires basic hand tools and a clamp or screws to secure the duct; follow the dryer's service instructions.

This coupler connects the washer motor to the gearcase so the motor can turn the transmission and drive the washer's agitator and spin functions. Replacing a worn coupler restores reliable power transfer and normal wash cycles. What it does:

• Transfers torque from the motor to the gearcase so the washer agitates and spins
• Dampens shock between motor and transmission during load changes
• Worn or broken couplers can cause no-agitate/no-spin, slipping, or loud grinding noises
• Prevents direct metal-to-metal contact that can damage motor or gearcase

• Disconnect power and water supply before starting any repair
• Support the tub or transmission per the OEM instructions before removing the old coupler
• Inspect motor shaft and gearcase input for damage; replace additional parts if scored or worn
• Use basic hand tools; follow OEM diagram for proper alignment and secure fit

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

A replacement front drum bulkhead that supports the dryer drum and helps keep the front bearing and seal aligned for smooth rotation. Use this bulkhead to restore proper drum alignment and reduce rubbing, noise, and excessive front play. What it does:

• Supports the front of the dryer drum and centers the front bearing/seal for stable rotation.
• Helps prevent drum rub, scraping noises, and uneven wear caused by a misaligned front support.
• Used when the front drum shows excessive play, thumping, or visible damage to the front support area.
• Installing a new bulkhead is commonly done alongside inspection of rollers, bearings, and the drive belt to ensure full drum stability.

• Disconnect electrical power (and shut off gas supply for gas dryers) before starting any service.
• Remove the front panel and drum to access the bulkhead; expect sharp edges and tensioned components—wear gloves and eye protection.
• Transfer any existing seals, bearings, or retainers only if undamaged; replace worn fasteners and inspect rollers/belts while the dryer is open.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This exhaust pipe channels hot, moist air from the appliance to the vent system, helping maintain proper airflow and reduce moisture buildup. It's a direct-replacement service part used when the original pipe is damaged or leaking. What it does:

• Directs exhaust air from the appliance into the household venting system
• Helps prevent backflow and reduces moisture or lint escape into the cabinet area
• Restores proper airflow when a cracked, bent, or corroded pipe impairs venting
• Works as part of the dryer/vent assembly to support safe, efficient operation

• One exhaust pipe

• Disconnect power (and gas, if applicable) before starting any repair
• Handle edges carefully; wear gloves to avoid cuts and eye protection if debris is present
• Use proper clamps or fasteners and ensure all seals are secure to prevent leaks

The Lint Screen Housing Assembly is an OEM part for Whirlpool dryers. It houses the lint screen, which captures lint and debris from the drying cycle, preventing it from clogging the dryer vent and ensuring efficient airflow.

Causes of a bad housing assembly can include cracks or breaks due to frequent handling, wear and tear over time, or accidental impact. A faulty housing can compromise the lint screen's ability to trap lint effectively, leading to potential ventilation issues.

Symptoms of a bad lint screen housing assembly include:

• Lint screen not fitting properly
• Visible cracks or damage to the housing
• Increased lint buildup inside the dryer
• Longer drying times due to restricted airflow

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM replacement part for Whirlpool dryers. Located where the water supply line connects, it controls the flow of water into the dryer drum for steam cycles. Precise control is needed to prevent temperature fluctuations or flooding.

Causes of a bad inlet valve can include mineral buildup clogging water pathways, worn diaphragms allowing constant flow, or mechanical linkage issues.

Symptoms of a bad water inlet valve include:

• Steam cycles not activating or producing steam
• The dryer fails to stop water flow and overflowing
• Fault codes displayed relating to water input functions

This OEM replacement part is compatible with brands like Maytag, KitchenAid, and more.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Seal is an OEM replacement part for Whirlpool dryers. This seal helps prevent clothes from getting caught between the drum and the dryer's interior. Its high-quality construction ensures durability and long-lasting performance. Note: For Hi-Temp adhesive, order part# WPY055980

Causes of a bad dryer seal can include wear and tear from repeated use, exposure to high temperatures, or damage due to overloading the dryer. When the seal is compromised, it can lead to heat loss, increased drying times, and potential damage to clothing.

Symptoms of a faulty seal include:

• Increased Noise during operation
• Clothes becoming tangled or stuck inside drum
• Drying times longer than normal

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Thermal Cut-Off is an OEM replacement part for Whirlpool dryers. It serves as a crucial safety component, automatically disconnecting power to the dryer's heating element if temperatures rise too high. This protects against overheating that could potentially cause a fire.

Symptoms of a bad thermal cut-off can include:

• dryer failing to heat during cycles
• abnormal noises or smells coming from the dryer
• error codes related to temperature
• loose/damaged wires near the heating element

Causes of failure typically involve repeated exposure to excessive heat over long periods of use, though sometimes surges or physical damage can also trigger problems.

This Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drum Felt Seal is an OEM replacement part for Whirlpool electric dryers. Located inside the spinning dryer drum, it lines the perimeter and protects the interior surface from abrasions. This seal measures approximately 82 inches in length.

Symptoms of a bad dryer drum felt seal include:

• Scratches or scuff marks visible on the inside of the drum
• Visible wear patterns or thinning of the felt material
• Premature rusting or corrosion of the steel drum
• Chipped or delaminated areas exposing bare steel

Causes of failure can include normal wear from friction generated during high-speed spins. Mineral deposits and grit trapped between the seal and drum may accelerate wear over extended use as well.

This OEM part is also compatible with brands like Maytag, Amana and Kenmore.

The Moisture Sensor Bar is an OEM replacement part for Whirlpool dryers. It is a component located inside the dryer drum that senses the moisture level of clothes during tumble drying cycles. The moisture sensor bar utilizes sensors or probes to gauge how dry clothes are getting and signals the dryer to shut off once clothes reach the desired dryness level selected by the user.

Symptoms of a bad moisture sensor bar include:

• Dryer failing to shut off automatically at the end of cycles, leaving clothes over-dried
• Cycles taking excessively long to complete
• Dryer not sensing moisture levels properly to allow automatic ending of cycles

Causes of a faulty moisture sensor bar are usually due to normal wear and tear over time. Dust or lint buildup can also affect its ability to provide accurate readings.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

A replacement outer access cover that protects internal components and keeps the appliance appearance finished. Restores a secure barrier over openings to prevent debris and accidental contact with internal parts. What it does:

• Shields interior components from dirt, dust and spills
• Prevents accidental contact with wiring or moving parts
• Stops drafts or light from entering the cabinet opening
• Eliminates rattles or vibration caused by a cracked or loose cover

• One replacement outer access cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove adjacent panels or fasteners as needed to access the cover; basic hand tools usually required
• Handle edges carefully to avoid scratching the finish; align tabs and secure all fasteners

This seal creates a tight barrier between two mating surfaces in your appliance, helping prevent leaks and performance loss. Replacing a worn seal restores proper containment and helps protect nearby components from moisture intrusion. What it does

• Forms a tight barrier to prevent water or air from escaping between joined parts
• Helps maintain proper pressure, airflow, or water path as designed
• Replaces cracked, flattened, or torn seals that compromise performance
• Common symptoms: drips or moisture at the joint, visible wear or deformation, loose fit, recurring leaks after reassembly

• 1 seal

• Disconnect power and, shut off the water supply before servicing
• Note the seal's orientation and match the new part to the old one
• Clean and dry mating surfaces; remove old adhesive, debris, or scale
• Install per OEM orientation; only lubricate if specified by the manufacturer, then reassemble and test for leaks

The Blower Wheel is an OEM part for Whirlpool dryers. This component is essential in the dryer's air system, as it is responsible for moving air through the drum and out the vent. The blower wheel works by pulling air over the heating element, circulating it through the clothes, and expelling the moist air outside, which assists in the efficient drying of laundry.

Symptoms of a failing Blower Wheel include:

• Reduced airflow, resulting in clothes not drying properly or increased drying times
• Unusual noises like rattling or thumping, suggesting the wheel may be loose or damaged
• Excessive vibration of the dryer, especially if the blower wheel is unbalanced
• The dryer overheating due to restricted airflow if the wheel is clogged or malfunctioning

Causes of a bad blower wheel typically involve objects getting caught in the wheel, lint build-up that unbalances the wheel, or wear and tear that leads to the wheel's fins breaking or deforming.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This shield is a molded protective cover that guards internal appliance components from moisture and debris, helping prevent damage and maintain reliable operation. It fits into place to keep nearby parts shielded and aligned. What it does:

• Covers and protects internal components from water, grease, and small debris
• Helps direct moisture away from sensitive parts to reduce corrosion risk
• Prevents rubbing and wear between adjacent parts that can cause noise
• Aids proper alignment and sealing of nearby panels and assemblies

• Disconnect power and water supply before beginning any repair
• Inspect mounting tabs and surrounding seals; replace any damaged fasteners
• Snap or screw the shield into the existing mounting points without forcing
• Replace those components before reassembly

A small replacement retainer clip that secures interior panels and trim to restore proper fit and reduce vibration or rattling. Fits where a molded or snap-in fastener has worn or broken. What it does

• Secures panels, trim pieces, or wiring harnesses so parts sit flush and stable.
• Prevents rattling and vibration caused by loose or missing fasteners.
• Helps keep seals and gaskets aligned by holding adjacent trim in place.
• Common symptom: loose trim, gaps, or intermittent rattling sound during operation.

• The clip shown.

• Disconnect power (unplug appliance or turn off breaker) before servicing.
• Access the clip location by removing the appropriate trim or panel.
• Clip typically snaps into a mounting hole or slot; align and press until it seats securely.
• Use basic hand tools as needed; wear gloves and eye protection to avoid injury from sharp edges.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

The Thermistor is an OEM part for Whirlpool brand dryers. It is a temperature-sensing resistor that monitors air temperature changes during the drying cycle. The thermistor provides feedback to the control board on heating element performance and internal air condition.

Symptoms of a failed thermistor include:

• Inaccurate temperature readings and selections
• Improper or incomplete drying
• Safety issues from overheating due to lack of feedback
• Error codes displayed on the control panel

Causes can be related to normal wear and environmental exposure over time. Failure prevents the dryer from achieving optimal drying conditions.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement steam spray nozzle directs steam into the appliance's steam system to help produce even steam flow for wrinkle reduction and refreshing cycles. It restores proper steam delivery when the original nozzle is cracked or clogged. What it does:

• Directs and shapes steam flow into the appliance's steam path for consistent operation.
• Helps restore normal steam performance when steam output is weak or uneven.
• Prevents misdirected steam that can reduce cycle effectiveness.
• Works as a direct replacement for a damaged, cracked, or clogged nozzle.

• One steam spray nozzle

• Disconnect power and water supply before servicing; allow the appliance to cool.
• Handle the nozzle carefully to avoid damage; inspect surrounding seals and fittings.
• May require basic hand tools for access; follow OEM instructions.

This blower housing assembly replaces the blower chamber that supports the blower wheel and routes air through the dryer for proper tumbling and drying. Restores correct airflow and helps reduce overheating or poor drying performance. What it does:

• Houses and supports the blower wheel to direct airflow from the drum to the exhaust.
• Ensures proper airflow for consistent drying and venting.
• Can address symptoms like weak airflow, long dry times, or unusual blower noise when damaged or cracked.
• Works with the blower wheel and motor to maintain lint passage and exhaust flow.

• Disconnect power before inspecting or replacing the blower housing; follow manufacturer safety procedures.
• Access may require removing the dryer front or rear panel depending on model.
• Inspect the blower wheel and motor for damage or obstructions while replacing the housing.

This lint duct assembly channels dryer exhaust through the cabinet and toward the vent, helping trap lint and maintain airflow for efficient drying. Replace a damaged or clogged duct to restore proper venting and reduce lint buildup. What it does:

• Directs exhaust air from the drum to the vent path to support consistent drying performance
• Helps contain and route lint toward the lint trap area to reduce internal buildup
• Common part for symptoms like poor drying, overheating, unusual airflow, or visible lint leaks inside the cabinet
• Works with the dryer cabinet and venting components to maintain safe exhaust flow

• One lint duct assembly

• Disconnect power (and gas supply, if applicable) before service to avoid shock or injury
• Inspect surrounding seals, gaskets and the lint trap for damage during replacement
• Reinstall using OEM fasteners and confirm proper alignment to prevent exhaust leaks

This finished burner funnel directs gas and air into the burner for correct flame shape and ignition. It replaces a damaged or corroded funnel to help restore even heating and reliable burner performance. What it does:

• Channels gas and air into the burner for proper mixing and flame distribution
• Helps maintain even flame across the burner for consistent cooking heat
• Can reduce ignition delays or uneven flames caused by a damaged funnel
• Works with the burner assembly; not a standalone gas valve or igniter

• Turn off gas supply and electricity to the appliance before servicing
• Replace only with the correct funnel for your burner; follow OEM diagram for orientation
• Tighten fittings by hand-first, then snug—do not overtighten; inspect for leaks after reassembly

The High Limit Thermostat is an OEM replacement part for Whirlpool dryers. This safety device monitors internal dryer temperatures. The high-limit thermostat automatically interrupts power if excessive heat builds up inside the dryer drum and ventilation area.

Causes of a bad high-limit thermostat typically include wear over many heat cycles. Without this critical safeguard functioning reliably, overheating dangers increase.

Symptoms of a bad high-limit thermostat include:

• Dryer failing to heat or stop heating unexpectedly
• Repeated blowing of fuses or breaker trips
• Smoky odors emitted from the dryer vent

This OEM Whirlpool replacement is also compatible with some Maytag, Roper, and select Kenmore dryer models as well.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This bulkhead is the front structural panel that supports the dryer drum and seals the front of the cabinet to maintain proper airflow and drum alignment. Replacing a worn bulkhead restores stable drum rotation and prevents air leaks. What it does:

• Supports the drum and front bearing to keep the drum centered and turning smoothly
• Seals the front cabinet to direct exhaust airflow through the blower and vent
• Reduces rubbing and vibration caused by a damaged or warped bulkhead
• Helps eliminate airflow leaks that can extend dry times or cause overheating warnings

• One bulkhead

• Disconnect power (and gas supply if applicable) before any service
• Service typically requires removing the dryer front panel and drum for access
• Inspect and replace any worn gaskets, bearings, or fasteners while replacing the bulkhead

This lint screen grille covers the lint filter opening inside the dryer drum. It supports the lint screen and provides a smooth surface at the opening to prevent snags, restoring proper fit and safe airflow. What it does:

• Supports and aligns the lint screen so it sits flush in the opening
• Shields the blower intake and keeps fabrics from contacting internal parts
• Provides a smooth edge to help prevent clothes from snagging or fraying
• Typical failure signs: cracked or missing grille, broken tabs, lint screen not seating properly, clothes catching near the lint opening

• 1 lint screen grille

• Disconnect power before servicing
• Open the dryer door and remove the screws securing the existing grille
• Lift out the old grille, position the new grille, and secure it with the existing screws
• Reinstall the lint screen and verify it slides smoothly and sits flush

The Water Inlet Valve is an OEM replacement part for Whirlpool dryers. Located where the water supply line connects, it controls the flow of water into the dryer drum for steam cycles. Precise control is needed to prevent temperature fluctuations or flooding.

Causes of a bad inlet valve can include mineral buildup clogging water pathways, worn diaphragms allowing constant flow, or mechanical linkage issues.

Symptoms of a bad water inlet valve include:

• Steam cycles not activating or producing steam
• The dryer fails to stop water flow and overflowing
• Fault codes displayed relating to water input functions

This OEM replacement part is compatible with brands like Maytag, KitchenAid, and more.

This nozzle body assembly directs wash water through the dishwasher's spray system to help deliver thorough cleaning. It replaces a damaged or clogged nozzle body to restore proper water flow and spray coverage. What it does:

• Channels water from the wash arm to the spray nozzles for even distribution
• Helps eliminate weak sprays or uneven cleaning caused by cracked or clogged nozzle housings
• Works as the structural mount for the nozzle(s) in the spray arm assembly
• Fits into the dishwasher spray system and interfaces with existing wash-arm components

• One nozzle body assembly as shown

• Recommended for installation by someone comfortable with basic dishwasher disassembly
• Disconnect power and water supply before beginning work to avoid shock or flooding
• Inspect adjacent seals, spray arms, and clips during replacement and clean any debris
• Use only the exact replacement part number for fit; do not force or modify parts

This temperature sensor mounts on the sealed-system gas inlet line in compatible refrigerators. It relays precise temperature feedback to the control so cooling and defrost cycles are managed correctly, helping maintain stable compartment temperatures. What it does:

• Senses temperature at the gas-inlet line; resistance changes are read by the control
• Helps regulate compressor, fan, and valve operation for proper cooling performance
• A failed sensor may cause erratic temperatures or extended run times
• Can correlate with control thermistor error codes or frost/ice patterns near the evaporator

• 1 thermistor sensor

• Disconnect power before servicing
• Note original sensor placement and insulation; reinstall in the same location and orientation
• Attach the sensor firmly to the line and route the harness as originally, away from sharp, hot, or moving parts
• Do not open or puncture sealed-system tubing; if damage is suspected, stop.

The Blower Housing Seal is an OEM part for Whirlpool dryers. This seal is strategically placed around the blower housing to prevent air leaks, which can reduce the efficiency of your dryer by allowing heated air to escape and drawing in unheated air. A proper seal ensures optimal air flow and temperature regulation within the dryer, contributing to faster drying times and reduced energy consumption.

Symptoms of a failing blower housing seal include:

• Increased drying times due to inefficient heat use
• Unusual noises from air escaping the blower housing
• Excess lint escaping into the dryer cabinet, which could lead to maintenance issues

Causes of blower housing seal degradation typically involve wear and tear from regular use, exposure to high temperatures that can cause the material to harden and crack, and improper installation that can lead to premature failure.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement door restores a secure close and proper sealing for your appliance. Replacing a damaged or misaligned door helps ensure safe operation and correct latch/switch engagement for reliable everyday use. What it does:

• Provides the closing barrier for the appliance cabinet to maintain proper containment (heat, air, steam, or moisture as designed)
• Aligns with hinges and latch/door switches for correct interlock and operation
• Helps prevent leaks and drafts and protects the interior from damage
• Can address issues such as difficulty closing, visible cracks/dents, poor sealing, or the unit not starting/stopping when the door is moved

• Includes 1 door

• Disconnect power before servicing; also shut off gas or water if applicable
• Support the door during removal/installation; a second person may be needed for larger/heavier doors
• Transfer any reusable hardware (hinge pins, screws, nameplate/trim) from the original as needed
• After installation, verify alignment, latch engagement, and seal/gasket contact; test operation

• Finish, handle style, and configuration are model-specific—ensure the correct match

The Filter Housing is an OEM part for Whirlpool dryers. As part of the dryer ventilation system, the filter housing holds the lint filter in place, trapping lint and debris before it exits through the vent. It helps prevent blockages in the exhaust vent and surrounding area.

Causes of a bad filter housing can include cracks, breaks or defects in the plastic material over time due to normal use and heat exposure inside the dryer. Increased wear and tear from extended use can also cause damage.

Symptoms of a bad filter housing include:

• Excessive lint building up inside the dryer
• Reduced air flow and inefficient drying times
• Strange sounds like vibrations or rattling coming from the vent area
• Lint escaping from gaps in the filter housing

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Y-shaped connector hose diverts water between two inlet lines to route supply where needed. It restores proper water flow paths and replaces damaged or leaking split-connection plumbing on compatible appliances. What it does:

• Splits a single water inlet into two outlets so water can serve two components
• Provides a sealed path to prevent cross-flow between lines
• Commonly replaced when the connector leaks, cracks, or becomes brittle
• Helps restore normal water delivery when a split supply is required

• Turn off the appliance and shut off the water supply before beginning.
• Inspect mating fittings and replace any damaged clamps or seals.
• Hand-start fittings to avoid cross-threading, then tighten securely; check manufacturer torque guidance if available.
• After installation, restore water and power and check all connections carefully for leaks.
