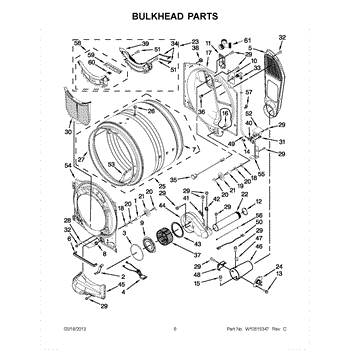

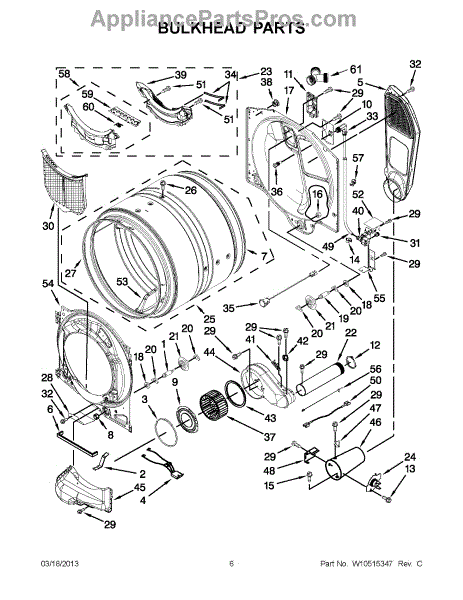

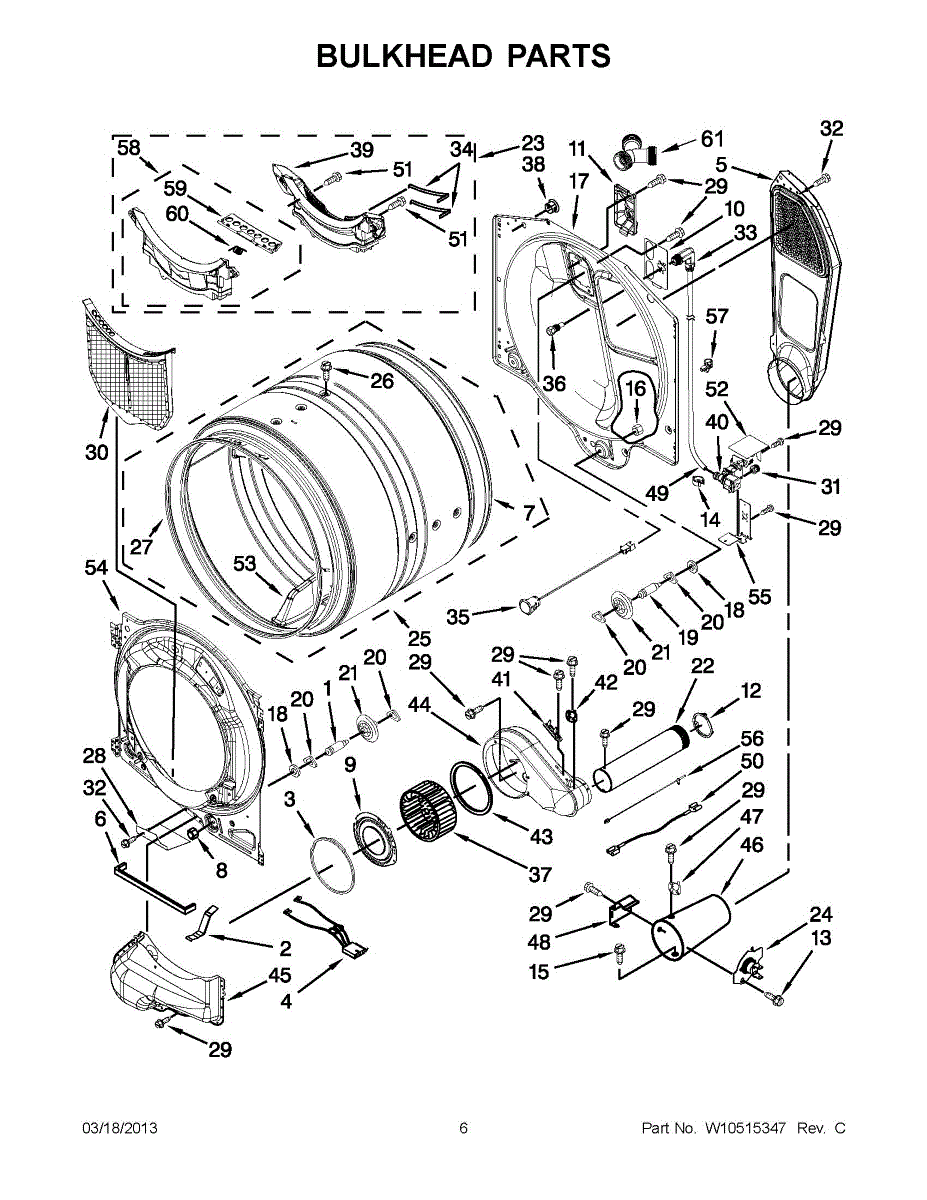

Parts for Whirlpool WGD94HEAC0: 03 - Bulkhead Parts

Shaft that secures front drum support rollers in your dryer. Replace if worn, scored, or damaged to restore proper drum alignment and support.

Dryer clip secures internal components and prevents rattling or loose parts. Replace if broken, missing, or worn to restore proper fit and function.

Dryer won't start or stops mid-cycle? A faulty sensor wire harness disrupts temperature readings. This direct-fit harness restores accurate communication.

Routes airflow inside your dryer to maintain circulation and temperature. Replace if cracked, warped, rusted, or blocked to restore proper air path.

Genuine dryer seal creates a tight barrier to prevent air leaks. Replace if worn, cracked, or causing poor drying performance. Confirm fit with your model.

Seals the drum perimeter to prevent abrasion and maintain temperature. Replace when worn, torn, or causing marks on clothes. Verify fit by model number.

Replacement outer access cover for dryers. Protects internal components and maintains a finished appearance. Needed when original is cracked or missing.

This cover mounts inside the dryer and shields the drum light from direct contact with tumbling clothes. It helps protect the light bulb and prevents garments from snagging on the light assembly. Replace this cover if it is cracked, melted, missing, or if clothes are catching near the light area during drying cycles.

Connects and secures the exhaust duct to your dryer. Replace if the collar is cracked, loose, damaged, or missing to restore a tight vent connection.

Retainer clip secures interior panels and trim in your dryer, reducing vibration and rattling. Replace when panels feel loose or fasteners break.

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

This 3/8-16 nut secures appliance components and helps prevent loosening and vibration. Replace a worn, stripped, or missing nut to restore a tight, reliable connection and consistent operation.

• Provides a 3/8-16 threaded fastener connection for applicable bolts or studs
• Helps keep brackets, panels, and other parts firmly in place
• Replaces damaged or missing hardware that can cause looseness or rattling
• Signs of failure include rounded corners, stripped threads, corrosion, or inability to tighten securely

• Disconnect power and, if applicable, shut off water and gas before servicing
• Match thread size to the original part; start threading by hand to avoid cross-threading
• Reinstall any washers/spacers in the original order; tighten securely without over-tightening
• If the original used a locking feature or threadlocker, reinstall per your product's service information

Replace your dryer's front drum bulkhead to restore proper drum alignment and eliminate rubbing, noise, and excessive play. Confirm fit with your model number.

The washer is an OEM replacement part for Whirlpool clothes dryers. This part is located on the drum roller support shaft in your dryer. The exterior of the washer is 1 inch in diameter with a hole in the middle and is made of metal. They are installed alongside the drum support rollers and idler pulleys. They help prevent the rollers and pulleys from bumping up against the brackets they are installed on. If you are replacing the rollers, we suggest you replace the washers at the same time.

Causes can be normal wear to bearing surfaces over extended use cycles. Accidental impacts may also potentially bend or damage shaft components.

Symptoms of a bad roller shaft include:

• Noisy squeaks or clanks emanating from within
• Jerky or unbalanced tumbling of dryer loads
• Roller assemblies binding or sticking

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Shaft for Left Hand Threads is an OEM replacement part for Whirlpool dryers. This component is essential for securing and supporting the drum as it rotates during the drying cycle. It helps maintain the drum’s alignment and stability, ensuring smooth and efficient operation of the dryer.

Over time, the drum support shaft can become worn out or damaged due to continuous use, the weight of laundry loads, or improper installation. Additionally, exposure to high temperatures and repeated mechanical stress can cause the shaft to weaken or fail, leading to issues with the dryer’s performance.

Symptoms of a bad drum support shaft include:

• The drum not rotating smoothly or making grinding noises
• Excessive wobbling or vibrating of the drum during the drying cycle
• The dryer taking longer to dry clothes or not drying them evenly
• Visible damage or wear on the shaft or its threads
• The drum becoming misaligned or not sitting properly within the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Secures drum support rollers to their shafts in your dryer. Replace if broken, missing, or damaged during roller maintenance to keep drum wheels stable.

Replacement drum support roller for dryers. Mounts on the drum frame to support and guide the drum as it rotates. Replace if cracked, worn, or damaged.

Channels hot air from your dryer to the vent system. Replace this exhaust pipe if the original is cracked, damaged, or leaking to restore airflow.

Houses the lint screen in your dryer. Replace if cracked, broken, bent, or damaged. Ensures proper lint screen fit and secure installation.

Dryer won't heat? A failed thermal cut-off fuse cuts power when temps spike. DIYers replace this safety part in 20-30 minutes with basic tools.

This is the main drum assembly for a dryer, the large cylindrical chamber where clothes tumble during the drying cycle. It rotates to circulate garments through heated air for even drying. Replace this drum if it has developed cracks, dents, worn spots that snag clothing, or if the interior coating is peeling or damaged.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Front drum felt seal prevents clothes from catching between the drum and dryer interior. Replace if worn or damaged. Confirm fit with your model number.

Molded protective cover that shields internal dryer components from moisture and debris. Replace if cracked, broken, or missing to maintain proper protection.

Replacement lint screen filters debris to maintain airflow and prevent clogs. Replace when torn, damaged, or worn. Confirm fit with your model number.

This is a hose connector that attaches to the dryer's inlet, providing a secure link between the external hose and the dryer housing. It ensures a tight, leak-free connection for proper airflow or water drainage. Replace this connector if you notice loose hose fittings, air leaks around the connection point, or if the original connector is cracked or damaged.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This assembly includes a nozzle body and hose that supplies water to the dryer's steam function. It connects the water inlet to the drum area, delivering a controlled spray of water for steam cycles. Replace this part if the dryer's steam feature is not working, if you notice leaks near the water supply connection, or if the hose is cracked or kinked.

Dryer shuts off before clothes are dry? The moisture sensor bar detects dryness levels. Easy 10-30 minute DIY fix with video guide included.

Fix uneven steam distribution or wrinkles not smoothing out with this steam spray nozzle. Restores proper steam flow when clogged or cracked. DIY repair.

Dryer making rattling noise or not heating properly? A cracked blower wheel disrupts airflow. Moderate DIY repair—requires panel removal and wrench work.

This is the exterior air grille that covers the dryer's exhaust outlet, directing warm, moist air out of the appliance. It helps protect internal components and maintain proper airflow during the drying cycle. Replace this grille if it is cracked, warped, or has broken louvers that could restrict airflow and reduce drying performance.

The Water Inlet Valve is an OEM replacement part for Whirlpool dryers. Located where the water supply line connects, it controls the flow of water into the dryer drum for steam cycles. Precise control is needed to prevent temperature fluctuations or flooding.

Causes of a bad inlet valve can include mineral buildup clogging water pathways, worn diaphragms allowing constant flow, or mechanical linkage issues.

Symptoms of a bad water inlet valve include:

• Steam cycles not activating or producing steam
• The dryer fails to stop water flow and overflowing
• Fault codes displayed relating to water input functions

This OEM replacement part is compatible with brands like Maytag, KitchenAid, and more.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

Fix E1 error codes or overheating issues with this dryer thermistor. Monitors temperature to prevent shutdowns. DIY repair takes about 30 minutes.

Seals the blower housing to prevent air leaks that reduce drying efficiency. Replace if worn, cracked, or missing to restore optimal airflow.

This blower housing assembly replaces the blower chamber that supports the blower wheel and routes air through the dryer for proper tumbling and drying. Restores correct airflow and helps reduce overheating or poor drying performance. What it does:

• Houses and supports the blower wheel to direct airflow from the drum to the exhaust.
• Ensures proper airflow for consistent drying and venting.
• Can address symptoms like weak airflow, long dry times, or unusual blower noise when damaged or cracked.
• Works with the blower wheel and motor to maintain lint passage and exhaust flow.

• Disconnect power before inspecting or replacing the blower housing; follow manufacturer safety procedures.
• Access may require removing the dryer front or rear panel depending on model.
• Inspect the blower wheel and motor for damage or obstructions while replacing the housing.

Channels exhaust air and traps lint in your dryer. Replace if damaged, clogged, or airflow is restricted. Confirm fit with your model number.

This finished burner funnel directs gas and air into the burner for correct flame shape and ignition. It replaces a damaged or corroded funnel to help restore even heating and reliable burner performance. What it does:

• Channels gas and air into the burner for proper mixing and flame distribution
• Helps maintain even flame across the burner for consistent cooking heat
• Can reduce ignition delays or uneven flames caused by a damaged funnel
• Works with the burner assembly; not a standalone gas valve or igniter

• Turn off gas supply and electricity to the appliance before servicing
• Replace only with the correct funnel for your burner; follow OEM diagram for orientation
• Tighten fittings by hand-first, then snug—do not overtighten; inspect for leaks after reassembly

Dryer won't heat or shuts off early? The high limit thermostat monitors temperature and cuts power when overheating occurs. DIY repair in 30 minutes.

The Flame Sensor is an OEM replacement part for Whirlpool gas dryers. This component plays a critical safety role by monitoring the presence of the gas burner flame during the drying cycle.

Causes of needing to replace the flame sensor can include normal wear and tear over extended use, exposure to high temperatures or corrosion, or physical damage to the sensor itself.

Symptoms that may indicate a faulty flame sensor include:

• The dryer not heating or producing heat properly
• Error codes related to the gas system or ignition failure
• The dryer shutting off unexpectedly during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas dryer models.

Replacement mounting screw for securing handles, panels, and internal components. Needed when original screws are stripped, lost, or broken during repairs.

The Water Inlet Valve is an OEM replacement part for Whirlpool dryers. Located where the water supply line connects, it controls the flow of water into the dryer drum for steam cycles. Precise control is needed to prevent temperature fluctuations or flooding.

Causes of a bad inlet valve can include mineral buildup clogging water pathways, worn diaphragms allowing constant flow, or mechanical linkage issues.

Symptoms of a bad water inlet valve include:

• Steam cycles not activating or producing steam
• The dryer fails to stop water flow and overflowing
• Fault codes displayed relating to water input functions

This OEM replacement part is compatible with brands like Maytag, KitchenAid, and more.

Replaces a cracked, broken, or missing drum baffle inside your dryer. Installs in the drum to lift and separate clothes during tumbling cycles.

Front bulkhead panel that supports the dryer drum and seals the cabinet. Replace if cracked, warped, or damaged to restore drum alignment and airflow.

This temperature sensor mounts on the sealed-system gas inlet line in compatible refrigerators. It relays precise temperature feedback to the control so cooling and defrost cycles are managed correctly, helping maintain stable compartment temperatures. What it does:

• Senses temperature at the gas-inlet line; resistance changes are read by the control
• Helps regulate compressor, fan, and valve operation for proper cooling performance
• A failed sensor may cause erratic temperatures or extended run times
• Can correlate with control thermistor error codes or frost/ice patterns near the evaporator

• 1 thermistor sensor

• Disconnect power before servicing
• Note original sensor placement and insulation; reinstall in the same location and orientation
• Attach the sensor firmly to the line and route the harness as originally, away from sharp, hot, or moving parts
• Do not open or puncture sealed-system tubing; if damage is suspected, stop.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This assembly includes the housing and door that enclose the lint screen filter compartment on the top or front of the dryer. It provides access to the lint filter for cleaning and keeps the filter securely in place during operation. Replace this part if the door is cracked, broken, won't stay closed, or if the housing is damaged and no longer holds the lint screen properly.

Replacement flip-up door that covers the lint screen opening in your dryer's front bulkhead. Needed when original door is cracked, broken, or missing.

Lint filter housing assembly holds the lint screen in place on your dryer. Replace if cracked, broken, or doors are damaged. Includes mounting frame.

This Y-shaped connector hose diverts water between two inlet lines to route supply where needed. It restores proper water flow paths and replaces damaged or leaking split-connection plumbing on compatible appliances. What it does:

• Splits a single water inlet into two outlets so water can serve two components
• Provides a sealed path to prevent cross-flow between lines
• Commonly replaced when the connector leaks, cracks, or becomes brittle
• Helps restore normal water delivery when a split supply is required

• Turn off the appliance and shut off the water supply before beginning.
• Inspect mating fittings and replace any damaged clamps or seals.
• Hand-start fittings to avoid cross-threading, then tighten securely; check manufacturer torque guidance if available.
• After installation, restore water and power and check all connections carefully for leaks.
