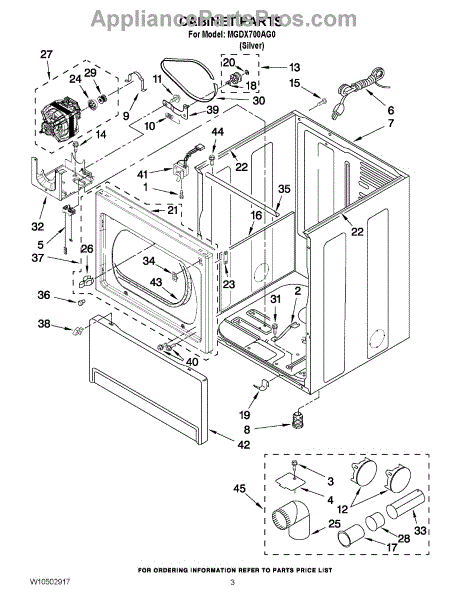

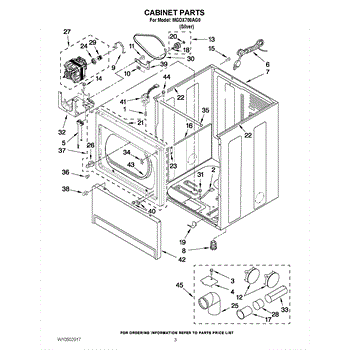

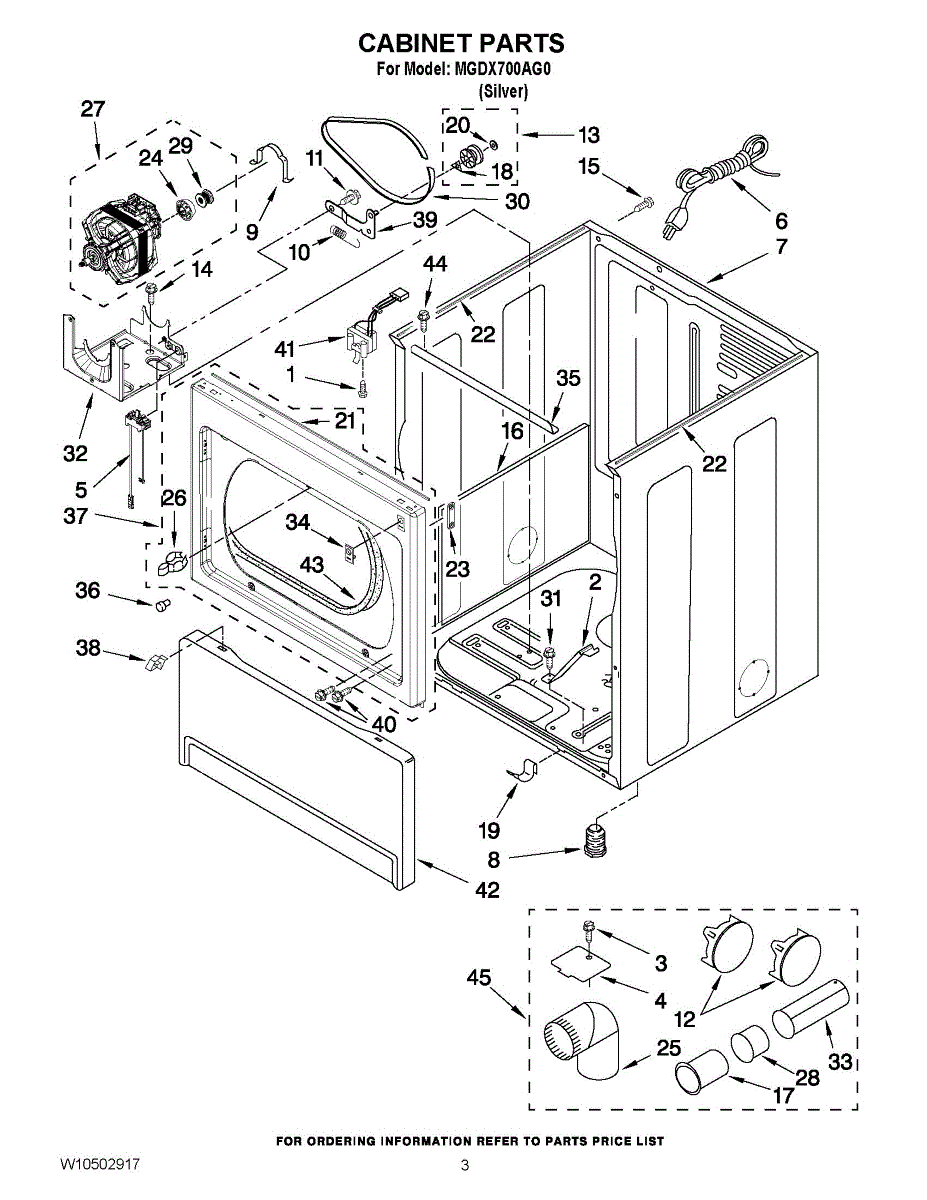

Parts for Maytag MGDX700AG0: 02 - Cabinet Parts

A general-purpose 6-20 screw used to secure panels, brackets and small components on Whirlpool appliances. Replaces stripped or missing fasteners to restore a snug fit and reduce rattling or loose parts. What it does:

• Secures appliance panels, trim, brackets and internal components in original mounting locations.
• Stops panel movement, vibration noise and loose connections caused by missing or corroded screws.
• Fits the OEM 6-20 thread designation used on multiple Whirlpool assembly points.
• Sold individually for spot repairs and small part replacements.

• Disconnect power or gas supply to the appliance before starting any repair.
• Use the correct screwdriver or bit to avoid stripping the head; tighten until snug but do not overtighten.
• Replace like-for-like; stop and verify the correct fastener for the mounting point.
• Check the appliance's parts diagram for the exact screw location and orientation.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

This broken belt switch is a dryer safety switch that senses drive belt tension and opens the motor circuit if the belt breaks or slips off. Replacing a failed switch can resolve a no-start or no-tumble condition. What it does:

• Monitors drive belt tension via the idler assembly
• Interrupts power to the motor when the belt is broken or not tensioned
• Helps prevent heating without airflow when the belt has failed
• Symptoms can include: dryer won't start, drum won't turn, or the dryer stops as soon as the Start button is released

• 1 switch

• Disconnect power; for gas models, shut off the gas supply
• Access the switch near the idler pulley by removing the lower/front panel per your model
• Transfer wires from the old switch to the new one; mount securely with the actuator aligned to the idler arm
• Run a brief test cycle

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

The Idler Pulley is an OEM replacement part for Whirlpool dryers. This essential component plays a crucial role in the drum drive system, helping to guide and maintain proper tension on the dryer belt.

Causes of a faulty idler pulley in a dryer can include normal wear and tear over time, improper belt tensioning leading to bearing failure, or physical damage from impact or debris buildup.

Symptoms of needing to replace the idler pulley include:

• Squeaking or grinding noises from the driveability area
• The dryer drum not spinning or rotating properly
• Excessive vibration or shaking during the dryer cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

A replacement mounting screw to secure appliance panels and components so parts stay properly fastened during normal use. Small but essential hardware for stable, rattle-free operation and reliable repairs. What it does:

• Fastens panels, brackets or components to the appliance chassis
• Prevents loose panels, vibration noise, or parts shifting during operation
• Used when original screw is lost, damaged, or stripped
• Restores proper fit and alignment after disassembly for service

• Disconnect power and water before starting any repair
• Use the correct screw type and length; do not force or substitute oversized fasteners
• Tighten until snug—avoid overtightening to prevent stripped threads or cracked parts
• Keep small parts away from children and pets

This exhaust pipe routes exhaust air from the appliance to the home vent, restoring proper airflow for safe, efficient operation. Use when the original pipe is cracked, bent, or leaking. What it does:

• Channels exhaust gases and lint from the appliance to the external vent
• Prevents exhaust leaks that can cause poor drying or cooking performance
• Helps maintain correct airflow to reduce overheating and moisture buildup
• Fits where a damaged or corroded exhaust connection needs replacement

• One exhaust pipe

• Disconnect power (and gas if applicable) before servicing; follow appliance safety procedures
• Inspect surrounding seals and clamps; replace clamps or ducting if damaged
• Secure pipe with OEM-recommended fasteners and ensure vent path is clear

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This toe kick retainer clip secures the dishwasher's lower access panel to the base for a clean, rattle-free fit. Replace worn or missing clips to keep the front panel properly aligned after service or cleaning. What it does:

• Attaches the toe panel/kickplate to the dishwasher base or frame
• Helps prevent panel vibration, gaps, and rattling at the bottom front
• Restores a snug fit when the original retainer is broken, bent, or missing
• Common symptoms include a loose, drooping, or noisy kickplate

• 1 retainer clip

• Disconnect power at the breaker before servicing; wear cut-resistant gloves
• Remove the screws securing the toe panel and pull the panel away carefully
• Install the new retainer in the designated slot/tab and ensure it snaps fully into place
• Reinstall the toe panel and fasteners; confirm the panel seats flush and secure

This replacement washer is a small hardware component used in appliance assemblies to provide a stable bearing surface and proper spacing. Replacing a worn or missing washer helps maintain alignment, reduce vibration, and protect mating parts from damage.

• Distributes load under a nut, bolt, pin, or shaft to protect mating surfaces
• Maintains correct spacing and alignment within stacked components
• Helps reduce friction, vibration, and noise in moving assemblies
• Worn or missing washers can contribute to looseness, wobble, rattling, or premature wear

• Disconnect power and shut off gas/water before servicing
• Note the original order and orientation of parts during disassembly
• Inspect fasteners, shafts, and bushings; replace any that show wear or damage
• Tighten fasteners securely per the service manual; do not overtighten

A small hinge screw plug that covers and protects the exposed hinge screw on an appliance door, restoring a finished appearance while helping limit dirt and moisture in the hinge area. What it does:

• Covers the exposed hinge screw for a clean, finished look
• Helps reduce debris buildup around the hinge screw that can lead to corrosion
• Prevents clothing or fingers from snagging on the exposed screw
• Supports proper door trim alignment by filling the hinge screw opening

• High-level snap-in or press-fit part; installation may require removing hinge trim or partially supporting the door
• Support the door and follow manufacturer instructions to avoid injury or damage
• Do not force the plug into place; if fit is tight, confirm orientation before applying pressure

This belt restrainer is the small guide that keeps the dryer's drive belt on the motor pulley. It prevents the belt from walking off during operation, supporting consistent drum rotation and reducing premature belt wear. What it does:

• Guides and retains the drive belt on the motor pulley
• Helps maintain proper belt tracking with the idler assembly
• Can help with symptoms like drum not turning, belt repeatedly slipping off, burning rubber smell, or frayed belt edges

• 1 belt restrainer

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the motor area per your model (remove front or lower access panel)
• Position the restrainer adjacent to the motor pulley with slight clearance to the belt; route the belt correctly around drum, idler, and motor
• Hand-rotate the drum to confirm alignment before reassembly and testing

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

This replacement door strike provides the solid catch point the latch/lock grabs so the appliance recognizes the door or lid is closed and can run safely. A worn, bent, or broken strike can interrupt operation. What it does

• Forms the fixed catch for the door/lid latch or lock
• Helps actuate the interlock/safety switch so a cycle can start
• Misalignment or damage can keep the door from latching and stop cycles
• Common symptoms: door/lid won't latch or stay closed, unit won't start, "Door/Lid" or "Lock" message, needing to hold the door shut, visible cracks or wear on the strike

• 1 strike

• Disconnect power to the appliance before servicing
• Open the door/lid and remove the mounting screws securing the old strike; retain hardware if it is reused
• Position the new strike in the same orientation and tighten screws snugly; avoid over-tightening to prevent damage
• Close and open the door/lid to confirm smooth latch engagement, then run a brief test cycle

The Toe Kick Plate is an OEM part for Whirlpool dishwashers. It covers the lower front opening below the dishwasher, protecting vulnerable areas from debris and water drainage. The sturdy metal panel is designed to securely mount to the dishwasher frame.

Symptoms of a bad toe kick panel can include dents, rust, or damage that compromises its protective function.

Causes of a bad toe kick plate include normal wear from prolonged use, exposure to moisture or cleaning chemicals, or accidental impact or indentation.

Symptoms of a bad toe kick plate include:

• Water leaks below the dishwasher
• Inability to mount panel flush and secure
• Access to internal mechanical parts
• Loss of finished aesthetic appeal

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwashers.

This exhaust pipe directs heated air from the dryer drum to the household vent, restoring proper airflow for efficient drying and reduced lint buildup. It's a direct-fit replacement designed to match the OEM airflow path. What it does:

• Channels dryer exhaust from the appliance to the external vent to maintain proper airflow.
• Helps prevent lint accumulation in the cabinet by providing a sealed exhaust path.
• Can reduce long dry times and overheating caused by restricted or damaged venting.
• Addresses symptoms such as poor drying performance, hot dryer cabinet, or noticeable burning/overheating smells near the dryer vent area.

• One exhaust pipe.

• Disconnect power (and gas, if applicable) before starting work; the appliance is fully de-energized.
• Wear gloves to avoid sharp edges; remove old pipe and clean vent connections before installing the replacement.
• Secure with appropriate clamps or fasteners and ensure a continuous, unobstructed path to the exterior vent.
• After installation, run a short cycle to check for leaks.

The Whirlpool Motor Pulley is an OEM part for Whirlpool clothes dryers. It is the component located on the dryer drum motor that transmits power to spin the dryer cylinder and tumble clothes during operation. It allows the belt to grip effectively for transmission of torque from the motor.

Symptoms of a bad Motor Pulley include:

• The dryer drum failing to spin and tumble clothes during cycles
• Abnormal squealing, grinding or belt slipping noises from inside the dryer
• Minimal air flow and prolonged drying times

Causes of failure can include cracks or deterioration of the pulley edge from prolonged use, the belt wearing grooves into the pulley, or loose mounting bolts allowing wobbling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM part for Whirlpool dryers, engineered to connect the dryer drum to the motor, allowing it to turn. This component is essential for the proper operation of your dryer, ensuring clothes are dried evenly and efficiently. Made from durable materials, the drive belt is designed to withstand the constant motion and heat of the dryer, but over time, it can wear out or break, necessitating a replacement to keep your dryer running smoothly.

The primary cause of drive belt issues is wear and tear from regular use. Over time, the belt can stretch, lose its tension, or break, resulting in a drum that no longer turns. Regularly inspecting and maintaining the drive belt can help extend its life and the overall functionality of your dryer.

Symptoms of a failing Drive Belt include:

• The dryer drum not turning, even though the motor is running
• A squealing or rubbing noise coming from the dryer when it is in use
• The dryer stopping unexpectedly during a cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

This exhaust pipe vents hot, moist air from the dryer to the home venting system, helping the appliance dry clothes efficiently and reduce indoor humidity. Replace a damaged or restricted pipe to restore proper airflow. What it does:

• Channels dryer exhaust air safely from the appliance to the exterior vent
• Helps prevent overheating and long dry times caused by restricted airflow
• Reduces lint buildup in the appliance by providing a clear vent path
• Commonly replaced when cracked, crushed, kinked, or badly corroded

• Disconnect power to electric dryers; shut off gas supply and disconnect for gas dryers before servicing
• Inspect existing vent path for additional damage or lint buildup and clean before installing
• Position pipe without sharp bends or kinks and secure with appropriate clamps or fasteners

The Access Panel Spring Retainer is an OEM part for Whirlpool dryers. This part secures the access panel of the dryer, ensuring it stays in place during operation. The spring retainer provides tension and stability, making it easy to open and close the access panel when maintenance or repairs are needed.

Causes of a bad access panel spring retainer can include regular wear and tear, loss of tension, or physical damage.

Symptoms of a bad access panel spring retainer include:

• Access panel not staying securely closed
• Difficulty opening or closing the access panel
• Loose or rattling access panel during dryer operation
• Visible damage or wear on the retainer

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

The Dryer Door Switch is an OEM replacement part for Whirlpool dryers. It is a crucial safety component that monitors the opening and closing of the dryer door, preventing the dryer from operating when the door is open.

Symptoms of a faulty Dryer Door Switch include:

• The dryer failing to start or operate with the door closed
• The dryer continuing to run or heat even when the door is open
• Error codes or warning lights related to the door switch sensor

Causes of a bad door switch can include normal wear and tear over time, physical damage from mishandling or impact, or electrical malfunctions.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Side and bottom exhaust kit.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
