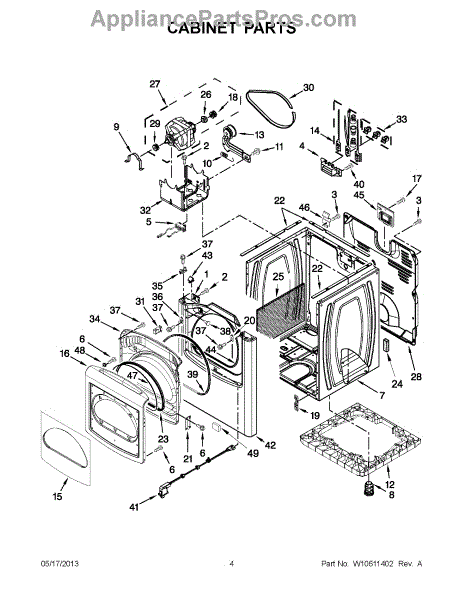

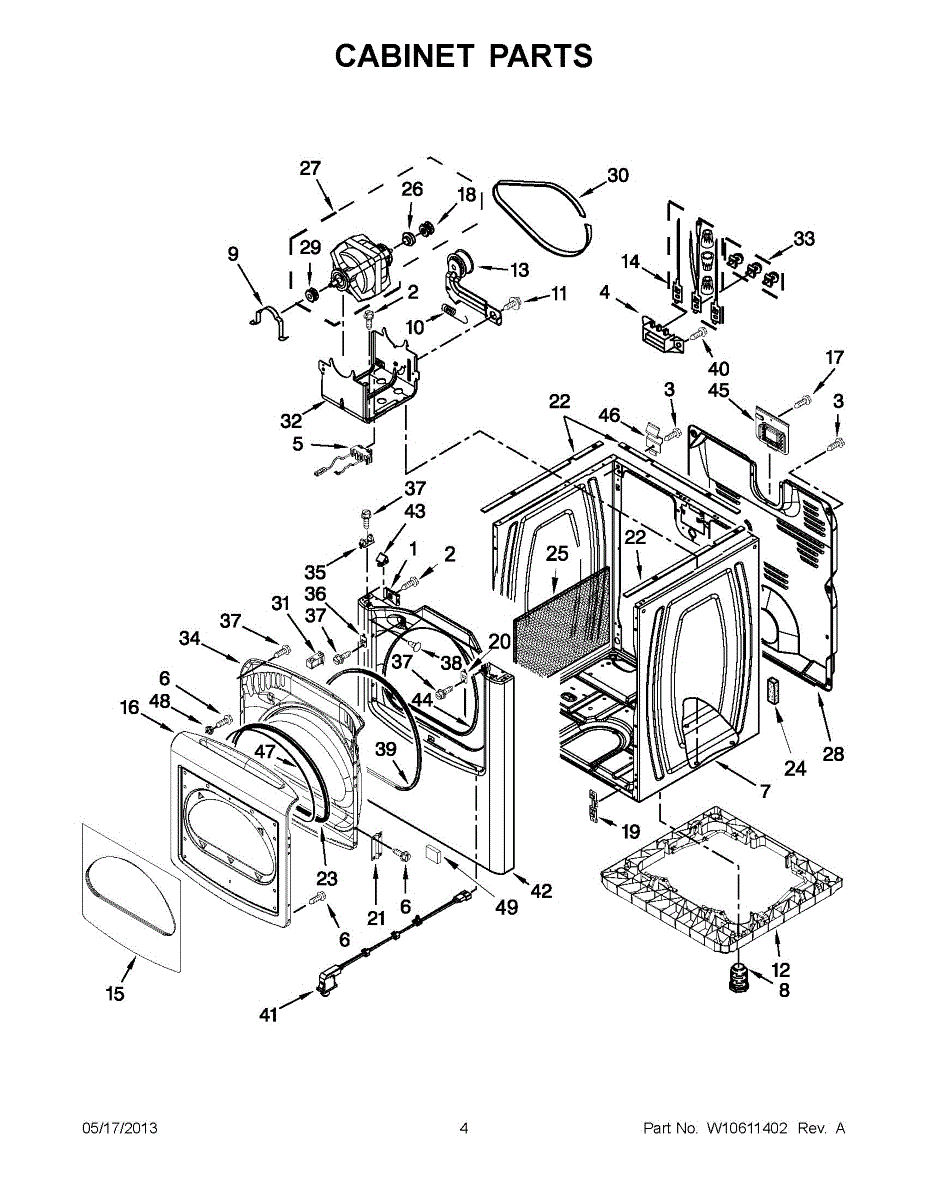

Parts for Whirlpool WED8500BC0: 02 - Cabinet Parts

U-type clip nut slides onto sheet metal panels to create threaded anchor points for screws. Replace if broken, missing, or worn during repairs.

10 - 16 x 1/2

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

Dryer won't start or run? A faulty belt switch often causes this when the belt snaps or slips. This switch monitors belt tension and is a fairly easy fix.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Dryer cabinet housing that encloses internal components. Replace if the outer cabinet is cracked, dented, rusted, or structurally damaged beyond repair.

Adjustable leveling foot for dryers. Replaces worn, broken, or missing legs to stabilize your dryer and stop rocking on uneven floors.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Secures the idler pulley to maintain proper drum belt tension in your dryer. Replace if worn, loose, or causing squealing noises. Confirm fit with your model.

Idler pulley assembly maintains tension on the dryer belt. Replace if the pulley wheel is worn, seized, or makes squealing noise during operation.

Includes screws and wire connectors. For the complete terminal block kit use 279320.

Replacement screw for securing panels, brackets, and internal components. Needed when original hardware is stripped, missing, or damaged during repairs.

Fix loud squealing or slipping drum with this dryer motor pulley. Restores proper belt tracking and smooth drum rotation. Moderate DIY repair.

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replace your dryer's door hinge if it's cracked, broken, or causing the door to sag. This hinge mounts on the front panel to support proper door operation.

A hinge pin assembly that secures and aligns an appliance door to its cabinet, restoring proper fit and smooth opening and closing while reducing hinge noise. What it does:

• Secures the door pivot and maintains proper door alignment for a consistent seal.
• Can correct door sag, uneven gaps, or doors that stick, scrape, or fail to close fully.
• Can reduce grinding, clicking, or binding noises caused by worn or bent hinge pins.
• Replaces worn, broken, or bent hinge components that affect door motion.

• Disconnect power to the appliance before beginning any repair.
• Support the door (use a helper or suitable block) to prevent it from dropping when removing the hinge.
• Basic hand tools are typically required; follow the manufacturer's service instructions for safe removal and reinstallation.
• Inspect adjacent hinge mounts and fasteners during installation; replace damaged mounting hardware as needed.

This foam seal cushions and seals the icemaker area to reduce vibration and prevent air leaks that can affect ice quality and efficiency. It's a direct-fit replacement designed to restore proper sealing around the icemaker housing. What it does:

• Cushions the icemaker assembly to reduce noise and movement
• Helps seal gaps to limit warm air intrusion that can cause icemaking issues
• Supports consistent ice production by maintaining the intended airflow path
• Resists compression set for reliable sealing over time

• One foam seal for the icemaker housing

• Basic installation; remove power to the appliance before starting
• Align the seal to the icemaker housing, pressing into place until fully seated
• Inspect surrounding surfaces for debris or damage and clean before installing

Dryer door gasket seals the door to prevent heat loss and improve drying efficiency. Replace if torn, cracked, or causing air leaks. Verify fit with your model number before ordering.

Sound absorber insulation pad for dryers. Installs inside cabinet to dampen noise and vibration. Replace if torn, compressed, or missing.

Dryer belt slipping off motor pulley or making squealing noises? The belt restrainer keeps the drive belt aligned. Moderate DIY repair with video guide.

3 groove blower belt pulley mounted on motor shaft.

Transfers power from motor to drum for tumbling. Replace if dryer won't spin, makes squealing noises, or belt shows fraying. Verify fit by model number.

Dryer door won't stay closed or latch properly? This door catch securely holds the door shut during operation. Easy DIY repair in under 30 minutes.

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

If assemblies shift or rattle during dryer operation, this snap-down locator clip secures components in place. Simple snap-in installation restores alignment.

Dryer door won't stay closed? This door strike engages with the catch to secure the door. Simple DIY fix in minutes with basic tools and video guide.

This factory fastener secures appliance panels, brackets, and internal components so everything stays aligned and quiet. Replacing a missing or damaged screw restores a tight fit and helps reduce vibration, rattles, and wear.

• Fastens metal or plastic parts to the cabinet/frame
• Maintains alignment of covers, ducts, housings, and brackets
• Replace if the head is stripped, threads are worn, or hardware is missing
• Symptoms can include loose or misaligned panels, rattling/vibration noises, or parts that won't stay secured

• Disconnect power and shut off gas/water before service.
• Match the screw to the original location and reuse existing holes/mounts.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver bit to prevent stripping the head.

Dryer door seal prevents air leaks and retains heat inside the drum. Replace when loose, torn, or causing heat loss. Includes adhesive. Verify fit.

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

This snap-action door switch is a small interlock microswitch that detects when the door is opened or closed. Replacing a worn switch restores proper start/stop control and interior light behavior so the appliance only runs with the door fully shut.

• Senses door position and signals the control to allow or interrupt operation
• Helps control interior light and other door-dependent functions
• Common symptoms include: won't start with door closed, must press/hold door to run, or "door/close door" message
• May also present as an interior light that stays on or won't turn on

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the switch near the door latch/closure; note wire positions and transfer one at a time
• Ensure the actuator aligns with the latch and is not bent during install
• Verify switch continuity with a multimeter before reassembly; for microwaves, high-voltage hazards exist.

Control panel for your dryer. Installs on the top or front console housing. Replace if cracked, damaged, or buttons are worn and unresponsive.

This lock secures the appliance's top panel to the front frame for a tight, stable cabinet. Replacing a worn lock restores a solid fit and helps eliminate rattles, gaps, and vibration during operation.

• Locks the top panel to the front panel to keep the top closed and secure
• Helps maintain cabinet alignment and rigidity
• Reduces movement that can cause vibration and rattling/squeaking noises
• Common symptoms: loose or popping top, visible gap at front edge, buzzing or clunking during cycles

• Disconnect power before servicing.
• Access the lock at the front edge where the top meets the front panel; remove the old lock and install the new one in the same orientation.
• Reuse original mounting hardware and ensure both sides are evenly aligned.
• Close the top and ensure a secure latch before restoring power.

Seals the gap between the dryer bulkhead and front panel around the door opening. Replace if torn, deformed, or causing air leaks. Confirm fit by model.

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

1/4-inch hex flange nut secures panels, brackets, and hardware in dryers, ovens, and ranges. Replace if worn, stripped, or missing to restore firm connections.

The dryer toe panel spacer provides proper alignment and spacing for the front bottom panel of the dryer. Replace when the toe panel is loose, misaligned, or there are visible gaps at the bottom of the dryer.

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
