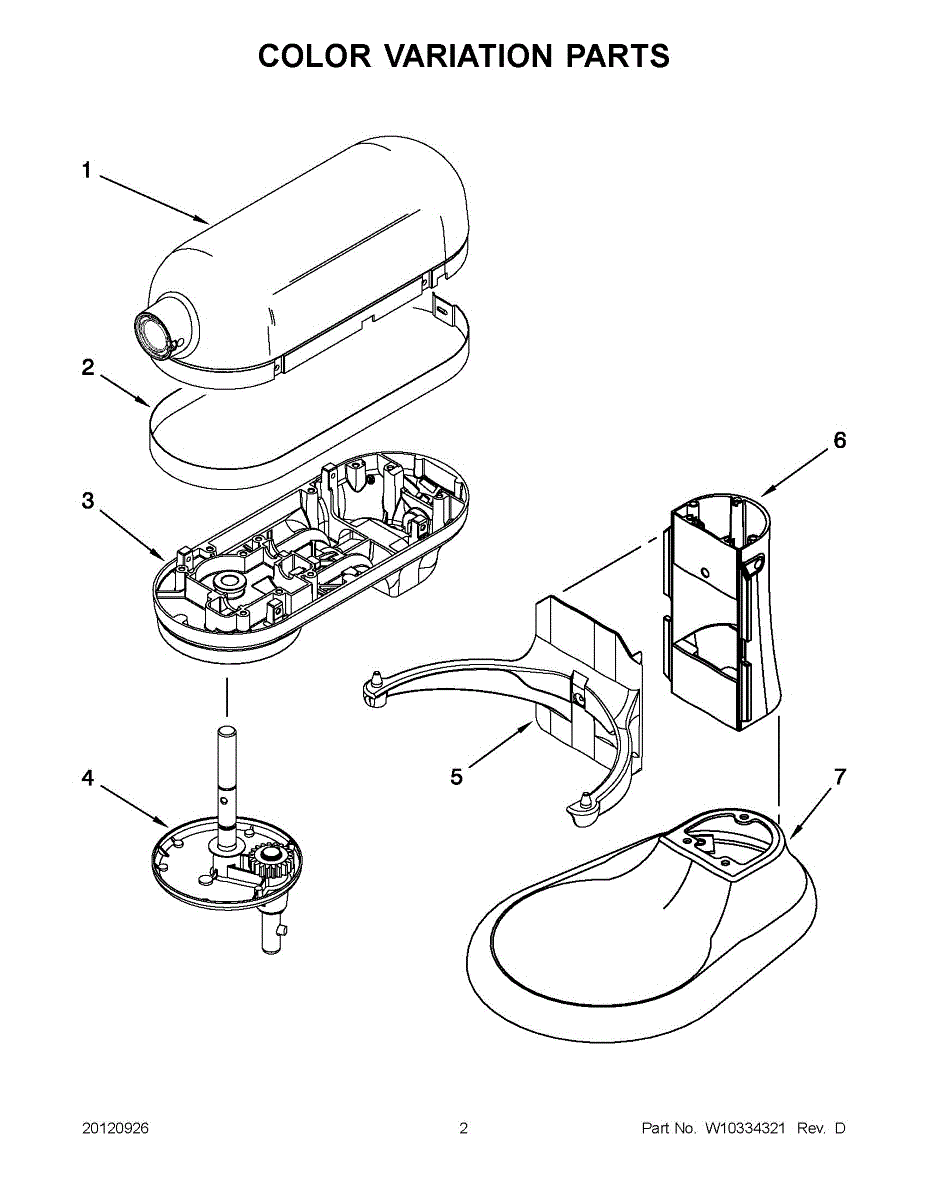

Parts for Kitchenaid KV25MEXBU5: 01 - Color Variation Parts

Replacement outer housing for stand mixers. Restores exterior protection and finished appearance when original is cracked, broken, or damaged.

Replace the outer housing shell on your stand mixer. This structural component covers the motor and internal mechanisms. Order a new housing if yours is cracked or damaged.

This is the upper motor housing for a stand mixer, finished in Empire Red porcelain enamel. It encloses and protects the motor and internal drive components of the mixer. Replace this housing if it is cracked, chipped, or damaged, which can expose internal parts to debris and compromise the appearance and structural integrity of the mixer.

This is the outer motor housing shell for a stand mixer in an onyx black finish. It covers and protects the motor and internal components while giving the mixer its exterior appearance. Replace this housing if it is cracked, chipped, or cosmetically damaged.

If your stand mixer is excessively noisy or vibrating, the motor housing may be cracked or damaged. This white housing secures and protects the motor.

Decorative trim band for stand mixers. Installs around the motor housing to cover seams and provide a finished appearance. Replace if cracked or missing.

This gearcase is the drive transmission that transfers motor power to the washer agitator and basket, restoring normal agitation and spin performance. It replaces a worn or damaged transmission assembly to help the washer move and clean properly. What it does:

• Transfers motor torque to the agitator and tub so the washer can agitate and spin
• Restores normal agitation or spinning when the transmission is worn or stripped
• Stops slipping, grinding, or inconsistent motion caused by damaged gears
• Works with the motor coupling and drive components to maintain correct drive alignment

• One gearcase (transmission) assembly

• Disconnect power and turn off water supply before starting any repair
• Access may require removing the cabinet, drive belt, and motor—follow OEM service instructions
• Inspect adjacent parts (motor coupling, seals, fasteners) and replace any worn components

This gearcase transfers motor power to the wash tub and agitator, restoring normal agitation and spin cycles for top-load washing machines. Replaces a worn or failed transmission assembly to recover wash performance. What it does:

• Converts motor rotation into the low-speed/high-torque motion needed for agitation and the higher-speed motion for spin
• Restores normal agitation and spinning when a washer fails to move or completes cycles poorly
• Reduces grinding, clunking, or slipping noises caused by worn internal gears
• Helps stop leaks of internal gear lubricant when the seal or housing is compromised

• One gearcase assembly

• Disconnect power and shut off water before starting; follow the washer service manual for safe disassembly
• Gearcase replacement may require removal of the inner tub, drive coupler, and mounting hardware—have basic hand tools ready
• Inspect surrounding seals, gaskets, and mounting bolts; replace any damaged components to prevent leaks

This gearcase is the washer transmission that transfers motor torque to the agitator and basket so the washer can agitate and spin properly. Replaces a worn or damaged gearbox to restore normal wash movement. What it does:

• Transfers drive from the motor to the agitator and outer basket for agitation and spinning
• Replaces stripped or noisy gears that cause grinding, clunking or loss of agitation
• Stops slipping or intermittent agitation caused by internal gear failure
• Helps eliminate unusual vibration or rough operation linked to a failing gearbox

• Disconnect power and turn off water supply before beginning service
• Requires partial disassembly of the washer cabinet and transmission area; follow OEM instructions
• May contain lubricant—inspect seals and surrounding components for leaks while installed

Fixes stand mixer gears grinding or not turning properly. This lower gearcase houses the internal drive mechanism. Moderate DIY repair project.

Mixer won't turn or makes grinding noise? This gearcase assembly transfers motor power to the beater attachment. Restore mixing action and eliminate noise.

Fix grinding noise or slipping during mixing with a new lower gearcase. Transfers motor power to the rotating assembly. Moderate DIY repair.

Fixes mixer that won't turn or makes grinding noises. This gearcase assembly transfers motor power to beaters. Moderate DIY repair, 1-2 hours.

Stand mixer grinding, slowing down, or won't turn? The gearcase transmission routes motor power to attachments. Moderately complex repair.

Fix grinding noise or leaking grease with a new lower gearcase housing. Restores proper alignment and contains lubrication for quieter mixing.

Fix mixer attachment spinning issues with a planetary gear assembly replacement. Common fix for stripped gears or attachments not rotating properly.

This planetary gear assembly transfers motor torque into the agitator/drive mechanism so the appliance can rotate or agitate correctly. It replaces a worn or damaged planetary gear to restore normal drive motion and reduce noise. What it does

• Converts motor output into the rotational motion used by the drive/agitator system
• Stops slipping or inconsistent rotation when gear teeth are worn
• Reduces grinding, clunking, or excessive noise caused by a failing gear
• Helps prevent further damage to the gearcase by replacing a stripped or broken gear

• Disconnect power and water before starting any repair
• Installation may require access to the gearcase or agitator; follow OEM service instructions
• Use appropriate hand tools and retain any fasteners for reassembly

This planetary gear assembly transfers motor torque through the gearbox to drive the appliance's internal mechanism, restoring proper gear-driven motion and reducing slipping or grinding during operation. What it does:

• Re-meshes the motor output into the gearbox so driven components rotate smoothly
• Helps eliminate symptoms like noisy gearing, uneven movement, or loss of drive
• Restores proper gear engagement when worn or damaged planetary gears cause slipping
• Works as the internal gear cluster that distributes torque to downstream parts

• High-level replacement: remove power and access the gearbox or motor housing; replace the worn planetary assembly with the matching unit
• Use proper tools and follow the appliance service manual for disassembly/reassembly to avoid damaging seals or fasteners
• If gears were damaged, inspect mating gears, bearings, and shafts for wear before reassembly
• Dispose of damaged gears properly;

If your stand mixer bowl isn't rotating or attachments won't spin, the planetary gear assembly may be worn. Moderately difficult repair requiring disassembly.

Fix grinding noises or mixer bowl not spinning with this planetary gear assembly. Restores smooth rotation and proper mixing action in stand mixers.

Fix a stand mixer that won't rotate the beater or mixes unevenly. This planetary assembly transfers power from the gearcase to spin attachments smoothly.

Fix a stand mixer that won't rotate the beater or mixes unevenly. This planetary assembly transfers power from the gearcase to spin attachments smoothly.

Fix a mixer planetary that fell off or slipped down. This assembly holds the beater and rotates it around the bowl for thorough mixing. DIY repair.

Color: Metallic Chrome

If your mixer attachment falls off or makes clunking noises, the planetary assembly likely needs replacement. This is a 15-minute repair with basic tools.

Holds and rotates mixer attachments around the bowl. Replace if cracked, worn, bent, or falls out during operation. Includes housing and shaft.

Support component for stand mixers. Provides structural stability and mounting. Replace if cracked, broken, or damaged to restore proper alignment.

Replacement support bracket for stand mixers. Installs to stabilize and secure the motor or mixing mechanism. Needed when original is cracked or broken.

Support component for stand mixers. Replaces broken, cracked, or missing support parts. Essential structural piece for proper mixer stability and function.

This is a bowl support subassembly in onyx black that holds the mixing bowl securely in place on a stand mixer. It provides stable support so the bowl doesn't wobble or shift during mixing. Replace this part if your mixing bowl no longer locks into position, feels loose, or detaches during operation.

This is a bowl support subassembly in empire red that secures the mixing bowl to the base of a stand mixer. It ensures the bowl stays firmly in place during mixing operations. Replace this part if your mixing bowl wobbles, won't lock into position, or comes loose while the mixer is running.

A white replacement bowl support that centers and stabilizes the appliance bowl or glass tray to reduce wobble and noise, helping restore smooth rotation and reliable operation. What it does:

• Centers and supports the bowl or glass tray to prevent off-center rotation and rubbing.
• Keeps the tray steady to reduce vibration and noisy operation.
• Helps the tray rotate smoothly for even heating or proper function.
• Common symptoms it can address: wobbling or off-center bowl/tray, noisy rotation, scraping or unstable tray movement.

• Disconnect power to the appliance before starting any work.
• Remove the bowl or glass tray and lift out the old support; inspect the drive hub or shaft for damage.
• Align the support over the hub/shaft and press into place until fully seated; do not force broken or warped plastic.

This replacement column restores proper support and alignment for the appliance cabinet or trim assembly, helping panels and doors sit correctly and preventing gaps or sagging that affect appearance and operation. What it does:

• Provides structural support for the cabinet/trim assembly and helps maintain alignment
• Keeps adjacent panels and doors properly positioned to prevent rubbing or gaps
• Replaces damaged, bent, or cracked columns that cause cosmetic or fit issues
• Helps restore factory fit and finish after collision or wear

• One replacement column

• Disconnect power and/or gas (if applicable) and remove any obstructing trim before starting
• Use proper fasteners and follow OEM alignment points; part may require removal of surrounding panels
• Handle carefully to avoid scratching finished surfaces; test fit before final fastening

White decorative column cover for stand mixers. Replaces cracked, chipped, or discolored housing on the mixer body. Restores cosmetic appearance.

This is a structural column sub-assembly in onyx black that forms part of the dishwasher's internal housing framework. It provides support and alignment for adjacent components within the dishwasher cavity. Replace this part if the column is cracked, warped, or broken, which can cause misalignment of racks, door components, or other internal parts.

This is the vertical column subassembly for a stand mixer, finished in empire red. It forms part of the main housing structure that supports the mixer head and internal drive components. Replace this part if the column is cracked, chipped, or cosmetically damaged and you want to restore the mixer's appearance and structural integrity.

This is the base assembly for a stand mixer in onyx black, forming the bottom housing that supports the motor and drive components. It provides a stable foundation and keeps the mixer securely positioned during mixing operations. Replace this base if it is cracked, chipped, or cosmetically damaged, or if the mixer no longer sits level on the countertop.

This is the base assembly for a stand mixer, serving as the bottom housing that supports the motor and internal components. It provides structural stability and keeps the mixer securely positioned on the countertop during operation. Replace this base if it is cracked, broken, or if the mixer wobbles or vibrates excessively during use.

Stand mixer base housing that supports the motor and mixing head. Replace if cracked, damaged, or missing. Installs as the main body structure.

This is the base panel assembly with attached feet that forms the bottom structure of a stand mixer. It provides stability and support during mixing operations. Replace this assembly if the base is cracked, the feet are broken or missing, or the mixer wobbles and moves excessively during use.

Lower cabinet base panel for stand mixers. Covers and protects the appliance's underside. Replace if your original panel is cracked, damaged, or missing.
