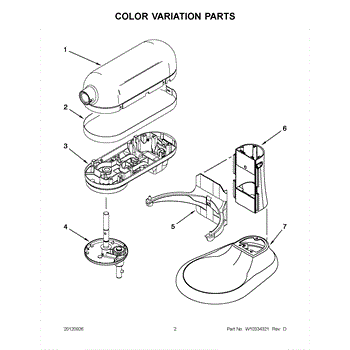

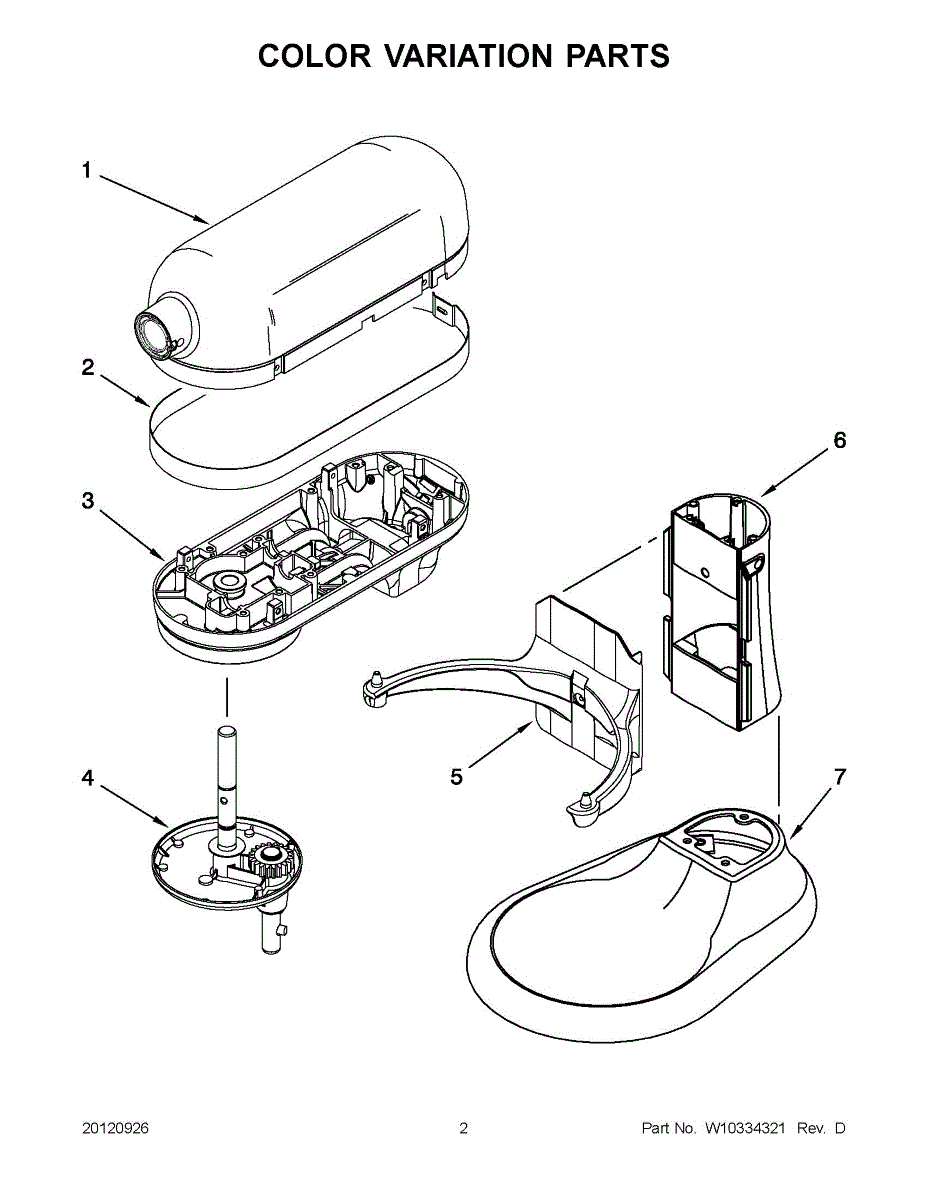

Parts for Kitchenaid KV25MEXPM5: 01 - Color Variation Parts

This replacement housing restores the appliance's exterior support and helps protect internal components from damage while returning a finished appearance. Fits the corresponding Whirlpool assembly and replaces damaged or cracked housings. What it does:

• Provides structural support for internal components and mounting points
• Protects wiring, controls, and internal parts from dust and impact
• Restores a secure, finished exterior to eliminate gaps or loose panels
• Can stop rattling or movement caused by a cracked or broken housing

• One replacement housing

• Disconnect power (unplug or switch off breaker) before beginning work
• Remove adjacent trim or panels as needed to access mounting screws
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Secure all fasteners; test appliance operation after reassembly

This porcelain enamel finish restores the factory color and smooth, glossy surface to compatible ranges and cooktops, improving appearance and protecting underlying metal from wear and staining. What it does

• Replaces worn, chipped, or faded enamel finish to make the appliance look like new
• Provides a durable, heat-resistant surface that resists stains and everyday wear
• Matches the OEM "Empire Red" color for a cohesive, factory-correct appearance
• Helps protect the underlying metal from corrosion and further cosmetic damage

• One porcelain enamel finish (Empire Red)

• Disconnect power and gas before starting any repair
• Removal of trim, screws, or panels may be required; follow the appliance's OEM service instructions
• Handle with care to avoid chipping the enamel during installation

This motor housing is the outer mounting and protective enclosure for the appliance motor, finished in white to match the cabinet. It provides a secure support for the motor and helps isolate noise and vibration. What it does:

• Supports and secures the motor assembly in the appliance
• Protects the motor from debris and contact with moving components
• Helps reduce motor noise and vibration through stable mounting
• Resolves symptoms like excessive vibration, rubbing noises, or misaligned motor mounting

• One motor housing (white)

• Disconnect power to the appliance before starting any repair
• Typical installation requires removing panels and either the drum or motor access components; follow OEM instructions
• Handle housing edges carefully and retain all mounting hardware for reassembly

This Onyx black finish panel restores the appliance's exterior appearance with a factory-style color-matched surface for a clean, uniform look. Ideal for replacing a worn or mismatched decorative panel. What it does:

• Provides a color-matched exterior surface to restore cosmetic appearance
• Covers scratches, chips, or discoloration on the appliance trim or door area
• Replaces a damaged or faded decorative panel without changing function
• Keeps visible surfaces consistent with the appliance's Onyx black finish

• High-level cosmetic replacement; basic hand tools may be required
• Follow OEM instructions for removal and reattachment to avoid damaging adjacent parts
• Handle with care to avoid scratching the finish during installation
• Disconnect power before servicing

This gearcase is the drive transmission that transfers motor power to the washer agitator and basket, restoring normal agitation and spin performance. It replaces a worn or damaged transmission assembly to help the washer move and clean properly. What it does:

• Transfers motor torque to the agitator and tub so the washer can agitate and spin
• Restores normal agitation or spinning when the transmission is worn or stripped
• Stops slipping, grinding, or inconsistent motion caused by damaged gears
• Works with the motor coupling and drive components to maintain correct drive alignment

• One gearcase (transmission) assembly

• Disconnect power and turn off water supply before starting any repair
• Access may require removing the cabinet, drive belt, and motor—follow OEM service instructions
• Inspect adjacent parts (motor coupling, seals, fasteners) and replace any worn components

This gearcase transfers motor power to the wash tub and agitator, restoring normal agitation and spin cycles for top-load washing machines. Replaces a worn or failed transmission assembly to recover wash performance. What it does:

• Converts motor rotation into the low-speed/high-torque motion needed for agitation and the higher-speed motion for spin
• Restores normal agitation and spinning when a washer fails to move or completes cycles poorly
• Reduces grinding, clunking, or slipping noises caused by worn internal gears
• Helps stop leaks of internal gear lubricant when the seal or housing is compromised

• One gearcase assembly

• Disconnect power and shut off water before starting; follow the washer service manual for safe disassembly
• Gearcase replacement may require removal of the inner tub, drive coupler, and mounting hardware—have basic hand tools ready
• Inspect surrounding seals, gaskets, and mounting bolts; replace any damaged components to prevent leaks

This gearcase is the washer transmission that transfers motor torque to the agitator and basket so the washer can agitate and spin properly. Replaces a worn or damaged gearbox to restore normal wash movement. What it does:

• Transfers drive from the motor to the agitator and outer basket for agitation and spinning
• Replaces stripped or noisy gears that cause grinding, clunking or loss of agitation
• Stops slipping or intermittent agitation caused by internal gear failure
• Helps eliminate unusual vibration or rough operation linked to a failing gearbox

• Disconnect power and turn off water supply before beginning service
• Requires partial disassembly of the washer cabinet and transmission area; follow OEM instructions
• May contain lubricant—inspect seals and surrounding components for leaks while installed

This gearcase is the washer transmission that transfers the motor's power to the agitator and tub so your washer can agitate and drain properly. Replaces a worn or damaged transmission to restore normal wash motion. What it does:

• Transfers motor torque to the agitator and inner tub to produce wash and spin actions
• Houses gears and shafts that control direction and agitation patterns
• Commonly replaced when the washer won't agitate, makes grinding or rumbling noises, or the agitator spins freely
• Works with the washer's clutch and motor coupling to enable load movement

• Disconnect power and water supply before beginning any repair
• Installation requires disassembly of the washer cabinet and removal of the agitator, drive coupling, and motor
• Inspect related parts (agitator, drive coupling, seals) and replace if damaged

This lower gearcase is the replacement gearbox that transfers motor power to the appliance's drum/rotating assembly, restoring reliable drive movement and reducing grinding or slipping during operation. What it does:

• Transfers motor rotation to the appliance's drum or rotating assembly for normal operation
• Restores proper drive engagement to stop slipping or intermittent rotation
• Eliminates grinding, scraping, or unusual drive noises when worn
• Helps prevent further wear to belts and related drive components

• One lower gearcase (onyx black) as pictured

• Disconnect power before starting and follow for disassembly/reassembly
• Installation typically requires panel removal and basic hand tools; support the drum/assembly while replacing the gearcase
• Inspect and replace worn belts, idlers, or fasteners as needed to ensure long-term operation

This gearcase is the main transmission assembly that transfers motor torque to the washer's tub and agitator, restoring normal agitation and spin performance when the original gearcase fails. What it does

• Converts motor rotation into the gear reductions needed for agitation and spin cycles.
• Commonly replaced for symptoms like no agitation, slow or failed spin, grinding or clunking noises during cycles.
• Contains internal gears and bearings that can wear or break, causing irregular movement or loss of drive.
• Works with the washer's motor coupling and drive components to re-establish reliable drum motion.

• One gearcase (transmission) assembly.

• Disconnect power and water supply before beginning any repair.
• Support the washer cabinet and tub when removing the old gearcase to avoid damage or injury.
• Gearcase assemblies are heavy and contain grease—expect some lubricant exposure; clean hands and work surfaces after installation.
• Use model-specific service manual or exploded parts diagram for proper alignment and reassembly; replacement may require transfer of seals or mounting hardware.

Restore your stand mixer's drive system with this gearcase. It serves as the transmission, routing motor power to the planetary while enclosing and supporting the gears for smooth, consistent mixing performance. What it does:

• Directs motor power through the gear train to the planetary/attachment hub
• Encloses, supports, and aligns the gears; retains transmission grease
• Helps address grinding/rumbling, grease leaking from the mixer head, weak or stalled planetary, or excessive vibration

• 1 gearcase

• Unplug the mixer; remove bowl and attachments; protect the work area from grease
• Remove the motor head cover and fasteners; separate the case and note gear stack orientation
• Transfer gears/seals as needed and repack with food-grade grease if servicing the gear train
• Reassemble, tightening screws evenly; test at low speed before normal use

This lower gearcase housing encloses and supports the planetary and lower gear train in a stand mixer. Replacing a damaged housing restores alignment and helps contain lubrication for quieter, consistent mixing performance.

• Houses the lower gear train and planetary shaft to maintain alignment
• Provides a sealed cavity to help retain grease around gears
• Replaces cracked, stripped, or warped housings that cause wobble or noise
• Helpful when you see grease seepage or cosmetic damage to the lower case

• Unplug the mixer and remove bowl and attachments before service
• Open the motor head and remove the planetary/gear stack as required
• Transfer components to the new housing; renew food-grade mixer grease if servicing gears
• Reassemble and verify beater-to-bowl clearance and smooth operation

This planetary gear assembly transfers motor torque into the agitator/drive mechanism so the appliance can rotate or agitate correctly. It replaces a worn or damaged planetary gear to restore normal drive motion and reduce noise. What it does

• Converts motor output into the rotational motion used by the drive/agitator system
• Stops slipping or inconsistent rotation when gear teeth are worn
• Reduces grinding, clunking, or excessive noise caused by a failing gear
• Helps prevent further damage to the gearcase by replacing a stripped or broken gear

• Disconnect power and water before starting any repair
• Installation may require access to the gearcase or agitator; follow OEM service instructions
• Use appropriate hand tools and retain any fasteners for reassembly

This planetary gear assembly transfers motor torque through the gearbox to drive the appliance's internal mechanism, restoring proper gear-driven motion and reducing slipping or grinding during operation. What it does:

• Re-meshes the motor output into the gearbox so driven components rotate smoothly
• Helps eliminate symptoms like noisy gearing, uneven movement, or loss of drive
• Restores proper gear engagement when worn or damaged planetary gears cause slipping
• Works as the internal gear cluster that distributes torque to downstream parts

• High-level replacement: remove power and access the gearbox or motor housing; replace the worn planetary assembly with the matching unit
• Use proper tools and follow the appliance service manual for disassembly/reassembly to avoid damaging seals or fasteners
• If gears were damaged, inspect mating gears, bearings, and shafts for wear before reassembly
• Dispose of damaged gears properly;

This planetary gear assembly drives the agitator/inner transmission components in compatible top-load washers, restoring smooth rotational motion and reliable agitation for normal wash cycles. What it does:

• Transfers motor torque through the transmission to the washer agitator for proper wash action
• Helps restore smooth, even rotation and reduces slipping or erratic agitation
• Commonly replaced when you hear grinding, clunking, or when the agitator fails to rotate normally
• Works with the washer's gearcase/transmission as part of the drive train

• Replacement requires disassembly of the washer transmission/agitator; refer to your model's service manual
• Disconnect power and water, and remove the washer cabinet or transmission cover before starting
• Inspect surrounding seals and fasteners while the unit is open; replace any worn components as needed

This is the planetary assembly for select stand mixers. It's the lower drive that holds the beater shaft and transfers power from the gearcase to rotate the beater for efficient mixing.

• Transfers torque from the mixer's gear train to the beater shaft
• Supports smooth, consistent beater rotation
• Worn planetary can cause wobbling beater, grinding/rumbling noises, poor mixing, or intermittent beater motion
• Needed if the beater shaft has excessive play or the gear teeth are damaged

• Unplug mixer before servicing; remove bowl and attachment
• Head must be opened to access and remove the retaining pin/fasteners
• Support the lower assembly when separating it from the gearcase to avoid damage
• Re-grease gears if specified by the service manual and proper beater-to-bowl clearance after reassembly

This silver Planetary assembly is the lower drive unit of a stand mixer that carries the beater shaft. Replacing a worn or loose planetary restores smooth, consistent planetary motion and reliable attachment rotation for dependable mixing performance.

• Transfers motor power to the beater and creates true planetary mixing action
• Houses the beater shaft and interfaces with the lower gear train
• Helps maintain stable beater-to-bowl alignment at the bottom of the mixer head
• Typical failure symptoms: beater not turning or stalling, grinding/clicking from the lower head, or noticeable wobble/excess play in the planetary

• Unplug the mixer and remove the bowl and beater before service
• Drive out the roll pin to remove the old planetary; transfer and reuse any model-specific hardware
• Clean and re-grease gears with food-grade mixer grease during reassembly, if needed
• Reinstall the planetary and pin; verify beater-to-bowl clearance per the owner's manual before use

The Planetary is an OEM part for Whirlpool stand mixers. This part holds the beater and ensures it rotates around the bowl to mix ingredients thoroughly. The planetary mechanism allows for consistent and even mixing by moving the beater in a planetary motion, which covers the entire bowl.

Causes of a bad planetary can include regular wear and tear, heavy use, or mechanical failure within the gears.

Symptoms of a bad planetary include:

• Beater not rotating properly
• Unusual noises during operation
• The mixer head wobbling or shaking
• Inconsistent mixing results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Metallic Chrome

The Planetary Assembly is an OEM replacement part for Kitchenaid stand mixers. It is the central component that transmits rotational power from the motor to the mixing attachment through an intricate system of gears.

Causes of a bad planetary assembly can include worn gears that no longer mesh properly, broken or missing gear teeth from overloading, or a failed bearing.

Symptoms of a bad planetary assembly include:

• Slipping or jumping of gears during mixing
• Grinding or scraping noises
• Inability to mix thoroughly on higher speeds
• Premature failure of the motor

This OEM replacement is also compatible with Maytag, Whirlpool, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Planetary Assembly is an OEM part for Whirlpool stand mixers. This component is responsible for holding the mixer attachments and rotating them around the bowl, ensuring thorough and even mixing of ingredients.

Over time, the planetary assembly can become worn out or damaged due to frequent use, heavy mixing loads, or lack of proper maintenance. If the planetary assembly is not functioning correctly, it can result in poor mixing performance and uneven results.

Symptoms of a bad planetary assembly include:

• Unusual noises during operation
• Attachments not rotating properly or wobbling
• Inconsistent mixing or ingredients not being fully incorporated
• The mixer head not locking into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Empire red touch-up paint restores the original appliance finish to cover chips, scratches, and small blemishes for a clean, uniform look. Ideal for maintaining the appliance's appearance between larger repairs or panel replacements. What it does:

• Matches the Empire Red appliance color to conceal chips and surface scratches
• Prevents small bare spots from showing and improves overall cosmetic appearance
• Helps maintain consistent color on exterior panels and trim
• Useful for spot repairs after minor impacts or wear

• Clean and dry the surface thoroughly; remove grease and loose paint before applying
• Apply in thin coats, allowing recommended dry time between coats for best results
• Test on an inconspicuous area first to confirm color match
• Follow all product label warnings; use in a well-ventilated area and keep away from heat and open flame

A white replacement bowl support that centers and stabilizes the appliance bowl or glass tray to reduce wobble and noise, helping restore smooth rotation and reliable operation. What it does:

• Centers and supports the bowl or glass tray to prevent off-center rotation and rubbing.
• Keeps the tray steady to reduce vibration and noisy operation.
• Helps the tray rotate smoothly for even heating or proper function.
• Common symptoms it can address: wobbling or off-center bowl/tray, noisy rotation, scraping or unstable tray movement.

• Disconnect power to the appliance before starting any work.
• Remove the bowl or glass tray and lift out the old support; inspect the drive hub or shaft for damage.
• Align the support over the hub/shaft and press into place until fully seated; do not force broken or warped plastic.

This replacement column restores proper support and alignment for the appliance cabinet or trim assembly, helping panels and doors sit correctly and preventing gaps or sagging that affect appearance and operation. What it does:

• Provides structural support for the cabinet/trim assembly and helps maintain alignment
• Keeps adjacent panels and doors properly positioned to prevent rubbing or gaps
• Replaces damaged, bent, or cracked columns that cause cosmetic or fit issues
• Helps restore factory fit and finish after collision or wear

• One replacement column

• Disconnect power and/or gas (if applicable) and remove any obstructing trim before starting
• Use proper fasteners and follow OEM alignment points; part may require removal of surrounding panels
• Handle carefully to avoid scratching finished surfaces; test fit before final fastening

This bowl and foot assembly replaces a cracked or worn support bowl used to stabilize and support the appliance's internal component, restoring proper alignment and quiet operation. Durable molded construction suits direct-replacement needs. What it does:

• Supports and centers internal components to maintain smooth rotation and balance
• Replaces damaged, cracked, or warped bowl/foot that can cause rattling or uneven operation
• Restores correct spacing to prevent contact between moving parts and the cabinet
• Matches factory fit and finish for a secure, stable installation

• Disconnect power before beginning any repair to avoid electrical hazard
• Handle with care to avoid cracking the plastic; use gentle force when seating into place
• Basic hand tools may be needed to access the mounting area; model-specific diagram for access

This lower cabinet base panel provides a finished cover and structural support for the appliance's underside, helping protect internal components and improve cabinet appearance. Use this OEM replacement when the original base is cracked, damaged, or missing. What it does:

• Covers and protects components located beneath the appliance from dust and debris
• Provides a mounting surface and support for lower-access components
• Restores proper fit and finish to the appliance front and lowers drafts
• Replaces damaged or broken base panels that can compromise appearance or clearance

• One lower cabinet base panel (single replacement piece)

• Disconnect power to the appliance before starting any repair
• Remove access panels and mounting fasteners as needed to access the base; retain hardware if reusing
• Handle edges carefully to avoid scratching finished surfaces; use recommended fasteners and alignment
