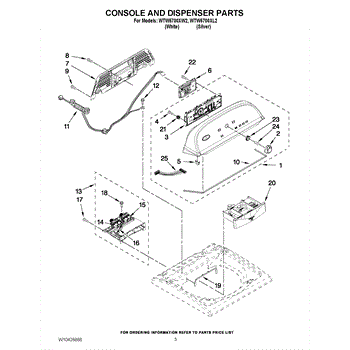

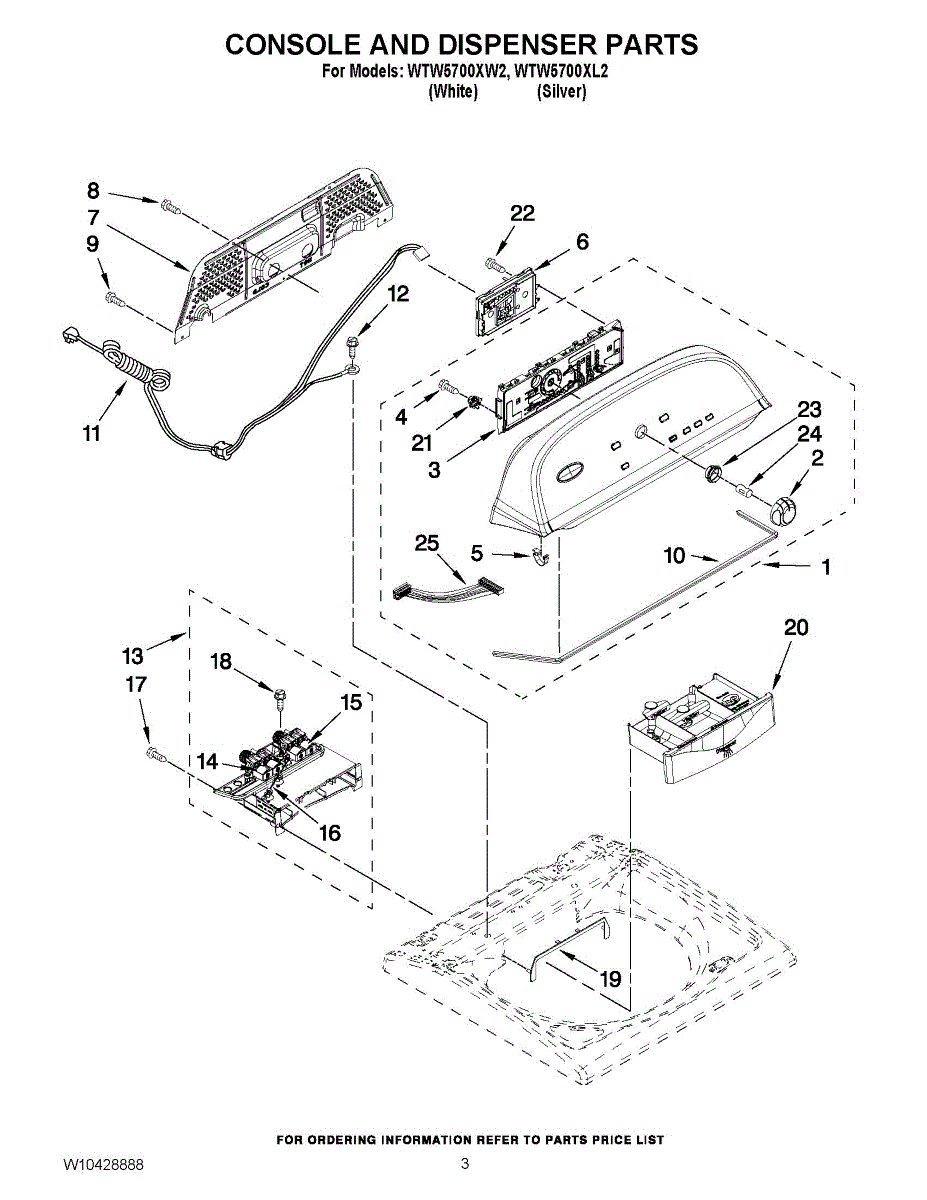

Parts for Whirlpool WTW5700XW2: 02 - Console And Dispenser Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This user interface assembly contains the electronic control board and touch controls that operate a washer's cycles and display status. It restores intuitive cycle selection and digital display feedback for proper washer operation. What it does:

• Receives button/touch inputs and sends control signals to the washer's main components
• Manages cycle timing, options, and status display so selections run correctly
• Helps resolve symptoms like unresponsive buttons, incorrect cycle display, or no status output
• Works with the washer's main control system to coordinate motor, water, and fill functions

• One user interface assembly (electronic control board with touchpad/display) as shown

• Disconnect power before servicing to avoid shock or damage
• Handle the board and ribbon/connectors carefully to prevent ESD or connector damage
• Verify connector orientation and secure mounting before restoring power

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board is the appliance's central brain, interpreting user inputs and directing power to key components. Replacing a failed board restores responsive controls, accurate cycle timing, and consistent, reliable operation.

• Manages cycle timing and switches power to motors, valves, heaters, and other loads
• Interprets signals from the user interface and sensors/safety interlocks
• Coordinates programs and diagnostics to protect components and ensure proper operation
• Common symptoms of a failed board include no start, dead or blank display, unresponsive buttons, cycle not advancing, error codes, or intermittent operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the board by the edges and avoid touching components
• Photograph wiring and move connectors one at a time to the new board to ensure correct placement
• Follow your model's tech sheet for any required setup, diagnostics, or calibration after installation

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This is a replacement power cord that restores electrical connection to the appliance so it powers on safely and reliably. Use it when the original cord is damaged, frayed, or no longer making a secure connection. What it does:

• Provides the main AC power connection between the appliance and household outlet
• Replaces damaged, cut, or burned cords that cause intermittent power or no power
• Helps prevent arcing and unsafe connections when the original cord's insulation or plug is compromised
• Restores a secure line connection for?? operation and diagnostics

• One replacement power cord

• Disconnect power at the breaker or unplug the appliance before starting any work
• Inspect cord routing and strain relief; replace the strain relief if the OEM design requires it
• Secure connections to the terminal block or wiring harness per OEM orientation and torque; verify tight, corrosion-free contacts

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement housing is the molded support/cover used in select appliances to secure and protect its mated components. It restores proper alignment and sealing when the original housing is cracked, warped, or has broken mounting tabs. What it does

• Provides a rigid mount and enclosure for the associated component(s)
• Maintains correct alignment and sealing to prevent leaks or air loss
• Protects internal parts from damage and vibration
• Common failure signs: visible cracks, broken tabs, rattling, poor fit, or leakage around the assembly

• Housing

• Disconnect power before servicing; if the part interfaces with water, shut off the water supply
• Note orientation and transfer any screws, clips, seals, or O-rings from the original part
• Inspect mating seals and fittings; replace any worn gaskets to ensure a proper seal
• After reassembly, restore power/water and test for proper operation and any leaks or noise

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Cold Water Inlet Valve is an OEM replacement part specific to Whirlpool washing machines. It is responsible for allowing cold water to enter the wash tub during specific cycles.

Symptoms of a bad cold water inlet valve include:

• Inability to select cold water cycles
• No cold water entering the tub even when valve is called for
• Water leaks around the valve area
• High water usage as the valve fails to close fully

Causes can be mineral buildup over time restricting water flow, or mechanical failure of internal components like seals or diaphragms. Replacing the inlet valve prevents further issues like inconsistent fill levels due to too much or too little water entering the tub.

This OEM Whirlpool replacement valve provides a tight seal and reliable water control. It restores cold water functions and is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hot Water Inlet Valve is an OEM part for Whirlpool washing machines. This part controls the flow of hot water into the washing machine during the wash cycle, ensuring that the machine receives the correct amount of hot water for optimal cleaning performance.

Common causes of a bad inlet valve include wear and tear over time, clogging from mineral deposits or debris, and electrical failures that prevent the valve from opening or closing properly.

Symptoms of a bad Hot Water Inlet Valve include:

• The washing machine not filling with hot water
• Water leaking from the valve or connections
• The machine filling slowly or not at all
• Error codes related to water flow issues

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This replacement screw secures panels, brackets, and other components in your appliance to keep them aligned and rattle-free. Replacing worn, stripped, or missing hardware restores a tight fit and helps maintain safe, quiet operation.

• Fastens panels, brackets, or internal parts to the cabinet/frame
• Helps maintain alignment to reduce vibration and rattling
• Replaces lost, stripped, or corroded screws
• Common symptoms: loose panels/trim, rattles, or a screw that won't tighten

• Disconnect power; shut off water or gas if applicable
• Match thread and length to the original; replace one at a time to keep alignment
• Start threads by hand to avoid cross-threading; use the correct driver
• Tighten snugly—do not overtighten, especially into plastic or thin sheet metal

This is a replacement refrigerator storage drawer. It restores smooth sliding and dependable storage when the original drawer is cracked, warped, or missing, helping you keep items organized and easy to access. What it does

• Provides enclosed storage for food items inside the refrigerator
• Slides on the existing rails for easy access and organization
• Helps keep contents visible and separated from other items
• Common failure symptoms: cracks, broken tabs, drawer falling off tracks, hard to open/close

• 1 drawer

• Disconnect power and remove items from the drawer area before starting
• Fully extend and lift to remove the old drawer; clean the tracks
• Align the new drawer with both rails and slide it in evenly
• Do not force; ensure tabs and tracks are properly seated

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
