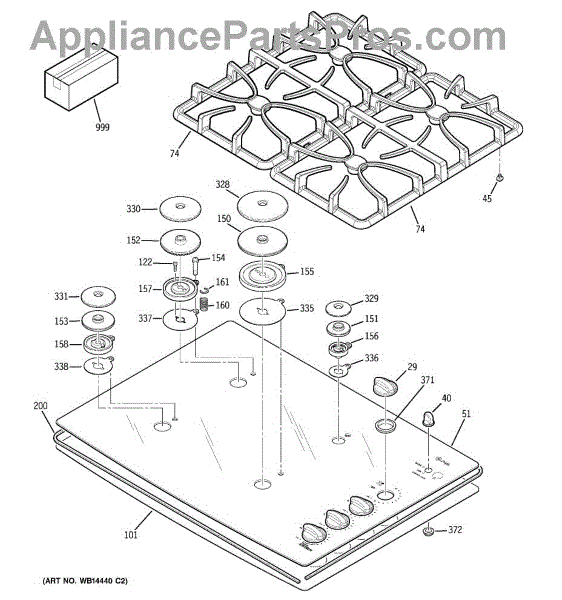

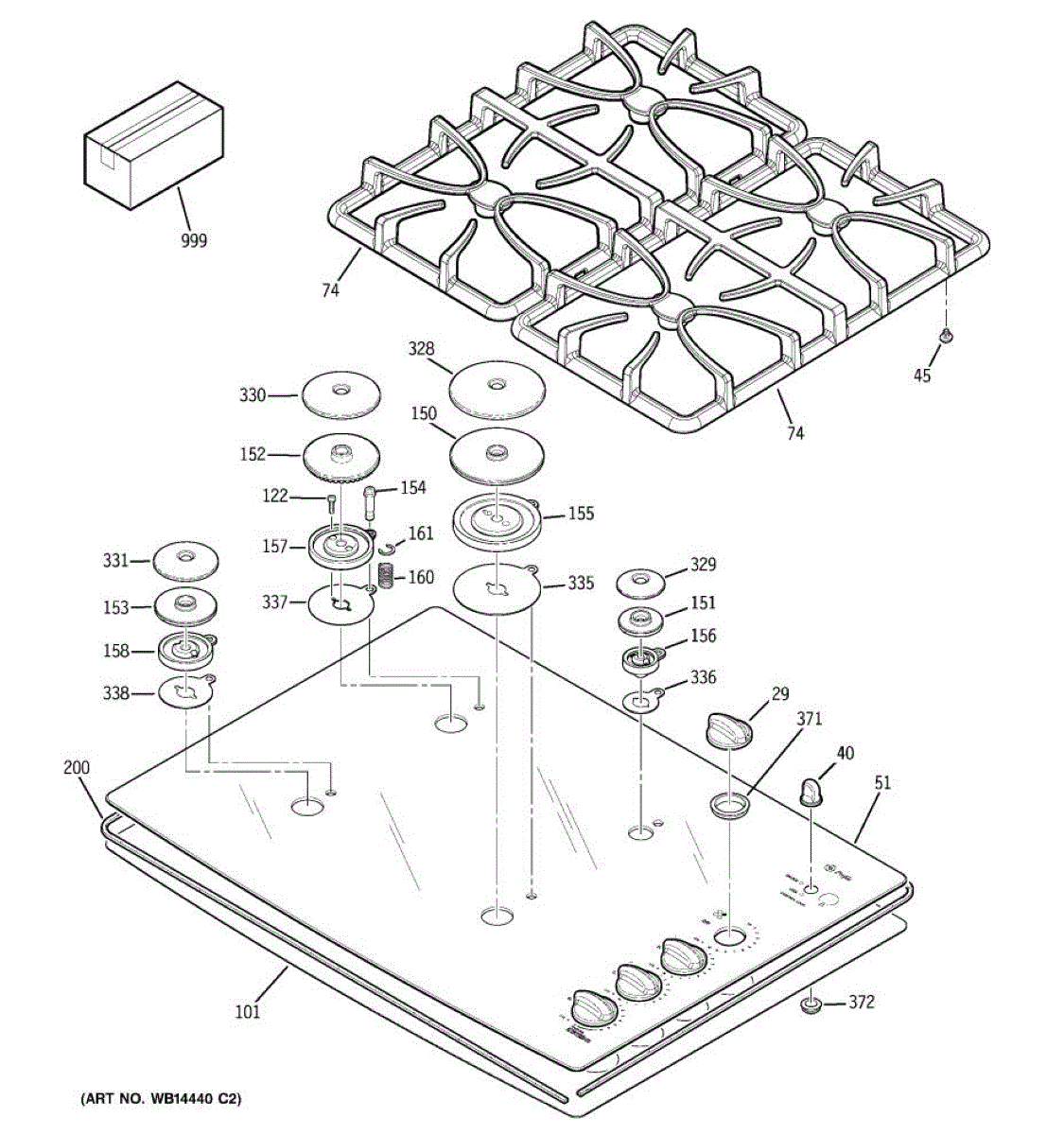

Parts for Ge JGP940SEK2SS: 02 - Control Panel & Cooktop Parts

Color: chrome. Measures about 2 inches in diameter.

The Selector Knob is an OEM part for GE ranges. This knob allows users to select various cooking settings and temperatures by turning it to the desired position on the control panel.

Causes of a bad selector knob can include regular wear and tear, cracks or breaks from excessive force, and damage from heat exposure over time.

Symptoms of a bad selector knob include:

• The knob not turning smoothly or getting stuck
• Cracks or visible damage on the knob
• Difficulty selecting or changing settings
• The knob coming off easily or not staying securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cooktop grate assembly replaces a damaged or missing grate to restore a stable cooking surface and properly position cookware over the burner. Designed for use on compatible GE gas ranges, it helps ensure even support and safe stovetop use. What it does:

• Provides a stable platform for pots and pans so cookware sits level over the burner
• Keeps cookware centered for consistent heat distribution and safer cooking
• Replaces cracked, warped, or missing grates that can cause wobbling or instability
• Helps protect the cooktop surface and burner components from direct contact with heavy cookware

• Allow the cooktop to cool completely before handling or replacing the grate
• Remove any loose debris and seat the grate fully on the cooktop supports to ensure stability
• No special tools are typically required; handle carefully to avoid chipping or scratching the finish

A replacement cabinet liner insulation piece that helps reduce heat transfer and supports proper temperature control and efficiency in the appliance. Fits into the cabinet cavity to restore the original thermal barrier. What it does:

• Provides a thermal barrier to help maintain internal temperatures and reduce heat/cold loss
• Helps prevent condensation and frost build-up when installed correctly
• Dampens vibration and can reduce operating noise slightly
• Restores the factory insulating layer after repair or damage

• One insulation cabinet liner piece

• Disconnect power (and water supply if applicable) before starting any repair
• Handle insulation with gloves; avoid tearing or compressing the material
• Reinstall using the existing mounting tabs, clips, or adhesive as originally fitted; additional fasteners may be required

This machine screw is an authentic OEM replacement part sourced directly from the manufacturer. It is used in securing the burner head to the gas range top so that it can be used for cooking. If the burner head becomes loose or the screw is missing, it should be replaced. For safety reasons, the burner should not be used until this screw is replaced; the burner head could shift during cooking and lead to a fire. To start, disconnect the gas and power from the stove to prevent accidental ignition of the burner. Make sure the burners are not hot. Remove the burner grate and burner cap from the burner that is missing a screw. Install the new screw in the hole and tighten it with a screwdriver. Put the burner cap and burner grate back on the stove and reconnect the gas and power. Periodic inspection of the burner heads and all associated screws and parts on the stovetop will prevent accidents and keep the stove working correctly. This screw is a silver, metal part that is sold individually. It is designed for use in gas rangetops manufactured by General Electric and Hotpoint.

D burner

H Burner

B Burner

C burner

The Top Burner Igniter is an OEM part for GE gas ranges. It is responsible for igniting the gas to create a flame for cooking on the stovetop burners.

Over time, igniters can degrade due to repeated use, exposure to high temperatures, or buildup of food particles and grease. A malfunctioning igniter can prevent the burner from lighting properly, affecting the cooking performance of the range.

Symptoms of a bad Top Burner Igniter include:

• Burner not lighting
• Delayed ignition or clicking sounds without ignition
• Weak or inconsistent flame
• Smell of gas without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

Approx 3 inches in diameter

This is a replacement top burner spring that secures the burner head and helps maintain stable alignment for reliable ignition and even flame. Restores proper seating for many gas cooktop burner assemblies. What it does

• Holds the burner head/assembly in place so the cap and burner stay aligned
• Helps ensure consistent spark/ignition by keeping electrode and burner properly positioned
• Prevents burner wobble or uneven seating that can cause poor heating or flame irregularities
• Small metal coil designed for use with compatible gas cooktop top burner assemblies

• One top burner spring

• Disconnect power and shut off the gas supply before attempting any service; allow the appliance to cool completely.
• Remove burner grates and caps, then replace spring in the burner base per your model's service instructions.
• Use basic hand tools; keep parts organized and avoid damaging electrodes or gas fittings.

The Foam Tape is an OEM part for GE gas ranges. It serves as a sealant, ensuring a proper fit and preventing the escape of heat and gases from the range. This tape helps maintain the efficiency of the range by providing an airtight seal around various components.

Causes of a bad Foam Tape can include wear and tear over time, exposure to high temperatures, or physical damage during cleaning or maintenance. When the foam tape degrades, it can compromise the range's performance and safety.

Symptoms of a bad Foam Tape include:

• Heat escaping from the range
• Gas odors near the appliance
• Visible wear or gaps in the seal
• Decreased cooking efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Black. D Burner

Black. H Burner

Black. B Burner

Black. C Burner

Note: The part is approximately 4" in diameter.

Small

Note: The part is approximately 2-3/8" in diameter.

Note: The part is approximately 3" in diameter.

Black

Replacement burner wire harness that restores the ignition wiring connection for a gas range surface burner, helping re-establish consistent sparking and reliable burner ignition for safe cooking operation. What it does:

• Provides the electrical connections between the burner igniter/spark electrode and the range's ignition module/control.
• Replaces damaged, cut, or frayed wiring that can cause no-spark, intermittent ignition, or continuous clicking at the burner.
• Routes and secures ignition wires to keep connections stable and reduce heat/rub-related failures.
• Helps the ignition system deliver consistent sparks so burners light reliably.

• Disconnect electrical power and shut off the gas supply before beginning any service.
• Compare the new harness to the original; transfer and reconnect terminals one-to-one and secure any routing clips or fasteners.
• Route wires away from hot surfaces and sharp edges; avoid stretching or pinching the harness.

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
