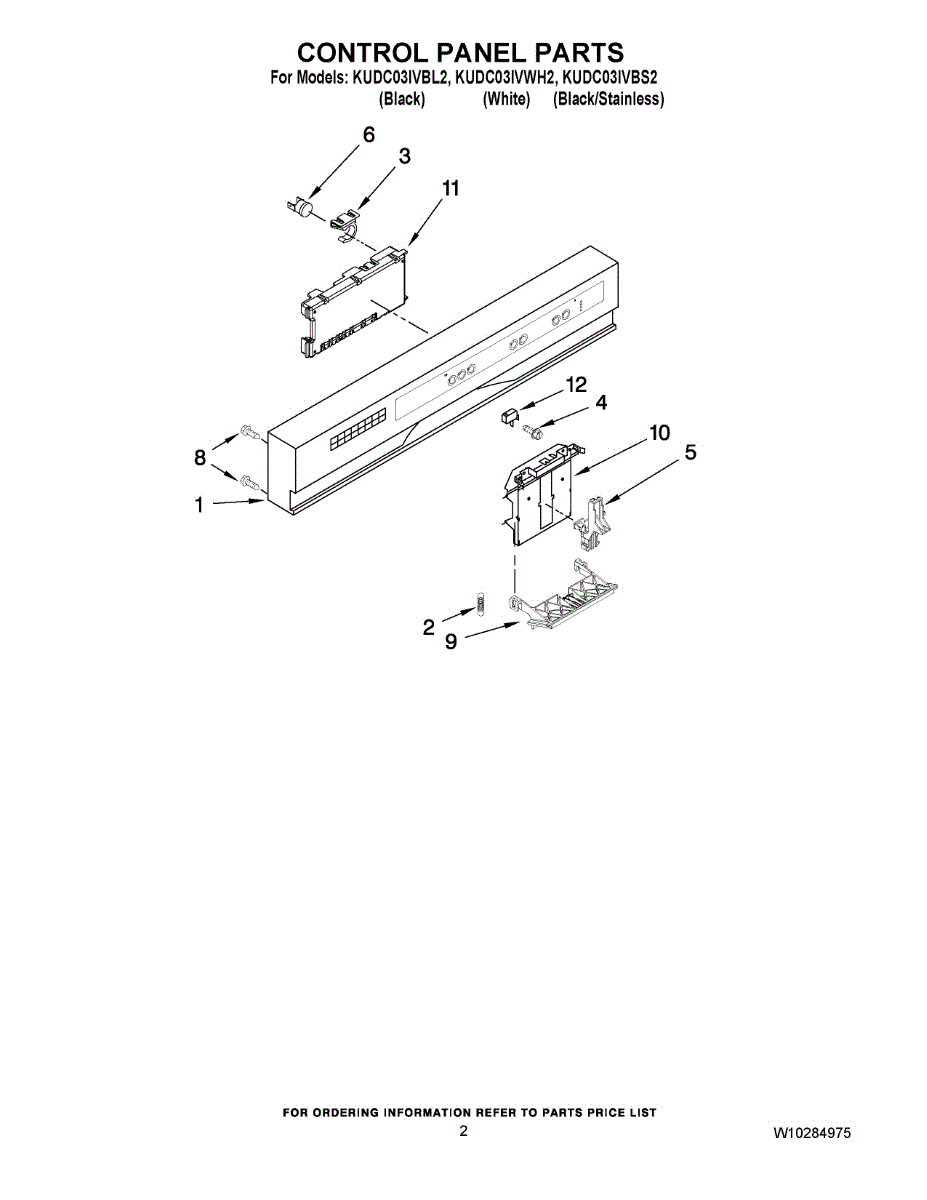

Parts for Kitchenaid KUDC03IVBS2: 02 - Control Panel Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Control panel (console assembly) that replaces the front user interface, restoring button and display control so you can set oven/range functions, timers, and start cycles reliably. What it does

• Replaces the main control interface so button presses and touch controls register correctly.
• Restores the display (clock/timer) when the original panel is blank, garbled, or shows control errors.
• Helps the oven/range accept and execute user settings when the factory console is unresponsive.
• Can resolve intermittent control failures or unresponsive keypads linked to a faulty console.

• Disconnect power at the breaker before starting any repair to avoid shock.
• Handle ribbon cables and connectors gently; avoid bending pins or pulling on wires.
• Seat all connectors fully and verify operation before reassembling trim or panels.

This control panel replaces a cracked, worn, or unresponsive console so your appliance can reliably accept cycle and option selections again, restoring a clean appearance and smooth button action.

• Provides the interface area for selecting cycles and options
• Houses and aligns user-interface components and mounting hardware
• Protects and routes the UI connector/ribbon, when present
• Restores proper fit and finish on the front/top of the unit
• Typical symptoms: cracked or broken console, buttons binding or sticking, worn labels, or selections not registering when the touchpad is integrated into the console on your model

• Disconnect power to the appliance before servicing
• Remove screws to access the console; note hardware locations and wire/ribbon routing, and use care around sharp edges
• Handle any ribbon/IDC connectors by the stiffener; seat fully and level
• Transfer any reusable clips, brackets, or overlays/nameplates from the old panel; test keys before final reassembly

The Door Handle Spring is an OEM replacment part for Whirlpool built-in dishwashers. It applies inward tension to assist in opening the dishwasher door after a cycle completes. Proper spring force prevents accidental openings during active washing and rinsing stages.

Symptoms of a failing door handle spring can include:

• Difficulty opening the dishwasher door at the end of a cycle
• Potential opening of the door unintentionally during operation
• Sagging or loose door that does not securely latch in closed position

Causes related to the natural fatigue of the coiled wire over thousands of usage cycles. Loss of elastic properties compromises the spring's ability to counteract the weight and seal force of the heavy dishwasher door panel.

This OEM Whirlpool replacement spring restores smooth, convenient door access at appropriate times. Compatible also with some KitchenAid models.

This is a genuine 4-24 x 3/8 screw used to fasten trim and components on compatible appliance assemblies. It provides a secure, vibration-resistant connection so panels and parts stay properly aligned during use. What it does:

• Secures panels, brackets, or components to the appliance frame
• Helps prevent rattling or loosening from normal vibration
• Works with threaded or self-tapping holes sized for a #4-24 fastener
• Common replacement for stripped, rusted, or missing mounting screws

• Use the matching screwdriver or nut driver to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread damage
• Replace any corroded or damaged screws in sets when multiple fasteners show wear
• Disconnect power and follow appliance safety guidance before servicing

The Door Latch Actuator is an OEM part for Whirlpool dishwashers. This part securely latches the dishwasher door, ensuring that it stays closed during operation and that the wash cycles run smoothly. The actuator interacts with the door latch to activate the locking mechanism, providing a secure seal to prevent leaks.

Causes of a bad door latch actuator can include regular wear and tear, mechanical failure, or damage from accidental impacts.

Symptoms of a bad door latch actuator include:

• Dishwasher door not staying closed
• Dishwasher not starting because the door isn’t securely latched
• Difficulty latching or unlatching the door
• Leaks around the door during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Thermal Fuse Kit is a genuine OEM Replacement part. This kit is designed to cut off power to the dishwasher if it overheats. The fuse ensures that your appliance operates safely and effectively. If your dishwasher is not starting, it may be due to a failed thermal fuse. Investigate what caused the dishwasher to overheat before replacing the thermal fuse.

This Kit Includes:

• (1) Thermal Cutoff (TCO)
• (1) Harness Assembly
• (2) Zip Ties
• Instructions

Specs:

• Electrical specs: 86°C, 187°F fuse
• Construction: metal/plastic
• Fuse dimensions: 5/8""L x 5/8""W x 1-1/4""H
• Harness and plug dimensions: 4-7/8""L
• Zip tie dimensions: 6-3/4""L

Repair your dishwasher today with the Thermal Fuse Kit and ensure that your appliance operates safely and efficiently for years to come.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This factory screw secures appliance components. It restores a tight, reliable hold when the original hardware is stripped, missing, or corroded—helping prevent vibration and keeping panels and brackets properly aligned.

• Provides threaded fastening for panels, brackets, covers, or internal components
• Replaces worn, rusted, stripped, or missing hardware
• Helps reduce vibration and rattling from loose parts
• Restores proper alignment and a secure fit of attached parts

• Disconnect power; turn off water supply before service
• Note original screw location and retain any spacers or clips for reassembly
• Start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping

The Dishwasher Door Latch Handle is an OEM part for Whirlpool dishwashers. It ensures that the dishwasher door closes securely, enabling the machine to operate correctly. This handle engages the latch mechanism, providing a tight seal to prevent leaks and allowing the dishwasher to run its cycles efficiently.

Over time, the door latch handle can wear out or break due to frequent use, exposure to harsh detergents, or mechanical failure. Causes of a bad door latch handle include physical damage, internal component wear, or misalignment.

Symptoms of a bad door latch handle include:

• Difficulty in closing or latching the dishwasher door
• The dishwasher not starting or stopping mid-cycle
• Leaks around the door during operation
• The handle feeling loose or not engaging properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Latch Bracket is an OEM part for Whirlpool dishwashers. This bracket is crucial for securing the dishwasher door latch, ensuring that the door stays closed during operation. A properly functioning door latch bracket helps maintain a tight seal, preventing water leaks and enabling the dishwasher to run efficiently.

Causes of a bad door latch bracket can include regular wear and tear, damage from repeated door openings and closings, or physical impact that compromises its integrity. A malfunctioning bracket can lead to door alignment issues and ineffective sealing.

Symptoms of a bad door latch bracket include:

• The dishwasher door not latching or staying closed
• Water leaking from around the door during cycles
• The door appearing misaligned or loose
• Difficulty starting the dishwasher due to improper door closure

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Handle not included. For black handle use WP8534984. For white handle use WP8534985. For bisque use 8534986

The OEM Electronic Control Board is an OEM replacement part for Whirlpool dishwashers. It is a circuit board that controls all of the functions of the dishwasher, including the wash cycles, water temperature, and detergent dispensing.

Causes of failure involve damage from liquid intrusion shortening circuits or component deterioration over extended use reducing precision.

Symptoms include:

• Dishwasher fails to start selected cycle
• Lights, displays or programming malfunctions
• No response from control buttons
• Dishwasher appears dead or powerless

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Door Switch is an OEM part for Whirlpool dishwashers. It plays a crucial role in ensuring the dishwasher operates only when the door is securely closed. The switch signals the control board that the door is shut, allowing the wash cycle to begin safely.

You should replace the door switch if it becomes faulty or damaged. Causes of a bad door switch can include wear and tear from regular use, electrical issues, or physical damage from forceful closing of the door.

Symptoms of a bad door switch include:

• The dishwasher not starting or stopping mid-cycle
• Error codes related to the door latch or door switch
• The dishwasher operating with the door open (safety issue)
• No response when pressing the start button

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
