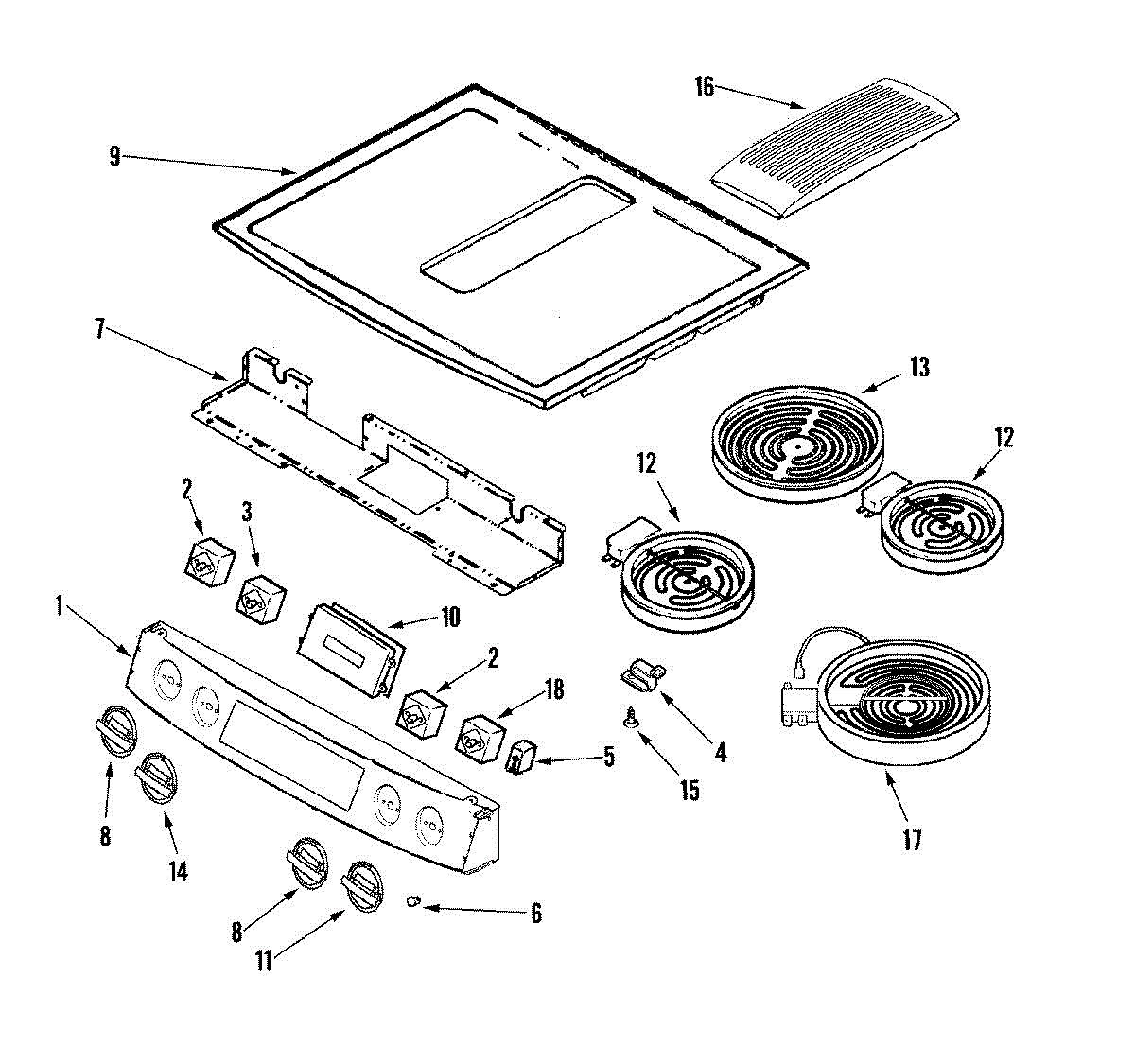

Parts for Jenn-Air JES9900BCS: 03 - Control Panel / Top Asy Parts

This is a Whirlpool range control panel assembly. It houses the display, user interface buttons, and has space for temperature control knobs. With extended use, the buttons on a control panel may wear out or stop responding to user input.Before installing this part, be sure to cut power to the appliance and allow it to cool completely. The stove may need to be pulled away from the wall to access the screws holding the old control panel in place. Remove the screws from each side of the old control panel to disconnect it, then carefully remove any boards or other components installed within the panel. Once it has been completely removed, the new control panel can be installed in its place.This is a genuine OEM part compatible with ranges manufactured by Jenn-Air, but may also work with other Whirlpool brands, including Maytag, KitchenAid, Amana, Magic Chef, Admiral, Norge, Roper, and others. This product is just the panel and contains no additional parts or hardware.

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

The Large Element Switch is an OEM part for Whirlpool ranges. It regulates the heat output of the large heating element on the cooktop, allowing users to adjust the cooking temperature as needed.

Causes of a bad switch can include wear and tear from regular use, electrical issues, or damage from high heat exposure over time.

Symptoms of a bad large element switch include:

• The large element not heating or staying on continuously
• Inconsistent or incorrect heat levels
• The switch not responding or feeling loose
• The element turning off unexpectedly during use

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This indicator light installs in the control panel and illuminates when its corresponding function is active. Replace a failed lamp to restore clear status indication, so you can see at a glance when the appliance is operating.

• Lights to indicate a selected function is on (e.g., surface units or oven circuits—varies by model)
• Provides visual confirmation of appliance status during use
• Common symptoms: light will not turn on, stays on constantly, flickers, or the lens is damaged
• Restores proper visual feedback when controls are engaged

• Disconnect power at the breaker before servicing; allow the appliance to cool
• Access the console/control panel and remove the rear cover as needed
• Note wire positions; transfer leads to the new light and secure it in the panel opening
• Reassemble and restore power to test operation

To order indicator light use WP903115.

Color: stainless steel. It measures about 2 inches in diameter.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This electronic clock control helps manage and monitor the features on an oven. This part is located on the front of the oven so the user can easily see the clock and start and stop times for cooking. The display can also show error codes if one of the oven parts is not working correctly. If this part is damaged, cooking may take longer, overheating may occur, or the foods may come out unevenly cooked.Replacing the part is simple and requires only a Phillips screwdriver. Disconnect the oven from power or turn off the appropriate breaker box. Open the door and access the bottom of the control panel assembly. Remove the screws and lift up on the electronic clock control to unhook it from the appliance. Unplug the wire harnesses before removing the clock. Attach the new part to the wires and screw it into the oven.This electronic clock control is made for use as a genuine OEM replacement part for Jenn Air ovens. It is sold on an individual basis and comes directly sourced from the manufacturer. This part is offered as an individual component.

The Control Knob is an OEM part for Whirlpool ranges. It allows the user to adjust the temperature and settings of the burners or oven. This knob is designed to fit securely on the control shaft, providing a reliable interface for selecting various cooking functions.

Over time, control knobs can become worn or damaged due to frequent use, exposure to heat, or accidental impact. When the knob becomes faulty, it can hinder the ability to control the appliance accurately.

Symptoms of a bad control knob include:

• Difficulty turning the knob
• The knob slipping or not staying in place
• Inaccurate temperature control
• The knob not engaging the control shaft properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

Color: stainless steel. Measures about 2 inches in diameter.

This is a replacement screw used to secure panels and components on compatible Whirlpool appliances, sold as a pack to replace multiple fasteners at once. It provides a simple way to restore missing or worn screws and stop rattles or loose trim. What it does

• Fastens appliance panels, trim, brackets or internal components
• Restores proper fit where screws are missing or corroded
• Helps eliminate vibration noise and loose parts
• Matches OEM fit for the listed part number when used in the intended locations

• Use the correct screwdriver or nut driver to avoid stripping the head
• Keep screws organized and install only where the OEM diagram specifies
• Disconnect power and follow appliance safety procedures before servicing
• Wear safety glasses and avoid over-tightening to prevent damage

This surface radiant element sits beneath the glass cooktop and generates heat for one cooking zone. Replacing a failed element restores proper heating performance and dependable temperature response on the affected burner.

• Supplies electric heat to the selected surface burner under the glass top
• Common symptoms: burner won't heat, heats weakly or inconsistently, or only part of the ring glows
• Visual damage (burn spots/breaks) or an open reading on a continuity test indicate replacement
• Similar symptoms can also result from a faulty surface switch or wiring—diagnose before replacing

• Disconnect power at the breaker and allow the cooktop to cool completely
• Lift/remove the glass top per your service manual to access the element
• Note wire positions and bracket orientation; move wires one at a time to matching terminals
• Support the glass and avoid stressing the element; test operation before final reassembly

This surface heating element restores dependable heat to a burner on your range or cooktop. Also called a surface burner or top burner element, it delivers the cooking temperature for that zone when the control sends power. What it does:

• Generates heat for one cooking zone on the cooktop
• Common symptoms: burner won't heat, heats unevenly or only partway, takes too long to heat, or shows visible damage
• Helps isolate a single-burner failure when other surface elements still work
• Replaces a damaged or open element to restore consistent heating

• 1 surface element

• Disconnect power at the breaker and allow the cooktop to cool completely
• Access the element per your model (remove burner pan or lift the glass top)
• Note/photograph wiring and transfer any brackets or clips; move wires one at a time to matching terminals
• Ensure the element sits flat and all connections are secure before reassembly and testing

This surface element infinite switch controls power to an electric cooktop burner, allowing smooth adjustment from low to high heat. Replace a faulty switch to restore consistent, reliable temperature control on your range's surface burner.

• Regulates on/off cycling of the surface element to maintain the selected heat level
• Common failure symptoms: burner won't heat, only heats on high, won't turn off, or heat changes erratically
• Restores full range of settings across the knob from simmer to full power
• Helps resolve intermittent heating caused by worn internal contacts

• Disconnect power at the breaker or unplug the range before servicing
• Remove the knob and access the control panel to reach the switch
• Photograph or label wires; transfer them one at a time to matching terminals on the new switch
• Secure the switch, reinstall the knob and panel, then test all heat settings
