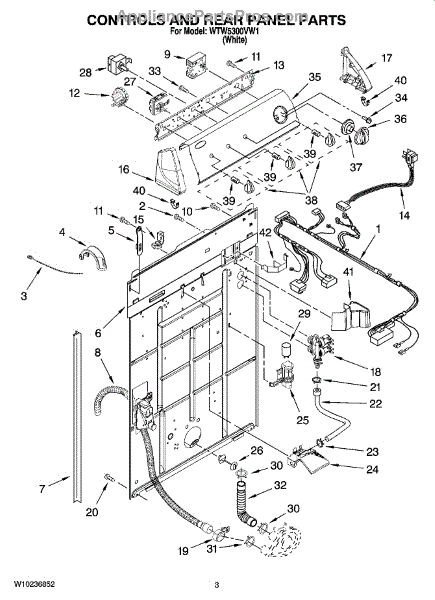

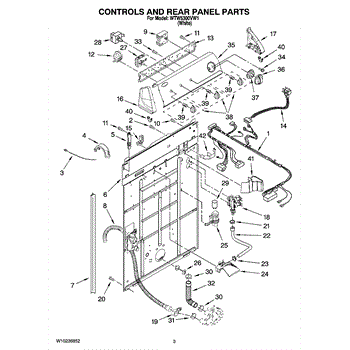

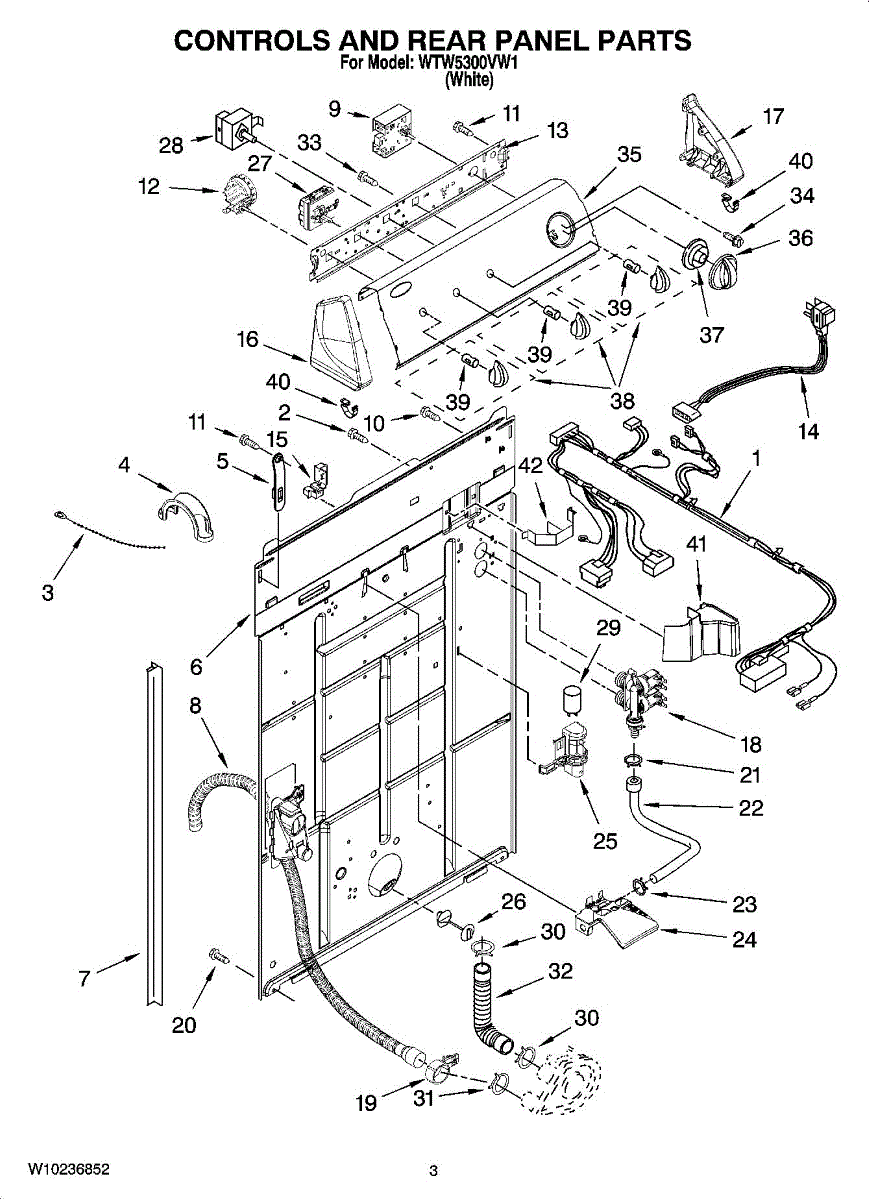

Parts for Whirlpool WTW5300VW1: 02 - Controls And Rear Panel Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Switch Mounting Screw is an OEM part compatible with Whirlpool washing machines. This screw securely mounts the cycle selector switch within the control console assembly. Proper fastening ensures dependable operation of control functions.

Causes of a bad mounting screw can stem from stress cracks developing over multiple years of operation. Vibrations accumulate, slowly loosening connections housed in a wet environment.

Symptoms of a bad mounting screw include:

• Loose or rattling switch within the console face
• Difficulty selecting cycles as buttons wobble out of place
• Water intrusion hastening corrosion of electrical terminals
• Potential shock hazards if live connections are exposed

This Whirlpool replacement screw restores a tight mounting point. It is compatible with brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This U-bend retainer secures the drain U-bend or trap tubing in place to prevent leaks and keep plumbing routed safely under the appliance. It's a small but important clip that helps maintain proper drain alignment. What it does:

• Holds the U-shaped drain/trap tubing securely to the appliance drain outlet
• Helps prevent the drain hose from slipping free and causing leaks
• Keeps the drain line routed to avoid kinks or contact with moving parts
• Commonly replaced when the original clip is broken, cracked, or missing

• One U-bend retainer clip

• Basic hand tools may be required; disconnect power and water supply before servicing
• Remove any obstructing panels to access the drain outlet area
• Press the clip into position over the U-bend until it snaps or seats securely

Replacement console strap that secures the appliance control panel to the cabinet, restoring stable console alignment and preventing the control panel from shifting or sagging during use for safer, neater operation. What it does:

• Secures the control console to the cabinet to prevent wobble, tilt, or separation.
• Replaces a worn or broken strap commonly causing a loose or misaligned control panel.
• Helps reduce strain on control harnesses and connectors that can occur when the console moves.
• Matches OEM fit so the console remains properly seated and functional.

• Disconnect power to the appliance before beginning any repair.
• Typically accessed by removing the console or control panel; retain all screws and clips for reassembly.
• Use common hand tools (screwdriver, nut driver) and follow the model-specific service manual for exact steps.
• If wiring connectors are disturbed, verify secure connections before restoring power.

Rear panel pad cushions and insulates the appliance's rear cabinet to reduce vibration, noise and rubbing against the back panel. Replacing a damaged pad helps stop rattles and protects internal components from wear. What it does:

• Provides rear-cabinet cushioning and thermal/abrasion protection for the back panel.
• Dampens vibration and reduces operational noise.
• Prevents direct metal-to-metal contact that can cause rubbing or wear.
• Common symptom fix: reduces rattling or vibrating noises from the appliance rear.

• Always disconnect power (and gas, if applicable) before starting any repair.
• Remove the rear access panel to access the pad; replace using the original mounting points, adhesive or clips.
• Inspect surrounding insulation and mounting hardware; replace any damaged fasteners.

The Drain Hose Assembly is an OEM part for Whirlpool washing machines. It is responsible for carrying wastewater from the washer to the household drain during the wash and spin cycles.

Causes of a bad drain hose assembly can include blockages from debris, kinks or cracks in the hose, or general wear and tear from repeated use.

Symptoms of a bad drain hose assembly include:

• Water not draining properly from the washer
• Leaks or puddles around the washer
• Visible cracks or damage to the hose
• Unpleasant odors due to standing water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This mechanical cycle timer controls the sequence and duration of operations in the selected program. Replacing a worn timer restores reliable cycle selection and proper advancing from start to finish.

• Controls cycle timing and advancement via internal cams and contacts
• Directs power to components in the correct order for each cycle
• Stops the appliance at the end of the cycle
• Fixes: cycle won't advance or gets stuck, won't start, stops mid-cycle, dial doesn't move or skips

• Disconnect power before servicing
• Access the timer through the control console; remove knob/dial as needed
• Transfer wires one at a time from the old timer to the new unit, matching terminals
• Reuse existing mounting hardware and console parts; verify proper alignment before reassembly

Size: 10-24 x 3/8 inch.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Water Level Switch is an OEM replacement part for Whirlpool washing machines. It monitors and controls the amount of water that fills the drum during each wash cycle. By ensuring the appropriate water level, it aids in the efficient and effective cleaning of laundry while conserving water.

Symptoms of a bad Water Level Switch include:

• The washing machine overfilling or underfilling with water
• Inconsistent or erratic water levels during cycles
• The machine failed to progress from filling water to the wash cycle
• Error codes or indicators related to water levels or filling

Causes for a malfunctioning Water Level Switch can include electrical issues affecting signal transmission, mechanical failures within the switch, or blockages in the pressure hose connected to the switch.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement power cord that supplies electrical power from a wall outlet to your appliance. A fresh cord helps ensure safe, reliable power delivery when the original is damaged, overheated, or worn.

• Delivers household power to the unit's main electrical connection
• Replace if the cord is cut, cracked, burnt, loose, or intermittently powers the appliance
• Helps resolve issues like no power, tripping breakers, or visible cord damage

• Unplug the appliance and turn off the circuit breaker before starting
• Verify outlet type and cord routing match your original installation
• Transfer any cord clamp/retainer as needed and secure against sharp edges
• Inspect for proper grounding and test operation before returning to service

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

This end cap is a replacement outer trim piece that restores proper fit and finish to the appliance and helps protect internal components from debris. It returns a secure, clean edge where the original cap was damaged or missing. What it does:

• Covers and protects the exposed end of the housing or panel to prevent debris intrusion and wear
• Restores proper alignment of adjacent trim and panels for a snug fit
• Helps stop rubbing, vibration noise, or snagging caused by cracked or missing trim
• Provides the original appearance and protective edge after damage

• One end cap

• Disconnect power to the appliance before beginning any repair
• Remove any fasteners or retaining clips holding the old cap; keep hardware if reusable
• Snap or fasten the replacement cap into place, ensuring proper alignment with adjacent trim
• Test the appliance for proper operation after reassembly

The Water Inlet Valve Assembly is an OEM part for Whirlpool washing machines.  This part controls the flow of water into the appliance during the fill cycle. This assembly consists of a valve that opens and closes to allow water from the household supply to enter the washing machine at the right times and in the correct amounts, depending on the selected wash cycle and water temperature settings.

Causes of a bad water inlet valve can include sediment buildup, which restricts water flow, wear and tear that impairs the valve's operation, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad Water Inlet Valve Assembly include:

• The washing machine not filling with water
• Water filling too slowly or overflowing
• Unusual noises during the fill cycle
• Water not reaching the desired temperature

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This retaining clip secures small panels and components to help keep assemblies aligned and reduce rattles or movement during operation. It's a simple replacement that restores proper fit where the original clip has broken or gone missing. What it does:

• Holds trim, panels or small assemblies in place to prevent loosening and vibration
• Restores proper alignment and fit where a worn or broken clip causes gaps or rattling
• Commonly used where snap-in retention is required for plastic or sheet-metal parts
• Simple, single-piece part with no electrical or mechanical adjustments needed

• One retaining clip

• Turn power off and unplug the appliance before accessing the repair area
• Remove any adjoining panels or fasteners as needed to access the clip location
• Press or snap the clip into the mating slot; use care to avoid bending surrounding parts

10 - 16 x 1/2

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vacuum break hose connects the water path to the appliance's anti-siphon assembly to help prevent backflow. Replace a cracked, brittle, or leaking hose to restore safe water flow and stop nuisance leaks.

• Routes water between components of the vacuum break/anti-siphon assembly
• Helps maintain proper backflow protection in the water path
• Common symptoms: water dripping or pooling near the rear/top, leaking during fill, visible cracks, swelling, or loose hose ends
• Restores reliable, leak-free connections when the original hose deteriorates

• Disconnect power and turn off the water supply before servicing
• Place a towel/container to catch residual water when removing the old hose
• Use pliers or a driver to release hose clamps, then transfer and secure the new hose with existing clamps
• Route the hose exactly like the original and check for kinks; restore water/power and verify no leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This vacuum break assembly is the dishwasher's anti-siphon device in the fill system. It creates an air gap that prevents dirty water from backflowing into the water supply, helping protect your plumbing and maintain proper fill performance.

• Provides an air gap in the fill path to stop siphoning/backflow from the tub into the household supply
• Helps the dishwasher fill correctly without unintended siphon action
• Common failure symptoms: leaks from the side of the cabinet during fill, water returning to the tub after a drain, or a cracked/brittle housing

• Disconnect power and turn off the water supply before servicing
• Remove access panels to reach the vacuum break (location varies by model)
• Transfer hoses and clamps to the new assembly in the same orientation; ensure all seals seat fully
• Restore water and power, then run a short cycle to check for leaks

This rear panel support is the structural bracket that secures the appliance's rear cover/backguard in place. Replacing a worn or broken support restores proper alignment, helps protect internal components, and reduces vibration noise.

• Secures the rear panel/backguard to the chassis for stable, proper fit
• Maintains alignment of panels and mounting points
• Helps minimize vibration, flexing, and rattles from a loose rear panel
• Common signs of failure: cracked or missing bracket, stripped mounting points, panel movement or buzzing

• Disconnect power at the breaker; shut off gas supply
• Pull the appliance forward carefully to access the back; protect flooring
• Remove fasteners, replace the damaged support, and reuse original hardware/clips
• Keep wiring clear of sharp edges; tighten screws evenly without over-torquing and check for vibration before repositioning

The Water Temperature Switch is an OEM replacement part for Whirlpool washing machines. This switch monitors incoming water temperatures to ensure they fall within the thresholds required for selecting dependent wash cycles. It plays an important safety function by preventing the activation of vulnerable "hot" cycles if water is too cool.

Causes of a bad water temperature switch can include failures from repetitive heating/cooling cycles, mineral deposits obstructing sensors over time, or defective temperature sensing mechanisms.

Symptoms of a bad water temperature switch include:

• Inability to select high-temperature cycles
• Fault codes related to water supply temperatures
• Potential improper washing if the temperature reading is inaccurate

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

4 position

The Washer Capacitor is an OEM replacement part for Whirlpool washing machines. It is an essential electrical component that plays a crucial role in starting and running the washer motor efficiently.

Symptoms of a bad washer capacitor include:

• The washer not starting or failing to run
• Humming or buzzing noises from the motor during operation
• Error codes or indicators related to motor or electrical issues

Causes of a faulty capacitor can range from normal wear and tear over time to electrical surges, overheating, or physical damage.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washing machine models.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Tub to Pump Hose is an OEM replacement part for Whirlpool washing machines. It connects the washer tub assembly to the pump, carrying water drained from the tub into the pump housing. This hose is a component that allows the machine to drain water efficiently during the spin cycle.

Causes of a bad tub to pump hose can include mineral buildup that restricts water flow, fatigue and wearing that cause cracks or splits, damage from rodents or sharp/heavy objects in the wash load, and deterioration from age that increases brittleness.

Symptoms of a bad hose include:

• Water leaks during or after the drain cycle
• Inability to fully drain water from the tub
• Water remaining in the tub after spinning

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 10 - 24 x 3/8

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

The Timer Knob is an OEM part for Whirlpool washers. This knob allows users to set and adjust the washing cycle by turning the timer to the desired position.

Causes of a bad timer knob can include regular wear and tear, accidental impacts, or over-tightening.

Symptoms of a bad timer knob include:

• Knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• The knob slipping or not staying securely on the timer shaft
• Difficulty setting or changing the washing cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This timer skirt assembly replaces a cracked, worn or loose dial skirt so the timer knob fits securely and operates smoothly. It restores proper knob alignment and protects the timer control opening. What it does:

• Replaces a broken or cracked dial skirt that lets the knob wobble or sit unevenly
• Helps the timer knob engage the control shaft correctly for reliable selection
• Covers and protects the timer mechanism from dirt and debris around the control
• Reduces knob play and improves the appearance of the control panel

• Disconnect power to the appliance before servicing to avoid shock or injury
• Typically requires removing the control knob and/or control panel; have basic hand tools ready
• Handle plastic parts gently to avoid cracking; align skirt before securing components

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Used on the pressure switch hose harness.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
