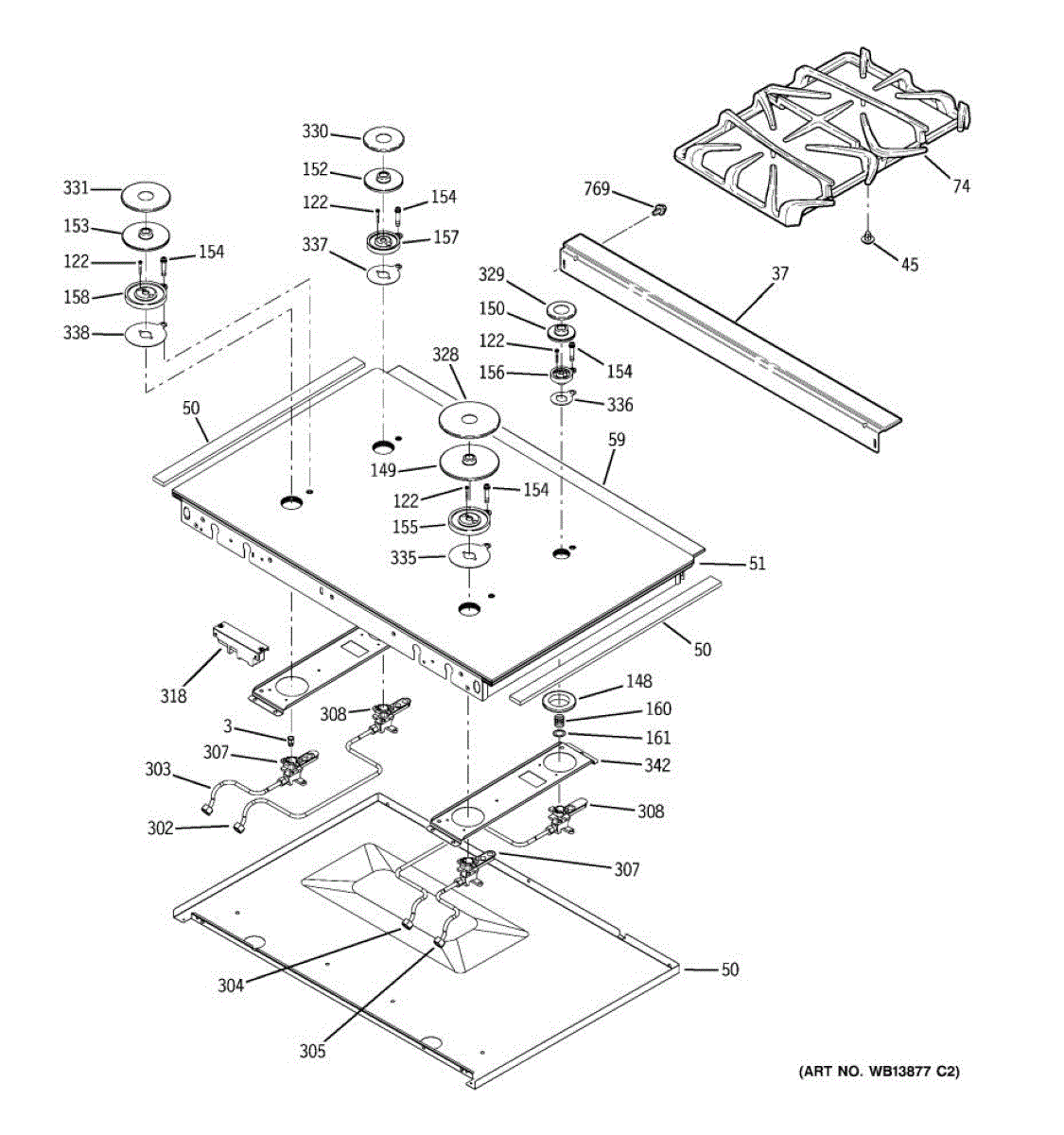

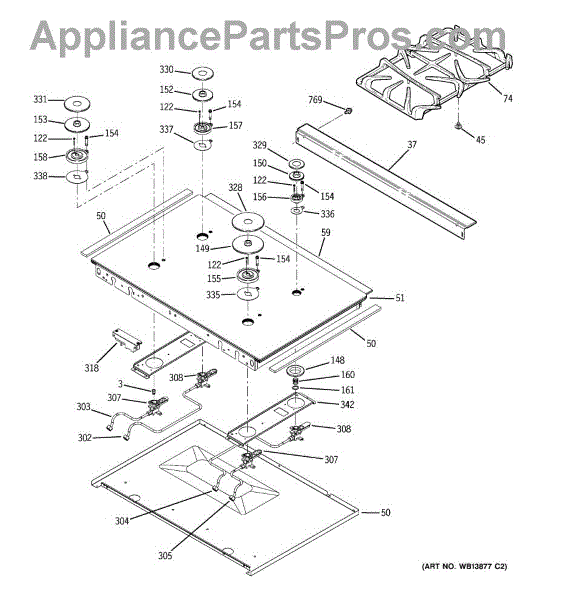

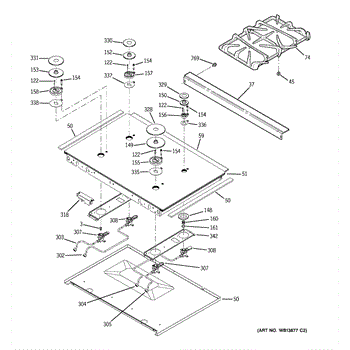

Parts for Ge J2C968CEK3CC: 02 - Cooktop Parts

Natural gas

Natural gas

Natural gas

Natural gas

This LP orifice spud directs propane gas to a burner for correct flame size and stable cooking heat. It's the specific replacement used in LP-configured gas cooktop/oven burners to restore proper gas flow. What it does:

• Meters propane flow to a burner for consistent flame performance.
• Used in LP (propane) conversions or LP-configured burners.
• Common symptoms it can fix: burner won't light, weak or uneven flame, or poor heat control.
• Fits into the burner valve/manifold assembly and works with the burner head.

• Turn off the gas supply and disconnect power to the appliance before servicing.
• Use correct LP conversion instructions for your appliance and replace only with the specified orifice for LP.
• Hand-start threads, then snug with the appropriate wrench; avoid over-tightening.

Liquid propane

Liquid propane

Liquid propane

The Grate Foot is an OEM part for GE cooking ranges and stovetops. This small but essential component provides stability to the burner grates, preventing them from sliding or wobbling during use. Includes 1 rubber foot that goes on the bottom of stove top grates to protect the stovetop if feet become damaged or lost. Sold individually. Order as needed. If you also need an adhesive, order W10841140.

Symptoms of a bad grate foot include:

• Grates that move or wobble when touched
• Scratches or damage to the stovetop surface beneath the grates
• Unstable cookware positioning, potentially leading to spills or uneven cooking

Causes of damage to the grate foot often include regular wear and tear, heat degradation, or impact from heavy pots and pans being dropped or dragged across the grate.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-hand main top gasket seals and cushions the cooktop's right edge. It helps keep spills and debris out of the chassis and keeps the main top seated securely without rattles or metal-on-metal contact.

• Creates a seal between the main top and side frame on the right-hand side
• Helps prevent liquids and crumbs from entering the cabinet beneath the top
• Reduces vibration and rubbing for a quieter, more secure fit
• Replace if torn, flattened, missing, or no longer stays in place
• Common signs: visible gap on the right edge, top not sitting flush, rattling, or spills leaking below

• Disconnect power; shut off gas and allow the surface to cool completely
• Raise or remove the main top per your model's service instructions
• Remove the old gasket and residue; clean and dry the mating surface
• Position the new gasket on the right side; avoid stretching, press firmly, then reassemble and verify alignment

This maintop gasket seals the left side of the range cooktop to the chassis, helping contain spills and fumes and ensuring a snug, stable fit. Replace a worn gasket to restore a clean seal and easier cleanup. What it does:

• Seals the left edge of the cooktop/main top to the range body
• Helps contain spills and moisture to prevent leaks below the top
• Maintains proper fit and reduces vibration or rattling
• Replaces torn, flattened, or missing gasket along the left side

• 1 left-hand maintop gasket

• Disconnect power; for gas models, also shut off gas. Allow all surfaces to cool.
• Lift or remove the maintop to access the gasket channel.
• Remove the old gasket and residue. Align the new gasket on the left side without stretching; press fully into place.
• Reassemble and verify an even seal before returning the appliance to service. Use cut-resistant gloves—sheet metal edges can be sharp.

This maintop gasket seals the top maintenance panel on over-the-range units to help keep grease, steam and cooking residue out of internal cavities. Replacing a worn gasket restores a snug seal and helps prevent odors and buildup. What it does:

• Seals the maintop/upper cavity to limit grease, steam and debris from entering internal components
• Helps reduce rattling or gaps caused by a deteriorated or compressed gasket
• Maintains intended airflow paths and helps keep the oven/microwave interior cleaner
• Common symptom: visible wear, cracks or a compressed gasket edge allowing leakage or noise

• One maintop gasket

• Disconnect power to the appliance before starting any work
• Access usually requires removing the maintop/upper cover—keep fasteners organized
• Clean mating surfaces before installing the new gasket and press into place per OEM alignment; avoid stretching the gasket
• If adhesive or clips are used, replace only with the correct part number to ensure a proper fit

This inner oven door glass is a replacement inner-pane that restores visibility and helps contain heat inside the oven cavity. It fits into the oven door assembly and replaces damaged or cracked inner glass for safe, functional use. What it does:

• Replaces cracked, broken or fogged inner oven door glass to restore clear viewing of the cooking chamber
• Helps maintain proper heat containment when installed correctly
• Works with the oven door assembly to preserve insulation and door integrity
• Reduces heat transfer to the outer door surface when used as part of a complete door repair

• Allow the appliance to cool and disconnect power before starting any repair
• Handle glass carefully; wear cut-resistant gloves and eye protection
• Installation typically requires removing the oven door and disassembling the door panels.

This small cooktop gasket seals and cushions the edge of a stovetop glass or ceramic surface to help keep out spills and debris and reduce vibration. It restores a proper seal around the cooktop for safer, cleaner operation. What it does:

• Provides a protective seal between the cooktop and surrounding trim or countertop
• Cushions the cooktop edge to reduce glass-to-frame contact and rattling
• Helps prevent food, liquid and debris from entering gaps under the cooktop
• Can reduce moisture-related issues around the cooktop perimeter

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove the cooktop or trim to access the gasket channel
• Clean and dry the mounting surface before installing the new gasket for best fit
• Press the gasket into place evenly; replace any retaining clips or hardware removed during disassembly

D burner

H Burner

B Burner

C burner

The Top Burner Igniter is an OEM part for GE gas ranges. It is responsible for igniting the gas to create a flame for cooking on the stovetop burners.

Over time, igniters can degrade due to repeated use, exposure to high temperatures, or buildup of food particles and grease. A malfunctioning igniter can prevent the burner from lighting properly, affecting the cooking performance of the range.

Symptoms of a bad Top Burner Igniter include:

• Burner not lighting
• Delayed ignition or clicking sounds without ignition
• Weak or inconsistent flame
• Smell of gas without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Approx 4 inches in diameter

Approx 1-1/2 inches in diameter

Approx 2-1/2 inches in diameter

This surface element limiter switch monitors burner temperature and opens the circuit if it overheats. It helps regulate element cycling for consistent cooking performance and, on many models, feeds the hot-surface indicator light.

• Monitors the surface element's temperature and interrupts power if overheating is detected
• Helps regulate element cycling to maintain safe operating temperatures
• Interfaces with the hot-surface indicator light on many models
• Common symptoms of a failed limiter: surface element won't heat, cycles off too soon, uneven heating, or hot-surface light stuck on or off

• Disconnect power at the breaker before servicing
• Access and mounting vary by model; typically installed at the surface element beneath the cooktop
• Transfer wires one at a time to the matching terminals; ensure snug connections
• Reinstall so the sensor face/clip contacts the element or bracket as originally positioned to ensure proper temperature sensing

Approx 3 inches in diameter

This is a replacement top burner spring that secures the burner head and helps maintain stable alignment for reliable ignition and even flame. Restores proper seating for many gas cooktop burner assemblies. What it does

• Holds the burner head/assembly in place so the cap and burner stay aligned
• Helps ensure consistent spark/ignition by keeping electrode and burner properly positioned
• Prevents burner wobble or uneven seating that can cause poor heating or flame irregularities
• Small metal coil designed for use with compatible gas cooktop top burner assemblies

• One top burner spring

• Disconnect power and shut off the gas supply before attempting any service; allow the appliance to cool completely.
• Remove burner grates and caps, then replace spring in the burner base per your model's service instructions.
• Use basic hand tools; keep parts organized and avoid damaging electrodes or gas fittings.

Includes the natural gas orifice

Includes the natural gas orifice

Natural gas

This spark module controls ignition for your range's surface burners. When you turn a burner knob, it generates the high-voltage spark the electrodes need to ignite the gas quickly and consistently.

• Generates high-voltage pulses to the surface igniters to light the burner flame
• Activates when a burner switch/knob calls for ignition
• Routes spark output to the cooktop electrodes for reliable lighting
• Common failure signs: no spark on one or more burners, intermittent/weak spark, or continuous clicking

• Unplug the appliance and shut off the gas supply; allow the cooktop to cool
• Access the module per your model (often under the cooktop or behind a rear panel)
• Label and transfer wires one at a time from the old module to the new; ensure a solid ground and secure mounting
• Reassemble, restore power and gas, and test each burner for proper ignition

Note: The part is approximately 4" in diameter.

Small

Note: The part is approximately 2-3/8" in diameter.

Note: The part is approximately 3" in diameter.

The Window Pack Assembly is an OEM part for GE ranges and ovens. It serves as the inner glass component of the oven door, allowing you to observe the cooking process while providing insulation and protection. It consists of an inner glass panel, frame, and seals to ensure proper insulation and prevent heat loss.

Causes of a faulty window pack assembly can include accidental impact, cracks, or damage to the inner glass panel or frame. These factors can compromise the visibility, insulation, and safety of the oven.

Symptoms of a bad window pack assembly may include:

• Cracked or shattered inner glass panel
• Impaired visibility into the oven cavity
• Heat loss or inadequate insulation

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
