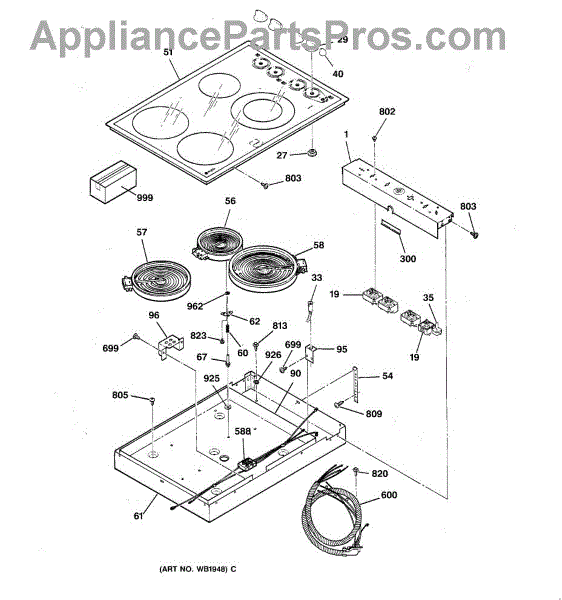

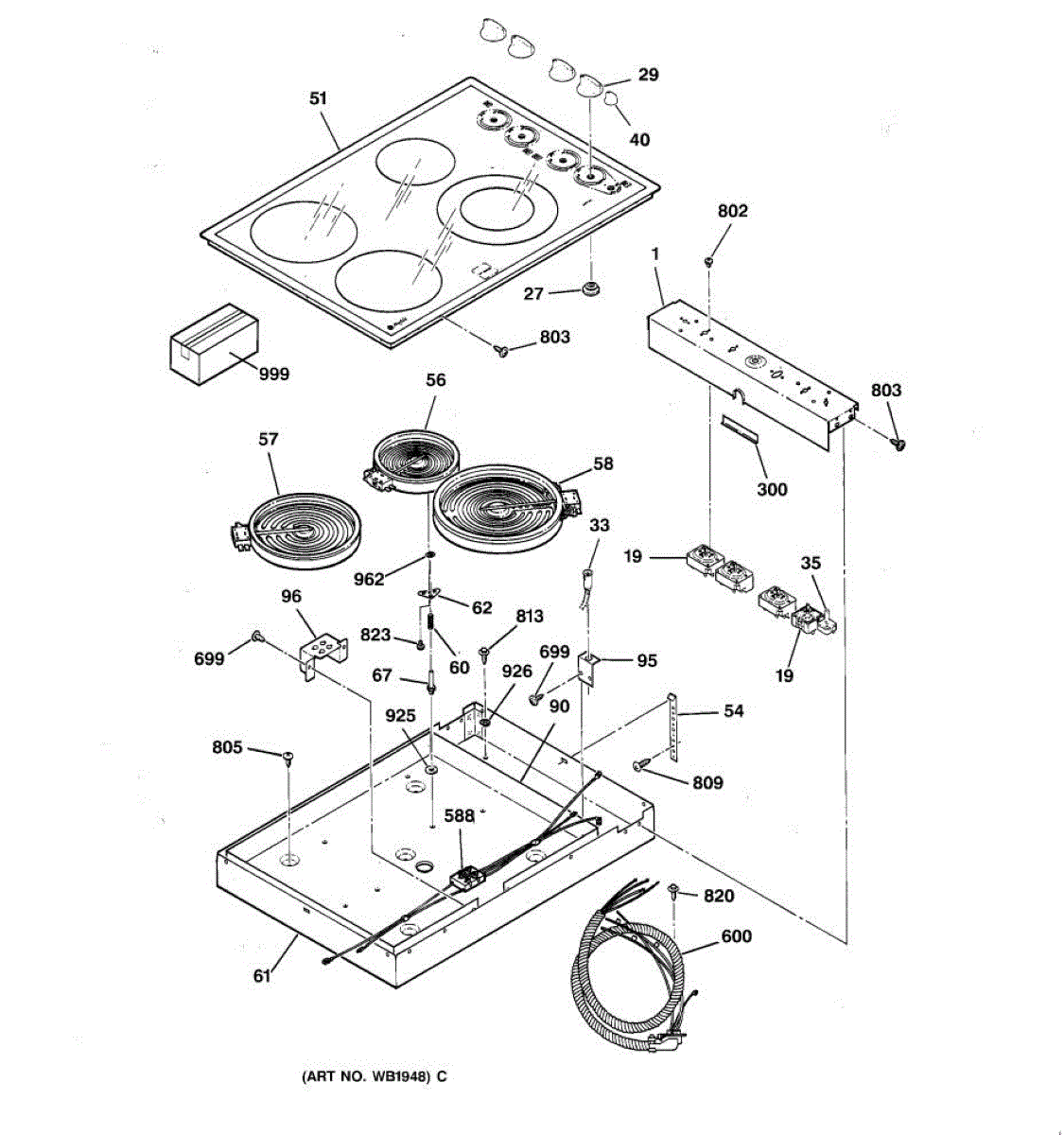

Parts for Ge JP350BV1BB: 01 - Cooktop Parts

1900W Element Control

1200W Element Control

The Infinite Control Switch is an OEM part for GE ranges. It controls and regulates the temperature of the cooktop surface elements.

Causes of a faulty Infinite Control Switch can vary. They may stem from electrical malfunctions or short circuits, mechanical wear due to repeated use, or exposure to moisture or debris.

Symptoms of a bad Infinite Control Switch include:

• Inability to adjust or control the cooktop temperature
• Erratic temperature fluctuations or inconsistent heating
• Complete failure to heat the cooking surface

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This selector switch lets you choose the oven's operating mode from the front control knob. Replacing a worn switch restores reliable mode selection so power is routed correctly to the cooking function you select. What it does

• Connects the control knob to the proper circuit to engage the selected oven function
• Restores consistent operation when the oven won't start or won't stay in certain modes
• Addresses issues like only one function working or intermittent mode changes
• Helps when the knob turns but doesn't change functions or the selector shaft feels loose

• 1 selector switch

• Disconnect power at the breaker or fuse panel before servicing; allow the appliance to cool
• Pull off the control knob and remove the control panel/backguard to access the switch
• Move wires to the new switch one at a time, matching positions (take a photo or label leads)
• Secure the switch, reassemble, reinstall the knob, and test each oven function

This part has been discontinued and we no longer have any in stock.

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

1200 watts

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Radiant Element is an OEM part for GE ranges and cooktops. This part provides efficient and even heating for cooking. This part uses electricity to heat up and transfer warmth directly to the cookware. The radiant element is encased under the glass surface of the cooktop, offering a sleek and easy-to-clean cooking area while ensuring optimal heat distribution and cooking performance.

Causes of failure might include a burnt-out heating coil, damage to the element's electrical connections, or a malfunction within the control system that regulates power to the element.

Symptoms of a bad Radiant Element include:

• The element not heating up, leading to insufficient cooking temperatures.
• Uneven heating, causing inconsistent cooking results.
• The cooktop surface not responding or only partially heating, indicating a possible failure in the element's circuit.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light assembly notifies you when a control or function is active, restoring visible status feedback to your appliance's control panel. It replaces a faded, cracked, or non-working indicator to make settings easy to see. What it does:

• Lights the control panel to show when a function or circuit is on
• Restores visible status for bake/clean/timer or other control indicators
• Replaces dim, cracked, or non-responsive indicator lighting
• Matches OEM fit and function for straightforward replacement

• One indicator light assembly as shown

• Disconnect power (unplug or switch off breaker) before starting repair
• Remove control panel or console per service instructions to access the light
• Handle lens and connectors carefully; avoid forcing terminals to prevent damage
• After installation, restore power and test the control functions to ensure proper operation

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

This flat washer (.250 inch inner diameter x .812 inch outer diameter) is a simple replacement part that helps distribute load from a fastener and protects mating surfaces for reliable appliance operation. What it does:

• Provides a stable bearing surface for screws, bolts or studs to reduce wear on parts
• Helps distribute clamping force to prevent pull-through or deformation of softer materials
• Reduces vibration and movement at the joint when installed correctly
• Missing or damaged washers can lead to loose fasteners, increased vibration or component misalignment

• Disconnect power and water before servicing the appliance
• Replace like-for-like: inner/outer diameters and thickness match the original washer
• Inspect mating hardware and surfaces for damage; replace corroded or deformed fasteners as needed
• Tighten fasteners evenly and avoid over-torquing to prevent washer or component damage

This scraper blade replaces a worn or damaged cleaning scraper to help remove baked-on food and residue from appliance surfaces, restoring the tool used for safer, easier cleanup. Ideal when the existing scraper is dull or broken. What it does:

• Provides a sharp edge to lift and remove stubborn, baked-on spills and residue from glass and smooth appliance surfaces
• Helps restore proper scraping action when the original blade is nicked, bent, or missing
• Reduces the need for excessive scrubbing or abrasive cleaners that can damage surfaces
• Commonly used to address poor cleaning results or an unusable scraper tool

• Disconnect power to the appliance and allow all surfaces to cool fully before handling
• Handle the blade carefully; edges may be sharp—wear cut-resistant gloves
• Replace only the damaged scraper blade; follow OEM instructions for securing the blade if required
• Test scraping action gently after installation to ensure proper fit and avoid surface damage

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
