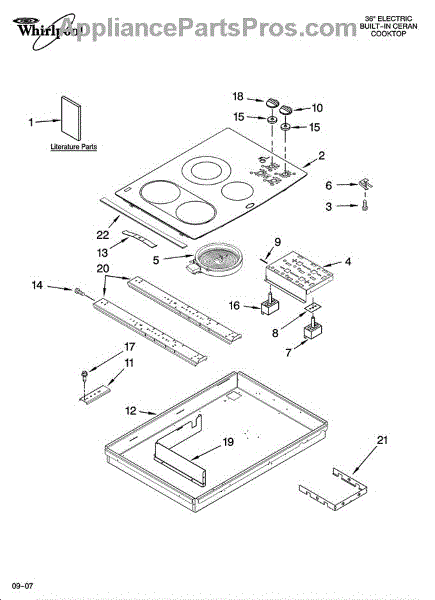

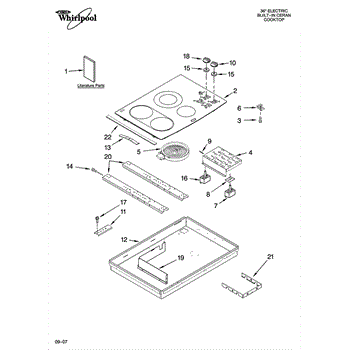

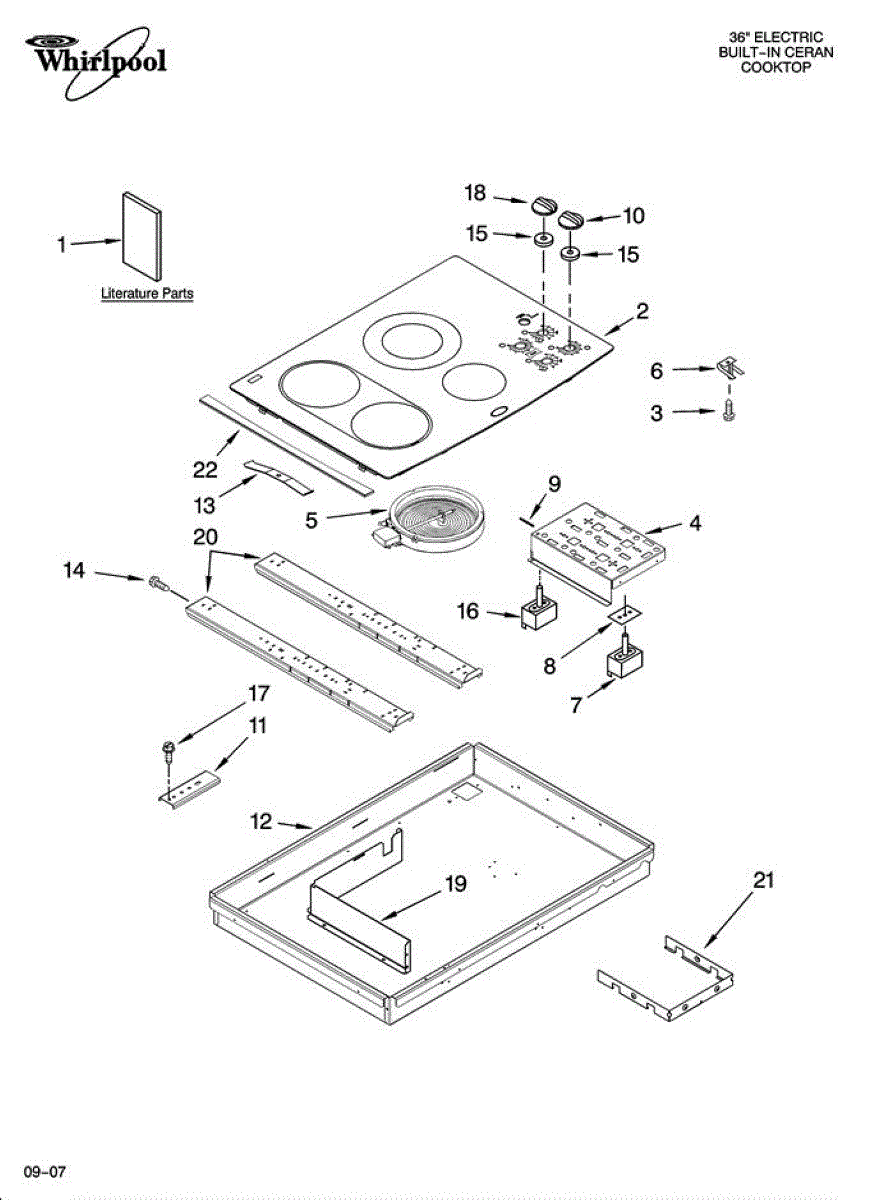

Parts for Whirlpool 8286614: Cooktop Parts

Color: Bisque

Color: White

Color: Black

Size: 6-32 x 3/8 inch.

This surface heating element restores reliable heat to one burner on your electric range or cooktop. Replace a failed element to bring back consistent, controllable cooking performance and eliminate cold spots on the affected cooking zone.

• Supplies heat for a single surface burner on an electric range/cooktop
• Replaces a burned-out, shorted, or damaged element
• Common symptoms: no heat, uneven or intermittent heating, slow to heat, or visible damage/discoloration on the element
• Helps return proper response to the surface temperature control

• Disconnect power at the breaker before servicing; allow the cooktop to cool completely
• Access the element per your model's service manual; support the cooktop and handle components carefully
• Move wires over one at a time to the new element to avoid miswiring; secure mounting as originally installed
• Inspect wiring and terminals for heat damage; repair or replace any compromised connectors before reassembly

The Surface Element is an OEM component for Whirlpool ranges. It is responsible for heating the cooktop surface to the desired temperature selected by the user. Made of durable metal coil construction, the element surface quickly distributes heat evenly across burners to boil, sauté or simmer foods effectively.

Causes of a bad element includes baked-on grime or mineral buildup inhibiting heat transfer or damage due to the use of improper cookware that has cracked or warped the coils over time.

Symptoms of a bad element includes:

• Burners failing to heat up fully or taking a long time
• Inconsistent or uneven heating across coils
• Hotspots or deadzones in cooking areas
• Visible damage like cracks or bends in coil construction

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and Kenmore range models.

The Large Surface Element is an OEM component for Whirlpool ranges. As a key heat source, it withstands significant thermal stresses each use for cooking tasks. This surface element measures approximately 10” in diameter.

Over time, microfractures may accumulate in the ceramic glass from repetitive heating/cooling cycles. Mineral deposits also build up on the surface, reducing heat transfer effectiveness.

Symptoms involve:

• Inconsistent or diminished heat from the designated zone
• Noticeable cracks, clouding or chips in the glass material
• Safety hazards if integrity is lost, exposing electrical/gas

The element is compatible also for select KitchenAid and Maytag appliances.

This replacement tension spring restores proper tension and movement for the linked assembly, helping components return to position and operate smoothly. Designed to match the original spring's shape and function for reliable performance. What it does:

• Provides return tension for moving parts so doors, levers, or linkages operate correctly
• Helps maintain correct alignment and prevents sagging or binding
• Replaces worn or stretched springs that cause sluggish or uneven operation
• Common symptom: assembly won't return to its resting position or feels loose

• One tension spring

• Disconnect power (and water if applicable) before beginning any repair
• Use care handling springs under tension; wear eye protection
• Remove any retaining clips or brackets in the order shown in the service diagram

This infinite switch controls power to a 6-inch surface element on an electric range or cooktop, allowing smooth heat adjustment from low to high. Replace a worn switch to restore consistent burner control and cooking performance.

• Regulates power to a 6-inch surface burner as you turn the knob
• Provides variable heat by cycling power on and off at the selected setting
• Typical failure symptoms: burner won't heat, only heats on high, won't adjust temperature, or won't shut off

• Disconnect power at the breaker before servicing
• Pull off the control knob and access the switch from the control panel; note/take a photo of wire locations
• Transfer wires to the new switch one at a time to match terminals; mount the switch and reinstall knob/panel
• Restore power and test the 6-inch burner through all settings

This is the variable heat control for an 8-inch surface element. When the switch fails, the burner may stop heating, stay on high, or lose precise temperature control—replacing it restores smooth, adjustable cooking performance. What it does:

• Regulates power to the 8-inch surface element for variable heat settings
• Common symptoms: burner only on high, no heat, won't shut off, or won't adjust temperature
• Restores proper cycling of the element for consistent heating
• Matches the 8-inch element position designated on the appliance

• 1 surface burner infinite switch

• Disconnect power at the breaker before servicing
• Remove the control knob and access the switch from the control panel/rear panel
• Transfer wires one at a time from the old switch to the same terminals on the new switch
• Secure the switch, reinstall panels/knob, and test the 8-inch burner operation

The Infinite Switch is an OEM part for Whirlpool ranges and cooktops. It controls the heat levels of the surface burners, allowing for precise temperature adjustments during cooking.

Causes of a bad infinite switch can include electrical malfunctions, wear and tear from frequent use, or exposure to high temperatures. These issues can impair the switch’s ability to regulate the burner’s heat levels accurately.

Symptoms of a bad infinite switch include:

• Inability to adjust burner heat levels
• Burners not heating up or staying on high heat regardless of settings
• Burners not turning on at all
• Sparks or unusual noises when adjusting the switch

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This white control knob replaces a worn, cracked or missing control knob so you can reliably select settings on your appliance's control shaft. It provides a clean, easy-to-grip interface for adjusting temperature or function settings. What it does:

• Fits onto a splined control shaft to allow selection of settings or temperatures
• Restores secure, tactile rotation when the original knob is loose or damaged
• Eliminates slipping or inability to turn the control caused by broken knobs
• Helps prevent accidental changes by providing a proper grip and stop alignment

• Disconnect power (and gas if applicable) before servicing the appliance for safety
• Pull the old knob straight off the control shaft; align splines and push the new knob on until fully seated
• Do not force the knob; if it does not fit easily, confirm spline type and orientation
• After installation, restore power and verify proper control operation

This black surface element control knob fits the burner's infinite switch, letting you turn the element on/off and set heat levels. Replace cracked, stripped, or missing knobs to restore safe, reliable control of your cooktop settings.

• Attaches to the infinite switch shaft to control a surface heating element
• Provides on/off and variable heat selection
• Replace if the knob is cracked, stripped, missing, or no longer engages the shaft
• Helpful when the control is hard to turn, wobbly, or can't be reliably set to Off

• Turn the appliance off and disconnect power before servicing
• Ensure the control is in the Off position
• Pull the old knob straight off the switch shaft; align the new knob with the shaft and press until fully seated
• Do not force; apply even pressure and verify proper alignment

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This replacement knob grommet cushions and centers a control knob on the console, helping reduce wobble and protect the panel from wear for smoother, more secure knob operation. What it does

• Centers and cushions the control knob for proper alignment and tactile feel.
• Helps reduce knob wobble, rubbing, and wear on the control panel.
• Can address symptoms like loose, uneven-feeling, or noisy knobs when turning.
• Fits the knob mounting on compatible Whirlpool control panels for a restored fit.

• Disconnect power to the appliance before servicing.
• Remove the control knob, press the grommet into the panel opening, then reinstall the knob; generally requires no special tools.
• Inspect the knob and shaft—replace if damaged, as a damaged shaft can prevent a secure fit.
• Reconnect power and confirm proper knob alignment and operation after installation.

A rotary selector switch that accepts the control knob and routes user selections to the appliance control circuitry, restoring reliable selection of functions and settings when the original selector fails or becomes intermittent. What it does:

• Routes electrical signals from the control knob to the appliance control board so selected functions or settings engage properly.
• Common symptoms indicating replacement: knob won't turn or stays between positions, settings do not change, or selector works intermittently.
• Replaces a worn, damaged, or non-responsive selector to restore consistent user control.
• Designed for panel-mounted installation where the knob mates to the switch shaft.

• Disconnect power (unplug or shut off circuit breaker) before attempting any service.
• Access typically requires removing the control panel or console; keep screws and fasteners organized.
• Match the switch orientation and connector pattern to the removed part; do not force connectors.
• After installation, restore power and test all selector positions for correct function before reassembling fully.

This replacement knob controls the AccuSimmer surface burner on select ranges/cooktops. It restores smooth, accurate setting selection—including delicate simmer—when the original knob is cracked, stripped, loose, or missing.

• Provides user control to turn the burner on/off and set heat levels, including low AccuSimmer settings
• Common symptoms: cracked or missing knob, loose or free-spinning fit, or worn markings that make settings hard to read
• Helps restore proper feel, alignment, and readability at the burner control
• Note: A damaged or deformed valve stem will prevent proper operation even with a new knob

• Disconnect power and shut off gas before servicing
• Pull the old knob straight off the stem; align the new knob with the stem and press straight on until fully seated
• Ensure both the valve and the new knob are set to Off before installation
• Do not force; if resistance is excessive, inspect the valve stem for damage

This replacement knob controls the AccuSimmer surface burner on select ranges/cooktops. It restores smooth, accurate setting selection—including delicate simmer—when the original knob is cracked, stripped, loose, or missing.

• Provides user control to turn the burner on/off and set heat levels, including low AccuSimmer settings
• Common symptoms: cracked or missing knob, loose or free-spinning fit, or worn markings that make settings hard to read
• Helps restore proper feel, alignment, and readability at the burner control
• Note: A damaged or deformed valve stem will prevent proper operation even with a new knob

• Disconnect power and shut off gas before servicing
• Pull the old knob straight off the stem; align the new knob with the stem and press straight on until fully seated
• Ensure both the valve and the new knob are set to Off before installation
• Do not force; if resistance is excessive, inspect the valve stem for damage

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This right-side cooktop trim wing restores the finished edge on a Ceran-style glass cooktop, improving appearance and protecting the cooktop edge from spills and chips. Fits the right-hand side of the cooktop trim assembly. What it does:

• Replaces a damaged or worn right-side trim wing to restore a tight, finished cooktop edge
• Helps prevent debris and liquids from getting under the cooktop glass
• Improves the overall look of the cooktop by matching the factory trim
• Works as part of the cooktop trim assembly for a proper fit and seal

• One right-side cooktop trim wing

• Recommended for technicians or experienced DIYers; verify part fits your exact cooktop before installing
• Remove power to the appliance before beginning work to avoid shock or injury
• Handle glass cooktop components carefully to avoid chipping or cracking
• Use factory fasteners and follow the manufacturer's disassembly/reassembly sequence for proper fit
