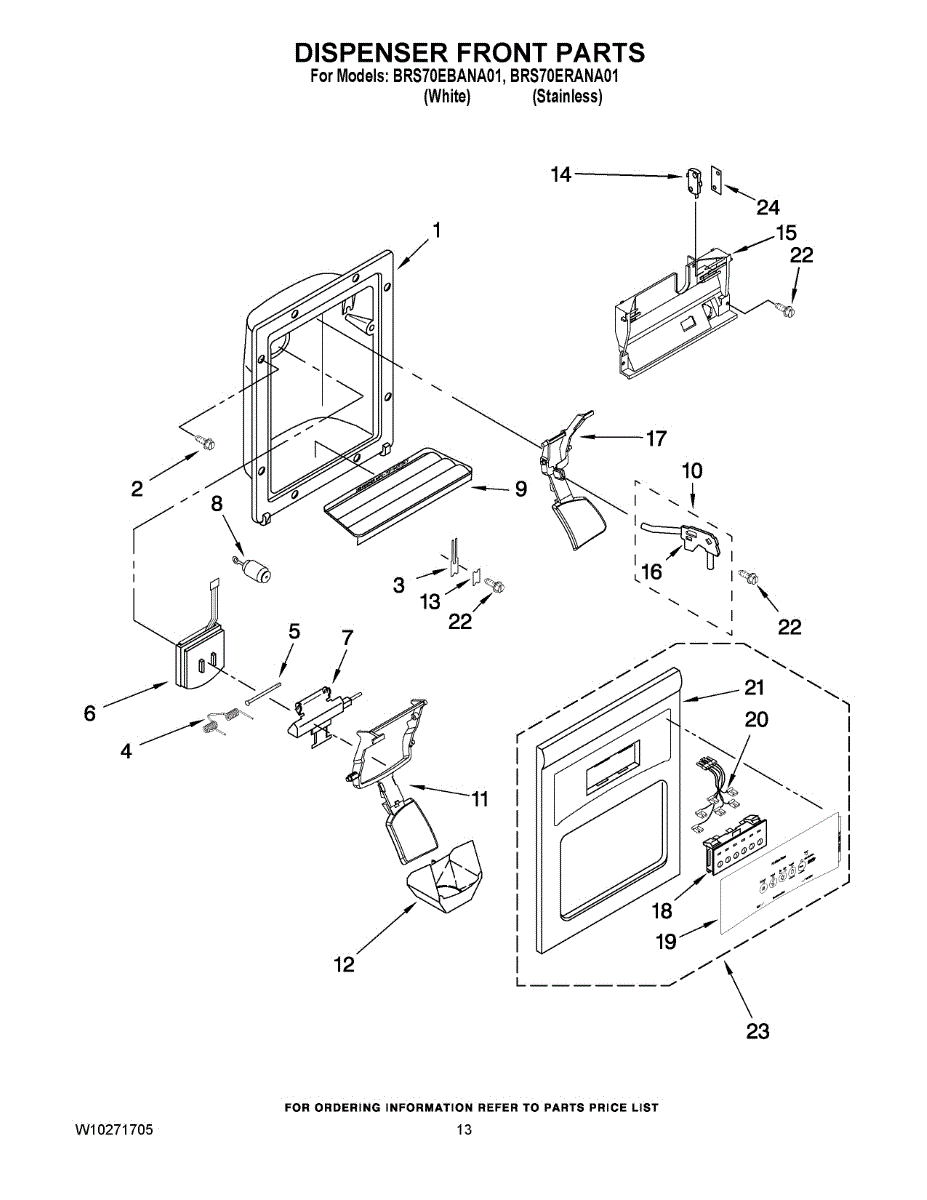

Parts for Whirlpool BRS70EBANA01: 08 - Dispenser Front Parts

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Dispenser Lever Retainer is an OEM part for Whirlpool refrigerators. It secures the dispenser lever, which allows for the proper dispensing of water or ice when activated.

Causes of a bad dispenser lever retainer can include physical damage from repeated use, breakage due to accidental impact, or general wear and tear over time.

Symptoms of a bad dispenser lever retainer include:

• The dispenser lever feeling loose or wobbly
• Difficulty in dispensing water or ice
• The lever not returning to its original position after use
• Unusual noises when using the dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the complete ice door kit order W10823377.

The Dispenser Door Pin Kit is an OEM part for Whirlpool refrigerators. This kit includes the pins that secure the dispenser door, allowing it to open and close smoothly when dispensing ice or water.

Causes of a bad dispenser door pin kit can include normal wear and tear, breakage from frequent use, or damage due to mishandling.

Symptoms of a bad dispenser door pin kit include:

• The dispenser door not opening or closing properly
• Leaks or drips from the dispenser area
• Loose or misaligned dispenser door
• Difficulty in dispensing ice or water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

The Dispenser Overflow Grille is an OEM part for Whirlpool refrigerators. This grille sits below the water and ice dispenser on the refrigerator door, catching any spills or overflow to keep the area clean and prevent water from dripping down the refrigerator. For Black order 2206670B, for Bisque order 2206670T

Causes of a bad dispenser overflow grille can include repeated exposure to water, impact damage, or general wear and tear.

Symptoms of a bad dispenser overflow grille include:

• Cracks or visible damage to the grille
• Water not being effectively caught, leading to drips and spills on the refrigerator door
• Discoloration or staining of the grille

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This ice dispenser lever is the white paddle your glass presses to activate the refrigerator's ice dispenser. Replace a cracked or worn lever to restore smooth dispensing and keep the dispenser area looking clean and finished.

• Activates the internal dispenser switch to release cubed or crushed ice
• Provides the user-facing paddle at the dispenser opening
• Common symptoms: ice won't dispense when pressed; lever is cracked, loose, sticking, or doesn't return; visible wear or discoloration
• Also referred to as the ice dispenser paddle/actuator

• Unplug the refrigerator before servicing
• Remove the drip tray and dispenser trim/escutcheon; carefully release retaining clips and any wiring connectors
• Transfer and reuse existing hardware (spring, hinge pin, screws) from the original lever if required
• Align the lever with the switch actuator and test operation before reinstalling the trim

The Ice Dispenser Guide is an OEM replacement part for Whirlpool brand refrigerators. These brands also include Maytag, KitchenAid, Norge, Roper, Estate, and Kenmore models. It directs ice from the ice bucket to the dispenser chute. It helps to prevent jams by guiding the ice through the dispenser system smoothly and evenly.

You should replace the ice dispenser guide if you notice any signs of wear or damage, such as cracks or warping. A damaged dispenser guide can cause ice jams or blockages. This can prevent ice from dispensing properly or create excessive noise or vibration during the dispensing process.

Get yours today and restore proper ice dispensing function and prevent future issues with the ice dispenser system.

The Dispenser Arm Strain Relief is an OEM replacement part for Whirlpool side-by-side refrigerators. It connects the water and ice dispenser arm to the fridge cabinet, absorbing tension during use.

Causes of a bad strain relief involve wear and flexing fatigue of the plastic over extensive dispensing cycles. Exposure to moisture or liquid damage inside the fridge liner may prematurely degrade connecting parts as well.

Symptoms of a bad strain relief include:

• Cracks, splits, or tears in the relieving plastic material
• Dispenser arm separation from the cabinet opening
• Missing pieces that compromised structural integrity
• Difficulty accessing or using the refrigerator's water/ice functions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerator models.

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Control Bracket is an OEM part for Whirlpool refrigerators. It serves as a foundational component within the refrigerator's control panel, securing and supporting various controls and electrical components.

Causes of a bad Control Bracket can include physical damage from impact or excessive force, corrosion due to moisture or chemical exposure, and general wear and tear over time. A compromised control bracket can lead to misalignment of control components, difficulty in setting controls, or even failure of the refrigerator to respond to control inputs properly.

Symptoms of a bad Control Bracket include:

• Loose or unresponsive controls
• Difficulty adjusting refrigerator settings
• Visible damage or warping of the bracket
• The refrigerator not maintaining set temperatures correctly

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This water tube bracket secures the refrigerator's water supply tube along the cabinet or door route. Replacing a damaged bracket helps prevent kinks and leaks and maintains reliable water flow to the dispenser and icemaker.

• Holds and guides the water tube so it stays correctly positioned
• Helps prevent kinks, rubbing, and vibration that can lead to leaks
• Supports consistent water flow to the dispenser and icemaker
• Typical signs of failure: cracked or missing bracket, tube slipping or dangling, recurring kinks, dampness/leaks along the tubing path

• Unplug the refrigerator and shut off the water supply before servicing
• Access the bracket location (often in a hinge or cabinet routing area; varies by model)
• Release the tube, remove the old bracket, and install the new bracket; reuse existing hardware
• Restore water and power, purge air from the line, and check for leaks and dispenser/ice operation

This replacement dispenser lever restores proper operation to a refrigerator water dispenser so you can reliably access water without using a damaged or worn lever. Fits the dispenser assembly and provides a stable push surface. What it does

• Replaces a cracked, loose, or broken water dispenser lever so the dispenser paddle responds correctly.
• Helps stop sticking or uneven travel that prevents the valve from activating.
• Restores proper alignment with the dispenser bezel and actuator for consistent operation.
• Suitable when the lever is worn, chipped, or no longer returns smoothly.

• One dispenser lever

• Basic hand tools typically required; avoid forcing plastic tabs to prevent breakage.
• Disconnect power to the appliance and turn off the water supply before replacing parts that interact with the dispenser valve.
• Handle the new lever carefully to avoid damaging mounting clips; test function gently after installation.

The Water Dispenser Lever (White), is an OEM part for Whirlpool refrigerators. This lever activates the water dispensing mechanism, allowing users to easily dispense water from the refrigerator.

Causes of a bad water dispenser lever can include wear and tear from frequent use, accidental breakage, or mechanical issues within the dispensing system.

Symptoms of a bad water dispenser lever include:

• The lever not engaging or dispensing water
• Difficulty in pressing the lever
• The lever feeling loose or broken
• Water not being dispensed when the lever is pressed

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This 6-position switch assembly replaces a worn or damaged selector switch to restore reliable electrical switching for the appliance control. It helps recover proper cycle selection and responsive control inputs for normal operation. What it does:

• Routes power between control circuits so selected cycles and settings engage correctly.
• Restores reliable selector/position switching when the control won't change settings.
• Common symptom when failing: appliance is unresponsive to cycle changes, selections don't register, or operation is intermittent.
• Matches the OEM switch function used in the control/timer area of compatible units.

• Disconnect power to the appliance before beginning any service to avoid shock hazard.
• Remove required panels or the control console to access the switch; keep track of screw locations and wire connections.
• Photograph or label wiring before disconnecting to ensure correct reassembly.

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
