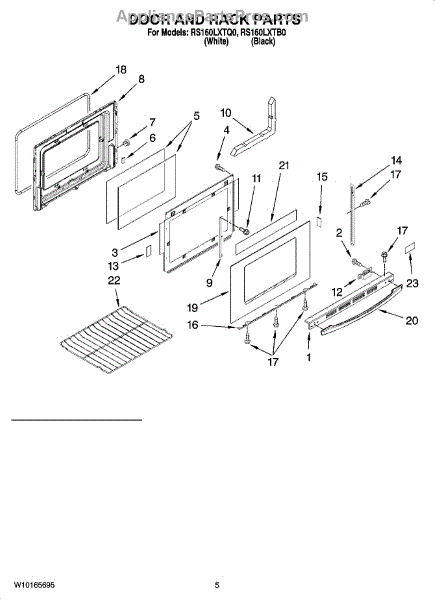

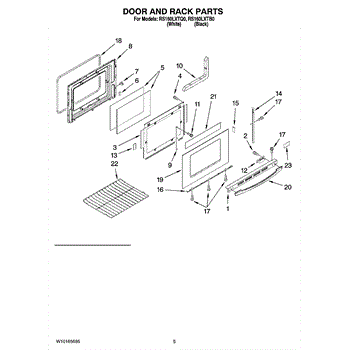

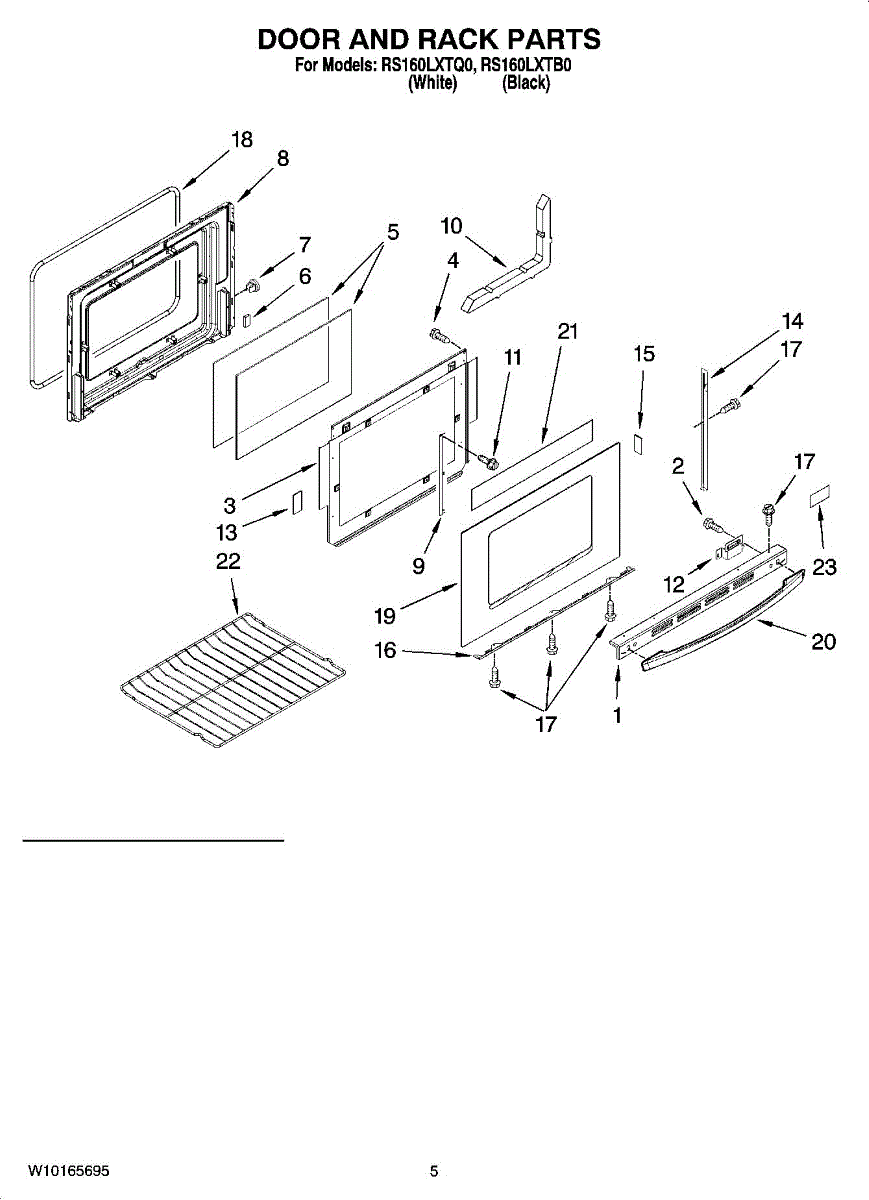

Parts for Whirlpool RS160LXTB0: 04 - Door And Rack Parts, Optional Parts (Not Included) Parts

This oven door trim is the outer decorative frame that restores the door's finished appearance and helps protect internal components from spills and grime. It's a direct-replacement exterior trim piece for compatible Whirlpool ovens. What it does:

• Replaces damaged, dented, or scratched outer door trim to restore the oven's appearance
• Helps shield the inner door assembly from food, grease, and splashes
• Maintains the proper fit and alignment of the oven door exterior
• Can improve sealing appearance around the door perimeter when installed correctly

• One outer oven door trim piece

• Remove power to the appliance and allow the oven to cool completely before servicing
• Installation typically requires removing the oven door or inner trim; follow factory service instructions
• Use care to avoid scratching the new trim and to retain all original fasteners unless replacements are specified

The Oven Door Panel Screw is an OEM replacement part for Whirlpool ovens and ranges. It is a component used to fasten the outer panel to the interior metal door frame.

Causes of a bad oven door panel screw can include normal wear from repeated opening and closing of the door, damage such as stripped threads from overtightening, or corrosion over time inhibiting its fastening function.

Symptoms of a bad oven door panel screw include:

• The outer panel becoming loose, wobbly, or detached
• Gaps appearing around the door seam
• Scratches or other damage to the door panel
• Reduced insulation quality of the door assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black. Round

This glass mounting bracket secures the oven door glass to the door frame, restoring a stable, properly aligned door and helping prevent rattling or loose glass. Designed to replace a worn, broken, or missing bracket. What it does:

• Holds the oven door glass in place so the door closes and seals correctly
• Prevents glass from shifting, rattling, or coming loose during use
• Restores proper alignment after a cracked, bent, or missing bracket
• Works with the door assembly to maintain safe, reliable operation

• Disconnect power to the appliance before beginning any repair; allow surfaces to cool.
• Handle glass carefully and wear cut-resistant gloves and eye protection.
• Replacement typically requires partial door disassembly; keep fasteners organized for reassembly.
• Tighten fasteners securely but avoid over-torquing; inspect surrounding clips and gaskets while installing.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This mounting bracket secures internal appliance components to the cabinet or frame, restoring stable support and proper alignment for the attached assembly. It's a direct-fit replacement when the original bracket is bent, broken, or missing. What it does:

• Provides a solid attachment point to keep components aligned and secure
• Prevents vibration, rattling, or movement caused by a damaged or missing bracket
• Restores correct positioning for connected parts so they operate reliably
• Helps maintain sealing and clearance by holding panels or assemblies in place

• One mounting bracket as pictured

• Inspect surrounding fasteners and mounting points; replace any stripped screws or clips
• Use the same screw locations and hardware type as the original for proper fit
• Disconnect power and remove any nearby panels before accessing the bracket to avoid injury

Color: White

White

White

Black

White

This glass support helps secure and level the appliance's glass component so it sits correctly and stays stable during use. Replace a worn or missing support to eliminate wobble and protect the glass from stress or damage.

• Supports and cushions a glass panel for proper height and alignment
• Helps prevent rattling, shifting, or uneven gaps
• Maintains stability during heating, cooling, and cleaning
• Typical symptoms: loose or misaligned glass, vibration, or a missing/damaged support

• Disconnect power and allow all surfaces to cool before servicing
• Handle glass carefully; wear cut-resistant gloves
• Match the original orientation/location for "No. 4" and reuse existing fasteners or clips
• Tighten hardware only until snug to avoid stressing the glass

A genuine replacement mounting screw that secures appliance panels and components to restore proper fit and reduce vibration. Use this screw to replace missing or damaged fasteners for a secure, rattle-free repair. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Restores proper alignment and reduces rattling or vibration
• Prevents parts from coming loose during operation
• Works wherever the OEM screw W10828565 is specified

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Install only where the OEM screw is specified; do not overtighten
• Replace any stripped or damaged screws with this exact part

Color: White. For black order WP98008545. For biscuit order 98008169.

The Oven Door Gasket is an OEM part for Whirlpool ovens. This gasket is essential for maintaining a proper seal around the oven door, preventing heat from escaping and ensuring efficient cooking performance. The gasket measures approximately 76.66" in total length with a diameter of about 0.47", it features 25 built-in metal retaining clips.

Causes of a bad oven door gasket can include regular wear and tear, exposure to high temperatures over time, or accidental damage from cleaning or handling. A compromised gasket can lead to heat loss, which affects cooking times and energy efficiency.

Symptoms of a bad oven door gasket include:

• Heat escaping from the oven door
• Longer cooking times
• Visible cracks or tears in the gasket
• The oven door not closing properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

The Oven Rack is an OEM part for Whirlpool ovens. It provides a sturdy and reliable surface for baking and roasting a variety of dishes. Designed to fit perfectly within Whirlpool models, this rack ensures optimal air circulation around the food, contributing to even cooking and browning.

Causes of a bad Oven Rack can include warping or damage from high heat, rusting from moisture exposure, or general wear and tear over time. Misshaping or instability can also result from placing too much weight on the rack or using it inappropriately.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in or out.
• Uneven cooking or baking due to improper leveling of the rack.
• The rack does not fit securely in the oven slots.
• Visible rust or damage, which could potentially contaminate food.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: White. Size: 1/2 oz. Porcelain or evaporator repair kit.

Size: 25ft, 12 Ga. 150 c Black

Specs: 25ft, 14 Ga. 150 c Blue

Specs: 25ft, 14 Ga. 150 c Brown

Specs: 25 ft, 14 Ga., 150 c Green

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Orange 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Yellow 14 Ga. 150~c)

Splicing 25 Ft. Black 12 Ga. 150~c (Wire, Red 14 Ga. 200~c)

Color: White. Size: 1 qt. can. Acrylic appliance paint.

Color: Biscuit. Size: 1 qt. can uncut. Enamel paint.

Specs: 25ft,14 Ga., 200 c Brown

Made specifically for oven bottoms, this foil helps catch spills in your oven. Perfect for BBQ grills as well.

Color: White. Size: 13 oz. Spray paint primer. can.

Color: Biscuit. Size: 13 oz. can. Enamel spray paint.

The Oven Liner Touch Up Paint is an OEM part for Whirlpool ovens. This 2 oz warm white touch-up paint is designed to cover minor scratches, chips, and blemishes on the oven liner, restoring its appearance and protecting it from further damage.

Causes of a bad oven liner include exposure to high temperatures, accidental impacts, and abrasive cleaning materials, which can lead to scratches, chips, and discoloration. Over time, these imperfections can worsen, making it necessary to use touch-up paint to maintain the oven liner’s integrity.

Symptoms of a bad oven liner include:

• Visible scratches or chips on the oven interior
• Discoloration or fading of the liner
• Increased difficulty in cleaning the oven liner
• Potential rust or corrosion in affected areas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. Size: 12 oz. Acrylic appliance aerosol can spray paint.

Color: White. Size: 2 oz. can. Porcelain touch-up paint.

Bottle with brush. Color: Biscuit paint. It's point-six fluid ounces.

Size: 10 fl. oz. Used on glass, ceramic and porcelain cooktops.

Size: 10-24X5/16-NI

The Appliance Touchup Paint is an OEM product for Whirlpool appliances. This touchup paint is used to cover scratches, chips, and minor blemishes on the surface of various appliances, helping to maintain their appearance and protect them from rust and other damage. It is specifically formulated to match the original color and finish of Whirlpool appliances, ensuring a seamless repair.

Causes of needing touchup paint include everyday wear and tear, accidental impacts that cause chipping or scratching, and exposure to harsh cleaning chemicals that can damage the finish. Regular use of touchup paint can help keep appliances looking new and extend their lifespan.

Symptoms indicating the need for Appliance Touchup Paint include:

• Visible scratches or chips on the appliance surface
• Areas of exposed metal prone to rust
• Blemishes that affect the overall aesthetic of the appliance

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White. Size: 13 oz can. Acrylic appliance aerosol can spray paint.

The Appliance Spray Paint is an OEM part for Whirlpool appliances, designed to provide a quick and effective way to touch up or completely refinish the exterior of various appliances. This specialty spray paint is formulated to adhere to metal surfaces, offering a durable and resistant finish that can withstand the routine wear and tear of kitchen environments, including heat, moisture, and everyday use.

The primary reason for using such a specialized paint is to maintain or restore the aesthetic appeal of your appliances while protecting them from further damage.

Symptoms needing for Appliance Spray Paint include:

• Scratches, chips, or rust spots on the appliance's exterior that can lead to further damage or corrosion if left untreated
• A desire to refresh or update the appearance of the appliance without the need for complete replacement
• Discoloration or fading of the original finish due to age, exposure to sunlight, or cleaning agents

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Oven Insulation is an OEM replacement part for Whirlpool ranges. Properly insulated walls are necessary to prevent heat loss through the oven exterior, ensuring consistent and even cooking from the inside out.

Causes of bad insulation include the breakdown of insulating materials over time due to repeated high heat exposure during cooking. Crumbling, compressed, or discolored insulation has lost its ability to hold in heat.

Symptoms of needing new insulation include:

• Inefficient and uneven cooking/baking performance
• Interiors not reaching/maintaining set temperatures
• Overheating or longer than normal cook times
• Hot or warm oven exteriors that were previously cool to the touch

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
