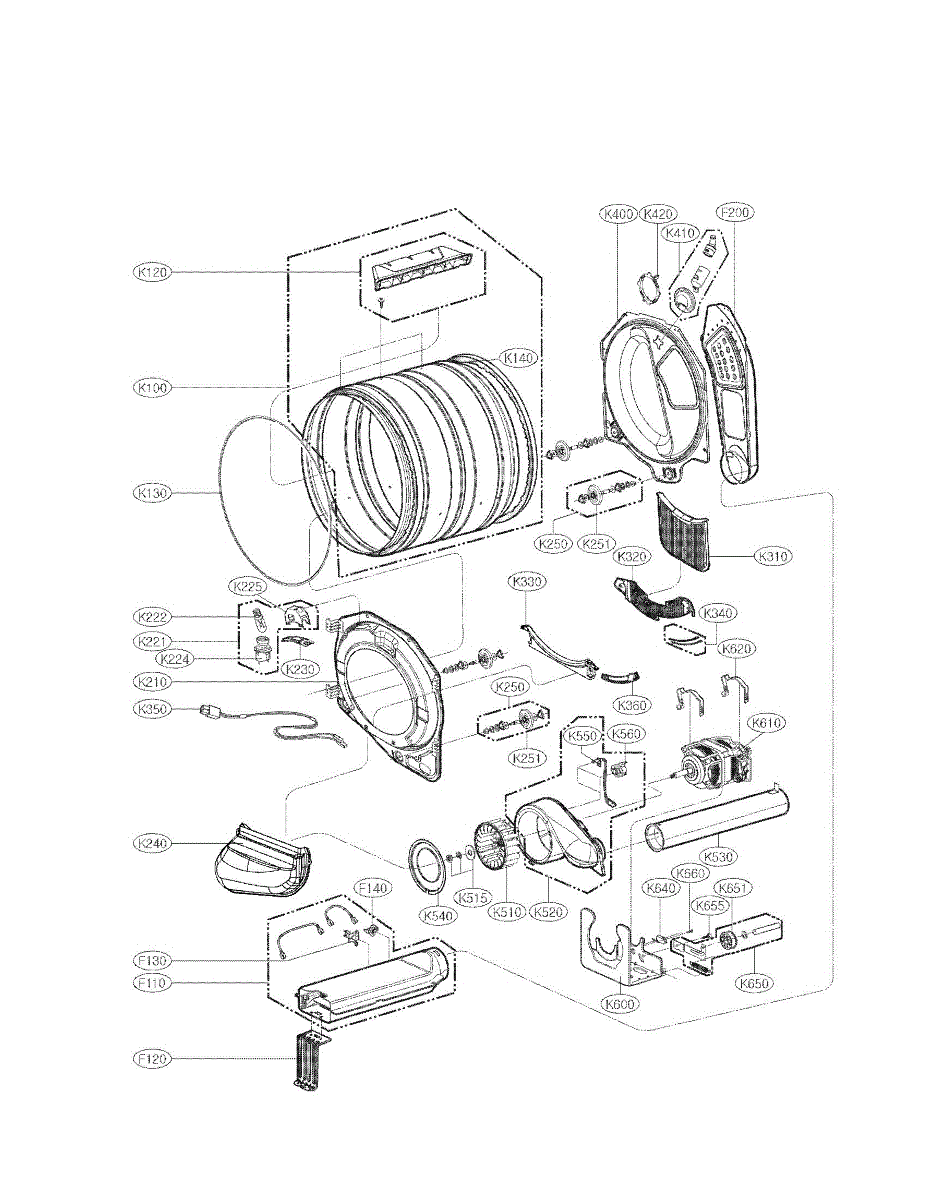

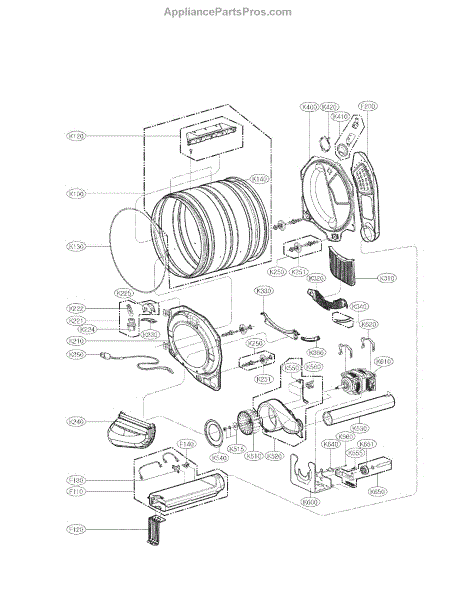

Parts for Kenmore 796.61523210 (79661523210, 796 61523210): Drum And Motor Assembly Parts

The Heater Assembly is an OEM replacement part for LG dryers. It is a critical component responsible for generating the heat necessary for drying clothes efficiently and effectively.

Symptoms of a bad heater assembly:

• Dryer not producing enough heat or failing to dry clothes completely
• Excessive drying times or inconsistent drying performance
• Visible damage or breaks in the heating element coil
• Burning odors or smoke emanating from the dryer during operation

Causes of a bad dryer heater assembly can include mechanical failure, electrical malfunctions, or simply reaching the end of its lifespan due to repeated heating and cooling cycles.

This OEM LG part is also compatible with Sears/Kenmore dryer models.

The Dryer Drum Baffle is an OEM part for LG dryers. This baffle is attached to the inside of the dryer drum and is designed to help lift and tumble clothes during the drying cycle.

Causes of a bad dryer drum baffle can include wear and tear from regular use, physical damage from heavy or sharp objects, or becoming loose due to vibration over time.

Symptoms of a bad dryer drum baffle include:

• Thumping or banging noises during the drying cycle
• Clothes not tumbling properly, leading to uneven drying
• Loose or rattling baffle inside the drum
• Visible damage or breakage on the baffle

This OEM LG part is also compatible with some Kenmore models.

The Belt is an OEM replacement part for LG dryers that is responsible for connecting the motor to the drum to allow it to tumble. Over time, dryer belts can stretch, wear out, or even break, leading to a drum that won't turn and clothes that don't dry properly.

Symptoms of a bad Dryer Belt include:

• The dryer motor running but the drum not turning.
• A squealing or thumping noise coming from the dryer.
• The dryer not starting at all.

Causes of failure can include regular wear and tear from the dryer's operation, overloading the dryer beyond its capacity, which puts extra strain on the belt, or a misalignment that causes uneven wear. A damaged belt can prevent your dryer from functioning correctly, leading to inefficiency in drying clothes and potential motor damage due to unnecessary strain.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Hi Limit Thermal Fuse is an OEM part for LG dryers. This fuse is a safety device that protects the dryer from overheating by cutting off power to the heating element if the dryer’s temperature exceeds a safe limit. It ensures that the dryer operates within safe temperature ranges, preventing potential fire hazards.

Replace the hi limit thermal fuse if it becomes faulty due to wear and tear, a buildup of lint, or exposure to high temperatures over time. A malfunctioning fuse can compromise the dryer’s ability to regulate heat properly.

Symptoms of a bad hi limit thermal fuse include:

• The dryer not heating
• The dryer shutting off unexpectedly during a cycle
• No response from the dryer when attempting to start a cycle
• Extended drying times due to lack of heat

This OEM LG part is also compatible with Sears/Kenmore models.

The Drum Seal is an OEM part for LG dryers. This part ensures a tight seal between the dryer drum and the dryer body, preventing hot air from escaping and maintaining the efficiency of the drying process. A well-functioning drum seal is important for the best dryer performance, contributing to energy efficiency and the prevention of unnecessary wear on clothing during the drying cycle.

Causes of a bad drum seal can range from natural wear and tear over time to overloading the dryer, which can strain and stretch the seal, leading to a poor fit.

Symptoms of a bad Drum Seal include:

• Clothes taking longer to dry
• Increased energy usage due to loss of heat
• Excessive lint and debris outside of the lint filter area
• A noticeable gap between the dryer drum and the dryer body

This OEM LG part is also compatible with some Kenmore models.

The Hi Limit Thermostat Assembly is an OEM part for LG dryers. This thermostat monitors and regulates the temperature within the dryer to prevent overheating, ensuring safe and efficient operation. It acts as a safety device that shuts off the heating element if the dryer exceeds a certain temperature, protecting the appliance and your home from potential fire hazards.

Over time, the hi limit thermostat can fail due to wear and tear, electrical issues, or repeated exposure to high temperatures. If the thermostat becomes faulty, it can lead to improper temperature regulation within the dryer.

Symptoms of a bad hi limit thermostat include:

• The dryer overheating
• The dryer not heating at all
• The dryer shutting off mid-cycle
• Extended drying times due to inconsistent heating

This OEM LG part is also compatible with Sears/Kenmore models.

This sub tub assembly replaces the inner drum housing that supports the wash basket and channels water during cycles. It restores proper drum support and helps stop rubbing, banging, or abnormal noise during operation. What it does:

• Houses and supports the wash basket so laundry tumbles correctly
• Directs wash and rinse water within the washer cabinet
• Prevents metal-to-metal contact that can cause noise or fabric damage
• Helps maintain proper drum alignment and smooth rotation

• Disconnect power and water supply before starting work
• This is a heavy, bulky component — have a helper or use lifting aids
• Inspect and replace any associated seals, gaskets, or bearings as needed

Replacement interior lamp assembly that restores illumination inside your refrigerator so you can see food and shelves clearly. Replaces worn or damaged light units to improve visibility and normal operation. What it does:

• Provides interior lighting so you can find items and check contents easily
• Replaces lamps that are burned out, dim, flickering, or physically damaged
• Sits in the appliance's existing lamp housing and works with the factory socket
• Helps maintain safe visibility when loading, unloading, or organizing the fridge

• Always disconnect power to the appliance before servicing to avoid shock
• Remove food and shelves as needed for safe access to the lamp housing
• Handle the lamp by the housing; avoid touching the light surface or bulb with bare hands

The Light Bulb is an OEM part for LG dryers. This bulb illuminates the interior of the dryer drum, making it easier to see and load or unload laundry, especially in low-light conditions.

Over time, the light bulb can burn out or become damaged due to regular use and exposure to high temperatures within the dryer. Causes of a bad light bulb include normal wear and tear, electrical surges, or physical damage to the bulb.

Symptoms of a bad light bulb include:

• The interior of the dryer remaining dark when the door is opened
• Flickering or dim lighting
• No response from the light even after replacing the bulb

This OEM LG part is also compatible with Sears/Kenmore dryers.

Replacement interior lamp assembly that restores illumination inside your refrigerator so you can see food and shelves clearly. Replaces worn or damaged light units to improve visibility and normal operation. What it does:

• Provides interior lighting so you can find items and check contents easily
• Replaces lamps that are burned out, dim, flickering, or physically damaged
• Sits in the appliance's existing lamp housing and works with the factory socket
• Helps maintain safe visibility when loading, unloading, or organizing the fridge

• Always disconnect power to the appliance before servicing to avoid shock
• Remove food and shelves as needed for safe access to the lamp housing
• Handle the lamp by the housing; avoid touching the light surface or bulb with bare hands

The Cover, Lamp is an OEM part for LG dryers. This component covers and protects the interior lamp inside the dryer, ensuring it stays secure and free from damage while providing illumination inside the drum.

Over time, the lamp cover can become cracked or damaged due to the high temperatures and vibrations within the dryer. It is essential to replace a faulty lamp cover to maintain the proper lighting and protection for the lamp.

Symptoms of a bad lamp cover include:

• The interior lamp not staying in place
• Visible cracks or damage on the cover
• Reduced or blocked light inside the dryer drum
• The cover falling off or becoming loose

This OEM LG part is also compatible with Sears/Kenmore models.

The Roller Kit is an OEM part for LG dryers. This 4 roller kit includes replacement drum support rollers, which are essential for allowing the dryer drum to rotate smoothly during operation. The rollers are designed to provide stable support for the drum, minimizing noise and ensuring efficient drying performance.

Over time, drum rollers can wear out due to continuous use, exposure to heavy loads, or lack of proper lubrication. When the rollers become damaged or worn, they may develop flat spots, lose their smooth surface, or begin to squeak. These issues can lead to improper drum rotation or increased strain on other dryer components.

Symptoms of a bad Roller Kit include:

• Loud squeaking, rumbling, or thumping noises during operation
• The dryer drum not spinning or rotating unevenly
• Excessive vibrations while the dryer is running

This OEM LG part is also compatible with Sears/Kenmore.

The Roller Kit is an OEM part for LG dryers. This 4 roller kit includes replacement drum support rollers, which are essential for allowing the dryer drum to rotate smoothly during operation. The rollers are designed to provide stable support for the drum, minimizing noise and ensuring efficient drying performance.

Over time, drum rollers can wear out due to continuous use, exposure to heavy loads, or lack of proper lubrication. When the rollers become damaged or worn, they may develop flat spots, lose their smooth surface, or begin to squeak. These issues can lead to improper drum rotation or increased strain on other dryer components.

Symptoms of a bad Roller Kit include:

• Loud squeaking, rumbling, or thumping noises during operation
• The dryer drum not spinning or rotating unevenly
• Excessive vibrations while the dryer is running

This OEM LG part is also compatible with Sears/Kenmore.

The Lint Filter is an OEM part for LG dryers. It serves a critical function in trapping lint and debris from clothes during the drying process. Located in the door or top of the dryer, depending on the model, this filter ensures efficient airflow and heat distribution by preventing lint from clogging the dryer vent.

These issues typically arise from normal wear and tear or from not regularly cleaning the filter, which can cause it to become brittle or damaged over time.

Symptoms of a bad Lint Filter include:

• Reduced drying efficiency, leading to longer drying times
• Excessive lint or debris escaping into the dryer vent, which can pose a fire risk
• Visible wear or damage to the filter, such as tears or holes, which can allow lint to pass through

This OEM LG part can also be used on Kenmore/Sears appliances.

Note: Does not include moisture sensor bars. For the moisture sensor bars, order 2 of part# 6500EL3001A.

The Guide Cover is an OEM part for LG dryers. The part allows dust and debris to exit the dryer drum while preventing small clothing items from slipping through.

Causes of a bad Guide Cover can include accumulation of lint and debris that can restrict airflow, physical damage from handling or excessive use, and general wear that can compromise the fit and effectiveness of the cover.

Symptoms of a bad Guide Cover include:

• Increased drying times due to poor airflow.
• Unusual noises from lint hitting the fan or other components.
• Overheating of the dryer.
• Visible damage or misalignment of the cover that affects performance.

This OEM LG part is also compatible with Sears/Kenmore.

The Filter Guide is an OEM part for LG dryers. It plays a pivotal role in guiding and securing the lint filter in place within the dryer. This ensures that lint and other debris are effectively captured during the drying cycle, preventing them from clogging the vent or damaging internal components.

Causes for replacement include physical damage, such as cracks or warping, which can occur from frequent use or accidental mishandling. A malfunctioning filter guide can compromise the dryer's ability to trap lint, potentially leading to overheating, decreased efficiency, or even a fire hazard.

Symptoms of a bad filter guide include:

• Difficulty in inserting or removing the lint filter
• Excessive lint accumulation outside the filter area
• The dryer taking longer to dry clothes or not drying effectively
• Unusual noises or vibrations indicating that debris is bypassing the filter

This OEM LG part is also compatible with some Kenmore models.

The Dryer Moisture Sensor Bar is an OEM part for LG dryers. It plays a critical role in detecting the moisture level of clothes during the drying cycle, enabling the dryer to adjust the drying time automatically. This ensures efficient operation, preventing over-drying, which can damage fabrics and increase energy consumption.

Symptoms of a bad Dryer Moisture Sensor Bar include:

• Clothes remaining damp after a complete drying cycle
• The dryer continually running without stopping
• Inconsistent drying results, with some clothes over-dried and others still wet

Causes of a bad moisture sensor bar can stem from a buildup of lint and fabric softener residue, which insulates the sensor and impairs its ability to accurately detect moisture. Additionally, wear and tear or damage from loading and unloading can affect its functionality.

Regular cleaning and maintenance are recommended to ensure that your LG dryer operates efficiently and preserves the life of your clothes.

This moisture sensor connector assembly links the dryer's sensor bars to the control to monitor fabric dryness and adjust cycle time. Replacing a damaged or loose harness restores consistent Auto Dry operation.

• Connects the moisture sensor bars to the main control for Auto Dry feedback
• Transmits the low-voltage signal used to determine when clothes are dry
• Failure may cause Auto Dry to end too soon, run too long, or deliver inconsistent results
• Typical issues include broken wires, loose/corroded terminals, or a heat-damaged plug

• Disconnect power; if gas, shut off gas supply before service
• Access the moisture sensor area at the front/lint housing
• Match routing and clips, seat terminals fully on the sensor tabs, and secure the connector
• Keep wiring clear of sharp edges and moving parts; reassemble and test a Sensor Dry cycle

The Moisture Sensor Holder is an OEM part for LG dryers. It is designed to securely house the moisture sensor, which detects the moisture level in clothes during drying cycles to adjust drying time and ensure efficient operation.

Causes of a bad moisture sensor holder can include wear and tear from regular use, damage from physical impact, or warping due to exposure to high temperatures.

Symptoms of a bad moisture sensor holder include:

• Inaccurate drying times
• Clothes remaining damp after a cycle
• Dryer running longer than necessary
• Sensor falling out of place

This OEM LG part is also compatible with some Kenmore models.

This is the rear tub drum for the washer's drum assembly; it supports the inner drum and helps keep loads balanced so the washer can tumble and spin properly. Use this part to restore stable drum rotation and reduce rubbing or banging noises. What it does:

• Supports the inner wash basket and maintains proper alignment during spin cycles
• Keeps the drum centered to prevent rubbing against the cabinet or seal
• Helps reduce loud banging, wobbling or excessive vibration during operation
• Works with the tub seals, bearings and suspension to maintain smooth rotation

• One rear tub drum

• Disconnect power and water before beginning any repair
• This is a major drum component; expect to remove the outer cabinet and other assemblies to access it
• Support the inner drum while separating components; bearings, seal and hardware may need inspection or transfer

This steam nozzle assembly directs a fine spray into the dryer drum during Steam/Refresh cycles. Replacing a clogged or cracked nozzle helps restore proper mist distribution and reduces leaks or drips from the nozzle area.

• Channels water from the inlet line into the drum for steam-enabled cycles
• Maintains the correct spray pattern and coverage
• Common symptoms: no mist/steam, weak or uneven spray, dripping, mineral buildup, or leaks around the nozzle
• Can contribute to wet spots if the spray is misdirected or blocked

• Unplug the dryer and turn off the water supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Access is typically near the front bulkhead/drum opening; remove panels as required per model
• Ensure hose seating and clamps are secure; test for leaks after installation

The Blower Wheel is an OEM part for LG dryers. This part circulates air through the dryer drum and out the exhaust vent, ensuring proper airflow for efficient drying of clothes.

Causes of a bad blower wheel can include accumulation of lint and debris, wear and tear over time, or physical damage due to foreign objects entering the blower housing.

Symptoms of a bad blower wheel include:

• Reduced or no airflow from the exhaust vent
• Unusual noises such as rattling or squealing during the drying cycle
• Clothes taking longer to dry or remaining damp
• Overheating or frequent shutdowns of the dryer

This OEM LG part is also compatible with some Kenmore models.

Adapt your gas dryer for propane with this LP conversion kit. It provides the correct orifice and regulator adjustments needed so the burner fires properly on LP fuel, helping ensure safe operation and consistent drying performance after a fuel change.

• Converts a compatible gas dryer from natural gas to liquid propane (LP)
• Helps ensure proper burner flame characteristics on LP
• Appropriate when moving to a home with propane or changing utilities
• Symptoms can include weak heat, improper flame, or sooting

• Disconnect power and shut off gas before servicing
• Installation and regulator/orifice adjustments must be performed per the service manual
• After installation, leak-check all connections and verify proper burner operation
• Do not attempt conversion without the correct kit for your specific model

Blower housing assembly for dryer that channels heated air from the drum to the exhaust. Replaces a cracked or damaged housing to restore proper airflow and help the dryer dry more efficiently and quietly. What it does:

• Channels heated air from the drum to the exhaust and supports the blower wheel.
• Restores airflow when a damaged or cracked housing is restricting ventilation.
• Commonly used to address reduced drying performance and longer dry times.
• Can also resolve unusual rattling or grinding noises coming from the lower front of the dryer.

• Disconnect power (and gas, if applicable) before beginning work; wear eye protection and gloves.
• Remove access panels and disconnect vent/ducting per your model's service instructions to reach the blower housing.
• Inspect the blower wheel and surrounding seals/gaskets while the housing is out; replace damaged components as needed.
• Reassemble all panels and venting securely and test the dryer for proper airflow and operation after installation.

This dryer duct assembly channels air from the drum to the blower and exhaust. Replacing a cracked or warped housing restores proper airflow, helps prevent lint bypass, and supports consistent drying performance.

• Directs and seals airflow between the drum and blower housing
• Helps maintain drying efficiency by minimizing leaks and lint bypass
• Damage or warping can lead to long dry times and reduced airflow
• Signs of failure include visible cracks, melted spots, or air/lint leakage around the duct area

• Disconnect power; for gas models, turn off the gas supply
• Access from the front by removing the top and front panel
• Note fastener locations and any attached brackets/harnesses, then transfer them to the new assembly
• Vacuum lint from internal ducting and verify seals before test run

This guide assembly is a replacement slide guide that helps support and align moving components for smooth operation and reliable engagement. It restores proper tracking and reduces wobble or binding in the mechanism. What it does:

• Provides stable support and alignment for a sliding component to prevent mis-tracking and uneven movement
• Reduces noise, sticking, or binding caused by worn or damaged guides
• Helps maintain proper clearance and engagement of the moving part
• Matches OEM fit and mounting points for direct replacement

• Turn off and unplug the appliance before beginning any repair to avoid electrical shock
• Remove any obstructing panels or components to access the guide
• Inspect mating parts (slides, rails, fasteners) and replace any damaged hardware to ensure correct fit

The Dryer Thermistor is an OEM part for LG dryers, designed to monitor and help regulate the temperature within the dryer by providing feedback to the control board about the temperature inside the drum. This allows the dryer to adjust its heat settings accordingly, preventing overheating and ensuring clothes are dried evenly and safely.

Symptoms of a bad Dryer Thermistor include:

• Clothes not drying properly or taking longer than usual to dry.
• The dryer repeatedly stopping during a cycle.
• Error messages appearing on the dryer's display panel.
• The dryer getting too hot or not heating enough.

Causes of a bad Dryer Thermistor can include a buildup of lint and debris affecting its ability to accurately sense temperature, wear and tear over time, or electrical issues within the dryer's circuitry.

This OEM LG part can also be used on Kenmore/Sears appliances.

The Dryer Blower Thermostat is an OEM replacement part for LG dryers. It plays a role in regulating the operation of the blower motor, which is responsible for circulating hot air throughout the dryer during the drying cycle.

Causes of a bad dryer blower thermostat can include electrical malfunctions, physical damage, or simply wear and tear over time.

Symptoms of a bad dryer blower thermostat include:

• The dryer not heating up properly or taking longer to dry clothes
• The blower motor failing to turn on or running continuously
• Inconsistent or inadequate airflow during the drying cycle
• Error codes or fault indicators related to the thermostat or blower motor

This OEM LG part is also compatible with Sears/Kenmore models.

This metal mounting bracket secures internal components to the appliance frame, restoring proper alignment and reducing movement. Replace a worn or damaged bracket to stop rattling and maintain stable operation. What it does:

• Provides structural support to hold panels, controls, or assemblies in place
• Prevents excess vibration and noise caused by loose parts
• Keeps components aligned for reliable mechanical operation
• Helps maintain safe clearances between moving parts

• Turn off power and unplug the appliance before beginning work
• Use appropriate hand tools; retain any original fasteners unless replacements are specified
• Inspect adjacent parts and mounting points for damage; replace if worn

The Drum Motor Assembly is an OEM part for LG dryers. It serves as the powerhouse that drives the drum, enabling it to tumble clothes during the drying cycle. This essential component ensures your dryer operates smoothly, providing the necessary torque for consistent and efficient drying performance.

Causes of failure might include wear and tear from prolonged use, overload from trying to dry heavy loads, electrical issues like short circuits, or physical damage to the motor components.

Symptoms of a bad Drum Motor Assembly include:

• The dryer drum fails to turn, even though the dryer powers on.
• Unusual noises, such as humming or buzzing, indicating the motor is struggling.
• The dryer stops unexpectedly during cycles or won't start at all.
• Decreased drying efficiency or clothes taking longer to dry due to inconsistent drum speed.

This OEM LG part is also compatible with Sears/Kenmore.

This clamp secures hoses, tubing or wiring to the appliance frame to help prevent rubbing, vibration and routing issues. It restores a solid attachment point so lines stay in place during normal use. What it does:

• Holds a hose, tubing or wire bundle in place to prevent chafing and abrasion
• Keeps components routed away from moving parts and hot surfaces
• Reduces rattling or vibration caused by loose lines
• Helps maintain safe, reliable connections by preventing strain on fittings

• Disconnect power and shut off water before servicing
• Use basic hand tools; avoid over-tightening which can pinch hoses or wires
• Inspect adjacent hoses/wires for wear and replace if damaged
• Take photos before removal to ensure correct reinstallation

This micro switch is a compact, snap-action electrical switch that sends an on/off signal when a lever, latch, or paddle is moved. Replacing a worn switch restores reliable detection and control response for the affected function.

• Converts mechanical movement into an electrical open/close signal to the control
• Commonly used for lever/paddle actuators, latches, or interlock detection within the appliance
• Safe symptom clues: no response when actuated, intermittent operation, or a function stuck on/off
• Physical clues: weak or absent "click" when pressed, heat discoloration or damage at terminals

• Disconnect power before servicing; if the product is connected to a water line, close the supply valve
• Note wire positions and terminal labels (COM/NO/NC); transfer wires one at a time to matching terminals
• Match the actuator orientation and mounting position to the original for proper operation
• After installation, verify continuity with a multimeter and test function before reassembly

The Idler Pulley Assembly is an OEM part for LG dryers. It plays a critical role in the dryer's drum belt tension system, helping to maintain proper tension on the belt so the drum can rotate smoothly during the drying cycle.

Causes of a bad idler pulley assembly can include wear and tear over time, buildup of lint or debris, or damage from an overloaded dryer. A malfunctioning idler pulley can lead to inefficient drying and potential damage to other dryer components.

Symptoms of a bad idler pulley assembly include:

• Squeaking or squealing noises during operation
• The drum not rotating properly or at all
• The dryer stopping mid-cycle
• The belt slipping or breaking

This OEM LG part is also compatible with Sears/Kenmore.

The Dryer Idler Pulley is an OEM replacement part for LG dryers. It is a critical component that helps guide and maintain proper tension on the dryer belt, ensuring efficient transfer of rotational force from the motor to the dryer drum.

Symptoms of a faulty dryer idler pulley include:

• Squeaking or grinding noises coming from the pulley area
• Visible wear, cracks, or damage to the pulley surface
• Slipping or irregular rotation of the dryer drum

Causes of a bad idler pulley can include normal wear and tear over time, exposure to high temperatures or lint buildup, misalignment or improper tracking, or physical damage from impact or foreign objects.

This OEM LG part is also compatible with Sears/Kenmore dryer models.

This replacement screw secures appliance components in their proper position. Use it to restore a tight, rattle-free fit when the original fastener is missing, stripped, or corroded. What it does:

• Fastens brackets, panels, or trim to keep assemblies aligned and secure
• Helps prevent vibration, rattling, and gaps from loose hardware
• Restores proper attachment when a screw is lost, worn, or damaged
• Common symptoms: loose panel/handle, misalignment, rattling, or a missing screw

• Disconnect power; shut off water or gas before service
• Match location to the original; start threads by hand to avoid cross-threading
• Use the correct driver bit; do not overtighten (especially into plastic)
• If the original hole is stripped, repair threads before installing the new screw

This self-tapping screw fastens panels, brackets, and internal components in compatible appliances. Replace a stripped, corroded, or missing screw to restore a secure fit and help prevent vibration, rattling, and misalignment.

• Forms/engages its own threads in sheet metal or plastic for a secure hold
• Secures covers, brackets, and assemblies to maintain alignment
• Helps reduce vibration and noise from loose components
• Replace if the head is stripped/broken, threads are worn, or the screw is missing

• Disconnect power and shut off water or gas, as applicable, before servicing
• Match to the original location and hardware; use identical length and thread where specified
• Start by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is damaged, repair it before installing the new screw
