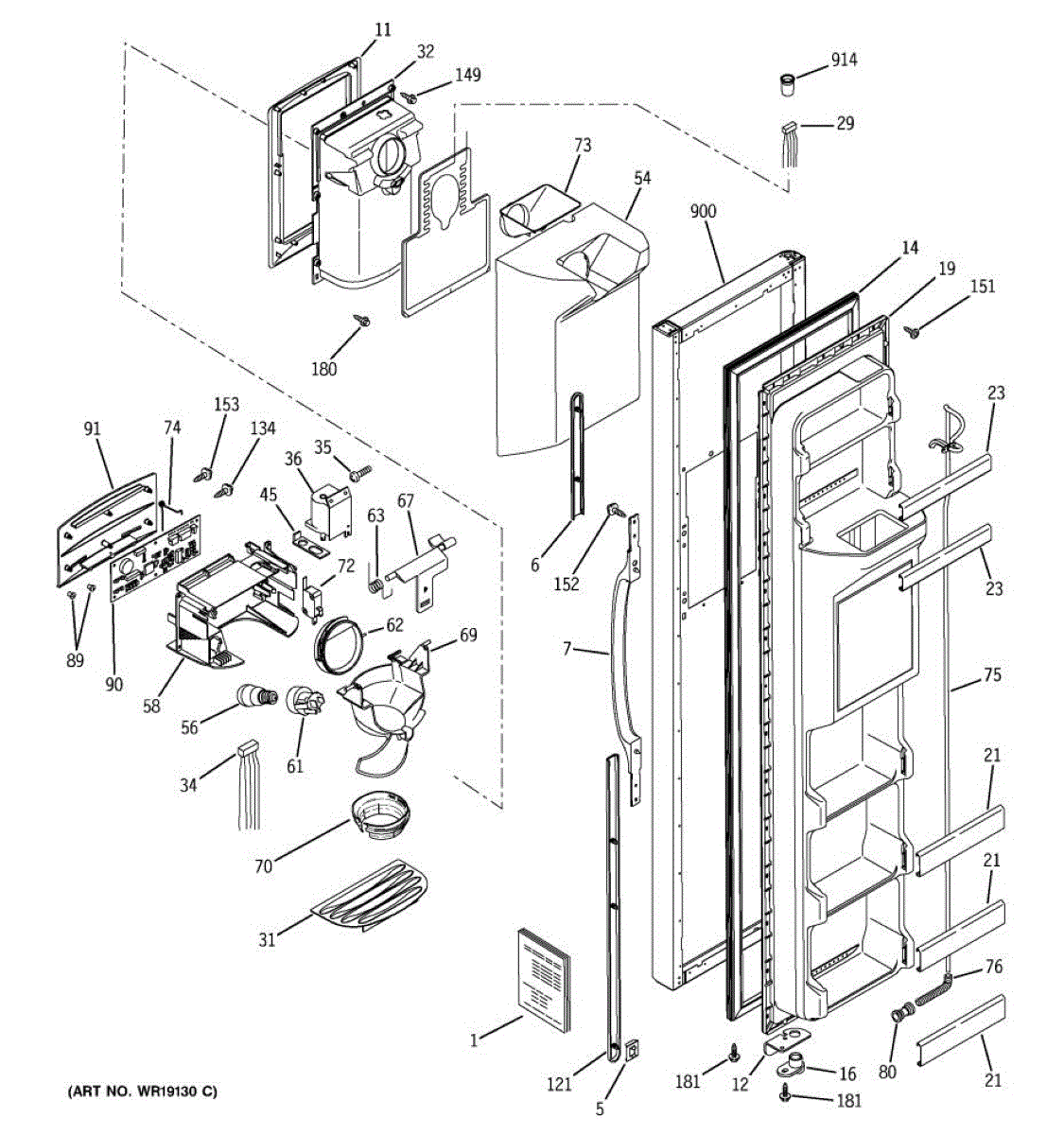

Parts for Ge DSS25PFMDCC: 04 - Freezer Door Parts

Replace your refrigerator water filter every 6 months to maintain clean water and ice. Removes contaminants for fresh taste. Easy DIY install in minutes.

Secures wiring, tubing, and trim inside your dishwasher or refrigerator to prevent rubbing and movement. Replace if broken or loose to maintain proper positioning.

Door stop cam riser plate for side-by-side refrigerators. Installs on the door hinge to control door swing and position. Replace if cracked or broken.

Color: white. It measures about 10 inches wide by 2 inches high.

In addition to installing this moisture kit, a new dispenser control board must be installed. Use part number WR55X10270 for 4 or less buttons. Use part number WR55X10195 for 5 or more buttons.

SCR solid-state switching module that controls power flow in refrigerator circuits. Replace when module is damaged, burned out, or failing to switch properly.

Ice won't dispense or dispenser flap sticks open? The ice dispenser solenoid controls ice flow. DIY-friendly repair with our install video.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Illuminates water and ice dispenser area for visibility in low light. Replace when bulb burns out or dispenser area stays dark. Confirm fit with model.

Plastic shield that covers the water and ice dispenser housing on your refrigerator door. Replace if cracked, warped, or broken from impact or heat damage.

Fix a light that won't turn on or flickers in your refrigerator. This E12 socket replacement is straightforward with our step-by-step video guide.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

Spring that provides closing tension for the refrigerator water/ice dispenser door flap. Keeps the dispenser sealed when not in use. Replace if door hangs open or won't close.

Replacement dispenser door recess crank for refrigerators. Operates the ice/water dispenser door mechanism. Replace if broken, worn, or corroded.

This ice dispenser funnel guides cubes or crushed ice from the door chute into your glass. Replacing a cracked or missing funnel restores clean, targeted dispensing and helps reduce stray ice around the dispenser area.

• Directs ice from the chute into the cup to minimize spills and scatter
• Common symptoms: cracked or broken funnel, ice missing the glass, jamming at the outlet, loose/misaligned funnel
• Bisque finish to match bisque dispenser trim on compatible units
• Durable molded plastic designed for the dispenser recess

• Disconnect power to the refrigerator before servicing the dispenser area
• Carefully remove the dispenser trim/control panel; support any wiring harnesses
• Release tabs or screws holding the old funnel, note orientation, and transfer any existing hardware if needed
• Reassemble, restore power, and test both cubed and crushed ice for proper alignment

If you need the funnel in white you must order this extension and funnel part number WR17X11264.

Water or ice dispenser not working? This dispenser switch activates when you press the lever. Easy DIY repair—takes about 30 minutes with basic tools.

The Torsion Spring is an OEM part for GE refrigerators. It is essential for maintaining the proper tension and operation of the refrigerator door. This spring ensures the door closes smoothly and stays securely shut, preventing cold air from escaping and maintaining the appliance’s efficiency.

Causes of a bad torsion spring can include metal fatigue from regular use, corrosion from exposure to moisture, or damage due to excessive force or mishandling. Over time, these factors can weaken the spring, affecting the door’s performance.

Symptoms of a bad Torsion Spring include:

• Door not staying closed
• Difficulty in opening or closing the door
• Door feels loose or unbalanced
• Unusual noises when operating the door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

Switch actuator pin for refrigerators. Installs in door or control assembly to trigger switches. Replace if broken, bent, or missing to restore proper fit.

Overlay with control board, Color: Bisque.

6 - 10 pl flp 1/2 s

8-18 hi/lo 5/8

Replacement 8-18 x 9/16 machine screw for securing panels, brackets, and internal components. Needed when fasteners are stripped, missing, or worn.

This is a screw intended for use in refrigerators, specifically as the top mounting screw for the handle. If the screw in the handle is missing, stripped, or otherwise not performing its function, a replacement screw should be ordered.A visual inspection will determine if a screw is missing. If the door handle is loose or falling off from the top, it is a sign that a replacement screw is required. This repair is a quick and easy process. It involves the use of a screwdriver. Remove the old screw if there is one in place. Line up the holes on the door and the door handle component before twisting the new screw into position. Wear gloves to protect hands during the repair.This screw is a genuine OEM replacement part. It is sourced directly from the manufacturer. The screw is sold individually. The screw is compatible with several different models of refrigerators. It can be installed in ranges made by Electrolux, Frigidaire, Gibson, Westinghouse, and Kelvinator.

Includes 12 screws.

8 - 18 x .375

10-32 F HXW 3/4 S

Outer door panel for side-by-side refrigerators. Replaces cracked, dented, or discolored exterior panels. Restores the finished appearance.

This genuine replacement thimble door top restores the finished trim and secure fit at the top of the thimble/door opening. It helps keep the thimble aligned and prevents gaps that can allow debris or air leaks. What it does:

• Replaces a cracked, chipped or worn top trim piece on the thimble/door opening
• Helps hold the thimble in place and maintain a snug, even fit
• Restores a clean finished appearance to the opening
• Can reduce rattling or movement caused by a loose or damaged top trim

What's included:

• One thimble door top

Install notes:

• Disconnect power to the appliance before starting any work
• Remove any retaining screws or clips and gently lift out the old trim; keep fasteners if undamaged
• Align the new top trim into the opening and secure with the original screws or clips
• If you encounter resistance, stop and confirm orientation to avoid cracking the replacement
