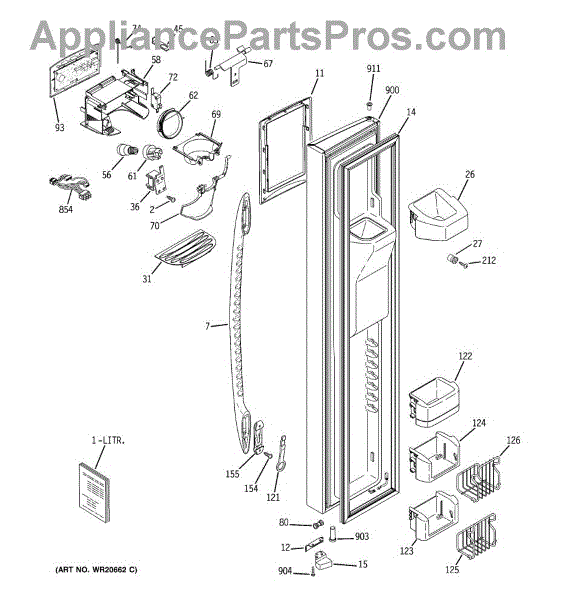

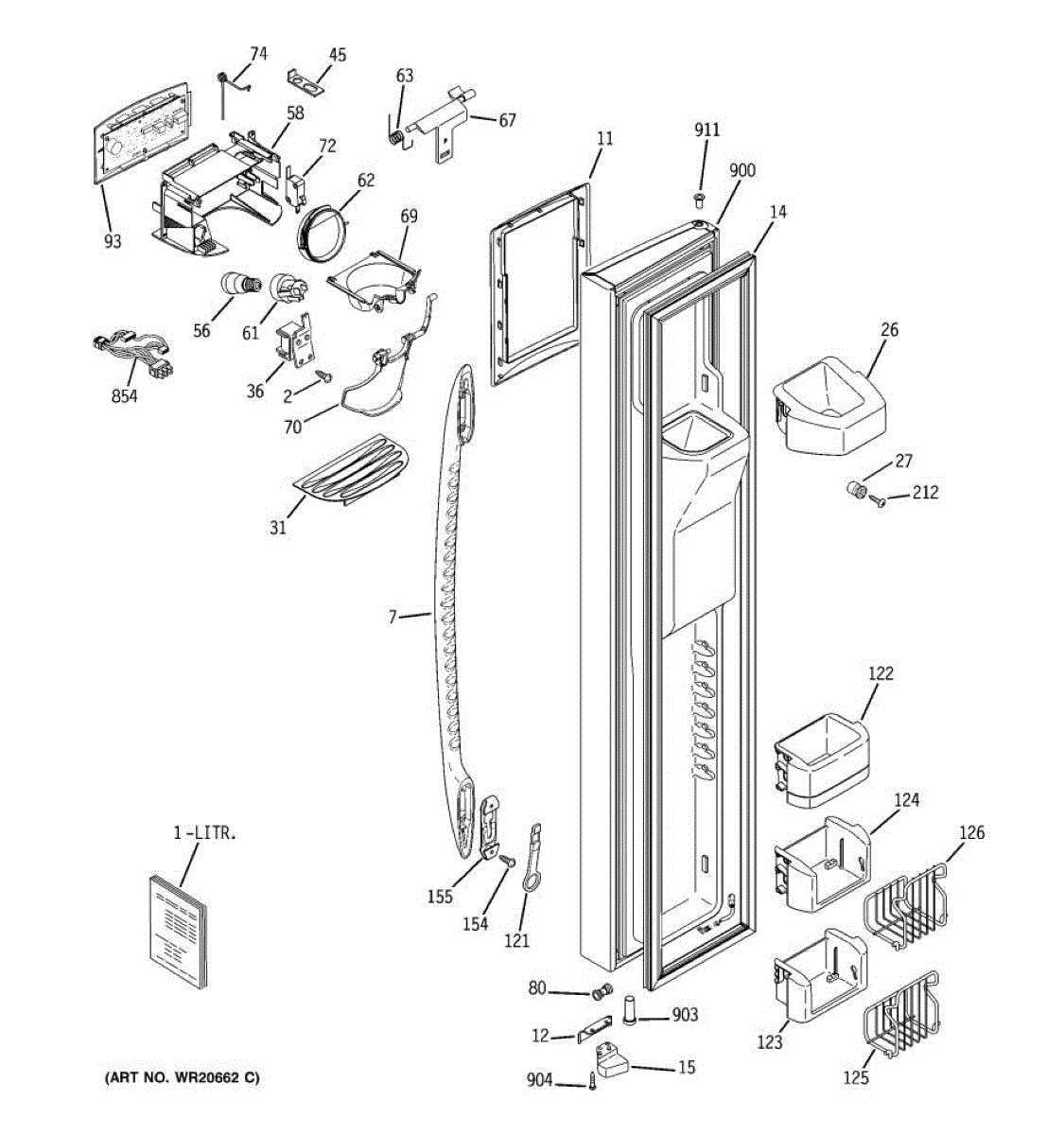

Parts for Ge PSSF3RGXDCC: 01 - Freezer Door Parts

Replacement mounting screw for refrigerator panels, brackets, and internal components. Secures loose assemblies when original fasteners are stripped or missing.

White door handle assembly for side-by-side refrigerators. Replaces cracked, broken, or worn handles. Installs on refrigerator or freezer doors.

Replace a cracked or discolored dispenser trim recess on your refrigerator. This trim piece fits around the water and ice dispenser housing for a clean finish.

Recess trim bowl for refrigerator dispenser. Replaces cracked, broken, or discolored trim around the water/ice dispenser opening. Restores appearance.

Replaces a broken or missing dispenser door stop on side-by-side refrigerators. Closes and seals the ice/water dispenser opening when not in use.

This white stop door replaces the dispenser stop/door that controls access to the ice/water chute, helping restore proper dispenser operation and reduce sticking or unwanted discharge. Designed to match the original OEM fit and appearance. What it does

• Seals and releases the dispenser opening so ice or water is dispensed only when the door is actuated
• Replaces a cracked, warped, or jammed stop door that can cause sticking or partial openings
• Helps prevent accidental drips or debris entering the dispenser chute
• Restores a smooth, aligned door movement for reliable dispensing

• One white stop door

• Disconnect power to the appliance before starting any repair
• Remove dispenser housing or outer door per the service manual to access the stop door
• Inspect the actuator and mounting tabs for damage; replace if worn to ensure proper operation
• Use basic hand tools;

Stops refrigerator door from opening past 90 degrees. Mounts at base of door with screws. Replace if cracked, broken, or bent to prevent door overswing.

Seals refrigerator door to maintain temperature and prevent warm air entry. Replace if torn, cracked, or causing frost buildup. Verify fit with your model.

White plastic cam closure that aligns and secures the freezer door in the hinge area. Replace if cracked, broken, or worn to restore proper alignment.

Replaces a broken or worn freezer door cam closure on side-by-side refrigerators. Installs on the door to control opening range and secure latching.

Replacement ice dispenser guide for your refrigerator. Installs in the dispenser chute to direct ice cubes properly. Replace if cracked or broken.

Replacement mounting screw for refrigerator installation. Used to secure components and panels. Replace if lost, stripped, or damaged during service.

This lower front trim piece attaches to the refrigerator base to cover and protect the grille area while keeping the appliance's front panel looking finished. It restores appearance and helps keep debris away from vents and components. What it does:

• Covers the lower front grille opening for a finished, OEM appearance
• Protects underlying vents and components from dust and accidental contact
• Helps direct airflow around the condenser/vent area for proper operation
• Replaces damaged, cracked, or missing trim to improve aesthetics

• One grille recess lower front trim

• Disconnect power to the refrigerator before attempting installation
• Typically secures with snap tabs and/or screws; align tabs and press or fasten as required
• Handle carefully to avoid scratching the finish and to prevent breakage of plastic tabs
• Obtain OEM replacements for secure installation

This is a refrigerator ice and water dispenser drip tray located on the freezer door. Color: White. It measures about 8 inches wide by 4 inches deep. For black order WR17X11655.

Replacement drip tray for refrigerator water and ice dispensers. Catches drips and spills at the dispenser. Replace if cracked, broken, or stained.

Ice won't dispense or dispenser flap sticks open? The ice dispenser solenoid controls ice flow. DIY-friendly repair with our install video.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

Illuminates water and ice dispenser area for visibility in low light. Replace when bulb burns out or dispenser area stays dark. Confirm fit with model.

Replace your refrigerator's housing shield cover if it's cracked, broken, or missing. This protective cover installs over internal components for a clean finish.

Replace your cracked or damaged refrigerator dispenser housing shield. This trim piece surrounds the ice/water dispenser opening, restoring appearance.

Replace your refrigerator's dispenser housing shield if cracked, broken, or missing. This protective cover installs over the dispenser assembly.

Fix a light that won't turn on or flickers in your refrigerator. This E12 socket replacement is straightforward with our step-by-step video guide.

Ice dispenser door assembly seals the ice chute opening on your refrigerator. Replace if cracked, warped, or the rubber gasket is damaged and leaking air.

Restores closing tension for refrigerator ice dispenser recess door. Replace if spring is weak, broken, or missing to keep door closing properly.

Connects the actuator to your refrigerator's ice chute door. Replace if cracked, broken, or worn to restore proper door operation and seal.

Guides ice from your refrigerator door chute into your glass. Replace if cracked, broken, or missing to prevent stray ice and keep the dispenser tidy.

Guides ice from your refrigerator door chute into your glass. Replace if cracked, broken, or missing to prevent stray ice and keep the dispenser tidy.

This white ice dispenser paddle is the lever you press on the freezer door to release ice. Replacing a worn or broken paddle restores reliable ice dispensing and a clean, like-new look at the dispenser.

• Transfers your push to the dispenser switch to start ice delivery
• Helps fix a cracked, broken, loose, or missing paddle
• Addresses a lever that sticks or doesn't return smoothly
• Useful when ice won't dispense unless the switch is pressed directly
• Refreshes a yellowed or scuffed dispenser paddle

• Disconnect power to the refrigerator before servicing
• Remove the drip tray and dispenser trim/control panel to access the paddle
• Note spring/lever orientation and transfer any hardware from the original paddle
• Reassemble, restore power, and test ice dispensing

Replacement paddle for refrigerator ice dispenser. Press to activate ice release. Replace if cracked, broken, or won't spring back after pressing.

Water or ice dispenser not working? This dispenser switch activates when you press the lever. Easy DIY repair—takes about 30 minutes with basic tools.

Spring that controls dispenser arm movement in refrigerators. Installs on the paddle assembly. Replace if broken, detached, or missing to restore arm function.

Connects water supply tubing sections in your refrigerator. Replace this plastic compression union if it's cracked, leaking, or broken. Installs inline.

Lever lock secures your refrigerator door handle assembly. Replaces broken or missing locks that allow handle to loosen or detach from door.

Replace your broken or cracked refrigerator freezer door module support bracket. Secures door bins and shelves in place. Direct fit replacement part.

Restores a stable storage surface inside your freezer. Replace this freezer shelf if cracked, warped, missing, or no longer seats securely in supports.

Wire tilt-out door basket for refrigerator doors. Replaces broken, cracked, or missing baskets. Installs in door to organize and store smaller items.

Handle lock bracket for refrigerator doors. Secures handle locking mechanism in place. Replace if bracket is cracked, broken, or missing for proper fit.

Rubber grommet secures the base grille on your refrigerator. Replace if cracked, worn, or missing to restore a snug fit and reduce vibration or rattle.

Bottom freezer door plug insert for side-by-side refrigerators. Replaces cracked, broken, or missing inserts to restore door appearance and seal.

Plastic bushing that fits inside the lower freezer door hinge assembly. Replace when cracked, worn, or broken to restore smooth door operation.

Replacement mounting screw for refrigerator panels, brackets, door handles, and trim. Needed when original hardware is missing, stripped, or corroded.

Door hinge thimble for side-by-side refrigerators. Installs on the door hinge assembly. Replace if cracked, broken, or worn to restore proper alignment.

Door hinge thimble for side-by-side refrigerators. Installs on the door hinge assembly. Replace if cracked, broken, worn, or missing for proper alignment.

Bushing that lines the upper hinge pin on refrigerator doors. Replace if cracked, worn, or missing to restore smooth door swing and proper alignment.
