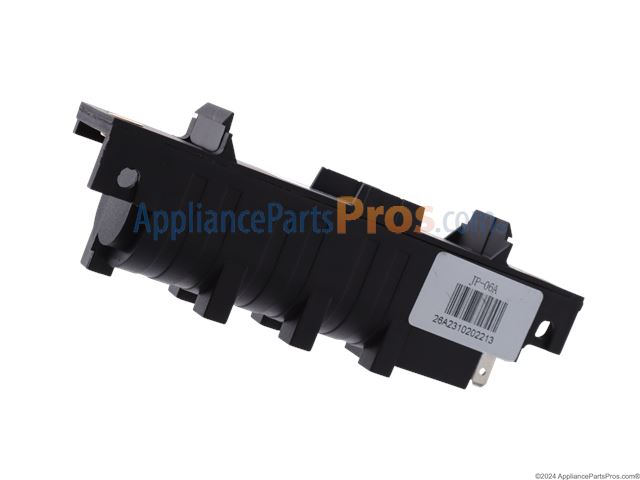

Frigidaire Range Spark Module

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Spark Module Kit is an OEM part for Frigidaire ranges. This kit includes the spark module and necessary components for installation, responsible for providing the electrical spark needed to ignite the gas burners on the stove.

Common causes of a bad spark module include electrical faults, wear and tear from regular use, or damage from power surges.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or inconsistent sparks
• Clicking sound without burner ignition
• Only some burners igniting

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Spark Module is an OEM part for Frigidaire gas ranges. It allows precise flame control for cooking. This module sends the necessary electrical currents to the igniters at each burner, which then spark to ignite the gas.

Causes of a bad spark module can include electrical failures, corrosion, or moisture damage, as well as wear and tear from normal use.

Symptoms of a bad Spark Module include:

• Burners failing to ignite despite being turned on
• Intermittent ignition or weak spark generation
• Continuous clicking sounds from the burner area even after ignition
• Unlit burners leading to gas smell, indicating incomplete combustion

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Spark Module is an OEM part for Frigidaire cooktops and ranges. It is responsible for generating the electrical spark that ignites the gas burners. This module sends a high-voltage signal to the igniters, ensuring the burners light up quickly and reliably when you turn the knobs.

Causes of a bad spark module can include electrical surges, wear and tear from regular use, or exposure to moisture, which can lead to corrosion or short-circuits.

Symptoms of a bad spark module include:

• Burners not igniting
• Weak or intermittent spark
• Clicking sound without ignition
• Some burners working while others do not

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This spark module powers the surface-burner ignition on gas ranges and cooktops. It generates high-voltage pulses to the electrodes so the burners spark and light when a knob is turned, restoring quick, consistent ignition.

• Sends high-voltage pulses to each surface burner igniter when a burner switch is turned on
• Centralizes spark for multiple burners; a failure often affects more than one burner
• Common symptoms: no clicking/spark on any burners, multiple burners won't light, weak or intermittent spark, continuous clicking from the ignition system
• Helps restore reliable lighting without using matches

• Disconnect electrical power and shut off gas before servicing
• Note wire locations; transfer leads one at a time to matching terminals on the new module
• Mount securely in the original position and ensure proper grounding
• After installation, verify spark at each burner before restoring full operation

By Frigidaire. 2+0 module type. Employs two spark electrodes for manual surface ignition of a four burner range top with flash tubes to front and rear burners. Very popular module used on many different brands and models. Check by appliance model number, if not sure.
