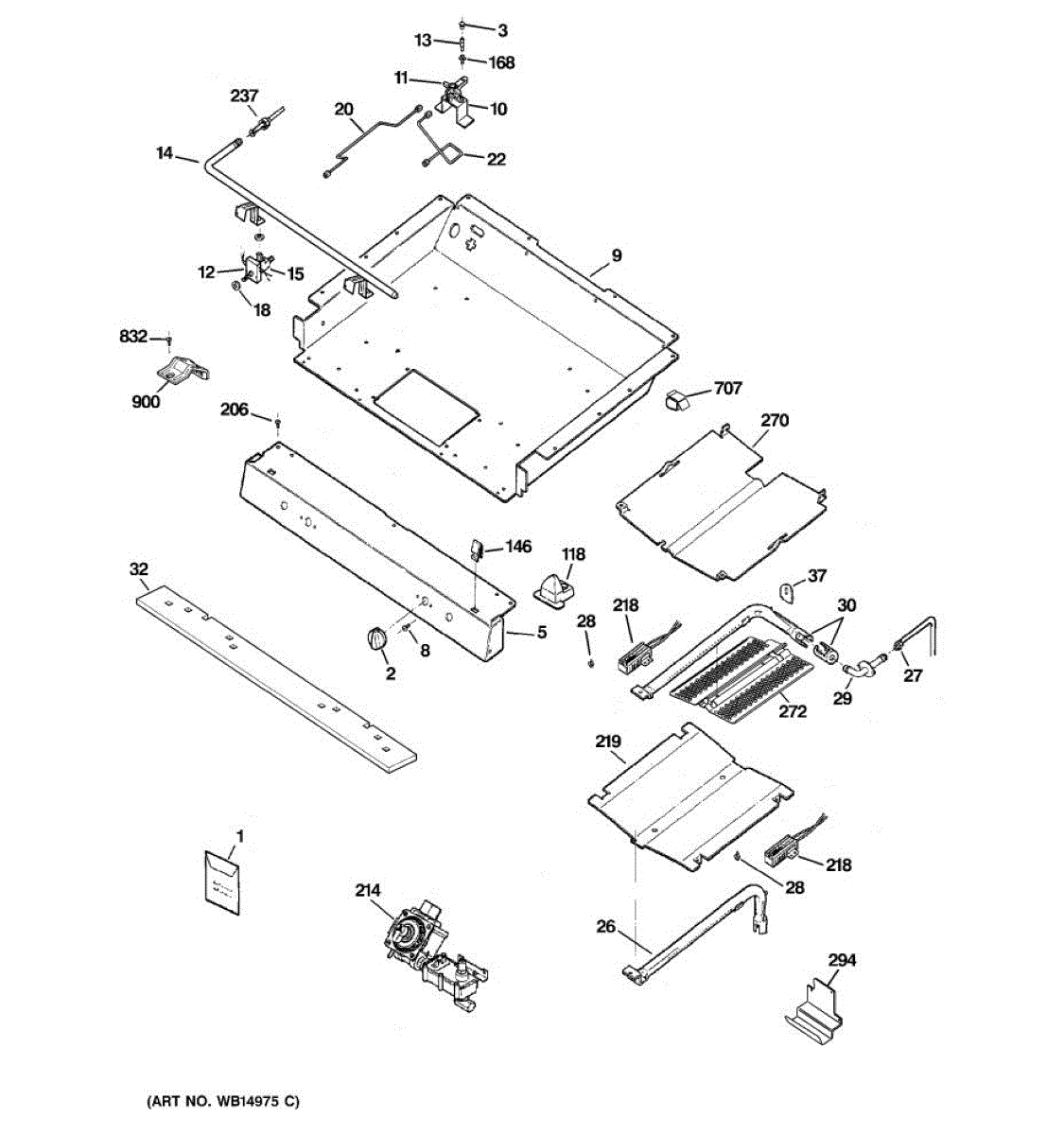

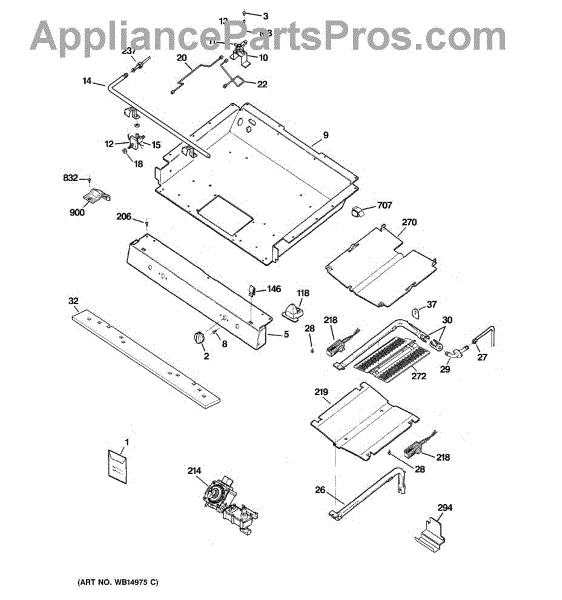

Parts for Ge JGB428SER1SS: 01 - Gas & Burner Parts

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.

The Burner Knob Kit is an OEM part for GE ranges. It includes replacement knobs for the 5 stainless steel knobs, allowing users to control the heat levels for cooking. These knobs fit onto the control shafts and provide a user-friendly interface for adjusting burner settings.

You should replace the burner knob kit if the knobs become damaged, worn out, or lost. Causes of a bad burner knob kit can include frequent use, exposure to high heat, or accidental impacts that cause the knobs to crack or break.

Symptoms of a bad burner knob kit include:

• Difficulty turning the burner knobs
• Knobs that are loose or fall off
• Cracks or visible wear on the knobs
• Inaccurate heat level settings

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Includes the natural gas orifice

Size: 1.02 mm. Liquid propane

Size: 0.90 mm. Liquid propane

Includes the natural gas orifice

Includes the natural gas orifice

Size: 0.74 mm. Liquid propane

Size: 8 - 32 inch.

Includes the natural gas orifice

Includes the natural gas orifice

Includes the natural gas orifice

The Top Burner Igniter is an OEM part for GE gas ranges. It is responsible for igniting the gas to create a flame for cooking on the stovetop burners.

Over time, igniters can degrade due to repeated use, exposure to high temperatures, or buildup of food particles and grease. A malfunctioning igniter can prevent the burner from lighting properly, affecting the cooking performance of the range.

Symptoms of a bad Top Burner Igniter include:

• Burner not lighting
• Delayed ignition or clicking sounds without ignition
• Weak or inconsistent flame
• Smell of gas without ignition

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 270° burner valve controls gas flow to a single cooktop or range burner, restoring predictable flame adjustment and reliable ignition so you can cook safely and accurately. What it does:

• Regulates gas flow to the burner so flame height responds to the control knob
• Enables proper ignition and consistent flame during use
• Common symptoms indicating a faulty valve: burner won't light, flame stays too low or high, or burner only lights intermittently
• Stops gas flow when set to off to help prevent unintended flow

• One 270° burner valve

• Turn off gas supply and power to the appliance before replacing the valve
• Use appropriate wrenching tools and avoid torqueing valve fittings; follow OEM torque guidance if available
• After installation, check all connections for leaks (soap-and-water test) and verify correct burner operation

This surface burner valve controls gas flow to a range or cooktop's top burner. The 270-degree design restores precise flame control and reliable shutoff when the original valve becomes worn, leaks, or is difficult to turn.

• Regulates gas from the manifold to the surface burner
• Provides positive on/off shutoff for the burner
• Works with the control knob to set and maintain flame size
• Common signs of failure: stiff or loose knob action, inconsistent flame adjustment, gas odor near the valve area, or a burner that won't shut off fully

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove the knob and access panel to reach the manifold/valve
• Match the 270-degree orientation to the original valve; transfer existing mounting hardware as needed
• After installation, perform a leak check with an approved bubble solution; if gas odor is present at any time, stop.

This surface burner valve (270-degree) controls gas flow to a single cooktop/range burner. Replacing a worn valve restores smooth flame control and reliable shutoff when you turn the burner knob.

• Regulates and shuts off gas to one surface burner
• Addresses a stiff or hard-to-turn valve shaft
• Can correct a condition where the burner continues to flame after the knob is turned off

• Disconnect power and shut off gas supply before servicing
• Note valve orientation; transfer the orifice spud and any mounting hardware from the old valve if applicable
• Use approved thread sealant on pipe threads as required; do not use sealant on flare connections
• After assembly, leak-check all connections with a non-corrosive leak-detection solution—never with an open flame

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Includes the oven safety gas valve and pressure regulator.

This is a replacement igniter glowbar. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace defective or burnt-out igniter glowbars in a variety of gas powered oven and stove models. A glowbar igniter works to electrically ignite the gas source on a stove or range. A defective glowbar will prevent the burner from lighting and emitting a flame. Always make sure that the stove is entirely disconnected from power and gas before starting any repair work. Proper tools are required to replace this part. Please ensure the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this igniter glowbar, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this igniter glowbar is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
