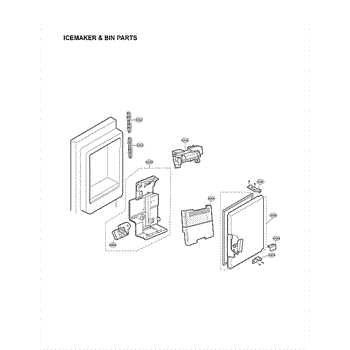

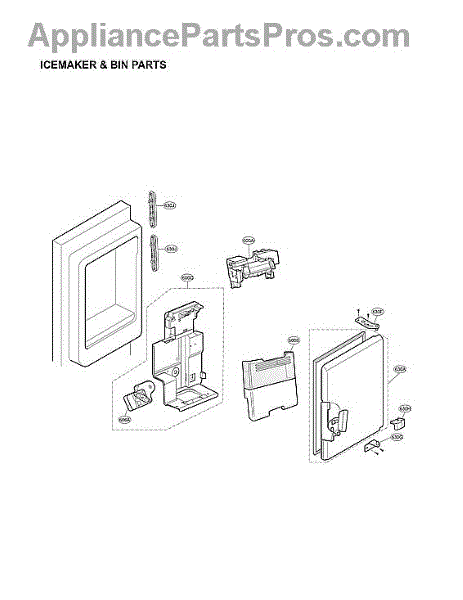

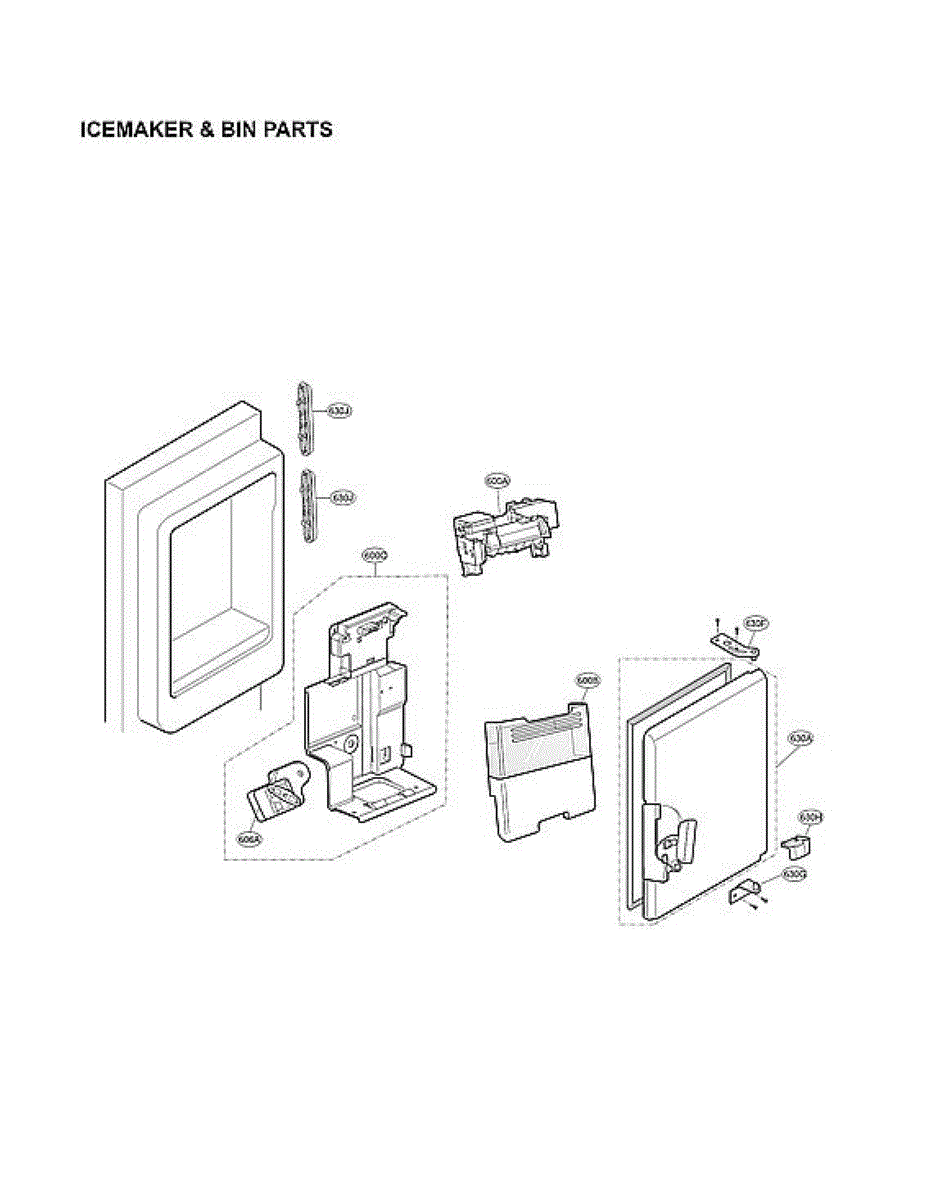

Parts for Lg LFXS24623D/01: Icemaker & Bin Parts

This screw is a direct-fit replacement fastener that secures panels, brackets, and internal components. Replacing a missing or stripped screw helps stop rattling and keeps parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets, or internal components to restore proper fit
• Replaces missing or damaged hardware that can cause rattling or loose parts
• Restores alignment so doors, shelves, or assemblies operate smoothly
• Provides a straightforward hardware fix without replacing larger assemblies

• Use the matching screwdriver or driver bit to avoid stripping the head
• Do not overtighten — snug until seated to avoid damaging threads or plastic parts
• Disconnect power or follow appliance safety instructions before servicing electrical areas
• Keep removed hardware organized and save any damaged parts for inspection

This door holder secures the microwave door assembly to the cabinet, restoring proper alignment and a snug close. Replace a broken or worn plastic retainer to reduce rattling and help the door seat correctly. What it does:

• Secures the door assembly to the oven frame so the door sits flush and aligned
• Helps the door engage the latch correctly for reliable closing
• Reduces door movement and rattling caused by a cracked or missing retainer
• Commonly replaced when the door feels loose, sags, or won't stay properly seated

• One door holder

• Disconnect power before starting work; never service a microwave while it's energized
• Remove door trim and glass panels carefully to avoid damage; keep track of small screws and clips
• Test door alignment and smooth operation after installation; do not force parts into place

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

This rail guide assembly replaces a worn or damaged guide that helps a drawer or shelf slide smoothly along its track. Restores proper alignment and reduces sticking or uneven movement for the affected compartment. What it does:

• Guides and supports the drawer/shelf along its track for smooth opening and closing
• Prevents sagging, binding, or misalignment that can cause sticking or noisy movement
• Keeps the drawer/shelf on its intended path to reduce wear on adjacent components
• Helps restore proper fit and operation after cracked, broken, or worn guide rails

• Disconnect power to the appliance before servicing electrical models; remove stored items from the drawer/shelf area
• Support the drawer/shelf while removing mounting hardware to avoid drops or damage
• Replace only the damaged guide; ensure proper seating on the track and secure fasteners per OEM guidance

This rail guide assembly supports and guides a sliding drawer/rack along its track so it opens and closes smoothly. Replacing a worn or broken guide restores proper alignment and motion, helping prevent sticking, jamming, or uneven travel.

• Supports and stabilizes the drawer/rack on its slide rail
• Helps ensure smooth, straight opening and closing
• Can address issues like binding, noise, or misalignment
• Replaces cracked, warped, or broken guide components

• Disconnect power and, if applicable, shut off water before servicing
• Remove the drawer/rack and retain any reusable hardware
• Install the new guide in the same orientation as the original
• Test movement for smooth travel before fully reassembling

This replacement freezer tray is a direct-fit internal pan that catches drips and helps keep the freezer interior clean and organized. It restores proper drainage and containment for damaged or missing trays. What it does

• Replaces a cracked, warped, or missing freezer tray to prevent leaks and pooled water
• Guides melt water toward the freezer drain to reduce ice buildup and odors
• Provides a flat, stable surface for items stored in the freezer compartment
• Matches OEM fit and mounting points for straightforward replacement

• One replacement freezer tray

• Intended for in-compartment installation; remove food and unplug the appliance before starting
• Handle gently to avoid cracking plastic; wear gloves to protect hands and edges
• If tray mounts to clips or rails, align tabs before pressing into place; do not force
• Check freezer drain and gasket seating while tray is out; clean any debris before reinstalling

Roller assembly approx. 1".

Roller assembly approx. 2".

This tray/drawer liner provides the structural shelf for a refrigerator drawer, helping contain food and spills while supporting the sliding drawer assembly. It restores proper fit and a clean surface inside the drawer compartment. What it does:

• Replaces a cracked, warped, or damaged drawer tray so the drawer sits and slides correctly
• Holds deli items, fruits and vegetables, and loose containers to prevent spills
• Helps contain leaks and makes cleaning easier compared with a damaged liner
• Reduces drawer noise caused by a broken or misshapen tray

• One tray/drawer liner

• Remove all food and contents from the drawer before replacing the tray
• Slide the drawer fully out (follow owner's manual removal steps) and lift or unclip the old tray as required
• Seat the new tray fully in the drawer frame; verify smooth sliding before refilling

This replacement refrigerator shelf assembly restores stable storage and easy cleanup for your fridge. The tempered glass surface provides a flat, secure platform for food storage and helps keep items organized and visible. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf to restore usable storage space
• Provides a level, easy-to-clean surface that resists stains and spills
• Supports food containers and deli items while helping maintain airflow inside the compartment
• Fits into existing shelf tracks or supports to reconnect storage functionality

• Disconnect power and empty the refrigerator area before removing old shelf to avoid injury or spills
• Slide the shelf into existing tracks or seat it on supports until fully engaged; no special tools typically required
• Handle tempered glass carefully and wear gloves to protect hands from sharp edges if broken
• If mounting clips or trim are damaged, inspect and replace them separately — only the shelf is included

This rail guide assembly replaces a worn or broken drawer rail to restore smooth, guided drawer movement and proper alignment. It supports the drawer glide so storage compartments open and close reliably. What it does:

• Guides and supports the drawer along its track for smooth sliding action
• Replaces damaged, bent, or worn rails that cause sticking, scraping, or misalignment
• Reduces noise from worn or loose drawer movement
• Helps keep the drawer square and properly seated to prevent jams

• Disconnect power to the appliance or remove contents as needed before starting work
• Basic hand tools typically required; keep fasteners for reuse unless replacements are provided
• Align rail on the drawer and cabinet track, then secure without over-tightening to avoid binding

This guide assembly secures and aligns internal TV components to keep the display and front panel stable during use. Replacing a damaged guide restores proper fit and reduces movement or rubbing that can affect the screen or bezel. What it does:

• Positions and supports the TV panel and adjacent internal parts for correct alignment
• Prevents panel flex, rubbing, and audible rattles caused by loose or broken guides
• Helps maintain an even bezel-to-screen gap and proper front-panel fit
• Restores mechanical stability after impacts or wear that crack or deform the original guide

• One guide assembly part as shown

• Disconnect power and fully remove the TV from its mount before starting
• Partial disassembly of the cabinet and removal of the front bezel/panel is typically required
• Handle the LCD/OLED panel carefully to avoid pressure marks or damage during installation
• Use the OEM fasteners and follow service manual orientation; test fit before final reassembly

This guide assembly is a replacement mounting guide that helps align and secure the TV's front panel and internal components to restore proper fit and reduce movement. It's a direct-fit part intended for OEM-style repairs. What it does:

• Holds and aligns the TV front bezel or panel for correct fit and finish
• Secures internal components to prevent shifting during use or transport
• Helps eliminate panel rattles, gaps, or misalignment caused by a damaged guide
• Restores proper assembly after impact or wear to improve appearance and stability

• One guide assembly

• Disconnect power and remove the TV from its stand before beginning
• Follow the TV service manual for safe disassembly and reassembly steps
• Keep track of screws and small parts; use proper tools and a soft work surface

This rail holder secures the microwave door rail so the door stays aligned and operates smoothly. Replaces a worn or broken holder to reduce door wobble and improve closing action. What it does:

• Secures and supports the door rail assembly for proper door alignment
• Keeps the rail from shifting, preventing rubbing, rattling or uneven gaps
• Helps restore smooth opening and closing of the door
• Fits where the rail mounts to the door frame or trim

• One rail holder

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver/trim tool) and handle plastic parts gently to avoid breakage
• Inspect surrounding clips/rails for damage and replace if needed for a lasting repair

This rail holder is the replacement support that secures an appliance rail in place, restoring proper alignment and smooth movement. It helps keep sliding components stable so drawers or rails track correctly and safely. What it does:

• Secures the rail or slide to the appliance frame to prevent sagging or misalignment
• Restores smooth, controlled movement of sliding parts
• Helps eliminate rattling, binding or uneven travel caused by a loose or broken holder
• Works as a direct-fit support when the original holder is damaged or worn

• Disconnect power and remove any movable components before beginning work
• Installation typically requires basic hand tools; keep fasteners from the original part for reuse if undamaged
• Inspect adjoining rails, slides and mounting points; replace any damaged hardware for best results

This vegetable tray assembly replaces the crisper drawer that stores fresh produce and keeps it organized in the refrigerator. Restores proper storage and smooth drawer operation for better food organization and access. What it does:

• Provides a dedicated drawer for fruits and vegetables to help keep produce separated and contained
• Slides into the existing lower compartment tracks to allow easy open/close access
• Replaces cracked, broken or warped trays that can leak or fail to support contents
• Helps prevent items from falling onto lower shelves when the drawer is opened

• Remove all food and shelves from the compartment before starting
• Slide the old tray out and lift or unclip from its runners per your model's design
• Align new tray with existing tracks and slide in until it seats; no special tools typically required
• Unplug the appliance or disconnect power before working in the refrigerator for safety

This cover assembly replaces the rear cabinet panel of the TV to protect internal components and restore a finished appearance. It helps eliminate exposed circuitry and prevents debris from entering the chassis. What it does:

• Replaces a cracked, warped, or broken rear cabinet to restore structural protection
• Covers and secures the TV's internal boards and wiring to reduce risk of damage
• Stops rattling or buzzing caused by loose or damaged rear panels
• Improves appearance by replacing a scratched or discolored back housing

• Disconnect the TV from power and any input sources before beginning work
• Remove any stand or wall-mount hardware and keep fasteners organized for reassembly
• Handle the cover and TV internals carefully to avoid damaging components or connectors

This tray cover assembly replaces a cracked or missing ice tray cover to keep ice protected and help the ice bin stack and slide correctly. It restores a clean seal and simple access to the ice storage area. What it does:

• Covers and protects ice in the ice bin from odors and debris
• Helps maintain proper alignment and sliding action of the ice bin
• Prevents spills and reduces ice melting caused by gaps or damage
• Commonly replaced when the cover is cracked, warped, or missing

• One tray cover assembly

• Disconnect power to the appliance before servicing to avoid injury
• Remove the ice bin and any remaining ice before installing the cover
• Handle plastic components carefully to avoid cracking; align tabs and slides before seating

The glass shelf is an OEM replacement part for LG side-by-side refrigerators. This glass shelf is responsible for providing storage space for food and drinks within the refrigerator compartment.

Built from durable tempered glass, the shelf can support a significant amount of weight without breaking or bowing. Its transparency allows for easy visibility of all stored items.

Symptoms of a bad shelf are:

• Cracks or chips in the glass surface
• Broken or detaching glass from the frame
• Bowed or sagging shelf unable to properly support weight

Causes of a bad shelf include cracks or chips in the glass from heavy impacts or repeated sticking, as well as general wear and tear over time.

This tray assembly forms the Fresh Room shelf inside the refrigerator compartment, supporting the deli/cheese drawer below. Replacing a cracked or missing tray restores smooth drawer operation and stable, usable storage space in the fresh food section.

• Supports and levels the Fresh Room/deli drawer
• Provides a flat shelf surface above the compartment
• Ensures proper drawer glide and closure when seated correctly
• Common signs of failure: cracked or broken tray, damaged tabs, sagging shelf, drawer binding or misalignment

• Unplug the refrigerator and remove food items and the Fresh Room drawer before servicing
• Lift the front and slide the old tray assembly out of its supports; do not pry against the liner
• Align the new tray on the rear tabs/side rails and press down until fully seated and level; handle edges carefully and use gloves

Restore a reliable seal with this door gasket assembly. It forms a tight perimeter around the refrigerator door to keep cold air in, limit moisture and frost at the doorway, and help maintain stable temperatures and efficiency. What it does:

• Seals the gap between the door and cabinet to prevent air leaks
• Helps maintain proper interior temperature and humidity
• Reduces frost and condensation around the door opening
• Common symptoms of a failed gasket: cracks, tears, warping, gaps, sweating around the door, or a door that won't stay sealed

• 1 door gasket assembly

• Disconnect power and wear cut-resistant gloves before servicing
• Let the new gasket relax flat; warming gently with a hair dryer or warm water can remove kinks
• Remove the old gasket and press the new seal evenly into the door channel, ensuring corners are fully seated
• Close the door and check for uniform contact all around (paper-strip test); reseat or adjust hinges/leveling if needed

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This small stopper fits inside the handle assembly to limit travel and keep the handle properly seated. Replacing a worn or missing stopper restores a solid, secure feel when opening and closing your appliance.

• Provides a positive stop for handle movement
• Helps keep the handle aligned and seated against its mounts
• Replaces a cracked, deformed, or missing stopper
• Common signs: handle feels loose or wobbly, over-rotates, or shifts/clicks during use

• Unplug the appliance before servicing to prevent injury
• Support the handle and protect the finish while removing fasteners
• Note the original stopper's orientation and install the new one the same way
• Tighten fasteners evenly; do not overtighten to avoid damaging plastic or finishes

The Mullion Flipper Assembly is an OEM part for LG refrigerators. This assembly, located between the refrigerator doors, helps seal the space between the doors when they are closed, improving energy efficiency by preventing cold air from escaping.

Causes of a bad mullion flipper assembly can include wear and tear over time, damage from frequent opening and closing of the doors, or issues with the hinges and connectors that secure it in place. A damaged or malfunctioning mullion flipper can lead to temperature inconsistencies and increased energy usage.

Symptoms of a bad mullion flipper assembly include:

• Visible damage or wear on the assembly
• Cold air escaping from between the refrigerator doors
• Increased frost buildup inside the refrigerator
• Higher energy bills due to the appliance working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Door Gasket Assembly is an OEM part for LG refrigerators. Located around the refrigerator door frame, this gasket creates a seal that helps maintain cold temperatures inside.

Causes of a bad door gasket assembly can include cracks, tears or compression resulting from normal use over many years. Physical damage or warping from external impacts affecting the gasket seal may also occur.

Symptoms of a bad door gasket include:

• Cold air leaking from around the door frame
• Difficulty maintaining consistent interior temperatures
• Interior condensation or frost from compromised insulation
• Gasket bulging or pulled away from the door

This OEM LG part is also compatible with some Kenmore models.

The Door Gasket (Left) is an OEM part for LG refrigerators. It is designed to create a tight seal around the edge of the refrigerator door, preventing warm air from entering and cool air from escaping. This gasket helps maintain the internal temperature of the refrigerator, ensuring energy efficiency and keeping food fresh for longer periods.

You should replace the door gasket if it becomes damaged or worn out. Causes of a bad door gasket can include regular wear and tear, exposure to temperature fluctuations, or physical damage such as tears or deformities. A compromised gasket can lead to air leaks, increased energy consumption, and reduced cooling efficiency.

Symptoms of a bad door gasket include:

• Visible cracks, tears, or deformities in the gasket
• Condensation or frost buildup around the door edges
• The refrigerator door not sealing properly or feeling loose
• Increased energy bills due to inefficient cooling

This OEM LG part is also compatible with Sears/Kenmore models.

This replacement door basket mounts on the refrigerator door to hold bottles, jars, and condiments. It restores secure, easy-access storage when the original bin is cracked, damaged, or missing.

• Attaches to the inner door rails to organize items on the door
• Keeps contents in place as the door opens and closes
• Replaces a cracked, broken, warped, or missing bin
• Symptoms include broken tabs, bin won't stay seated, or reduced door storage

• Remove items from the old bin; lift up to release it from the door rails
• Align the new basket's hooks with the door slots and lower until fully seated
• Confirm the bin is level and secure before loading
• No tools typically required; avoid overloading to prevent damage

This refrigerator door bin restores secure, convenient storage on the fresh food door. Replace a cracked or missing basket so condiments, jars, and beverages stay organized and easy to access with every open and close. What it does

• Mounts on the refrigerator door to hold bottles, jars, and small items
• Keeps contents from shifting during door movement
• Replaces a cracked, warped, or missing bin that won't stay seated
• Helps resolve issues like items falling off the door or reduced door storage

• 1 door bin (basket assembly)

• Remove the old bin by lifting up and pulling out; unload contents first
• Align the new bin's hooks with the door liner slots and press down until fully seated
• Verify the bin is securely engaged before loading; avoid overloading
• Wear cut-resistant gloves to protect hands during replacement

This Door Basket Assembly is the refrigerator door shelf bin that mounts to the inner door. Replacing a damaged bin restores secure, usable storage for condiments and bottles and helps prevent spills and items falling when the door swings.

• Mounts to molded tabs/slots on the door liner to provide shelf storage
• Keeps containers upright and reduces movement during door opening/closing
• Replace if cracked, has broken tabs, won't stay seated, falls off, or is missing
• Restores proper fit and organization on the door

• Empty and support the old bin; lift straight up and out from the door tabs
• Align the new bin with the slots and press down until fully seated
• Confirm the bin is level and locked in place before loading
• Allow cold plastic to warm to room temperature before installation to reduce risk of cracking

The Door Basket Assembly is an OEM part for LG refrigerators. This part provides additional storage space on the refrigerator door, accommodating various items such as bottles, jars, and condiments. This basket helps to maximize storage efficiency and keep frequently used items easily accessible.

Causes of a bad basket can include regular wear and tear, damage from overloading with heavy items, or accidental impacts that cause cracks or breaks.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic basket
• The basket not staying securely in place on the door
• Difficulty in fitting or removing the basket from its slots
• Items not being properly supported, leading to instability

This OEM LG part is also compatible with some Kenmore models.

The Door Basket Assembly is an OEM part for LG refrigerators. It helps keep your refrigerator organized and maximizes storage capacity, allowing for easy access to frequently used items.

Causes of a faulty door basket assembly can include wear and tear over time, damage due to mishandling or impact, or broken or worn-out components. These factors can result in a loose or unstable basket, difficulty in keeping items secure, or the basket not fitting correctly on the door.

Symptoms of a bad door basket assembly may include:

• Basket falling off or not staying securely attached to the door
• Limited or compromised storage capacity on the refrigerator door
• Visible cracks, damage, or deformities in the basket

This OEM LG part can also be used on Kenmore/Sears appliances.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators, designed to support and pivot the refrigerator door, allowing it to open and close smoothly. This hinge is a critical component for the proper alignment and function of the door, ensuring an airtight seal when closed to maintain the internal temperature and efficiency of the refrigerator.

Causes of damage to the lower refrigerator door hinge often include normal wear and tear, excessive force when opening or closing the door, or corrosion due to moisture and cleaning agents.

Symptoms of a bad Lower Refrigerator Door Hinge include:

• Difficulty in opening or closing the refrigerator door.
• A door that hangs unevenly or does not close properly
• Unusual noises during door operation
• Visible wear or damage to the hinge itself.

This OEM LG part is also compatible with some Kenmore models.

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This connector assembly links refrigerator components with a secure, factory-style connection. Replace a damaged or loose connector to restore reliable operation and prevent intermittent performance of the part(s) attached to it. What it does:

• Joins two factory leads/components with a secure locking interface
• Restores a stable connection so the attached component operates reliably
• Helps address intermittent operation, no response, or flickering due to worn or heat-damaged connectors
• Replaces connectors with broken locking tabs, loosened contacts, or visible melting/corrosion

• 1 connector assembly

• Disconnect power before servicing; if working near water lines, also shut off the water supply
• Note connector orientation and routing; take photos to aid reassembly
• Depress the locking tab to release; avoid pulling on wires
• Seat the new connector fully until it locks; route away from sharp edges and moving parts

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

This upper hinge assembly secures and pivots the refrigerator door, restoring proper door support and alignment so the door opens and closes smoothly. Ideal for replacing worn or damaged top hinge hardware. What it does:

• Supports the top of the refrigerator door and provides the pivot point for smooth opening and closing
• Restores proper door alignment to reduce gaps and improve sealing
• Replaces worn or bent hinge parts that can cause door sag or uneven closing
• Helps eliminate squeaks and binding at the top hinge

• Disconnect power to the appliance and empty or secure door contents before starting
• Remove door trim or screws as needed to access the hinge; keep track of fasteners
• Reuse existing mounting hardware only if undamaged; replacement fasteners may be required
• After installation, check door alignment and adjust as necessary for an even seal

This upper hinge assembly secures the top of the refrigerator/freezer door and restores proper door alignment for reliable opening and closing. Replacing a worn or damaged hinge helps stop sagging, rubbing, and improper sealing. What it does:

• Supports the top of the appliance door and provides the pivot point for smooth door movement.
• Restores correct door alignment to improve sealing and help maintain internal temperature.
• Reduces noise, scraping, or rubbing caused by a bent or worn hinge.
• Prevents further strain on door seals and bottom hinge when properly installed.

• Disconnect power before starting and remove food from the door(s) as needed.
• Support the door while removing and installing the hinge; a second person may be required for heavier doors.
• Keep original fasteners if reusing; replace any damaged screws or bushings with OEM parts.
• After installation, check door alignment and operation; do not overtighten fasteners.

This cap assembly seals and protects the dryer/refrigeration vent duct where it exits the appliance, helping direct airflow and keep outside air, moisture, and debris out of the duct system. It's a direct-replacement external vent cap. What it does:

• Covers and seals the duct outlet to maintain proper airflow and reduce drafts
• Helps prevent moisture, pests, and debris from entering the duct
• Supports consistent venting to help avoid lint buildup and reduced performance
• Replaces a damaged, cracked, or missing duct cap to restore a proper exterior seal

• One cap assembly for the duct outlet

• Disconnect power and, if applicable, gas before beginning any work
• Remove old cap carefully; wear gloves to protect against sharp edges and lint
• Check and clear the vent path of lint and debris while replacing the cap

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This damper cushions and isolates the refrigerator compressor to reduce vibration and noise for smoother operation. It helps maintain stable compressor mounting and prevents metal-to-metal contact that can cause wear or rattling. What it does:

• Absorbs compressor vibrations to reduce noise and movement
• Helps protect the compressor housing and mounting points from shock
• Can reduce rattling or knocking sounds originating near the compressor area
• Supports proper alignment of the compressor assembly during operation

• One compressor damper (mounting isolator)

• Turn off power at the breaker and unplug the appliance before servicing
• Inspect mounting area and hardware; replace any damaged fasteners before installing the damper
• Position the damper on the compressor mount as shown in the service manual and secure per OEM guidance

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This replacement fan blade mounts on the fan motor to move air for proper cooling. A cracked, loose, or damaged blade can cause noise and weak airflow—replacing it restores smooth, reliable air circulation. What it does:

• Drives airflow to help maintain stable temperatures throughout the appliance
• Supports efficient cooling by circulating air across key areas
• Common symptoms include rattling or scraping near the fan, vibration, or wobbling
• Replacement is recommended if the motor runs but the blade slips, doesn't spin, or is visibly damaged

• 1 fan blade

• Disconnect power before servicing
• Access the fan area by removing covers/shelves as needed
• Note blade orientation; pull the old blade straight off the shaft and press the new blade on until fully seated
• Spin the blade by hand to confirm clearances, reassemble, and restore power

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

This DC motor restores the appliance's drive function by replacing a worn or failed motor assembly. Installing the correct motor helps stop drive-related failures and returns reliable rotation and operation to the unit. What it does:

• Provides the rotational drive that powers the appliance's moving components.
• Restores normal starting and running when a failed motor causes no rotation or intermittent operation.
• Stops or reduces humming, grinding, or unusual noises coming from the drive area.
• Works with the appliance's control system to maintain correct speed and response.

• Disconnect power before starting any repair to avoid shock or injury.
• Handle the motor and electrical connectors carefully; secure wiring and mounting fasteners per the service manual.

The Evaporator Fan Motor is an OEM part for LG refrigerators. This motor circulates air within the refrigerator, ensuring even cooling and maintaining the desired temperature throughout the appliance.

Common causes of failure include wear and tear over time, electrical issues such as power surges, or physical damage from mishandling or impact.

Symptoms of a bad evaporator fan motor include:

• Unusual noises from the freezer or refrigerator compartments
• Inconsistent or insufficient cooling
• The motor not running or running sporadically
• Ice buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with some Kenmore models.

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

The SWITCH, MAGNET is an OEM part for LG refrigerators. It is a switch designed to function in conjunction with the magnetic door seal, indicating to the refrigerator when the door is open or closed. This allows the refrigerator to regulate temperatures properly based on door positioning.

Symptoms of a bad switch, magnet can include:

•  Temperature control issues, with the fridge struggling to maintain proper coolness levels
•  The fridge fails to switch to energy-saving modes when the door is closed
•  Lights not turning on or off correctly when the door is opened or closed

Replace yours today with this genuine OEM LG part to ensure consistent and reliable temperature control. This OEM LG part is also compatible with Sears/Kenmore.

This bracket assembly secures the motor to the appliance chassis, keeping the motor stable for reliable operation and reducing vibration. Use this part to replace a worn or damaged motor mount and restore proper motor alignment. What it does:

• Holds the motor in the correct position to ensure the drive components remain aligned
• Reduces motor movement and vibration that can cause noise or premature wear
• Helps prevent rubbing or contact between the motor and cabinet that may cause damage
• Commonly replaced when motor mounting points are cracked, bent, or broken

• Disconnect power to the appliance before beginning any repair
• Handle sharp sheet-metal edges carefully and support the motor during removal/installation
• Verify motor alignment and secure all fasteners to the manufacturer's torque or tightness guidance
• If other mounting hardware is missing or damaged, replace it with OEM-specified fasteners

The Motor is an OEM component specifically designed for LG refrigerators. It houses the condenser fan motor located behind the rear refrigerator wall.

This condenser fan motor works to dissipate heat from the refrigeration system. It actively works to cool the refrigerant and cycle it back into the system, ensuring consistent temperatures are maintained inside the refrigerator compartment.

Symptoms of a bad condenser motor include:

• Rises in interior refrigerator temperatures
• Frost or ice buildups occurring prematurely
• Abnormal noises coming from behind the refrigerator
• The fan motor fails to start or run intermittently

Causes of a bad condenser motor can include normal wear and tear over time, failures in the motor's electronic components, damage from damp environments, or impacted debris.

Replacing the condenser motor with this genuine OEM LG part restores proper heat removal. It is also compatible with Sears/Kenmore refrigerator models.

This LED assembly is the backlight strip that provides panel illumination for compatible LG TVs, restoring even screen lighting and improving picture visibility. Use it to replace a damaged or failing backlight module. What it does:

• Provides uniform illumination behind the LCD panel for proper picture brightness
• Replaces worn or damaged LED strips that cause dim, uneven, or flickering backlight
• Can resolve symptoms such as dark spots, sections of the screen that are too dim, or no backlight while the TV powers on
• Works as a direct replacement for the specific LED module listed by the manufacturer

• One LED assembly

• Disconnect power and follow manufacturer service manual before starting; panel removal is typically required
• Handle the LED assembly and display panel carefully to avoid damage or fingerprints on the panel
• Observe ESD precautions and avoid bending or creasing the LED strip or its flex cable

This LED light assembly illuminates the refrigerator interior when the door opens, delivering bright, efficient lighting so you can easily see items. Replace a failed module to restore proper visibility inside your fridge.

• Provides interior illumination for the fresh food or freezer compartment
• Turns on and off with the door switch
• Helps you quickly find items and check food condition
• Common symptoms: no light when doors open, flickering/strobing, dim or intermittent lighting

• Disconnect power to the refrigerator before servicing
• Remove any lens/cover, release retaining tabs, and unplug the wire harness to remove the old module
• Connect the new assembly, align tabs, and snap/secure it into place; reinstall the cover
• Restore power and verify operation; the door switch activates the light

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

The Capacitor is an OEM part for LG refrigerators. It plays a vital role in the electrical system, providing the necessary power boost to start the compressor and maintain its operation. This component ensures that the refrigerator runs efficiently by stabilizing voltage and improving overall performance.

Common causes of a bad capacitor include electrical surges, wear and tear over time, or exposure to excessive heat.

Symptoms of a bad capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual noises coming from the refrigerator
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

The Power Cord Assembly is an OEM replacement part for LG refrigerators. It includes the electrical cord and strain relief that links the refrigerator to an external power source.

This power cord assembly safely delivers electricity from the wall outlet to the internal compressor and fan modules. It facilitates proper cooling functions through this transmission of alternating current.

Symptoms of a bad power cord can include:

• Abnormal sounds such as humming or buzzing from within
• Tripped circuit breakers interfering with operations
• Indicators of cord damage like frays or exposed wiring
• Inconsistencies in interior temperature maintenance

Causes may involve normal wear over extended use, physical stress, or accidental damage to the cord insulation.

Replacing the power cord assembly with this genuine LG OEM part restores a reliable electrical pathway. It ensures a continued power supply to keep foods fresh and frozen.

The Compressor Overload Protector Assembly is an OEM part for LG refrigerators. The compressor overload protector steps in if the compressor motor draws excessive current. It then interrupts the power to prevent overheating. The wire harness boosts the compressor to kick-start it, disengaging as soon as the motor reaches the desired speed.

Over time, the compressor overload protector can wear out or become damaged due to electrical issues, power surges, or constant exposure to high temperatures. A faulty protector can compromise the safety and efficiency of the refrigerator’s cooling system.

Symptoms of a bad compressor overload protector assembly include:

• The refrigerator not cooling properly
• The compressor frequently cycling on and off
• Clicking noises coming from the compressor area
• The refrigerator not turning on at all

This OEM LG part is also compatible with Sears/Kenmore models.

This sheath heater is the heating element used in compatible electric dryers to generate hot air for drying. Replaces a worn or failed heater element to restore normal drying performance and reduce extended dry times. What it does:

• Heats air inside the dryer cabinet so clothes can dry efficiently.
• Commonly linked to symptoms like clothes not drying, extended drying cycles, or no heat from the dryer.
• Works with the dryer's thermostats and thermal fuses; a faulty heater can mimic other heat-related failures.

• Disconnect power at the breaker before servicing — this part involves live AC voltage.
• Inspect and replace any open thermal fuses or failed thermostats at the same time as recommended by the model service guide.
• Handle the element carefully to avoid bending or damaging the sheath; follow OEM instructions and torque specs during reassembly.

This cover assembly protects the appliance's printed circuit board from debris, moisture and accidental contact, helping preserve reliable control operation. It provides a secure enclosure that keeps the PCB mounted and shielded during normal use. What it does:

• Shields the control board from dust, moisture splash and foreign objects that can cause shorts or component damage.
• Keeps wiring and connectors routed and secured to reduce strain and intermittent connections.
• Helps maintain correct spacing and alignment of the PCB for reliable electrical contacts.
• Useful when the original plastic cover is cracked, warped, missing or allows board exposure.

• One cover assembly for PCB.

• Disconnect power to the appliance before beginning any service to avoid shock or damage.
• Handle the PCB and connectors carefully; avoid touching board components or bending traces.
• Align cover over the PCB and fasten with the original screws or clips; do not overtighten plastic fasteners.

This main PCB control board is the appliance's central power/control module that manages electrical signals for normal operation. Replacing a failed board restores control functions and helps the appliance run reliably. What it does

• Regulates and distributes power to the appliance's control circuits and sensors.
• Interprets user inputs and coordinates operational commands to subsystems.
• Can cause the appliance to lose power, fail to start, or show control errors when defective.
• Replacing a faulty board often resolves intermittent operation, unresponsive controls, or unexpected shutdowns.

• Disconnect power at the breaker or unplug the appliance before starting work.
• Handle the board by its edges and avoid touching components or connectors to prevent ESD damage.
• Verify connector orientation and secure all wiring harnesses; do not force connectors.

This lamp cover assembly is the replacement plastic lens that protects and diffuses the interior light so the compartment stays illuminated and the bulb is shielded. Restores finished appearance and prevents direct contact with the bulb. What it does:

• Covers and protects the interior lamp from impacts, spills, and debris
• Diffuses light for more even illumination inside the compartment
• Stops rattling or movement caused by a cracked or loose lens
• Helps prevent accidental contact with the bulb or wiring

• One cover assembly

• Disconnect power or unplug the appliance before starting any work
• Remove shelves or components as needed for access and set small parts aside
• Use a soft cloth and gentle pressure to remove/install the lens to avoid cracking
• Replace the lamp bulb if the light still fails after installing the new cover

This is an ice bucket assembly that is used on refrigerator and freezer units. This part stores the ice that has been made so that it can be dispensed. The auger is attached to this, which is the piece that moves the ice into the dispenser chute. Additional parts may also be included with this component.Over time, the bucket assembly may begin to crack or break. This can happen due to exposure to extreme temperatures over time. If this is the case, it will need to be replaced. If the auger itself is no longer working, the whole ice bucket assembly will need to be replaced because it is attached. Wear work gloves when replacing this part.This ice bucket is compatible with refrigerator and freezer units that have been manufactured by Kenmore Elite and LG. It is sold individually. This part is sourced straight from the manufacturer.

The Icemaker and Auger Motor is an OEM part for LG refrigerators. This assembly includes both the icemaker that produces ice and the auger motor that drives the ice dispensing mechanism. This part ensures that your refrigerator delivers ice efficiently whenever needed.

Causes of malfunction in this component can stem from mechanical wear and tear, electrical failures in the motor, or blockages in the ice dispensing mechanism that strain the motor.

Symptoms of a failing icemaker and auger motor include:

• Inability to produce ice or producing very little ice
• Strange noises when the icemaker is operating
• Ice not dispensing properly or at all
• Intermittent operation or complete failure of the icemaker

This OEM LG part is also compatible with Sears/Kenmore.

The Ice Maker (12 cube) is an OEM part for LG refrigerators. It is responsible for producing ice cubes, typically in batches of 12, and dispensing them into the ice bin for easy access. This ice maker ensures a consistent supply of ice, ideal for everyday use and entertaining guests.

Over time, the ice maker can become faulty due to regular wear and tear, mineral buildup from water, or issues with the internal components such as the motor or the water inlet valve. A malfunctioning ice maker can lead to inefficient ice production or no ice at all.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Smaller than usual or misshapen ice cubes
• Leaks or water overflow in the ice maker compartment
• Unusual noises during the ice-making process

This OEM LG part is also compatible with Sears/Kenmore models.

This indoor AC motor powers the evaporator–side fan in compatible split-system indoor units, circulating air across the coil to maintain cooling comfort. Designed as a direct replacement to restore proper airflow and indoor cooling performance. What it does:

• Spins the indoor fan/blower to move conditioned air through the evaporator coil and into the living space
• Restores normal airflow when a failed motor causes weak or no indoor air movement
• Helps prevent uneven cooling and assists in proper refrigerant heat exchange
• Works with the indoor blower assembly and motor mounting hardware

• Disconnect power at the breaker before attempting any repair to avoid shock
• Mounting screws, wiring connectors, or brackets may be required—reuse existing hardware unless replacements are specified

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

This filter head assembly holds and secures the refrigerator's inline water filter cartridge, providing a sealed connection to the water lines for reliable flow and filtration. Replace a damaged head to stop leaks and restore normal dispensing. What it does:

• Secures the water filter cartridge and provides the water-line connections for the refrigerator's dispensing and ice systems
• Creates a sealed path to prevent leaks at the filter connection
• Restores proper water flow when a cracked or worn head restricts or leaks
• Helps ensure water passes through the filter media rather than bypassing it

• One filter head assembly

• Turn off the refrigerator ice/water dispenser and shut off the household water supply before replacing
• Relieve pressure by dispensing water after shutoff and carefully disconnect tubing; check and replace any worn O-rings or seals
• Hand-tighten connections, then check thoroughly for leaks when water is restored

The Water Filter Assembly is an OEM part for LG refrigerators equipped with water dispensers and ice makers. This important assembly helps ensure clean, pure water for drinking and ice production.

Causes of a bad water filter can include failure to change filters regularly as recommended, damage to internal filter components from freeze or impact, or issues with the filter housing seal allowing untreated water to bypass filtration.

Symptoms of a bad water filter assembly include:

• Cloudy, sediment-filled water dispensed
• Decline in filter's contaminant removal abilities
• Noticeable tastes or odors emerging from water and ice
• Filters requiring replacement before recommended schedules

Replace yours today with this genuine OEM LG assembly before contaminants can affect equipment operation or your family's health. New filters restore optimal filter lifespan. This replacement part is compatible with Samsung, GE, and some Kenmore refrigerator models.

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This refrigerator water tank holds a reserve of water inside the fresh food section so the dispenser delivers a steady, chilled flow. Replace the reservoir if it's cracked, leaking, or internally restricted.

• Stores and chills dispenser water inside the refrigerator
• Helps maintain consistent dispenser flow and pressure
• Damage can cause leaks under drawers or inside the fresh food compartment
• Kinks or blockages can reduce flow or stop water dispensing

• Unplug the refrigerator and shut off the household water supply; dispense water to relieve line pressure.
• Access the tank behind the crisper/deli area; note tubing routing and connection points before removal.
• For push-to-connect fittings, depress the collar to release lines; cut tubing square and fully seat when reconnecting, then perform a gentle tug test.
• Restore water and power, check all connections for leaks, and purge air by dispensing water.

An in-line union for appliance tubing, this tube connector joins two sections of plastic line to create a secure, leak-resistant connection in the water circuit, ideal for restoring flow after a repair, trim, or reroute. What it does:

• Connects two lengths of compatible plastic tubing to form a continuous run
• Helps maintain proper water delivery through the appliance's water system
• Can address leaks, drips, or loose/failed connections at a splice point
• Useful when replacing, shortening, or rerouting tubing during service

• 1 tube connector

• Disconnect power and shut off the water supply before servicing
• Cut tubing square; ensure ends are clean, round, and free of gouges
• Insert tubing fully into the connector until seated, then perform a gentle pull test
• Restore water and inspect all joints for leaks; use the connector size that matches your tubing's outer diameter

Located in the left refrigerator door on french door models.

The Water Valve Assembly is an OEM part for LG refrigerators. It is essential for controlling the flow of water to the ice maker and the water dispenser. This solenoid-operated valve responds to signals from the refrigerator’s electronic control system to accurately manage the release of water, ensuring efficient operation and reliability.

Symptoms of a bad Water Valve Assembly include:

• The ice maker not producing ice or producing very small cubes
• The water dispenser not functioning or dispensing a trickle instead of a steady flow
• Water leaking from the refrigerator

Causes of a bad water valve assembly can stem from mineral deposits that clog the valve, electrical failures that impair the valve’s operation, or wear and tear from normal usage leading to leaks or malfunctions.

This OEM LG part is also compatible with Sears/Kenmore.

Note: Flow meter is not needed on all models, remove if necessary. Redesigned single valve replaces older dual solenoid valves. Wiring harness is included. Located behind the refrigerator.

A small trim cap that covers and protects an exposed fastener or access opening, restoring the appliance's finished appearance and helping keep dirt and moisture out of the opening. What it does:

• Covers exposed screw heads or access holes to improve appearance
• Helps prevent dirt and moisture from entering openings around fasteners
• Restores a flush, finished surface after repair or panel removal
• Reduces the chance of snagging or accidental contact with recessed hardware

• One cap cover

• Disconnect power to the appliance before starting any repair
• Press into place over the fastener or opening until fully seated; no special tools usually required
• Avoid forcing or prying to prevent breakage of the cap or surrounding trim
• Replace any damaged surrounding trim or retainers to ensure a secure fit

This cover assembly replaces the top cover for an ice maker bucket, protecting ice from contamination and helping the dispenser operate cleanly. It restores the proper enclosure for stored ice and supports correct ice dispensing. What it does

• Replaces a cracked, warped or missing ice bucket cover that lets ice become exposed or contaminated
• Helps maintain proper ice containment so the dispenser and auger can move ice without obstruction
• Reduces ice spillage and prevents debris from entering the ice storage area
• Supports normal operation of the ice bucket and dispenser when used with the original bucket assembly

• One cover assembly for the ice bucket

• High-level, typically user-serviceable: remove the ice bucket, unhook the old cover, and snap or screw the new cover into place
• Power/disconnect: turn off dispenser power or unplug refrigerator before starting to avoid moving parts during install
• Handle gently: plastic parts can crack if forced; align tabs and fasteners before pressing into place

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.
