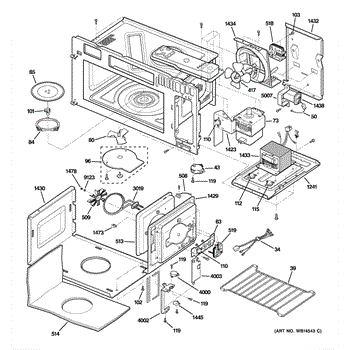

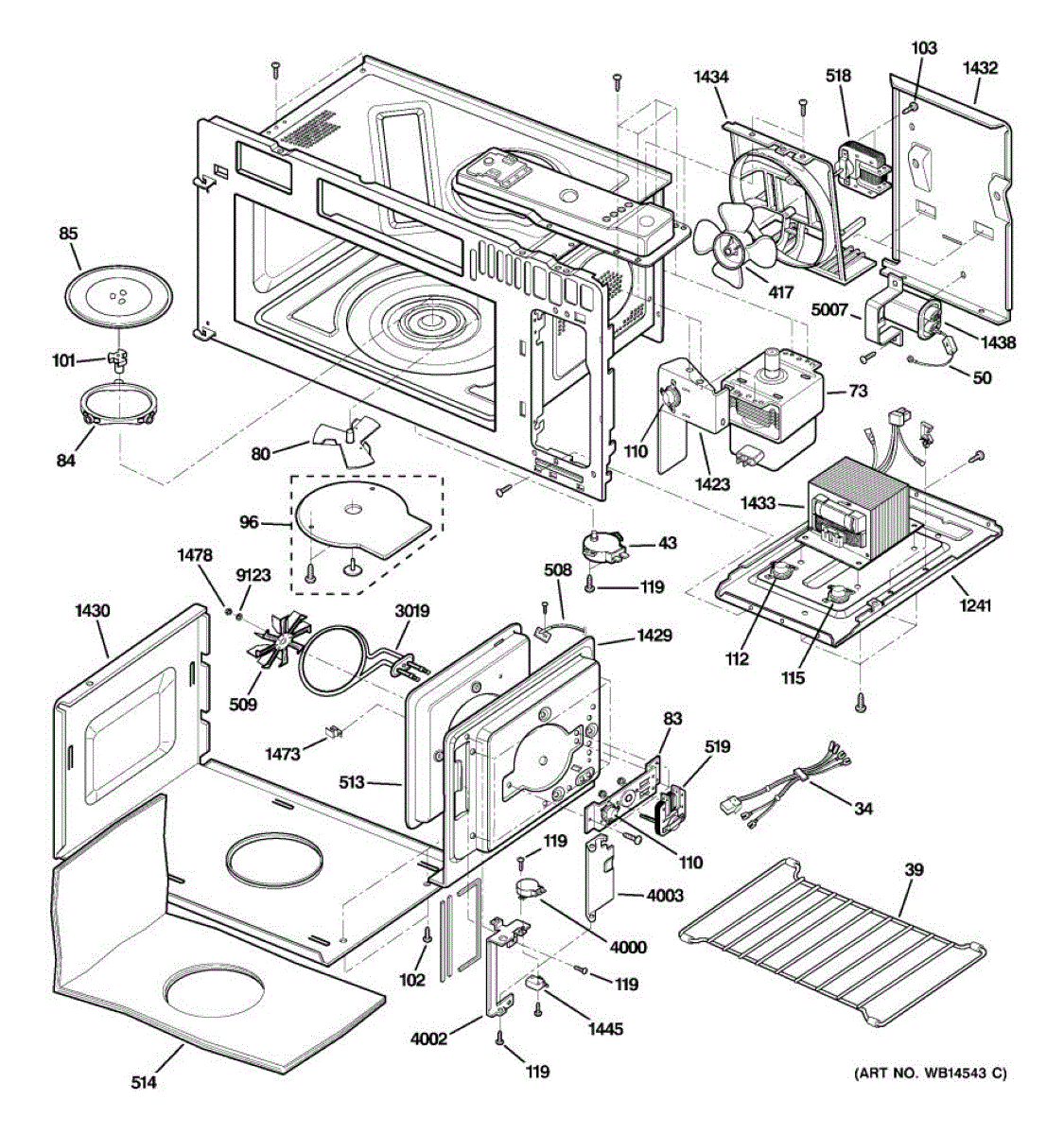

Parts for Ge JVM1790BK01: 05 - Interior Parts (1) Parts

Fix microwave not starting or intermittent operation. This main control wiring harness restores reliable connections between control board and components.

Replace a missing, bent, or damaged convection oven rack in your microwave. Provides a stable cooking surface for baking and roasting in convection mode.

Fix a noisy or stopped turntable with a new synchronous motor. Restores smooth rotation and even heating in your microwave. DIY-friendly replacement.

Microwave not heating? A failed diode prevents the magnetron from generating heat. This high-voltage component converts AC to DC power. DIY repair.

Microwave runs but doesn't heat? The magnetron generates microwave energy to cook food. Replacing a failed magnetron restores heating performance.

Fix a microwave that's overheating or shutting off due to poor ventilation. This complete blower wheel fan assembly restores proper airflow and cooling.

This plate side heater is the oven heating element that produces heat along the oven side to help maintain even cooking temperatures. Designed to restore proper heating when the side element is worn or failed. What it does:

• Heats the side area of the oven cavity to support even cooking and baking.
• Replaces a damaged or open side heating element that can cause weak or uneven oven heat.
• Helps address symptoms such as oven not reaching set temperature, uneven baking, or visible element damage.
• Works as a direct replacement when the original side plate heater fails.

• One plate side heater

• Disconnect power to the appliance at the breaker before starting any repair.
• Allow the oven to cool completely and use proper PPE when handling the element.
• Remove mounting screws and electrical connectors carefully; note wire locations for reinstallation.
• Reconnect securely and test the oven on a low heat setting to verify proper operation.

Supports and rotates the microwave turntable during cooking. Replace if cracked, broken, wheels are missing, or rollers have flat spots or won't rotate.

Color: clear. Measures about 14 inches in diameter.

Fix uneven heating in your microwave. This stirrer fan cover protects the component that distributes microwave energy. Simple repair, under 10 minutes.

Fix a microwave tray that won't spin or slips off center. This turntable shaft connects the motor to the glass tray for smooth rotation and even cooking.

Truss head tapping screw for microwave assembly. Secures internal components and panels. Replace if screw is stripped, missing, or lost during repair.

Truss head tapping screw for microwave interior and exterior assembly. Replaces lost, stripped, or corroded screws during repairs or maintenance.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat is an OEM part for GE ovens. This critical component functions as a temperature sensor and controller within the oven, ensuring that the oven heats to the set temperature and maintains it throughout the cooking process. The thermostat prevents the oven from overheating by cycling the heat on and off as needed.

Symptoms of a failing thermostat include:

• Oven not reaching the desired temperature
• Overheating beyond the set temperature
• Uneven cooking or baking results
• Oven temperature fluctuating more than usual

Causes of thermostat failure generally include age-related wear and tear, calibration issues, or exposure to extreme temperatures that can damage its internal components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Microwave won't heat or stops working? This thermal cutoff thermostat prevents overheating damage. DIY-friendly repair, typically takes 10-15 minutes.

Fixes weak ventilation, excessive noise, or overheating in your microwave. This blower wheel restores proper airflow to clear steam and cool components.

This temperature thermistor is the sensor that lets the control board monitor and regulate appliance temperature for reliable cooling performance. Replacing a failing thermistor can restore proper temperature control and cycling. What it does:

• Senses internal temperature and sends readings to the control board
• Helps the compressor, fans, and defrost system run at the right times
• Commonly linked to symptoms like incorrect temperatures, overcooling, or frequent on/off cycling
• A faulty thermistor can cause improper defrost timing or erratic cooling behavior

• Disconnect power before inspecting or replacing the sensor to avoid shock
• Handle the sensor and wiring connector gently to avoid damage
• Mount the sensor in the original location and secure wiring per OEM routing

Fix poor cooling and ventilation issues in your microwave with this fan assembly. Restores proper airflow and temperature regulation. Moderate DIY repair.

This AC fan motor is the refrigerator fan motor that circulates air to maintain proper cooling and airflow. It replaces a worn or failed fan motor to help restore steady airflow and consistent temperatures. What it does:

• Spins the evaporator/condenser fan blade to move air through the refrigerator cooling system
• Restores airflow when fan has stopped running or runs intermittently
• Reduces unusual fan noise or vibration caused by a failing motor
• Helps correct uneven cooling or frost build-up linked to poor air circulation

• Disconnect power to the appliance before starting any work
• Handle the fan blades carefully to avoid bending or injury
• Verify fan blade seating and clearances during reassembly to prevent rubbing

This circulation motor powers air movement inside the appliance to maintain proper airflow and even temperatures. Replacing a failed motor restores circulation for more consistent cooling and reduces noise or performance issues. What it does:

• Spins the fan to circulate air through the cooling/ventilation path
• Helps maintain even temperatures and proper airflow in the appliance
• Commonly replaced when airflow is weak, cooling is uneven, or the motor is noisy
• Stops operation if the motor fails, which can lead to frost buildup or reduced performance

• Disconnect power to the appliance before starting any repair
• Access and mounting steps vary by model; follow the appliance's service manual or wiring diagram
• Handle wiring connectors carefully and confirm proper fan rotation before reassembly

Bottom plate for microwave interior cavity. Replaces cracked, warped, or damaged base plates. Installs at the bottom of the cooking chamber.

Suction guide bracket that positions and supports the suction component inside your microwave. Replace if cracked, broken, or missing to restore proper alignment.

Microwave not heating or humming loudly? This high-voltage capacitor powers the magnetron. Commonly replaced with the diode. Moderate DIY repair.

Fix a microwave that won't start or stops mid-cycle with this door interlock monitor switch. Ensures safe operation when door closes. DIY repair.

This heater holder is the mounting bracket that secures the oven heating element in place so the element stays aligned for reliable heating and safe operation. It helps prevent movement that can cause uneven cooking or damage. What it does:

• Holds and stabilizes the oven/heater element in the cavity so it stays properly positioned
• Keeps the element from contacting other components, reducing the risk of shorts or damage
• Helps maintain even heat distribution by preventing element sagging or misalignment
• Fits where the element mounts and supports normal operation of the heating circuit

• One heater holder/mounting bracket

• Turn power to the appliance off at the breaker before servicing to avoid shock
• Inspect the element and surrounding insulation for damage when replacing the holder
• Typically secures with screws or clips—retain hardware and note orientation for reassembly

Hexagon nut for microwave interior assembly. Secures components and panels in place. Replace if stripped, corroded, or missing during repairs.

This heater sheath is the protective metal sleeve that surrounds a dryer/oven heating element, helping protect the element and focus heat where needed for reliable appliance heating performance. What it does:

• Protects and supports the heating element inside the appliance
• Helps direct and contain heat for efficient operation
• Can prevent direct contact between the element and surrounding components
• Commonly replaced when the sheath is corroded, dented, or damaged
• Linked to uneven heating or visible element damage

• High-level replacement only; disconnect power before servicing to avoid shock hazard
• Inspect surrounding components (element, terminals, mounting clips) and replace any damaged parts
• Use proper fasteners and ensure sheath is seated securely to avoid contact with other components

Fix a microwave clock or timer that won't advance with this AC synchronous motor. Restores gear-driven timing functions. Straightforward repair.

Fix a loose or rattling capacitor with this microwave capacitor bracket. Secures the high-voltage capacitor in place. Simple repair for most DIYers.
