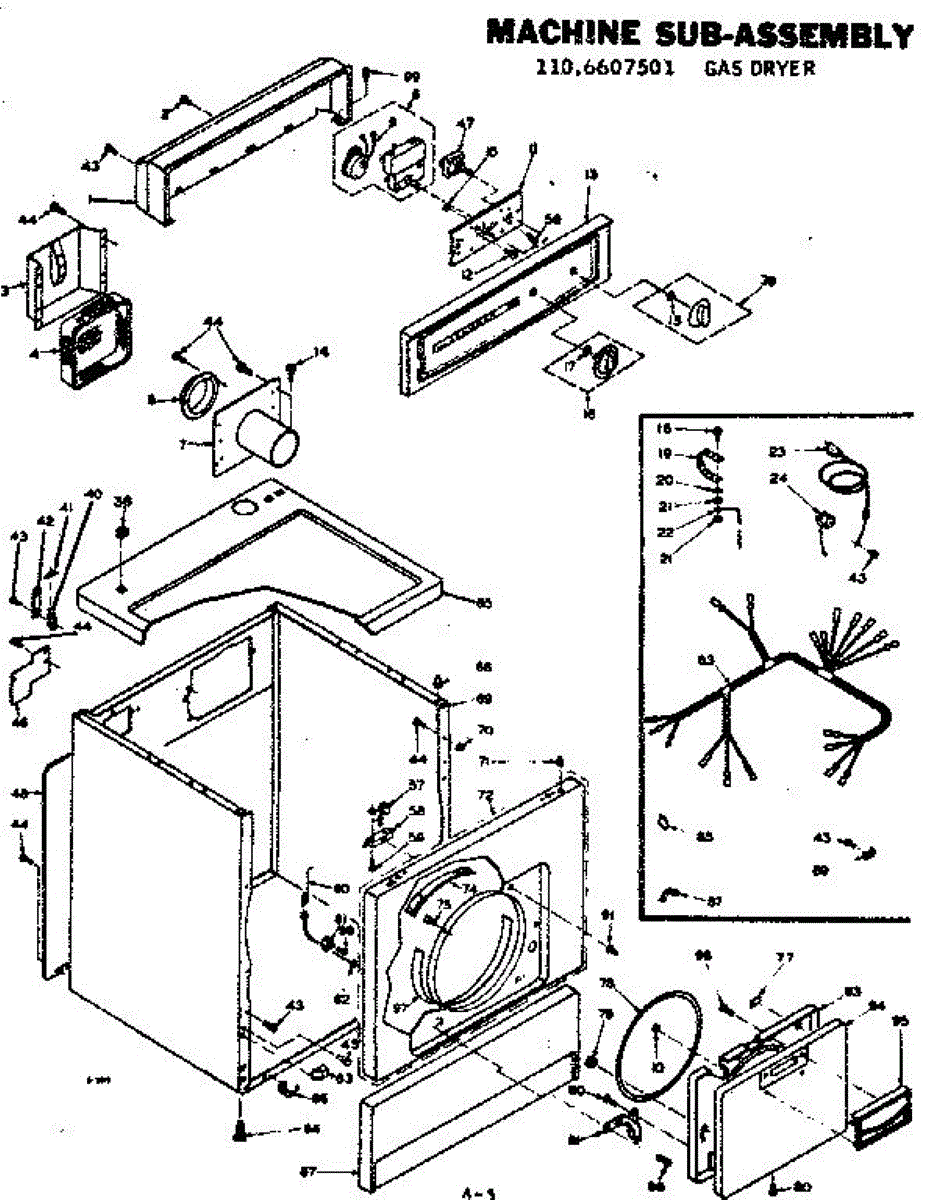

Parts for Kenmore 110.6607501 (1106607501, 110 6607501): Machine Sub-Assembly Parts

Screw: 8-16 x 3/8 inch.

Self-drilling screw secures panels, brackets, and trim without pre-drilling. Replace missing or stripped screws during appliance repair or reassembly.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

Specs: 10-16 x 1/2 inch.

Rubber bumper. Color: Grey.

The Washer Door Switch is an OEM part for Whirlpool washing machines. This component is crucial for ensuring the washer operates safely by detecting whether the door is open or closed. The door switch prevents the washer from starting or continuing its cycle when the door is open, and it allows the machine to function only when the door is securely closed.

Symptoms of a failing Washer Door Switch include:

• The washer not starting or stopping unexpectedly during a cycle
• Error codes related to door closure issues displayed on the washer's control panel
• The washer door not locking properly or the lock mechanism not engaging
• The washer continuing to operate with the door open

Causes of a bad door switch can include wear and tear from frequent use, damage from repeated opening and closing of the door, electrical faults such as short circuits, or physical damage from mishandling or impact.

This OEM Whirlpool part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Size: 6 - 20 x 1 1/16 inch.

This door spring restores the counterbalance on a dishwasher door so it opens smoothly and doesn't drop. Replacing a worn or broken spring brings back controlled door movement and helps protect the hinges and linkages. What it does:

• Provides tension to counterbalance the dishwasher door for smooth, controlled opening and closing
• Helps prevent the door from slamming open or feeling excessively heavy
• Common failure signs include a door that drops suddenly, won't stay partially open, or makes snapping/spring noises
• Visual signs may include a stretched, broken, or missing spring

• 1 door spring

• Disconnect power; if working on a built-in dishwasher, also shut off water and support the door
• Springs are under tension—use eye protection and gloves, and release/attach carefully
• Access is typically behind the lower/toe panel; note original spring routing and hole positions before removal
• Inspect related door linkage/cords and hinge brackets; replace any worn components to maintain proper balance

This small retaining clip secures the door hinge in place so the door opens and closes smoothly and stays properly aligned. Replacing a worn or missing clip helps restore reliable hinge support and consistent door operation.

• Retains the hinge/hinge pin to prevent shifting or separation
• Helps maintain door alignment to avoid rubbing, sagging, or binding
• Replaces a clip that is bent, cracked, corroded, or missing
• Common signs it's needed: loose or wobbly door, difficulty closing, misaligned door, visible damaged/missing clip

• Unplug the appliance and, if applicable, remove items from the door to reduce weight
• Support the door before working on the hinge
• Remove any hinge cover/fasteners, swap the clip, and ensure it seats fully
• Reassemble and check door alignment and smooth operation

The Top Lock is an OEM component for Whirlpool electric and gas dryers. It secures the outer metal cabinet door during drying cycles for safety and ventilation. This lock provides a method for releasing and latching the door tightly when shut.

Symptoms of a failing top lock may include:

• Inability to fully close or properly latch the dryer door
• Accidental opening from deficient locking during operation
• Difficulty manipulating the lock due to worn or broken parts

Causes related to normal wear of moving parts through frequent use over several years. Deformation from excessive exterior impacts could also damage locking mechanisms.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flat-head screw secures panels, brackets, or trim so they sit flush on your appliance. Replacing a worn or missing screw restores a tight fit and helps prevent vibration, rattling, or shifting components.

• Provides a countersunk, flush-mount fastener for panels, trim, brackets, or covers
• Helps maintain alignment and secure attachment during operation
• Replaces stripped, rusted, or missing hardware
• Symptoms can include loose panels or handles, rattling noises, or visible gaps/misalignment

• Disconnect power (and shut off gas, if applicable) before servicing
• Match screw length and thread to the original for proper fit
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Support the part being fastened to keep alignment while tightening

Right side

This left-hand hinge assembly supports and pivots the appliance door or lid so it opens and closes smoothly and stays aligned for a proper seal. Replacing a worn hinge can correct sagging, rubbing, and hard-to-close doors. What it does:

• Provides the pivot point and support on the left side of the door or lid
• Maintains alignment to help ensure proper latch engagement and gasket contact
• Restores smooth opening/closing and reduces binding or scraping
• Common symptoms of a bad hinge: door droops, squeaks/grinds, rubs the cabinet, won't close flush, or shows visible play/damage

• 1 left-hand hinge assembly

• Disconnect power (and shut off water, if applicable) before servicing
• Support the door/lid while removing fasteners to prevent dropping or damage
• Transfer any original screws, bushings, or trim pieces as needed
• After installation, adjust mounting as needed for smooth operation

Ground wire clip for ranges and ovens. Secures grounding wire to chassis. Replace if clip is broken, bent, or missing to ensure proper electrical ground.

The Door Latch Kit is an OEM replacement part for Whirlpool washers. This component is responsible for securely locking the washer door during the wash cycle, preventing it from opening unexpectedly and ensuring a safe and efficient operation.

Symptoms of needing to replace the door latch kit include:

• Difficulty in closing or latching the washer door
• Door opening unexpectedly during the wash cycle
• Leaks or water seeping due to an improper door seal
• Excessive wear or damage to the latch components

Causes of a faulty door latch kit can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the door alignment or strike plate.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore washer models.

Replaces worn dryer front bearing and seal that cause squealing or scraping noise. Essential for smooth drum rotation. Confirm fit with your model.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Size: 10-16 x 5/8 inch.

The Terminal Block Kit is an OEM part for Whirlpool dryers. This kit includes the terminal block, wires, wire connectors, screws, brackets and instructions.

Common causes of a bad terminal block include overheating due to loose connections, corrosion from moisture exposure, and physical damage from handling or installation errors.

Symptoms of a bad terminal block kit include:

• Dryer not starting or losing power during operation
• Burning smell or visible burn marks near the terminal block
• Loose or frayed wires connected to the terminal block
• Intermittent electrical issues or malfunctioning controls

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
