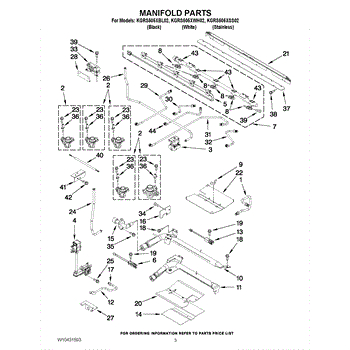

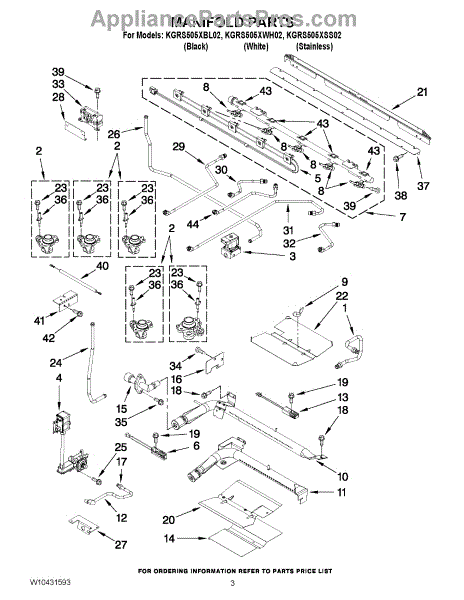

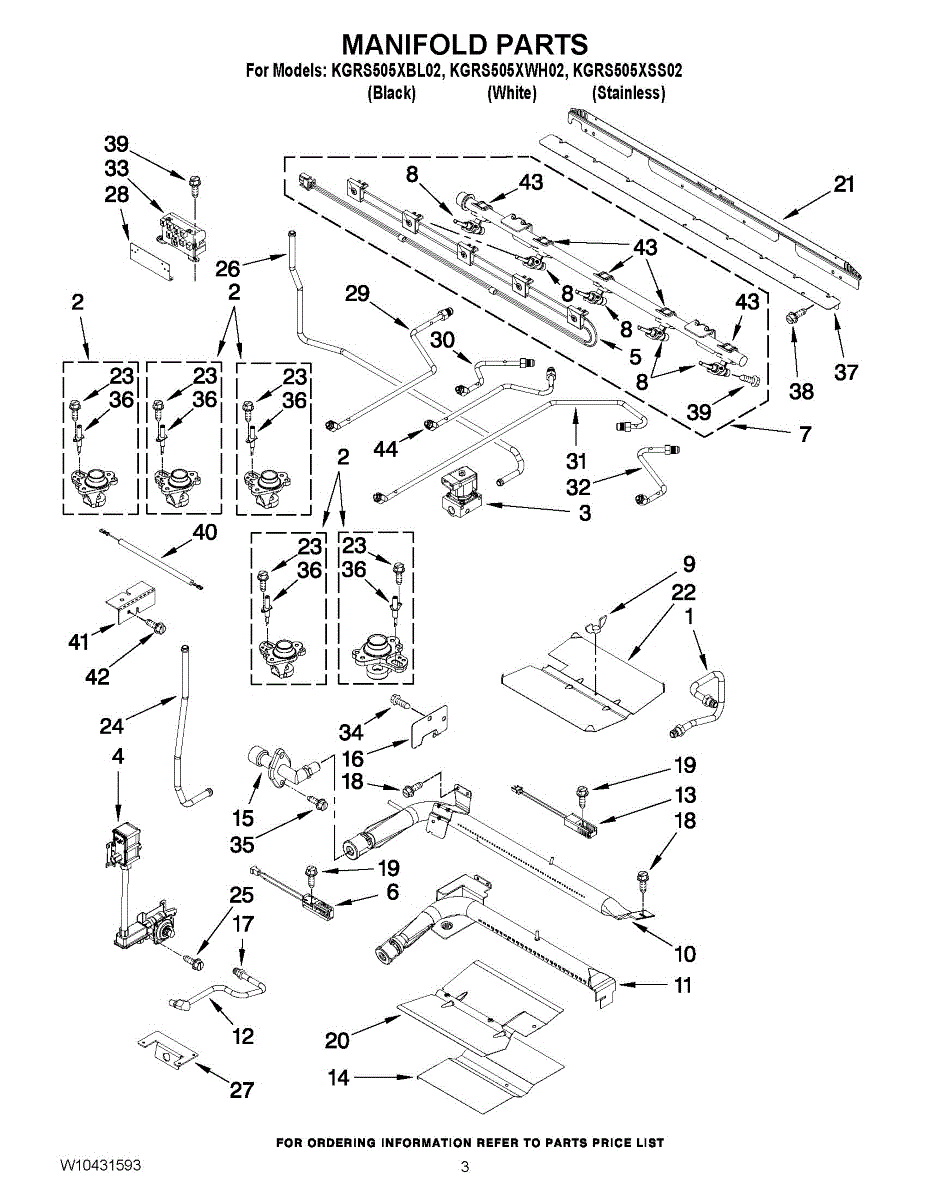

Parts for Kitchenaid KGRS505XBL02: 03 - Manifold Parts

This gas tubing is the direct-fit replacement part that routes natural or liquid propane gas between range components, restoring safe fuel flow for proper burner operation. It replaces worn or damaged tubing without modifying factory connections. What it does:

• Carries gas from the valve to burners or manifold to enable ignition and normal burner flames
• Commonly replaced when tubing is corroded, cracked, kinked or leaking
• Can stop symptoms such as persistent gas smell, burner failure to light, or intermittent flame
• Matches OEM fit and connection locations for a straightforward swap

• One gas tubing

• Shut off the gas supply and disconnect power before starting any work
• Only install on compatible appliances; use approved fittings and follow torque specs from the appliance manufacturer
• Check all connections for leaks after installation using a soapy-water solution or approved gas leak detector

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This Holder ORF is a small mounting retainer used to secure internal components so parts stay aligned and stable during normal appliance operation. Replacing a damaged or missing holder prevents loose parts and rattling. What it does:

• Secures and positions a specific internal component or assembly
• Keeps parts aligned to prevent rubbing, vibration, or noise
• Restores proper fit where the original retainer is cracked, bent, or missing
• Helps maintain reliable operation by holding components in place

• Disconnect power (and gas, if applicable) before servicing the appliance
• Inspect adjacent parts and fasteners for wear; replace any damaged hardware
• Use basic hand tools; avoid over-tightening which can crack the retainer

This center orifice holder secures the gas orifice for the center burner, restoring proper alignment and stable gas flow for reliable ignition and even flame performance. Fits the center burner assembly on compatible gas ranges. What it does:

• Holds the center burner orifice in place so the orifice stays aligned with the burner
• Helps maintain consistent gas flow for steady flame and reliable ignition
• Can correct symptoms such as weak or uneven center-burner flame or difficulty igniting the center burner
• Works with the burner assembly to ensure proper burner-to-orifice positioning

• Turn off the appliance and shut off gas supply before beginning any service
• Remove the burner grate and cap, then replace the orifice holder in the center burner assembly
• Reassemble burner components and restore gas; check for correct ignition and even flame

This orifice holder secures and positions the gas orifice at the burner, helping restore correct gas flow and consistent flame performance for compatible gas cooktop/range burners. Use it to replace cracked, warped, or missing holders. What it does:

• Holds the burner orifice in the proper position for accurate gas metering
• Helps maintain a steady burner flame and reliable ignition
• Replaces damaged or worn holders that can cause weak or inconsistent flames
• Works with surface burners and orifice assemblies where this holder is specified

• Turn off gas supply and unplug the appliance before servicing.
• Remove burner components and replace the holder with the matching OEM part.
• Inspect the orifice and surrounding tubing for damage; tighten fittings per manufacturer guidance.

This gas valve regulator controls and stabilizes incoming gas pressure to the range's burners, helping ensure consistent flame performance and safe operation.

• Regulates gas pressure supplied to the appliance for proper burner performance
• May help resolve weak, irregular, or no flame at the burners or oven
• Can address issues like delayed ignition, uneven heating, or burner outage
• Safety-critical component in the gas supply path

• Disconnect gas and electrical supply before servicing
• Verify gas type and inlet orientation match your appliance configuration
• Check for leaks with an approved leak-detection method after installation
• Recalibrate or adjust only per the manufacturer's instructions

This is the wiring harness that links key components such as the water inlet valve and switches. Replacing a damaged harness restores proper electrical connections so the appliance fills and runs reliably without intermittent power losses.

• Carries power and signals between the valve and related switches
• Helps resolve issues like no fill, intermittent operation, or cycling failures
• Corrects symptoms from burned, brittle, or broken wires/connectors
• Restores safe, stable connections after heat or vibration damage

• Disconnect power and shut off water supply before servicing
• Take photos of existing connections to ensure correct routing
• Inspect mating terminals for heat damage or corrosion before reassembly
• Do not force connectors; seat fully until they click or fit snugly

The Oven Igniter is an OEM part for Whirlpool gas ranges. It is responsible for generating the spark needed to ignite the gas burner.

Causes can be standard wear and tear on the delicate metallic coil. Additionally, food or liquid spills may lead to premature breakdown or surface corrosion.

Symptoms of a faulty igniter include:

• Oven or burners failing to turn on or stay lit
• Requires repeated attempts at ignition before activating
• No spark or glow seen through the observation window

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This manifold assembly routes the appliance's gas supply to the burner control valves, restoring safe, consistent distribution when the original tube is cracked, corroded, or leaking. It helps ensure even flame performance across multiple burners. What it does:

• Distributes gas from the inlet to multiple burner valves
• Provides mounting/connection points for valves and tubing
• Replaces assemblies that are bent, cracked, or leaking
• Common symptoms: multiple burners with weak/no flame, gas odor near the manifold, visible corrosion or damage

• 1 manifold assembly

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Photograph tubing and valve orientation to aid reassembly
• Support fittings with two wrenches; use only manufacturer-approved thread sealant where specified
• After installation, restore gas and leak-test all joints with an approved bubble solution before use

This surface burner valve regulates gas flow to a single top burner on your range or cooktop. Replacing a worn valve restores smooth flame control and reliable shutoff for consistent, safe cooking performance.

• Controls gas delivery from the manifold to one surface burner
• Opens/closes with the control knob to ignite and adjust flame height
• Works with the burner's igniter to light and maintain the flame
• Common symptoms: burner won't light, low or uneven flame, flame won't adjust, or a knob that's stiff or spins without control
• Each valve serves one burner position

• Disconnect power, shut off gas supply, and allow the appliance to cool before service
• Note tubing orientation; support the manifold when loosening or tightening fittings
• Use gas-rated thread sealant only if originally used; tighten and check all joints with an approved leak-detection solution
• Restore gas/power and verify proper ignition and flame adjustment on all burners

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This oven broil burner supplies high, direct heat for broiling and browning food in the oven, restoring broil performance and even surface cooking. It replaces a worn or damaged broiler element to help regain consistent broil results. What it does

• Produces the intense, direct heat required for broiling and browning
• Works with the oven's ignition system to light and maintain the broil flame
• Helps restore even browning and searing on top of foods
• Commonly used when broil flame is weak, uneven, or won't stay lit

• Disconnect power and shut off gas supply before starting work
• Follow OEM diagram for correct orientation and secure mounting
• Inspect and replace any damaged gaskets or fasteners for a proper seal
• After installation, test broil function and check for proper ignition and flame

Oven burner (bake burner) provides the main bake flame for a gas oven, restoring even heat for baking and roasting. It replaces a worn or damaged burner to help the oven reach and hold correct baking temperatures reliably. What it does:

• Supplies the primary bake flame to heat the oven cavity for baking and roasting.
• Ignites to produce a steady flame so the oven can reach and maintain set temperatures.
• Use when the oven fails to heat, heats unevenly, has a weak flame, or when the burner shows corrosion or physical damage.
• Fits as a direct replacement bake burner for compatible gas ovens.

• Turn off the gas supply and disconnect electrical power before servicing.
• Follow OEM instructions and use proper tools; ensure burner seats correctly and fasteners are secure.
• After installation, check all gas connections for leaks and follow manufacturer procedures to relight or test the oven.

This gas tubing supplies gas from the oven manifold to the burner assembly, restoring a safe, direct fuel path for proper ignition and heating. Use when tubing is cracked, corroded, kinked, or leaking. What it does:

• Carries gas from the appliance's manifold or valve to the burner(s)
• Maintains a sealed, flexible connection to allow component movement
• Replaces damaged, corroded, or pinched tubing that can cause leaks or poor ignition
• Helps restore consistent burner performance and proper heating when tubing is compromised

• Turn off gas supply and electrical power before starting any service
• Verify correct orientation and secure fittings to avoid leaks; use OEM-specified fittings and torque
• Leak-test all connections with a soap solution or approved leak detector before returning appliance to service

This gas tubing is a direct-fit replacement line that routes gas between components and restores a secure fuel path for safe burner operation. It helps stop leaks and ensure consistent gas flow to the appliance. What it does

• Replaces damaged, cracked, or corroded gas tubing that can cause leaks or loss of gas flow
• Restores a sealed connection between the gas valve and burner or between gas components
• Can resolve symptoms such as gas odor, intermittent ignition, or weak burner flame when tubing is the cause
• Designed to match OEM form and fit for straightforward replacement when listed for your model

• One gas tubing assembly as shown

• Shut off the gas supply and unplug the appliance before starting any work
• After installation, test all fittings with a leak detection solution; do not use an open flame
• Follow all local codes and OEM instructions for fittings, sealants, and torque values

The Oven Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven heating process. This igniter is crucial for ensuring that the oven reaches and maintains the desired temperature for baking and cooking.

Over time, the igniter can suffer from wear and tear, leading to inefficient ignition or complete failure. Causes of a bad igniter can include repeated heating cycles, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter include:

• The oven not heating up or taking too long to preheat
• A noticeable gas smell due to incomplete ignition
•  The igniter glowing without igniting the gas

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement fitting connects the appliance's water line to its internal plumbing so water flows where it's needed and stays sealed. It restores a proper watertight connection to help stop leaks and ensure reliable water delivery. What it does:

• Connects the external water supply line to the appliance's internal water inlet
• Creates a secure, watertight seal to prevent drips and leaks at the connection point
• Supports consistent water flow for ice makers, dispensers, or valves where used
• Can resolve symptoms like visible leaks, reduced water flow, or intermittent filling

• One replacement fitting

• Turn off the water supply and unplug the appliance before installing
• Inspect mating surfaces and replace any damaged O-rings or gaskets as needed
• Hand-tighten first, then snug with appropriate tools; avoid over-tightening
• If plumbing sealant is recommended by your installer, use plumber's tape on threaded connections only

This mounting nut secures the gas orifice to the burner valve assembly, keeping the orifice properly positioned for consistent burner operation. Replacing a worn or damaged mounting nut restores secure fit and reliable gas flow. What it does:

• Threads onto the orifice to hold the gas orifice in place on the valve assembly
• Keeps the orifice aligned to help maintain steady burner flame and ignition
• Prevents orifice movement that can cause inconsistent flame height or ignition issues
• Small metal fastener used where the orifice and valve meet on gas ranges and cooktops

• Turn off the appliance and shut off the gas supply before starting work
• Use the correct-size wrench and gentle force to avoid stripping threads
• Inspect mating parts for damage; replace if worn or cross-threaded

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 10-24X5/16-NI

This burner baffle directs heat and flame away from sensitive components to help maintain even cooking and protect the range's internal parts. It's a direct-replacement trim piece used on compatible gas ranges and cooktops. What it does:

• Shields and redirects burner flame to reduce hot spots and protect nearby components
• Helps maintain more consistent surface temperatures during use
• Prevents flame impingement on adjacent parts that can cause discoloration or premature wear
• Supports proper burner operation by holding components in correct alignment

• One burner baffle

• Disconnect power and shut off the gas supply before starting work; allow all components to cool
• Basic hand tools are typically required; handle the baffle carefully to avoid bending or scratching
• Verify correct fit and orientation from the parts diagram before final reassembly

Size: 10-24X5/16-NI

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

The Whirlpool screw is an OEM replacement part responsible for securely fastening various components and parts within Whirlpool appliances. These screws are essential for maintaining the structural integrity and safe operation of the appliance. These screws hold together critical components like panels, brackets, handles, and internal parts.

This part fixes the following symptoms:

• Loose or wobbly handles on refrigerators, ovens, or other appliances
• Vibrations or rattling noises during appliance operation
• Inability to assemble or disassemble parts during appliance repair or maintenance

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This surface ignitor lights a gas burner by creating the spark needed to ignite the gas, restoring reliable ignition and consistent burner operation. Designed as a direct replacement part for compatible gas ranges. What it does:

• Generates the spark to ignite a surface gas burner so cooktop burners light reliably
• Replaces a cracked, damaged, or non-sparking electrode that prevents ignition
• Helps eliminate clicking without flame when the ignitor is functioning correctly
• Works with the range's control and valve assembly to start the burner safely

• One surface ignitor (single)

• Turn off power and gas supply to the appliance before servicing to avoid shock or gas leaks
• Handle the ceramic tip and electrode carefully; damage can prevent proper sparking
• Use factory diagrams or service manual for correct location and wiring; do not force parts

This surface burner spark electrode creates the spark that lights the gas on your cooktop or range. Replacing a worn or cracked electrode helps restore quick, reliable ignition and can reduce excessive clicking at the affected burner. What it does:

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure fast, consistent ignition for the specific burner
• Common symptoms can include no spark/no light at one burner, weak or intermittent sparking, or continuous clicking from a damaged/contaminated insulator
• For the surface burner ignition circuit

• 1 spark electrode

• Disconnect power and shut off gas before servicing; allow the cooktop to cool completely
• Remove burner cap and head to access the electrode; note wire routing and connection
• Transfer/reuse any mounting hardware; avoid stressing or cracking the ceramic insulator
• Align the tip to the burner per service information and ensure all connections are secure before restoring power and gas

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Orifice spud secures the burner orifice to the gas valve/manifold and directs fuel to the burner for proper flame performance. Replaces a damaged or corroded spud to help restore correct gas flow at the burner. What it does:

• Holds the burner orifice in place and channels gas from the valve to the burner.
• Helps maintain consistent flame size for even heating and cooking.
• Commonly used when a burner has weak, uneven, or intermittent flame performance.
• Replace if the spud is cracked, corroded, damaged, or leaking.

• Turn off the appliance's gas supply and disconnect power before beginning any repairs.
• Remove burner components per the service manual and install the spud in the same orientation as the original.
• Hand-start threads, then snug with the appropriate wrench—do not overtighten.
• After installation, check fittings for leaks with an approved leak-detection method; if you smell gas or suspect a leak, stop.
