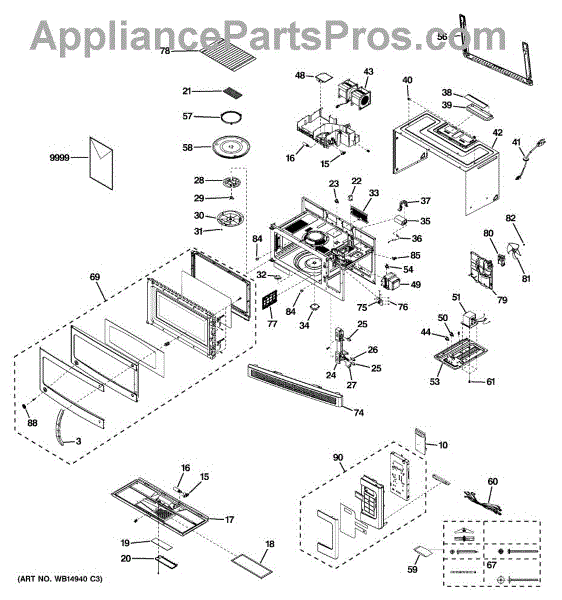

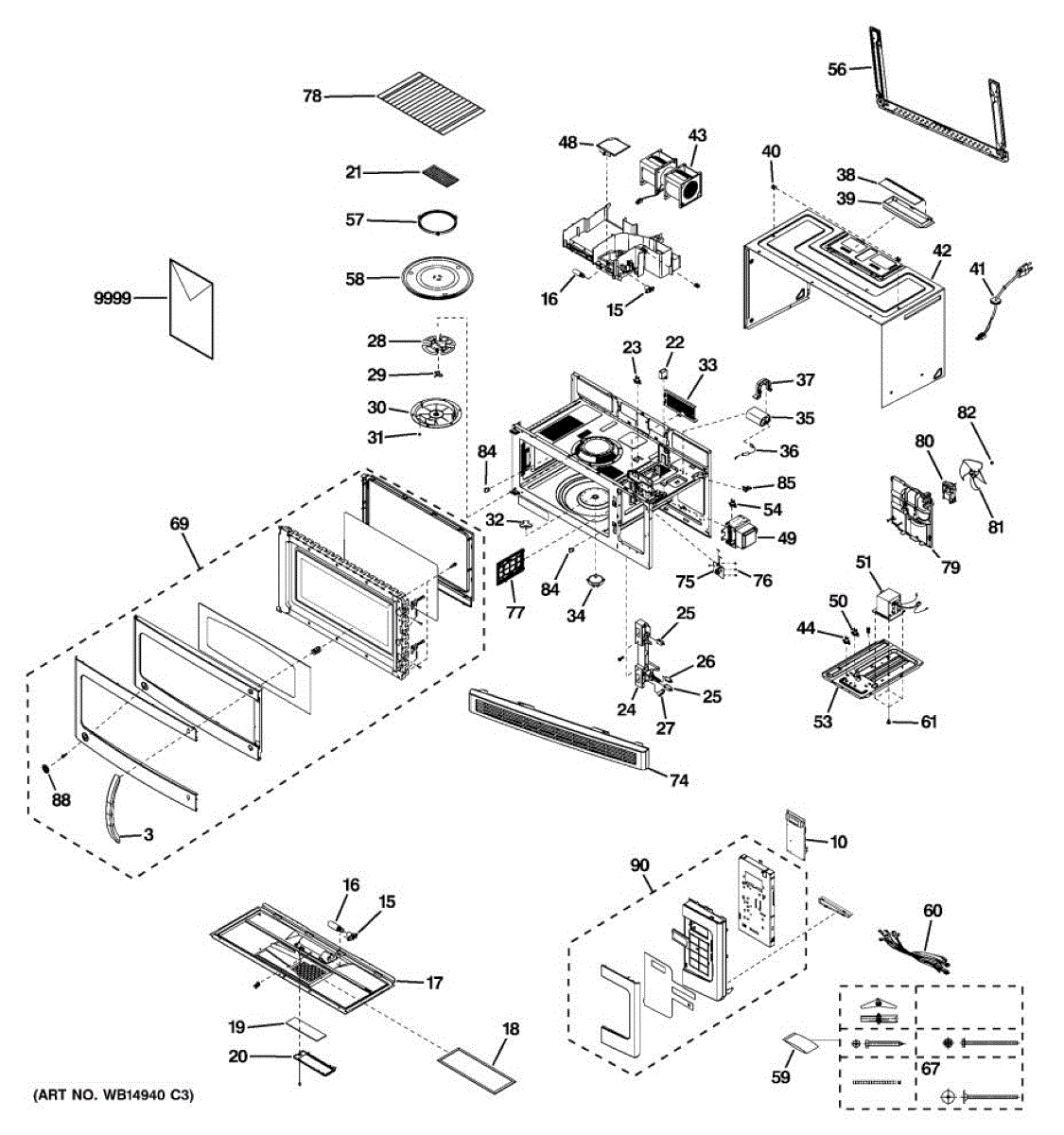

Parts for Ge HVM1540SP1SS: 01 - Microwave Parts

The Handle Assembly is an OEM replacement part for GE microwaves. This assembly includes a handle used for opening and closing the microwave door. A properly functioning handle assembly provides safe and easy access to the microwave interior for loading and unloading food items.

Causes of a bad handle assembly can include damage from excess weight or stress on the handles during operation, cracks or breaks from normal usage over time, or issues affecting their usability.

Symptoms of a bad handle assembly include:

• Loose, unstable, or wobbly handles that feel unsafe to grip
• Difficulty opening or closing the microwave door
• Inability to fully access the microwave interior

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Replace your microwave's base bottom panel if the original is cracked, damaged, or missing. This structural component forms the lower chassis foundation.

Replace your microwave's bottom base panel if cracked, rusted, or damaged. This structural part forms the lower cabinet foundation and mounting surface.

The Air Filter is an OEM part for GE microwaves. This component is essential for trapping grease, smoke, and odors during cooking, maintaining a clean and safe kitchen environment. It is typically located above the cooking surface or within the microwave's ventilation system. The filter measures approximately 6.5 inches deep by 13.5 inches wide

Causes of a bad air filter can include clogging from grease and food particles, physical damage, or general wear over time. A compromised air filter can reduce the efficiency of the microwave's ventilation, leading to poor air quality and potential buildup of contaminants.

Symptoms of a bad air filter include:

• Reduced ventilation efficiency
• Increased smoke or odors during cooking
• Visible grease buildup on the filter
• The filter appearing damaged or excessively dirty

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

Glass light cover for microwave cooktop lights. Shields and diffuses bulb from heat, grease, and splatter. Replace if cracked, broken, or missing.

Clear glass lens cover for over-the-range microwave cooktop light. Shields bulb from grease and splatters. Replace if cracked, broken, or missing.

Removes cooking odors in recirculating microwave vents. Replace when odors persist or airflow weakens. Confirm fit with your model number.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

Fix a microwave with no power. This thermal cutoff cavity (TCO) safety device prevents overheating by cutting power when temps exceed safe limits.

This latch body is the door latch component that secures the appliance door during operation, restoring reliable closure so cycles can run normally. Use it to replace a worn or damaged latch that won't hold the door closed. What it does:

• Engages the door striker to hold the door closed and maintain a proper seal during operation
• Works with the door latch mechanism so the appliance can complete cycles that require a closed door
• Common symptom: door won't stay closed, is difficult to latch, or feels loose at the latch point
• Replacing a damaged latch body can prevent intermittent door-open errors and restore normal door operation

• Disconnect power (unplug or turn off circuit breaker) before starting any repair
• Remove the door or access panel as needed; keep track of fasteners and any trim pieces
• Handle door glass and trim carefully to avoid damage; test latch engagement before full reassembly

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

If your microwave heats unevenly or has hot and cold spots, a damaged stirrer blade is often the cause. This part distributes microwaves for even cooking.

Stirrer blade holder for microwave ovens. Mounts inside the cavity to secure the waveguide stirrer fan. Replace if cracked, broken, or missing.

Plastic cover that shields the stirrer assembly inside your microwave. Replace if cracked, melted, broken, or missing to protect internal components.

Connects the turntable motor to the glass tray in your microwave. Replace if cracked, broken, or worn to restore smooth rotation and prevent slipping.

Microwave turntable not turning? The turntable motor rotates the glass tray for even heating. Simple DIY repair with basic tools in under an hour.

Fix a microwave that won't heat or makes loud humming noises. This high voltage capacitor often fails when the magnetron can't generate heat properly.

Microwave not heating but lights and timer work? The high voltage diode converts AC to DC for the magnetron. DIY repair in 1-2 hours with basic tools.

Mounting bracket for microwave ovens. Secures the unit to the wall or cabinet. Replace if bent, broken, or missing during installation or repair.

Plastic cover that fits over the air damper assembly to help direct airflow. Replace if your original cover is cracked, broken, worn, or missing.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Power cord assembly for microwave ovens. Supplies electrical connection from wall outlet to unit. Replace if cord is frayed, damaged, or missing.

White outer door panel for your microwave. Replaces cracked, discolored, or damaged exterior panels. Restores the appearance of your microwave door.

Fixes microwaves with no power or that stop mid-cycle. This thermostat switch monitors temperature and protects against overheating. Simple repair.

Microwave not heating? The magnetron generates the microwaves that heat food. Common repair for units that run but don't warm. DIY-friendly repair.

Microwave won't heat or power on? This bottom thermal cut-off protects against overheating by cutting power when excess heat is detected. Easy fix.

Microwave runs but won't heat food? This high-voltage transformer powers the magnetron to generate heat. Restores cooking function when failed.

Base plate assembly for over-the-range microwaves. Provides structural mounting support. Replace if cracked, broken, or missing during installation.

Microwave not heating? A failed magnetron assembly prevents heating and defrosting. This replacement part restores microwave energy generation.

Rear wall mounting plate bracket that supports over-the-range microwaves during installation. Replace if bent, broken, or missing for secure wall mount.

Supports and guides the microwave turntable ring for smooth rotation. Replace if cracked, broken, or wheels keep falling off causing alignment issues.

The Glass Tray is an OEM part for GE microwaves. This tray holds food items and rotates them during the cooking process to ensure even heating. It fits into the turntable mechanism, allowing the food to be cooked uniformly.

Causes of a bad glass tray can include cracks or breaks from accidental drops, chips from heavy or sharp objects, and wear and tear from regular use.

Symptoms of a bad glass tray include:

• Cracks or chips on the glass surface
• The tray not rotating properly
• Unusual noises during operation
• Uneven cooking or heating of food

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Wire harness assembly for microwaves. Connects electrical components inside the unit. Replace if wires are frayed, damaged, or connectors are broken.

Washered screw secures panels, brackets, and internal microwave components. Replace if screw is missing, stripped, or damaged to restore proper fit.

Flat bolt fastener for securing microwave to cabinets or wall brackets. Replace missing, stripped, or corroded mounting hardware to restore secure installation.

Color: Black

Color: Stainless Steel

Clean Steel

Direct replacement noise filter assembly for microwaves. Reduces electrical interference. Replace if cracked, damaged, or missing to restore clean power.

Support plate that mounts and secures the power control module inside your microwave. Replace if cracked, broken, or missing to properly hold the control board.

Replacement control panel cover for microwave ovens. Restores the front console's appearance and protects controls from spills. Needed when cracked or broken.

This condenser fan motor circulates air across the condenser coils to help the refrigerator release heat and run efficiently. Replacing a worn motor restores proper airflow and can improve cooling performance. What it does:

• Spins the condenser fan blade to expel heat from the condenser coils
• Helps maintain correct compressor and system temperatures
• Runs continuously or with the compressor depending on the model
• Common symptoms: refrigerator running hot, poor cooling, loud or grinding noises from the rear, or fan not spinning

• One condenser fan motor

• Disconnect power to the appliance before servicing to avoid electrical shock
• Typical installation requires basic hand tools and access to rear or bottom rear panel
• If the fan blade is damaged or obstructed, replace or clear obstructions while motor is removed

This spring blade is a small metal tension spring that restores proper tension and movement in the appliance's linkage or latch assembly. It replaces worn or broken blades to help restore normal door or component action. What it does:

• Provides tension and return force in linkage, latch or lever assemblies
• Helps stop sagging, slipping or loose movement in the affected mechanism
• Can reduce related rattling or binding caused by a worn spring blade
• Restores reliable engagement where a broken or fatigued blade allowed failure

• Unplug the appliance or shut off power before starting any repair
• Verify orientation and engagement of the blade before final assembly
• Use proper hand tools; the blade may be under tension—wear safety goggles and gloves
• If the assembly uses multiple springs, replace all worn parts to ensure balanced function

Supports the removable wire rack inside your microwave cavity. Replace this holder if cracked, broken, or missing to restore stable two-level cooking capability.

Wire holder clip secures internal wiring in your microwave. Replace if wires are loose or rattling. Verify fit with your model number before ordering.

Cosmetic badge logo for your microwave door or control panel. Replace this emblem if the original is cracked, faded, peeling, or missing to restore appearance.

Color: Black
