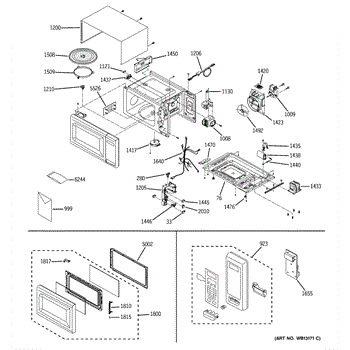

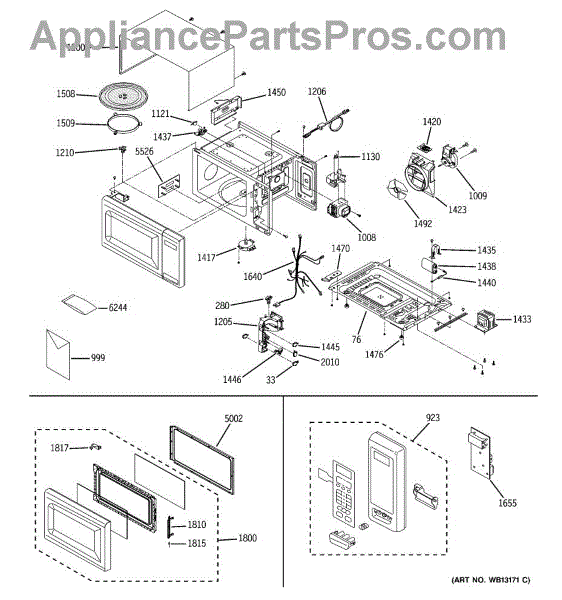

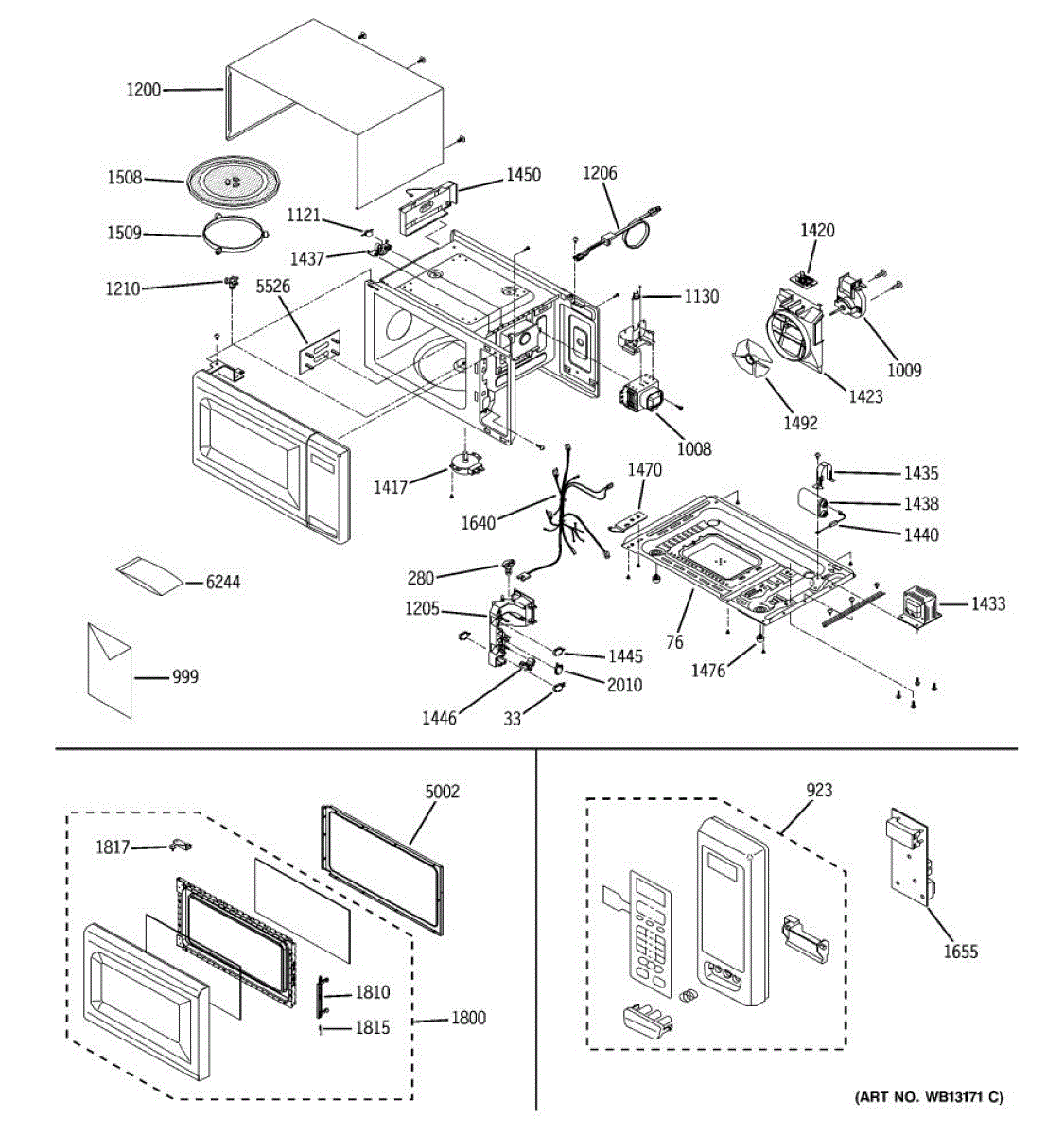

Parts for Ge JE1160BD04: 01 - Microwave Parts

The Microwave Door Switch is an OEM replacement part for GE microwaves. It is crucial for safety functionality as it detects when the door is properly closed and latched before initiating cooking cycles. The switch prevents operation if the door is ajar.

Causes of a bad door switch can include wear and grime accumulation over many years of use, impact damage, or failures in the plastic actuator or electrical components.

Symptoms of a bad door switch include:

• The microwave failing to start cooking even with the door closed and latched
• Error messages related to the door position being displayed
• Inability to lock or properly sense the closed door position

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a light bu, and it is made for microwaves. This is a genuine replacement part made by General Electric. This specific light bu has a voltage of 120 and a wattage of 25.A new light bu might be needed if the current one does not turn on when the microwave door is opened. The light bu should also be on when the microwave is in use so that the user may see the food during the heating cycle. It is common for light bu to burn out over time and they are very easy to replace when needed.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with microwaves made by General Electric.

The Magnetron is an OEM replacement part for GE microwaves. It is responsible for generating the microwave energy used for cooking and heating food. Over time, magnetrons can wear down and become less effective.

Symptoms of a bad Magnetron include:

• The microwave not heating food, even though it turns on and the timer counts down
• Unusual noises, such as a loud hum or buzz, during operation
• Burnt smells or smoke emanating from the microwave
• Error codes on the microwave’s display indicating a heating issue

Causes for a malfunctioning Magnetron can include a burnt-out magnetron, issues with the high-voltage diode that powers it, or problems with the control board that regulates its operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This thermostat cavity is the molded housing that holds the oven thermostat sensor in place, keeping the sensor positioned for accurate temperature sensing. Replaces a worn or cracked housing to help restore proper sensor alignment. What it does:

• Secures the thermostat sensor/tube so the oven can monitor internal temperature reliably
• Protects the sensor from direct contact with heat sources and food debris
• Helps maintain consistent sensor placement after panel removal or repairs
• Common symptom: oven temperature reads incorrectly or cycles improperly when the housing is damaged

• Disconnect power to the appliance before beginning any repair
• Requires removal of the control panel or rear access panel depending on model; keep fasteners organized
• Handle gently to avoid cracking the new housing; inspect surrounding clips or tabs and replace if broken

This microwave magnetron thermostat is an authentic OEM part sourced directly from the manufacturer. It is used in microwave ovens to prevent fires and extensive damage to the machine if the magnetron overheats. If the thermostat reaches an unsafe temperature, determined by the factory, it will stop the microwave from cooking. If this happens, the magnetron thermostat may be the culprit and should be replaced. A built-in safety feature will prevent the microwave from working until the thermostat is replaced. To start, disconnect the power from the microwave. Use a screwdriver to remove the trim kit. Use a safety drill bit to remove the microwave panels. Locate the thermostat that is connected to the magnetron. To start, disconnect the wires and remove the thermometer from the microwave. Install the new thermostat and connect the wires. Reassemble the microwave and reconnect the power. Test to make sure the power works with the new thermostat installed.This magnetron thermometer is an electrical part that is sold individually. It is designed for use in microwave ovens manufactured by General Electric and Hotpoint.

This coupler connects two rotating shafts to transfer motor power to the driven assembly, restoring proper rotation and drive function. It's a direct-fit replacement that helps resolve drive interruptions and mechanical noise caused by a failed coupler. What it does:

• Joins the motor shaft to the driven shaft or gear assembly to transmit torque
• Restores rotation when a worn or broken coupler prevents the appliance from turning
• Reduces slipping and eliminates clunking or grinding noises caused by a damaged coupling
• Keeps shafts aligned to prevent premature wear of connected components

• Disconnect power before servicing to avoid electrical shock or injury
• Inspect mating shafts and fasteners for damage; replace damaged parts as needed
• Use basic hand tools; secure coupler per OEM torque/fastening recommendations

This high-voltage diode assembly replaces the diode in a microwave high-voltage circuit to help restore normal heating and high-voltage operation. It provides the one-way conduction needed for the magnetron's high-voltage supply. What it does:

• Converts AC to DC in the microwave high-voltage circuit so the magnetron can produce microwaves
• Commonly associated with weak/no heating or intermittent heating
• Can cause blown high-voltage fuses or arcing if failed
• Prevents reverse current from damaging other high-voltage components

• Disconnect power and discharge the high-voltage capacitor before service to avoid serious shock
• Handle carefully; high-voltage components and terminals can retain charge
• Check related high-voltage components (capacitor, transformer, fuse) for damage when diagnosing

The Primary and Secondary Door Switch is an OEM replacement part for GE microwaves. This part interrupts the power supply to the microwave when the door is opened.

Causes of bad door switches can include regular wear and tear, electrical malfunctions, or physical damage from slamming the door.

Symptoms of a bad Primary and Secondary Door Switch include:

• The microwave not starting or operating intermittently
• The appliance operating with the door open
• The interior light not turning on or off appropriately

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This latch slider is the replacement sliding component used in the door latch assembly to help secure the appliance door and enable proper latching. Replaces a worn or broken slider to restore reliable door engagement. What it does

• Slides along the latch assembly to engage or release the door catch for secure closing
• Helps the door fully latch so the appliance can start and run normally
• Common symptom: door won't latch or stays ajar even when closed
• Common symptom: door latch feels loose, sticks, or makes noise when operated

• One latch slider

• Disconnect power (and water if applicable) before starting any repairs
• Removing the door or front panel may be required to access the latch assembly
• Use basic hand tools; handle trim and glass carefully to avoid damage
• Verify proper alignment of the slider and latch after installation before restoring power

Color: clear. Measures about 13 inches in diameter.

The Interlock Switch is an OEM replacement part for GE microwaves. It acts as a safety device that prevents the microwave from operating unless the door is securely closed and latched. The switch monitors the door position and communicates with the main control board to allow or cancel cooking functions.

Causes of failure may include damage from excess heat over time or wear from repeated door openings and closings. Failures can compromise safety if the microwave operates unexpectedly while open.

Symptoms of a bad interlock switch include:

• Microwave can be turned on even when the door is open
• Error codes displayed related to door issues
• Inconsistent or faulty communication with the control board

This genuine OEM replacement part is also compatible with GE, Hotpoint, and select Kenmore microwave models.

This replacement door gasket creates an airtight seal around the refrigerator door to help maintain proper temperature and efficiency. It restores the seal that keeps cold air in and warm air out for better food preservation. What it does:

• Seals the door perimeter to prevent cold-air leaks and reduce frost buildup
• Helps maintain consistent internal temperatures for food safety
• Reduces compressor run time caused by air exchange at a failed seal
• Improves energy efficiency by restoring a proper door seal

• Designed to be installed by a service technician or a confident DIYer with basic tools
• Remove the old gasket and clean the door surface before installing the new seal
• Warm the gasket slightly to aid seating, if recommended for your model
