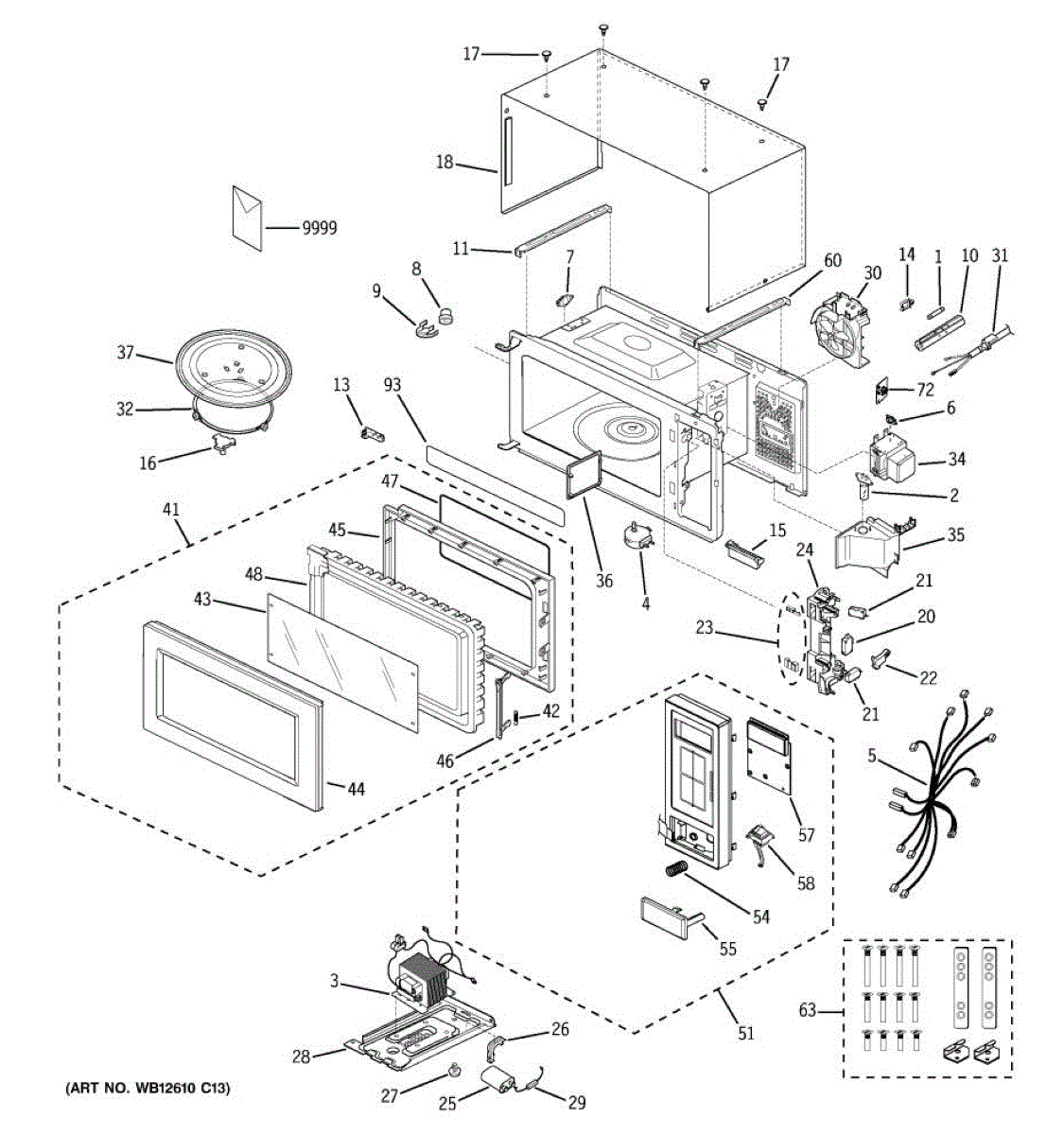

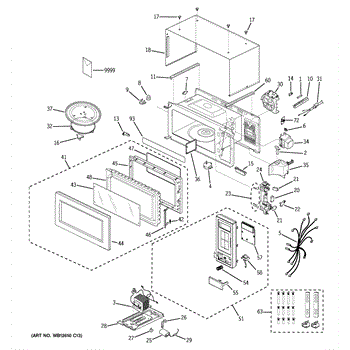

Parts for Ge JEM31BF02: 01 - Microwave Parts

This 250V 15A safety fuse protects the appliance's line circuit from overcurrent. When the original fuse has blown, replacing it can restore power and help safeguard internal components from further damage.

• Opens the circuit if excessive current or a short occurs, protecting internal parts
• Common symptom: unit completely dead—no display, lights, or response to controls
• Blown fuse will test open (no continuity) with a multimeter
• If a new fuse blows again, another component may be shorted and needs diagnosis

• Unplug the appliance before servicing; microwaves can retain a dangerous charge—discharge the high-voltage capacitor
• Access the fuse near the line filter/control area; note clip orientation
• Replace only with the same 250V 15A rating; never bypass or upsize the fuse
• If the replacement fuse blows immediately, stop and troubleshoot the root cause

This interior oven lamp provides bright, direct lighting inside the oven cavity so you can monitor cooking without opening the door. Direct replacement designed for compatible GE ovens and ranges. What it does:

• Lights the oven interior so you can check food without releasing heat
• Replaces a dim, flickering, or burned-out oven light
• Restores safe visibility when checking racks, pans, and broiling items
• Fits standard oven lamp sockets used in many GE appliances

• Always disconnect power to the appliance before replacing the lamp
• Allow the oven to cool completely to avoid burns
• Remove protective cover or lens per your owner's manual before swapping the bulb
• Hand-tighten the lamp; do not overtighten.

This turntable motor rotates the microwave's glass tray during cooking. Replacing a worn or seized motor restores smooth, consistent tray movement to help ensure even heating and reliable performance.

• Drives the turntable shaft/coupler to rotate the glass tray during cook cycles
• Helps promote more even cooking and defrosting
• Common symptoms of failure: tray doesn't turn, intermittent or jerky rotation, loud humming/grinding from beneath the cavity

• Disconnect power before servicing; microwaves contain high-voltage components—use caution
• Access is typically from the bottom of the unit; remove the tray and coupler, then the motor's mounting screws, and transfer the wire connections
• Align the motor shaft with the coupler and ensure the tray spins freely before reassembly
• Test with a microwave-safe cup of water to ensure smooth rotation

This is a replacement wire harness A assembly that routes power and signals between controls and components to restore reliable electrical connections and proper operation. Designed to replace a damaged or worn wiring harness. What it does:

• Provides the factory wiring connections between the control, switches and key components.
• Restores power/signal continuity when a damaged harness causes intermittent operation or non-responsive controls.
• Helps eliminate arcing, shorts or burning smell caused by frayed or broken wires.
• Maintains correct connector fit and routing to prevent strain on terminals.

• Disconnect power before starting any repair to avoid shock or injury.
• Inspect connectors and mating terminals for damage; replace if corroded or burned.
• Route and secure the harness to match the original routing; avoid sharp edges and pinch points.

Replacement thermostat that senses and controls the appliance heating system to restore accurate heating and stable temperature cycles, helping the appliance reach and maintain the set temperature. What it does:

• Senses temperature and signals the heating element or valve to turn on/off to maintain set temperature.
• Commonly linked to symptoms such as failure to reach set temperature, temperature fluctuating or cycling erratically, or continuous heating.
• Works as the temperature-regulation component in the appliance's control pathway to stabilize performance.
• Matches the OEM function for temperature control; use when thermostat diagnostics indicate a failed or inaccurate sensor.

• Disconnect power to the appliance before attempting removal or installation to avoid shock or ignition hazards.
• Handle the sensing element and terminals carefully to avoid damage; ensure secure electrical connections and proper routing of any capillary or sensor lead.
• After installation, test the appliance through a full heat cycle to confirm correct operation.

This microwave thermostat is a temperature-sensitive safety switch that helps protect the unit from overheating. When the preset limit is reached, it interrupts power to the affected circuit to help prevent damage and erratic shutdowns.

• Monitors temperature at its mounting location and opens the circuit if overheating is detected
• Helps protect internal components from excessive heat
• Common symptoms of a failed thermostat include: unit shuts off during cooking, won't start until it cools down, or has no power/no heat due to an open safety
• Replace if the original tests open when it should be closed

• Disconnect power by unplugging the unit or switching off the circuit breaker before servicing
• Microwaves contain a high-voltage capacitor that can retain a dangerous charge; only qualified persons should service and discharge the capacitor
• Note wire locations before removal and transfer connections firmly to the new thermostat
• Mount the thermostat securely and in the same position to ensure proper temperature sensing

This gas flame sensor detects whether a burner's flame is present so the range/oven's gas valve and ignition control can operate safely. It helps restore reliable ignition and prevents the valve from staying open when no flame is detected. What it does:

• Senses the presence of a gas flame and signals the control to keep the valve open
• Helps prevent gas flow if a flame is not detected
• Can stop ignition or cause the oven/range not to heat when failing
• Commonly replaced when burners won't stay lit or control shows ignition-related errors

• One gas flame sensor

• Turn off electrical power and shut off the gas supply before servicing
• Handle the sensor and its connector carefully to avoid damage
• Reinstall in the exact position and orientation; loose connections can cause false faults

This mounting bracket secures components inside the appliance frame to keep assemblies aligned and stable during normal operation. It's a simple, durable replacement that restores proper support where the original bracket is bent, cracked, or missing. What it does:

• Provides a stable anchor point for panels, modules, or assemblies
• Keeps connected parts aligned to prevent vibration and noise
• Restores proper fit where a damaged or missing bracket causes looseness
• Helps maintain safe operation by holding components in their correct position

• One mounting bracket

• Install with the OEM fasteners shown in the appliance parts diagram; only use replacement hardware specified for your model
• Power off and disconnect the appliance before accessing internal components
• Handle sharp sheet-metal edges with care and wear gloves
• If other mounting hardware or damaged components are found, inspect surrounding parts and replace as needed

This door lever is the user-access handle component that lets the appliance door open and latch reliably. It replaces a damaged or broken lever to restore normal door operation and safe access. What it does:

• Provides the handle/lever action needed to open and close the appliance door
• Restores a secure latch action when the original lever is cracked, worn, or broken
• Stops sticking or slipping that can prevent the door from opening smoothly
• Helps prevent further damage to the door assembly by replacing a compromised lever

• Disconnect power to the appliance before beginning any work to avoid shock or injury
• Basic hand tools typically required; access may require removing the door or inner panel
• Inspect surrounding trim and mounting points for damage; replace additional parts if worn

This coupler is a direct-drive coupling that connects the appliance motor to the driven shaft, restoring power transfer so the appliance can operate normally. It's a small replacement part that fixes common drive-related faults. What it does:

• Transfers motor torque to the driven component so the appliance can run
• Stops slipping or loss of drive when the original coupler is worn or broken
• Can reduce grinding, clunking, or intermittent movement caused by a failed coupling
• Helps restore normal operation without replacing the motor or driven assembly

• One coupler

• Disconnect power before attempting any service to avoid electric shock
• Inspect surrounding components (shafts, fasteners, seals) for wear before reinstalling
• Use basic hand tools; keep small parts and fasteners secure during reassembly

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This Bracket HVC is the OEM mounting bracket that secures the HVC assembly in place, keeping related components aligned and reducing vibration or movement for reliable operation. What it does

• Secures the HVC assembly or housing to the appliance frame to prevent shifting or loosening
• Helps maintain proper alignment of adjacent components for consistent performance
• Reduces vibration and rattling that can occur when a bracket is missing or damaged
• Commonly replaced when the HVC housing is loose, noisy, or does not sit flush

• One Bracket HVC mounting bracket

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Basic hand tools are typically required; handle metal edges carefully to avoid cuts
• Inspect mounting screws or clips and replace if worn to ensure a secure fit

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Color: brown. Measures about 8 inches in diameter.

This is a magnetron that is used on microwave ovens. The purpose of the magnetron is to provide the microwaves that actually cook the foot inside of the microwave oven. Use caution when replacing this part. High-voltage capacitors in microwaves can retain a deadly amount of electrical charge, even when they are unplugged.If the microwave begins making a buzzing noise and doesn't heat food properly, this part will need to be replaced. Use extreme caution when working with this appliance. Unplug the unit first.This particular magnetron is compatible with microwave ovens that are manufactured by the General Electric, Hotpoint, and Maytag brands. This part is sold individually and is sourced directly from the manufacturer as a genuine OEM part.

Turntable glass tray. Color: clear. Size. 11-1/2 inches diameter.

This door outer frame replaces a damaged or dented outer door panel to restore proper fit and the appliance's finished appearance. It provides the structural edge and mounting surface for the door assembly. What it does:

• Replaces a cracked, dented, or bent outer door frame to improve door alignment and sealing
• Restores the appliance's finished look by covering cosmetic damage on the door perimeter
• Provides the mounting surface for trim, glass, and hardware so parts sit flush and secure
• Can reduce rattling or uneven gaps caused by a warped or damaged outer frame

• Disconnect power to the appliance before beginning any repair
• Handle panel edges and glass components carefully to avoid injury or damage
• Some models require removal of trim, screws, or door liner to replace the outer frame; keep fasteners organized

This outer door frame replaces the exterior trim that surrounds the appliance door, restoring a secure seal and clean appearance. It helps protect inner components and keeps the door aligned for proper closing and operation. What it does

• Replaces damaged or dented exterior door trim to restore appearance and fit
• Protects the inner door assembly and edge of the door from impacts and wear
• Helps maintain proper door alignment and reduce gaps that can affect operation
• Commonly swapped when the outer trim is cracked, bent, or cosmetically damaged

• Disconnect power to the appliance before starting any repair.
• Remove door panels and any glass per OEM instructions; handle glass carefully.
• Use appropriate hand tools (screwdrivers, nut drivers) and keep fasteners organized.

This is a full main door assembly that replaces a worn, damaged or broken appliance door to restore a secure, sealed closure and normal operation. Fits as the complete door unit used on compatible GE appliances. What it does:

• Provides the full door structure including panels and internal components needed to close and seal the appliance
• Restores proper door alignment and secure latching when the existing door is bent, loose or won't stay closed
• Replaces doors with cracked or damaged exterior glass or frame that affect appearance and function
• Helps prevent heat/steam loss and improves safety when the original door is compromised

• Disconnect power and ensure appliance is cool before attempting replacement
• Door assemblies can be heavy or awkward; have a helper for alignment and installation
• Handle glass and trim carefully to avoid damage or injury
• Use factory fasteners and follow OEM instructions for proper fit and sealing

This push button is a direct-replacement control-panel button for select GE appliances, restoring tactile control and responsive input for your oven or range. Replaces a worn, stuck, or broken push button to recover normal panel operation. What it does:

• Provides a tactile momentary contact for control-panel functions (start, timer, selection, etc.).
• Restores user input when original button is cracked, loose, or fails to spring back.
• Helps eliminate intermittent or non-responsive button presses caused by physical wear.
• Designed to fit the front control assembly and engage the underlying switch or membrane.

• High-level replacement: remove power to the appliance before accessing the control panel.
• May require removal of the control panel or trim to access the button; handle internal components gently.
• If the underlying switch or wiring is damaged, replace those components as well—this part replaces only the button.

A translucent control panel lens that protects and improves visibility of the appliance's control area while keeping buttons and displays shielded from spills and wear. Replaces a cracked, cloudy or yellowed lens to restore appearance and readability. What it does:

• Covers and protects the control board and buttons from spills, grease and everyday wear
• Restores clear viewing of display and button labels when original lens is scratched, discolored or hazy
• Helps keep moisture and debris away from underlying electronics
• Fits into the front control area and snaps or secures into place using factory mounting points

• One translucent control panel lens

• Disconnect power to the appliance before starting any work to avoid shock or injury
• Handle the lens carefully to avoid scratches; use a soft cloth when cleaning
• Align tabs and mounting points, then gently snap or secure into place without forcing
• If you encounter resistance, stop and verify tab alignment to avoid breaking clips

This under-cabinet mounting kit provides the hardware needed to secure an appliance to the underside of a kitchen cabinet for a stable, finished installation. It's a replacement/optional kit for installations that require a dedicated mounting bracket set. What it does:

• Provides mounting brackets and hardware to fasten the appliance to the underside of a cabinet for added stability.
• Helps stop shifting, sagging, or vibration that can occur when an appliance isn't secured properly.
• Useful when original mounting hardware is missing, damaged, or when installing a new appliance in an existing cabinet opening.
• Designed as an optional accessory to match OEM mounting locations and attachment points.

• Disconnect power to the appliance before starting work and follow all safety instructions in the appliance manual.
• Fasten to solid cabinet framing or use appropriate anchors; use correct-length screws to avoid cabinet or appliance damage.
