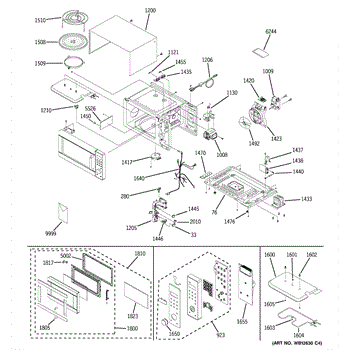

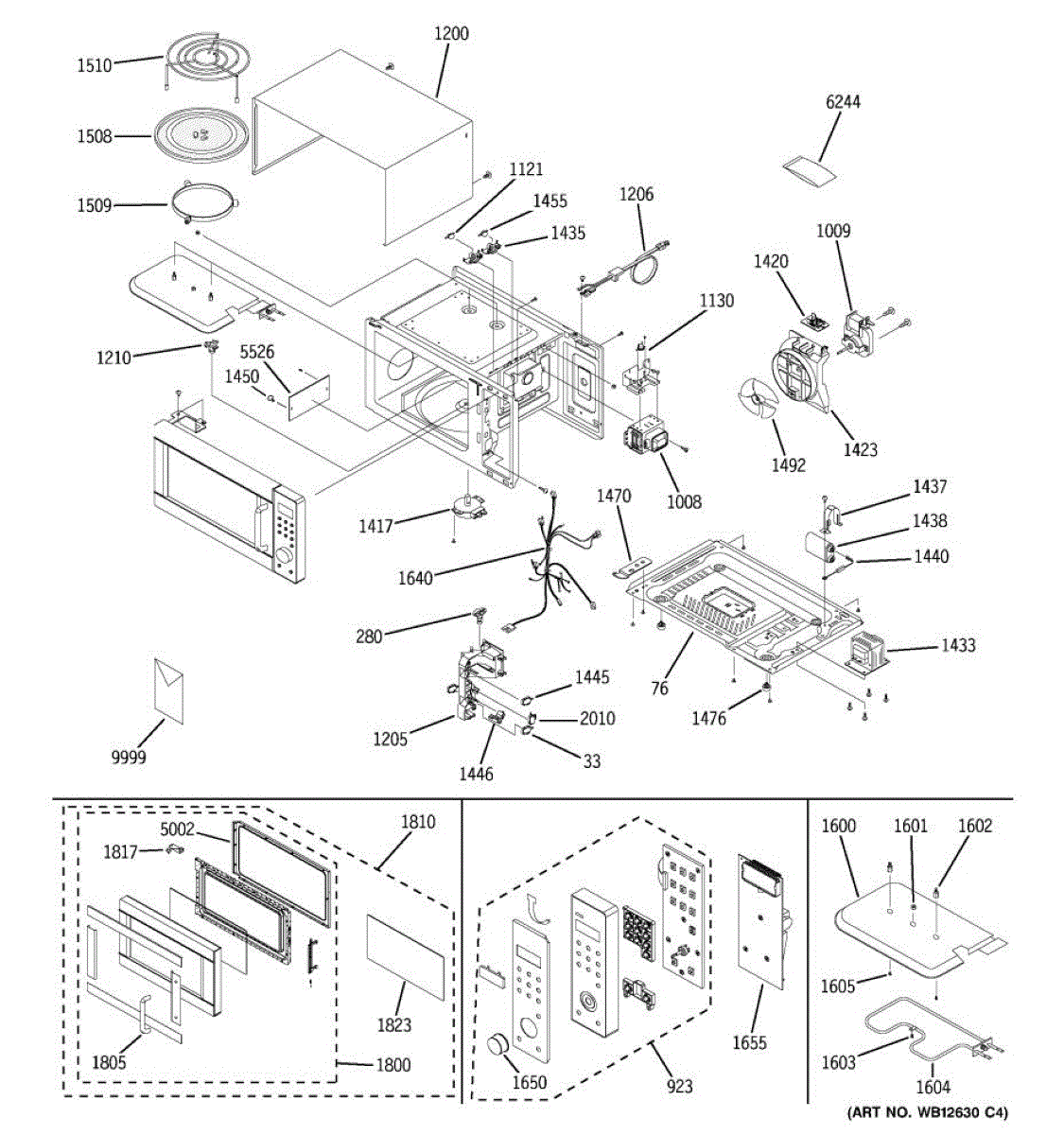

Parts for Ge JES1384SF06: 01 - Microwave Parts

The Microwave Door Switch is an OEM replacement part for GE microwaves. It is crucial for safety functionality as it detects when the door is properly closed and latched before initiating cooking cycles. The switch prevents operation if the door is ajar.

Causes of a bad door switch can include wear and grime accumulation over many years of use, impact damage, or failures in the plastic actuator or electrical components.

Symptoms of a bad door switch include:

• The microwave failing to start cooking even with the door closed and latched
• Error messages related to the door position being displayed
• Inability to lock or properly sense the closed door position

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a light bu, and it is made for microwaves. This is a genuine replacement part made by General Electric. This specific light bu has a voltage of 120 and a wattage of 25.A new light bu might be needed if the current one does not turn on when the microwave door is opened. The light bu should also be on when the microwave is in use so that the user may see the food during the heating cycle. It is common for light bu to burn out over time and they are very easy to replace when needed.This is an OEM part sourced directly from the manufacturer. It is sold individually and is compatible with microwaves made by General Electric.

This thermostat cavity is the molded housing that holds the oven thermostat sensor in place, keeping the sensor positioned for accurate temperature sensing. Replaces a worn or cracked housing to help restore proper sensor alignment. What it does:

• Secures the thermostat sensor/tube so the oven can monitor internal temperature reliably
• Protects the sensor from direct contact with heat sources and food debris
• Helps maintain consistent sensor placement after panel removal or repairs
• Common symptom: oven temperature reads incorrectly or cycles improperly when the housing is damaged

• Disconnect power to the appliance before beginning any repair
• Requires removal of the control panel or rear access panel depending on model; keep fasteners organized
• Handle gently to avoid cracking the new housing; inspect surrounding clips or tabs and replace if broken

This microwave magnetron thermostat is an authentic OEM part sourced directly from the manufacturer. It is used in microwave ovens to prevent fires and extensive damage to the machine if the magnetron overheats. If the thermostat reaches an unsafe temperature, determined by the factory, it will stop the microwave from cooking. If this happens, the magnetron thermostat may be the culprit and should be replaced. A built-in safety feature will prevent the microwave from working until the thermostat is replaced. To start, disconnect the power from the microwave. Use a screwdriver to remove the trim kit. Use a safety drill bit to remove the microwave panels. Locate the thermostat that is connected to the magnetron. To start, disconnect the wires and remove the thermometer from the microwave. Install the new thermostat and connect the wires. Reassemble the microwave and reconnect the power. Test to make sure the power works with the new thermostat installed.This magnetron thermometer is an electrical part that is sold individually. It is designed for use in microwave ovens manufactured by General Electric and Hotpoint.

This coupler connects two rotating shafts to transfer motor power to the driven assembly, restoring proper rotation and drive function. It's a direct-fit replacement that helps resolve drive interruptions and mechanical noise caused by a failed coupler. What it does:

• Joins the motor shaft to the driven shaft or gear assembly to transmit torque
• Restores rotation when a worn or broken coupler prevents the appliance from turning
• Reduces slipping and eliminates clunking or grinding noises caused by a damaged coupling
• Keeps shafts aligned to prevent premature wear of connected components

• Disconnect power before servicing to avoid electrical shock or injury
• Inspect mating shafts and fasteners for damage; replace damaged parts as needed
• Use basic hand tools; secure coupler per OEM torque/fastening recommendations

This high-voltage diode assembly replaces the diode in a microwave high-voltage circuit to help restore normal heating and high-voltage operation. It provides the one-way conduction needed for the magnetron's high-voltage supply. What it does:

• Converts AC to DC in the microwave high-voltage circuit so the magnetron can produce microwaves
• Commonly associated with weak/no heating or intermittent heating
• Can cause blown high-voltage fuses or arcing if failed
• Prevents reverse current from damaging other high-voltage components

• Disconnect power and discharge the high-voltage capacitor before service to avoid serious shock
• Handle carefully; high-voltage components and terminals can retain charge
• Check related high-voltage components (capacitor, transformer, fuse) for damage when diagnosing

The Primary and Secondary Door Switch is an OEM replacement part for GE microwaves. This part interrupts the power supply to the microwave when the door is opened.

Causes of bad door switches can include regular wear and tear, electrical malfunctions, or physical damage from slamming the door.

Symptoms of a bad Primary and Secondary Door Switch include:

• The microwave not starting or operating intermittently
• The appliance operating with the door open
• The interior light not turning on or off appropriately

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Wave Guide Locking Button is an OEM part for GE microwaves. This small yet essential component secures the wave guide cover in place, ensuring that the microwave's internal components are protected from food particles and debris. It plays a key role in maintaining the microwave's efficiency and safety.

Causes of a bad wave guide locking button can include regular wear and tear, damage from frequent use, or accidental breakage. If the locking button is compromised, the wave guide cover may become loose, leading to potential damage or inefficiency in the microwave's operation.

Symptoms of a bad wave guide locking button include:

• Wave guide cover becoming loose or falling off
• Difficulty securing the wave guide cover in place
• Rattling noise inside the microwave
• Visible damage or wear on the locking button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This part is a quantity of one. Order quantity needed.

Color: clear. Measures about 13 inches in diameter.

This main wiring harness routes power and signals between the range/oven control and major components so the appliance can operate safely and reliably. It replaces a damaged or burnt harness to restore proper electrical connections. What it does

• Connects the control board to heating elements, switches, sensors and other major components
• Provides factory-style wire routing and factory-installed connectors for correct fit
• Helps resolve symptoms like intermittent power to elements, unresponsive controls, or ignition/control errors when caused by damaged wiring
• Prevents shorts and poor connections that can cause erratic operation or component failure

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Verify connectors and routing match the original harness; replace any damaged clips or retainers
• Handle connectors by the housings; avoid pulling on individual wires

The Interlock Switch is an OEM replacement part for GE microwaves. It acts as a safety device that prevents the microwave from operating unless the door is securely closed and latched. The switch monitors the door position and communicates with the main control board to allow or cancel cooking functions.

Causes of failure may include damage from excess heat over time or wear from repeated door openings and closings. Failures can compromise safety if the microwave operates unexpectedly while open.

Symptoms of a bad interlock switch include:

• Microwave can be turned on even when the door is open
• Error codes displayed related to door issues
• Inconsistent or faulty communication with the control board

This genuine OEM replacement part is also compatible with GE, Hotpoint, and select Kenmore microwave models.

This microwave waveguide cover shields the waveguide opening from grease and moisture while allowing microwave energy to enter the cavity. Replace a burned, cracked, or missing cover to stop arcing and help protect internal components.

• Shields the waveguide port from food splatter, steam, and debris
• Helps prevent arcing/sparking when the original cover is scorched or contaminated
• Maintains a clear path for microwave energy to support proper cooking performance
• Common signs: visible burns or charring, crackling/sparking from the wall opening, staining or food behind the cover

• Disconnect power before servicing; microwaves can retain high voltage—do not open the cabinet
• From inside the oven cavity, remove the screw or release the tabs securing the old cover; clean the surrounding area
• Position the new cover flush over the opening and secure it using the existing fastener(s)
• Never operate the microwave without the waveguide cover installed

This bag screw assembly secures and advances the collection bag so the appliance can contain and compact debris reliably. Replacing a damaged screw assembly restores proper bag positioning and smooth bag feed. What it does:

• Holds and guides the bag in the collection/compaction area so the bag stays in place during operation
• Replaces worn, stripped, or broken screw hardware that can cause the bag to slip or not advance
• Helps prevent bag bunching and improves consistent compaction and containment
• Works as the mechanical fastening/drive interface between the bag and the compactor/feed mechanism

• One bag screw assembly

• Disconnect power to the appliance before beginning work to avoid injury
• Access typically requires removing the access panel or compactor drawer; follow the appliance service manual for disassembly steps
• Inspect surrounding components (brackets, guides, fasteners) and replace any damaged parts to ensure proper fit
