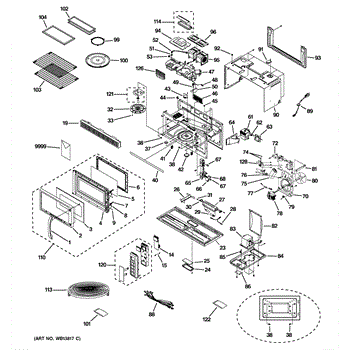

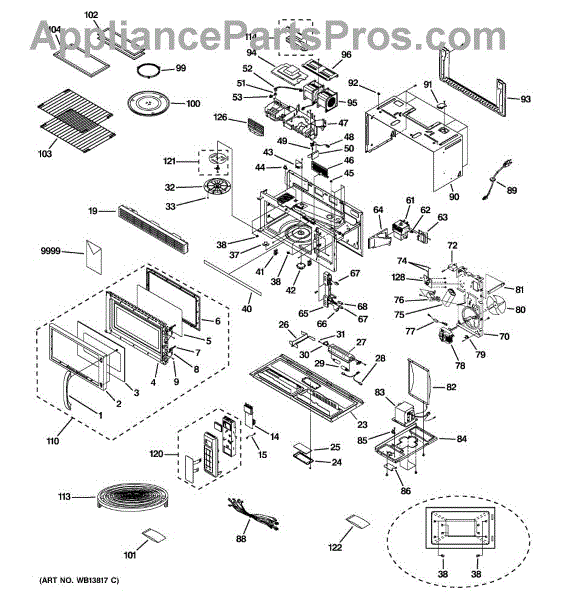

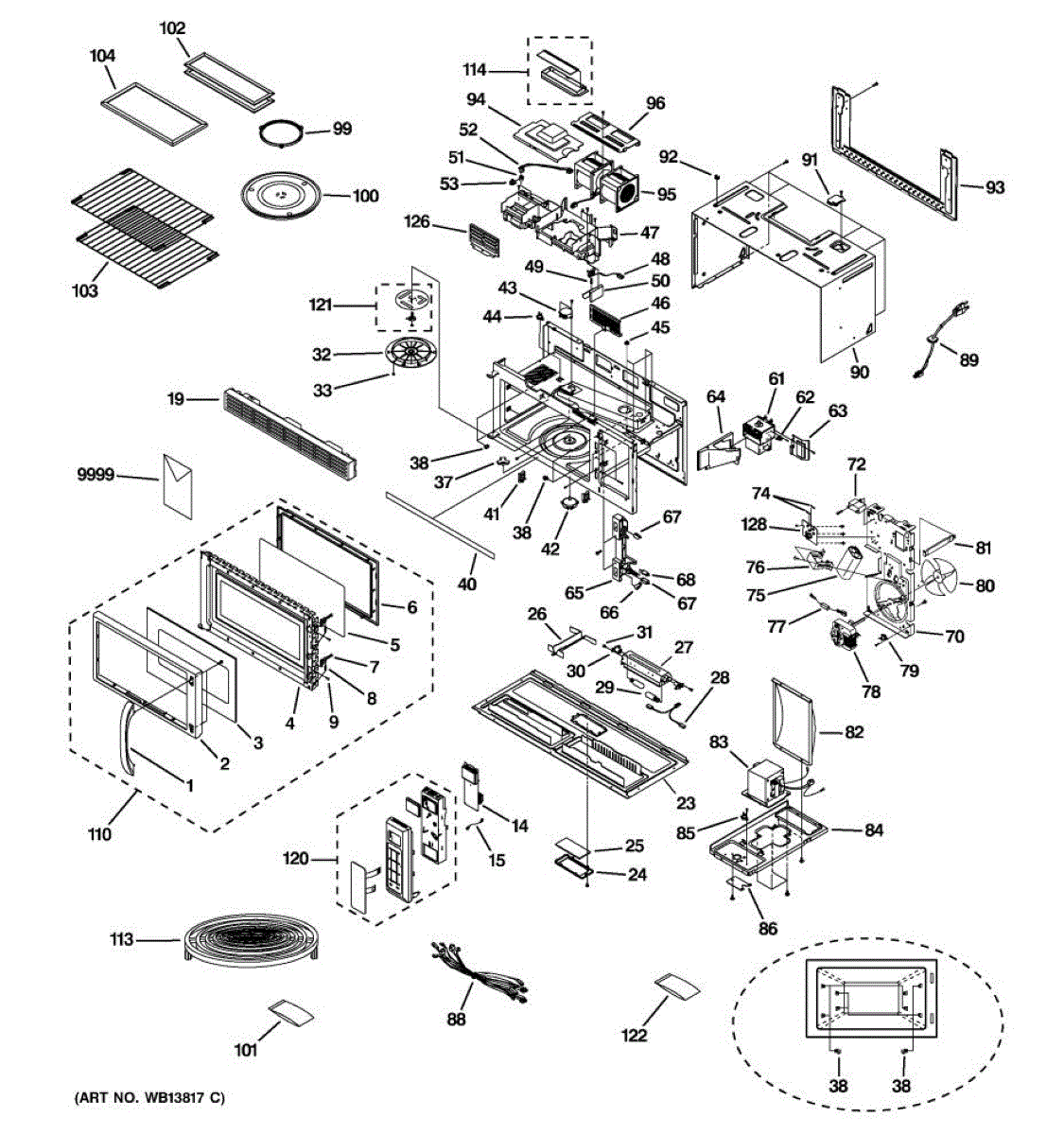

Parts for Ge JVM1851WH03: 01 - Microwave Parts

Replace your broken or cracked microwave door handle. This white handle installs on the microwave door front, restoring easy grip for opening and closing.

White outer door frame for microwave doors. Replaces cracked, broken, or damaged frames. Snaps onto door assembly to restore appearance and structure.

Replacement door screen for your microwave. Installs on the interior side of the door glass. Order a new one if yours is cracked, damaged, or missing.

Complete microwave door assembly that mounts to the front of your unit. Replace if your existing door is cracked, broken, warped, or has damaged hinges.

Replacement spring for microwave control panel keys. Installs behind keypad buttons to provide tactile response. Order if your spring is broken or missing.

Replace your microwave's door hinge pin if the original is broken, bent, or missing. This small rod secures the door hinge assembly for smooth operation.

This control board manages all microwave operations including power levels, timer functions, and safety systems. It processes commands from the control panel and regulates the magnetron and other components. Replace when the microwave won't start, runs continuously, or displays error messages.

Replacement wire lead for microwaves. Connects internal electrical components. Order a new lead if yours is damaged, frayed, burned, or corroded.

Base bottom assembly for microwaves. Installs as the lower structural support panel. Replace if cracked, warped, rusted, or damaged to restore cabinet integrity.

Glass light cover for microwave cooktop lights. Shields and diffuses bulb from heat, grease, and splatter. Replace if cracked, broken, or missing.

Replacement glass lens cover for microwave interior or cooktop lights. Protects bulb from food splatters. Needed when cracked, broken, or shattered.

Enclosure bracket for microwaves. Secures internal components to the enclosure frame. Replace if bent, cracked, or missing hardware mounting tabs.

Illuminates your microwave interior for monitoring food during cooking. Replace when bulb burns out or dims. Verify fit with your model number before ordering.

Holds the light bulb securely in your microwave for proper interior illumination. Replace if bulb won't stay in place, socket is burned or cracked.

The Turntable Coupler is an OEM part for GE microwaves. It connects the microwave's turntable motor to the glass tray, enabling the tray to rotate during cooking. This rotation ensures even heating and cooking of food items placed on the tray.

Causes of a bad turntable coupler can include regular wear and tear, physical damage from heavy or improperly placed items, or overheating due to prolonged use.

Symptoms of a bad turntable coupler include:

• Turntable not rotating
• Uneven heating or cooking of food
• Grinding or clicking noises during operation
• The coupler being visibly damaged or worn

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Supports the removable wire rack inside your microwave cavity. Replace this holder if cracked, broken, or missing to restore stable two-level cooking capability.

Secures and organizes internal wiring in your microwave. Replace if wires are loose, rattling, or damaged clip causes arcing. Verify fit with your model number.

Turntable stopped turning or making grinding noise? This motor rotates the glass plate for even cooking. Easy 5-10 minute DIY fix with basic tools.

Fixes loud grinding or coffee grinder noise from microwave. Simple DIY repair with 2 screws and wire connectors. Located on top, typically takes under 30 minutes.

Replaces cracked, warped, or damaged upper exhaust duct in your microwave. Directs airflow between vent area and exterior exhaust system for proper ventilation.

Replace your microwave's halogen light bulb when interior lighting dims or fails. Restores visibility for monitoring cooking. Verify fit with your model.

Protective cover for your microwave's interior halogen lamp. Replace if cracked, broken, or missing to shield the bulb and maintain safe operation.

This is a humidity sensor mounted inside the microwave that detects moisture levels in the cooking cavity. It enables auto-cook and auto-reheat functions by signaling the control board when food has released enough steam. Replace this sensor if auto-cook cycles consistently overcook or undercook food, or if the microwave displays a sensor error code.

Wire harness for microwaves. Connects electrical components inside the unit. Replace if wires are damaged, frayed, or connections are loose or broken.

Microwave not heating? The magnetron generates microwave energy for cooking. Common repair when unit runs but won't heat food. Moderate DIY difficulty.

Air guide assembly for microwaves. Directs airflow through the vent system. Replace if cracked, broken, or missing to restore proper ventilation.

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a monitor or interlock switch that detects whether the microwave door is properly closed before allowing the unit to operate. It is a safety device that shuts off microwave power if the door is open or if other door switches malfunction. Replace this switch if the microwave does not start, runs with the door open, or blows a fuse when the door is closed.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Fix a microwave that won't heat or hums but doesn't start. This capacitor stores energy for the high-voltage circuit. Moderate DIY repair, 30-60 minutes.

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

Rear exhaust duct assembly channels airflow at the back of your microwave. Replace if cracked, rusted, or damaged to restore proper ventilation routing.

Base plate assembly for microwave ovens. Structural support component that installs at the bottom of the unit. Replace if cracked, damaged, or warped.

This thermal fuse is a safety device designed to cut off power to the microwave if internal temperatures exceed safe limits. It is a small, inline fuse typically mounted near the magnetron or cavity. Replace this part if the microwave has completely stopped working with no display or response, especially after an overheating event.

This wire harness (A) connects control and power circuits to restore proper electrical routing in your appliance. It replaces a damaged or frayed harness to help re-establish reliable wiring and signal paths. What it does:

• Routes power and signals between control boards, switches, and components
• Replaces broken, burned, or shorted wires that can cause intermittent failures
• Helps stop symptoms like no power to components, erratic controls, or blown fuses
• Matches OEM connector types and wire colors for a direct fit

• Always disconnect power before servicing electrical components
• Inspect connectors and mounting points; secure harness away from heat and moving parts
• Use OEM mounting clips or tapes to prevent chafing; replace any damaged clips

Replace your microwave's power cord assembly if damaged, frayed, or missing. Connects the unit to your wall outlet for safe electrical operation.

Secures the power cord to your microwave's chassis. Replace this bracket if it's cracked, broken, or missing to properly mount and support the cord.

Secures microwave to wall cabinet mounting bracket. Replace if cracked, stripped, or missing to restore proper cabinet installation and stability.

Upper duct bracket assembly for over-the-range microwaves. Secures ventilation ductwork to the cabinet. Replace if bent, broken, or missing hardware.

Color: brown. Measures about 9 inches in diameter.

Replacement glass turntable tray for microwaves. Rotates during cooking to heat food evenly. Order a new tray if yours is cracked, chipped, or broken.

Grease filter for range hoods and over-the-range microwaves. Dimensions: 4-23/32" x 13" x 3/32" (4.71875 x 13 x 0.09375). Rectangle shape. Captures grease from cooking air. Replace when clogged, discolored, or every 6-12 months.

This wire rack assembly provides a sturdy, removable shelf for your oven, giving stable support for cookware and bakeware and restoring proper shelf placement and clearance. What it does

• Replaces a bent, damaged, or missing oven shelf so pots and pans sit level during baking and roasting
• Restores smooth sliding and correct clearance for consistent cooking results
• Helps prevent cookware from tipping or shifting on weakened racks
• Fits into existing rack supports or side rails for secure positioning

• Remove power to the appliance and allow it to cool completely before installing
• Slide the rack into the oven rails or supports until fully seated; it rests level
• Wear gloves to avoid pinches or sharp edges while handling the rack
• No special tools usually required; refer to your owner's manual for model-specific guidance

Carbon filter for range hoods and over-the-range microwaves. Dimensions: 6-3/16" x 8-11/16" x 1/4" (6.1875 x 8.6875 x 0.25). Rectangle shape. Removes cooking odors from cooking air. Replace when clogged, discolored, or every 6-12 months.

Controls exhaust airflow in over-the-range microwaves. Replaces bent, damaged, or missing damper assemblies for proper external venting installation.

Hardware bag includes screws, nuts, and washers for microwave installation and assembly. Replace missing or stripped fasteners during repairs or reinstalls.
