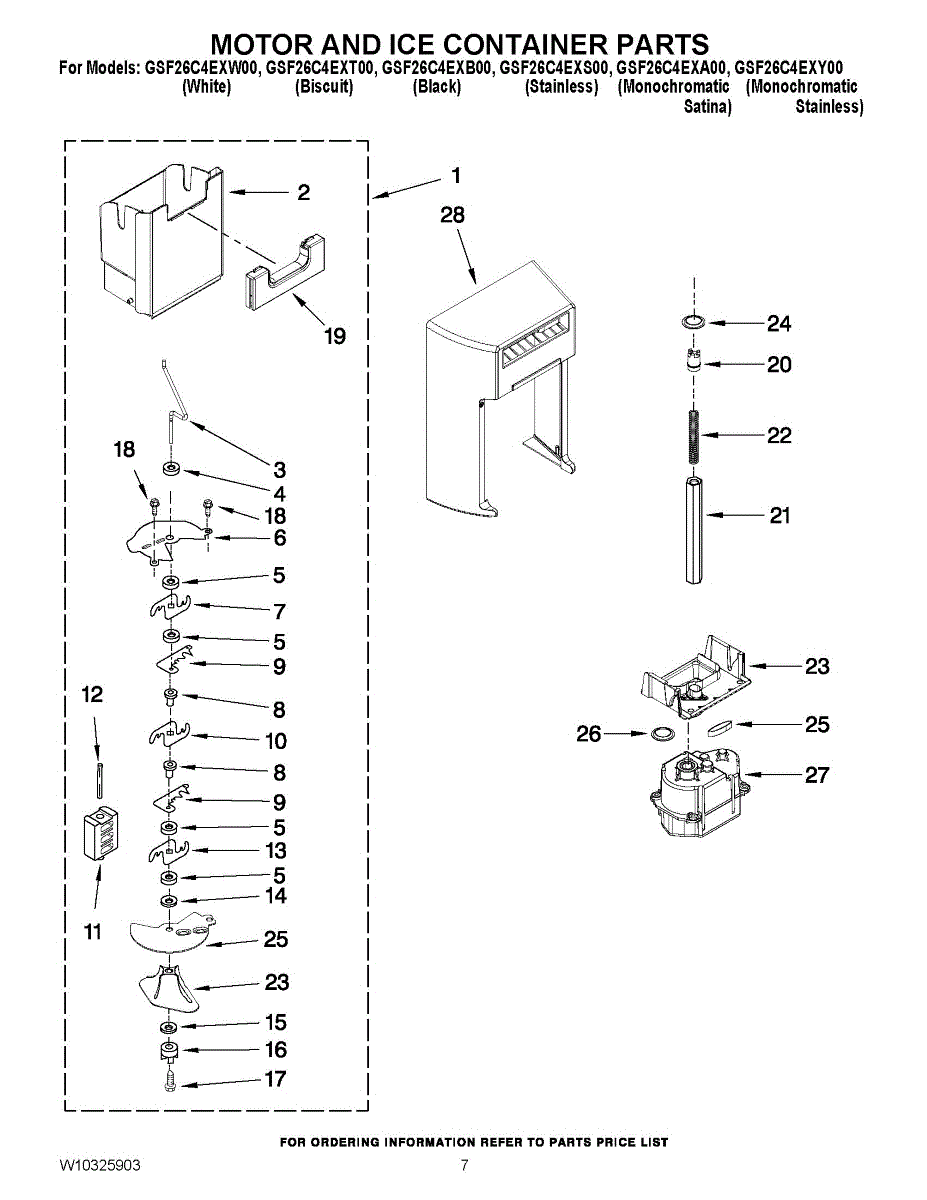

Parts for Whirlpool GSF26C4EXT00: 05 - Motor And Ice Container Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing

This replacement washer is a small hardware spacer used in appliance assemblies. It provides a smooth bearing surface under a bolt or nut to distribute load and maintain proper spacing so components stay secure, aligned, and quiet.

• Distributes clamp load to protect mating parts and prevent loosening
• Maintains proper spacing/clearance for correct alignment
• Helps reduce wobble, scraping, or vibration when the original washer is worn or missing
• Visual signs include distortion, cracks, corrosion, or a fastener that no longer tightens securely

• Disconnect power before servicing; for laundry or dishwashing products, also shut off the water supply
• Note the original hardware stack-up and orientation; install the new washer in the same position
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware and tighten per manufacturer guidance
• After reassembly, run a brief test and check for unusual noise or movement

This replacement blade is the rotating element used within the appliance assembly to deliver the intended action. Installing a new blade restores smooth, efficient operation when the original is cracked, bent, worn, or missing.

• Provides the mechanical action required by the assembly (rotation/agitation)
• Helps maintain consistent performance and smooth operation
• Common failure signs: rattling or scraping noises, vibration/wobble
• Other symptoms: reduced performance in that section of the appliance, visible chips, cracks, or deformation

• Disconnect power before servicing; turn off water supply if applicable
• Wear cut-resistant gloves; edges may be sharp
• Note the original blade's orientation and spacing before removal; install the new blade the same way
• Hand-rotate after installation to ensure free movement and clearance before restoring power

This plain washer is a small hardware spacer used in appliance assemblies. It spreads the load under a fastener to secure parts, maintain alignment, and reduce wear—helping keep brackets, hinges, and mounts tight and operating correctly. What it does

• Distributes clamping force under screws/bolts to protect surfaces
• Maintains spacing for proper alignment of assembled components
• Helps reduce metal-to-metal wear and friction at mounting points
• Replace if missing, bent, worn, or if you notice looseness or rattling around a fastened area

• 1 plain washer

• Disconnect power; shut off water or gas supplies before service
• Note the original order/orientation of hardware; take a photo for reference
• Replace one-for-one and tighten to a snug fit—do not overtighten
• Check alignment and operation before restoring power and utilities

This top coupling links two drive components in select washers to transfer rotation smoothly. Replacing a worn or stripped coupling restores consistent agitation/spin and can reduce slipping, rattling, or grinding noises from the drive area. What it does:

• Connects mating shafts/components so power is transmitted through the drive system
• Helps maintain alignment and cushions minor shock to protect other parts
• Failure symptoms may include no or weak agitation/spin, intermittent drive, or clicking/grinding sounds
• Visual clues can include cracks, rounded/stripped splines, or excessive play

• One top coupling

• Disconnect power; turn off water supply if moving the appliance
• Access location varies by model; cabinet/top or front panel removal may be required
• Note orientation of flats/splines and seat the coupling fully—do not hammer into place
• Inspect the mating hub/shaft; replace worn companion parts to prevent rapid re-wear

The Ice Bin Coupling is an OEM part for Whirlpool refrigerators. This component connects the ice bin to the motor, enabling the transfer of power to dispense ice. The coupling ensures that the ice bin rotates properly, allowing for efficient dispensing of ice cubes through the door.

Causes of a bad ice bin coupling can include wear and tear from regular use, damage due to jamming or overloading the ice bin, and physical impact that might cause cracking or breakage. Maintaining the coupling in good condition is crucial for the smooth operation of the ice dispensing mechanism.

Symptoms of a bad ice bin coupling include:

• The ice dispenser not working or dispensing ice irregularly
• Unusual noises coming from the ice bin area
• The ice bin not rotating as it should
• Difficulty in dispensing ice through the door

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Screw is an OEM part for Whirlpool appliances, designed to provide secure fastening in a variety of locations within the appliance. This versatile component is crucial for assembly and maintenance tasks, ensuring that parts are held together tightly and function as intended. Whether it's securing panels, attaching components, or facilitating repairs, this screw is engineered to meet the specifications of Whirlpool appliances, offering durability and reliability.

Causes of screw issues can include normal wear and tear, over-tightening, which may strip the threads, or corrosion that weakens the screw's hold.

Symptoms of a bad or missing Screw include:

• Loose components or panels within the appliance
• Unusual noises due to parts not being securely fastened
• Difficulty in assembling or disassembling parts for repairs or maintenance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cabinet screw secures panels, brackets, and ducts in Whirlpool-built appliances so components stay aligned and secure. Replacing missing or stripped hardware helps reduce vibration, rattling, and gaps that can affect performance.

• Fastens panels, brackets, and internal components in the appliance cabinet
• Helps maintain proper alignment and reduce vibration or rattling noises
• Restores a tight fit where original hardware is missing, damaged, or stripped
• Typical symptoms: loose paneling, buzzing/rattling sounds, or parts that won't stay fastened

• Disconnect power; for gas models, also shut off the gas supply
• Replace one fastener at a time to preserve alignment and match to the original hardware
• Use the correct driver; start threads by hand to avoid cross-threading
• Do not overtighten into sheet metal

This ice bin latch assembly secures the refrigerator's ice container so it stays seated and aligned with the auger drive. Replace a worn or broken latch to restore consistent ice dispensing and a snug fit.

• Locks the ice bin in place and aligns it with the auger/dispenser drive
• Helps prevent the bin from wobbling, shifting, or popping loose
• Can resolve no or intermittent ice dispensing caused by bin misalignment
• Direct replacement when the latch is cracked, worn, or missing

• Disconnect power to the refrigerator; turn off the water supply if needed
• Remove the ice bin to access the latch area
• Release retaining tabs/fasteners, note orientation, and install the new latch assembly
• Verify smooth latch engagement before reinstalling the bin and restoring power

The Ice Maker Coupler is an OEM part for Whirlpool refrigerators. It connects the ice maker drive motor to the auger shaft and gear assembly inside the ice storage bin. This allows rotational force to be transferred between components, ensuring efficient ice harvesting and delivery.

Symptoms of a bad ice maker coupler include:

• Slow or inconsistent dispensing of ice
• Improper filling of the storage bin
• Ice that is jammed or dispensed in clumps

Causes can involve normal wear and tear over time that leads to slippage between connected parts. Cracks or fractures in the coupler housing also inhibit smooth transmission of motor power throughout ice vending operations.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex drive shaft sits inside the ice bucket auger/crusher assembly. It transfers rotation from the dispenser motor to the auger so ice dispenses and crushes smoothly, helping restore consistent ice flow when the original shaft is worn.

• Couples the dispenser motor to the ice-bin auger/crusher assembly
• Maintains positive hex engagement to reduce slippage under load
• Helps with symptoms such as no ice dispensing, auger not turning while the motor runs, clicking/grinding during dispense, or a visibly rounded/corroded shaft
• Replace if bent, stripped, or excessively worn

• Disconnect power and remove the ice bin before service
• Disassemble the auger/crusher stack, noting the exact order of blades, spacers, and washers (take a photo for reference)
• Transfer all components to the new shaft in the same orientation and reassemble per your model's service information
• Ensure the hex end fully seats in the drive coupling; verify smooth auger rotation before reinstalling the bin; wear cut-resistant gloves—edges and blades are sharp

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Chute Mounting Bracket is an OEM replacement part for Whirlpool side-by-side refrigerators. It securely positions the removable ice chute opening above the storage bin.

Causes for bracket failure involve standard wear from long-term usage. Repeated lifting of the chute subjects mounting screws and anchors to consistent force strains over many seasons.

Symptoms requiring replacement involve:

• Loose, sagging or detached ice chute positioning
• Lost or stripped mounting fasteners
• Ice jamming or spillage due to misaligned openings
• Safety hazards from potential pinch points

This authentic Whirlpool replacement is compatible with Jenn-Air, KitchenAid and Maytag panel-ready stainless steel refrigerators as well.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

The Auger Motor is an OEM part for Whirlpool refrigerators. This motor powers the auger mechanism in the ice maker, which is responsible for dispensing ice through the door. The auger motor turns the auger blade, pushing ice from the bin through the chute to the dispenser.

Common causes of a bad auger motor include wear and tear from regular use, electrical failures, or damage from ice jams. A malfunctioning auger motor can lead to issues with ice dispensing and may prevent ice from being dispensed altogether.

Symptoms of a bad auger motor include:

• Ice not dispensing when the lever or button is pressed
• Unusual noises or grinding sounds during ice dispensing
• The auger not turning or moving intermittently
• No ice being pushed through the chute

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing
