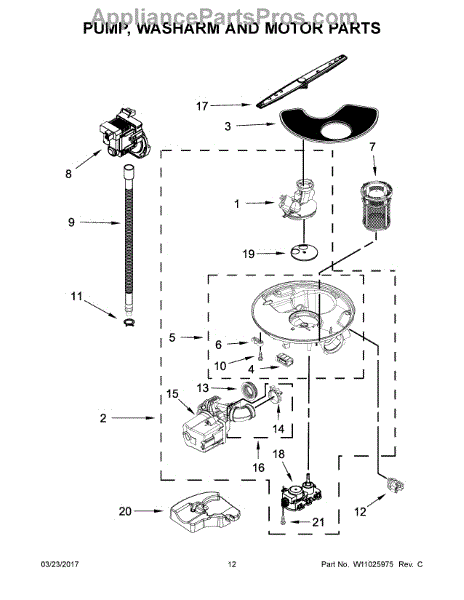

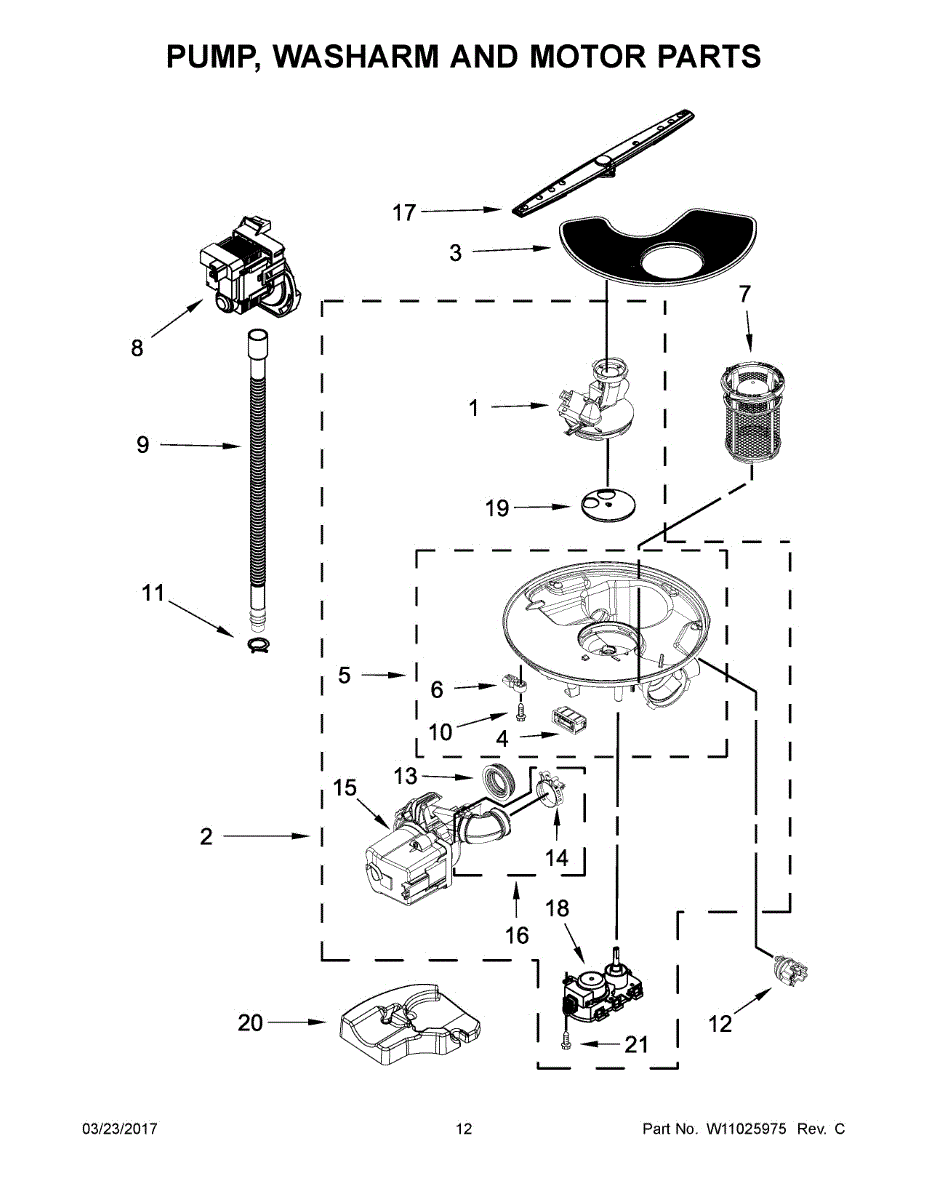

Parts for Whirlpool WDF560SAFT1: 07 - Pump, Washarm And Motor Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Diverter Cover is an OEM replacement part for Whirlpool dishwashers. It is a protective plastic shield that covers the diverter valve, which controls the path of water flow during different wash cycles. The cover helps protect internal components from debris while allowing the valve underneath to operate smoothly.

Causes of a bad diverter cover can include cracks or breaks due to impact, loosening of mounting screws over time, or discoloration and wear of the plastic material.

Symptoms of a bad diverter cover include:

• Leaks from the diverter valve area
• Difficulty with water diversion during cycles
• Reduced spray pressure or coverage inside the wash compartment
• Debris accumulating near the valve mechanism

This OEM replacement is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Pump and Motor Assembly is an OEM part for Whirlpool dishwashers. It is crucial for circulating water throughout the dishwasher during the wash and rinse cycles, ensuring efficient cleaning of the dishes.

You should replace this pump and motor assembly if it becomes defective or worn out. Causes of a bad pump and motor assembly can include regular wear and tear, blockages from food particles or debris, and damage from hard water deposits. A malfunctioning assembly can lead to poor water circulation, affecting the dishwasher's cleaning performance.

Symptoms of a bad pump and motor assembly include:

• Inadequate cleaning of dishes
• Unusual noises during the wash cycle
• Water not draining properly from the dishwasher
• Error codes related to water circulation or drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Sump Filter is an OEM part for Whirlpool dishwashers. It is responsible for trapping food particles and debris from the water during the wash cycle, preventing them from recirculating and ensuring clean water is used throughout the cycle.

You should replace this sump filter if it becomes clogged, damaged, or excessively dirty. Causes of a bad sump filter can include the accumulation of food particles, grease buildup, or wear and tear over time. A compromised filter can lead to reduced cleaning performance and potential damage to other dishwasher components.

Symptoms of a bad Sump Filter include:

• Poor cleaning results, with food particles left on dishes
• Slow or incomplete draining
• Unpleasant odors from the dishwasher
• Error codes related to water flow or drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This support bracket helps hold internal components in place to restore proper alignment and reduce movement. It's a simple replacement that stabilizes the affected assembly and helps stop rattling or sagging. What it does:

• Secures and supports a loose or misaligned internal component or panel
• Prevents shifting that can cause vibration, noise, or uneven operation
• Restores proper alignment to reduce wear on adjoining parts
• Functions as the OEM replacement for the original support bracket

• One support bracket

• Inspect the mounting points and surrounding parts for wear before installing
• Replace only with the matching OEM part number to ensure fit; fasten securely per manufacturer torque recommendations
• Disconnect power and follow basic safety precautions before servicing the appliance

The Sump is an OEM part for Whirlpool dishwashers. It serves as the central component of the dishwasher's water circulation system, housing the pump and filters. This part collects water during the wash cycle, which is then pumped through the spray arms to clean the dishes. The sump also traps food particles and debris, preventing them from recirculating and ensuring dishes come out clean.

Symptoms of a failing Sump include:

• Poor cleaning performance, with dishes still dirty after a cycle
• Water not draining properly or remaining in the bottom of the dishwasher
• Unusual noises, like grinding or humming, indicating pump issues
• Leaks under the dishwasher due to cracks or seal failures in the sump

Causes of a bad sump often include regular wear and tear, accumulation of hard water deposits, or blockages from large food particles and debris. Additionally, the seals can degrade over time, leading to leaks.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This tab-sump mounting secures the dishwasher sump/dispenser area so detergent tabs and related components stay properly aligned. Replacing a worn or broken mounting restores correct dispenser positioning and helps prevent tabs from falling loose during cycles. What it does:

• Holds the tab/sump assembly in place to maintain proper detergent tab positioning
• Prevents the dispenser or sump from shifting or sagging during operation
• Helps reduce incidents of tabs dislodging or failing to stay seated
• Supports correct alignment of adjacent dispenser components

• Disconnect power and water supply before starting any repair
• Remove the door panel or access cover to reach the sump area
• Inspect surrounding clips and seals; replace any damaged fasteners for a secure fit

The Drain Pump is an OEM part for Whirlpool dishwashers. It is responsible for removing wastewater from the dishwasher tub during the drain cycle, ensuring that the dishwasher operates efficiently and effectively.

Causes of a bad drain pump can include clogging from food particles and debris, damage to the pump impeller, or electrical failures within the pump motor. Over time, regular use can lead to wear and tear that affects the pump's performance.

Symptoms of a bad drain pump include:

• Water not draining from the dishwasher
• Standing water at the bottom of the dishwasher after a cycle
• Unusual noises during the drain cycle
• Error codes related to drainage issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Hose is an OEM part for Whirlpool dishwashers. This flexible hose is designed to carry waste water from the dishwasher to the kitchen drain system or garbage disposal, ensuring that the dishwasher drains properly after each wash cycle.

Causes of damage to the Drain Hose often involve regular wear and tear, bending or kinking of the hose during installation or maintenance activities, or deterioration over time due to exposure to hot water and detergents.

Symptoms of a bad Drain Hose include:

• Water remaining in the bottom of the dishwasher after a cycle
• Leaks found under or behind the dishwasher, which could be due to holes, cracks, or loose connections in the drain hose.
• Unpleasant odors emanating from the dishwasher, potentially caused by food particles or debris caught in a hose that is not draining correctly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener is a #10-16 screw used to secure appliance panels and components. Replacing worn or missing hardware restores a tight fit, helps prevent rattles, and keeps parts properly aligned for dependable operation.

• Secures brackets, panels, and covers to the cabinet or frame
• Replaces missing, stripped, or corroded mounting hardware
• Helps reduce vibration and rattling from loose mounts
• Correct 10-16 thread to match designated OEM mounting points

• Disconnect power and shut off water or gas supply before servicing
• Match the screw to the original location using your model's diagram
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• If replacing multiple screws, swap one at a time to maintain alignment

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Turbidity Sensor is an OEM component specifically designed for Whirlpool dishwashers. Located inside the wash arm assembly, the turbidity sensor monitors water clarity during the wash and rinse cycles by detecting suspended food and soil particles.

Symptoms of a bad turbidity sensor include:

• Ineffective or inconsistent cleaning even on light soil loads
• The dishwasher fails to advance properly through cycles
• Frequent bending of the rinse and wash arms
• Repeated soil residue left behind on dishes

Over prolonged use, sensors can become coated, corroded, or damaged, impacting their ability to accurately gauge water clarity. Causes may include mineral buildup, mechanical issues, or electrical faults. Replacing the sensor ensures optimal water monitoring and completes the cleaning process appropriately. This Whirlpool replacement part works for KitchenAid, Jenn-Air, Crosley, Amana, and more.


The Motor to Sump Seal is an OEM part for Whirlpool dishwashers. It creates a watertight seal between the motor and the sump, preventing leaks and ensuring efficient operation of the dishwasher. This seal plays a critical role in maintaining the integrity of the dishwasher's internal components.

Causes of a bad motor to sump seal can include wear and tear from regular use, damage due to improper installation or maintenance, and deterioration from exposure to heat and detergents over time. A compromised seal can lead to leaks and reduced efficiency.

Symptoms of a bad motor to sump seal include:

• Water leaking from the bottom of the dishwasher
• Puddles of water underneath the appliance
• Unusual noises or reduced performance of the dishwasher
• Visible cracks or wear on the seal

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clamp is an OEM part for Whirlpool dishwashers. It is designed to secure various hoses or wiring within the appliance, ensuring that connections remain tight and well-organized.

Causes of a bad clamp can include corrosion due to exposure to moisture and chemicals, loss of tension which leads to a loose fit, and physical damage from mishandling or excessive vibration during the appliance's operation.

Symptoms of a failing Clamp include:

• Leaks occurring under or around the dishwasher
• Unusual noises like rattling or banging from loose components
• Electrical malfunctions if wiring is dislodged
• Performance issues due to misplaced or pinched hoses

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dishwasher Motor to Sump Hose is an OEM replacement part for Whirlpool dishwashers. It is a flexible tube that connects the dishwasher's drain pump motor to the sump, allowing for the efficient drainage of water from the dishwasher tub.

Symptoms of a faulty motor to sump hose include:

• Water leaks around the hose connections or along its length
• Poor drainage or standing water in the dishwasher tub
• Visible cracks, bulges, or damage to the hose material

Causes of a bad motor to sump hose can range from normal wear and tear over time, exposure to high temperatures or chemicals, physical damage from kinks or pinches, or improper installation or connections.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dishwasher models.

The Arm-Spray is an OEM part for Whirlpool dishwashers. This component is responsible for distributing water throughout the dishwasher during the cleaning cycles. It rotates and sprays water to ensure that all dishes are thoroughly cleaned, reaching all corners of the dishwasher.

Causes of a bad arm-spray can include clogging from food particles or mineral deposits, damage from heavy items or utensils blocking its path, or wear and tear from regular use.

Symptoms of a bad arm-spray include:

• Poor cleaning performance with food residue left on dishes
• The spray arm not rotating properly
• Unusual noises during the wash cycle
• Water not reaching the upper racks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This diverter disc directs wash water to different spray zones during a cycle, helping ensure alternating spray patterns and thorough cleaning. A worn or damaged disc can cause poor wash performance or incorrect spray routing.

• Routes water from the sump to selected spray arms/zones
• Helps alternate spray to improve coverage and cleaning
• Worn discs may lead to weak spray, poor cleaning, or unusual cycle behavior
• Can contribute to water leaking at the diverter area if the seal interface is compromised

• Disconnect power and water before servicing
• Access is typically from the bottom; remove the toe kick and lower panel as needed
• Note the disc orientation in relation to the diverter mechanism during removal
• Inspect related components (diverter motor/shaft, seals, sump) and replace if worn

This air inlet damper controls cold-air flow from the freezer into the refrigerator compartment to help maintain proper fresh-food temperatures. Replacing a faulty damper restores balanced airflow and more consistent cooling. What it does:

• Regulates the amount of cold air entering the fresh-food section from the freezer.
• Opens and closes as the fridge cycles to maintain set temperatures.
• Commonly replaces stuck, broken, or noisy dampers that cause uneven cooling.
• Often used when the refrigerator is warm while the freezer remains cold or when temperatures fluctuate.

• Disconnect power to the appliance before starting any repair.
• Remove interior panels or grille per your model's service instructions to access the damper; keep screws and clips organized.
• Handle plastic fins and actuator gently to avoid damage; do not force the damper into position.
• Reconnect power and verify damper operation and temperature regulation after installation.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)
